Locate Model Numbers

Broan NuTone Customer Service
Dial: 1-800-558-1711
Hours: 7:30am-4:30pm CST/ 8:30am-5:30pm EST

IMPORTANT: About Broan and NuTone Model Numbers
Some Broan and NuTone model numbers have an alpha suffix.
Example: 41000-L.
It is important to refer to the exact model number with the alpha suffix when selecting parts, requesting service or speaking to a technical support representative regarding your Broan product.

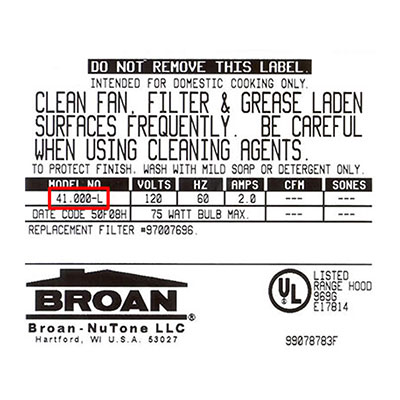

Broan Standard Under-Cabinet Range Hood

Broan Standard Under-Cabinet Range Hood


Label Placement
The model label is located either on the right or left side wall of the range hood canopy.

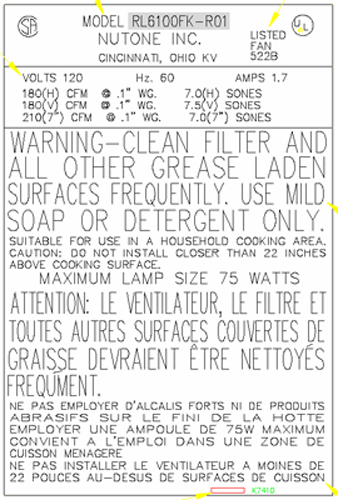

NuTone Standard Under-Cabinet Range Hood

NuTone Standard Under-Cabinet Range Hood


Label Placement
The model label is located either on the right or left side wall of the range hood canopy.

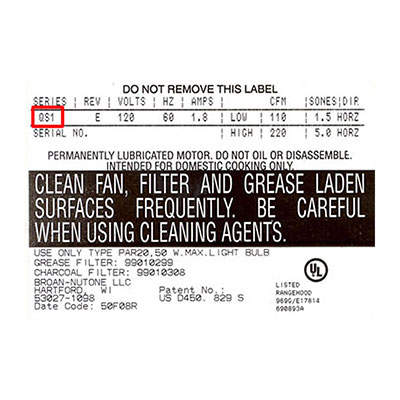

Broan Allure Under-Cabinet Range Hood

Broan Allure Under-Cabinet Range Hood


Label Placement
Remove range hood filters by pulling down on the filter tabs. The series number is located either on the back wall of the range hood housing or on the Teflon air pan. (Example...QS1, QS2 or QS3)

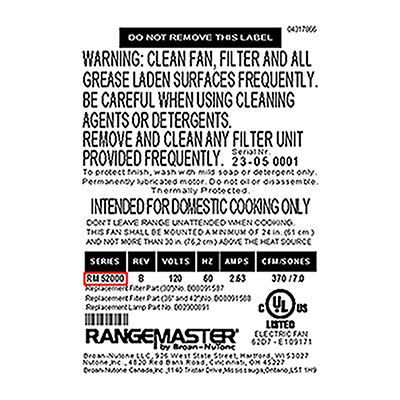

Broan Elite Fashion Style Chimney Range Hood

Broan Elite Fashion Style Chimney Range Hood


Label Placement
Remove range hood filters. The model label is located on the underside of the canopy behind the filters.

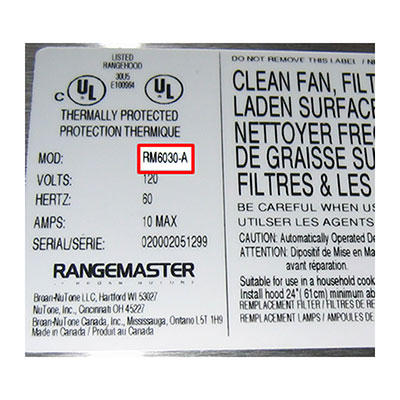

Broan Elite Professional Style Range Hood

Broan Elite Professional Style Range Hood


Label Placement
The model label is located on the inside of left wall of the range hood canopy. Filters may need to be removed to access the label.

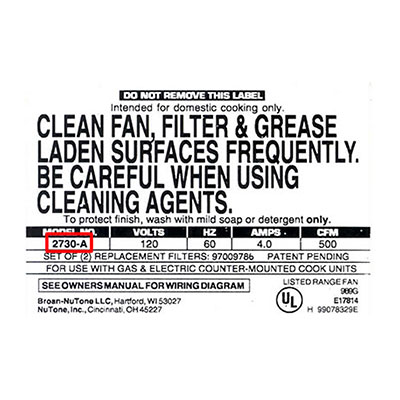

Broan Island Downdraft

Broan Island Downdraft


Label Placement
The model label is located on the front of unit beneath the cook top. Cabinet drawers or shelving may need to be removed to access label.

NuTone Island Downdraft

NuTone Island Downdraft


Label Placement
The model label is located on the front of unit beneath the cook top. Cabinet drawers or shelving may need to be removed to access label.

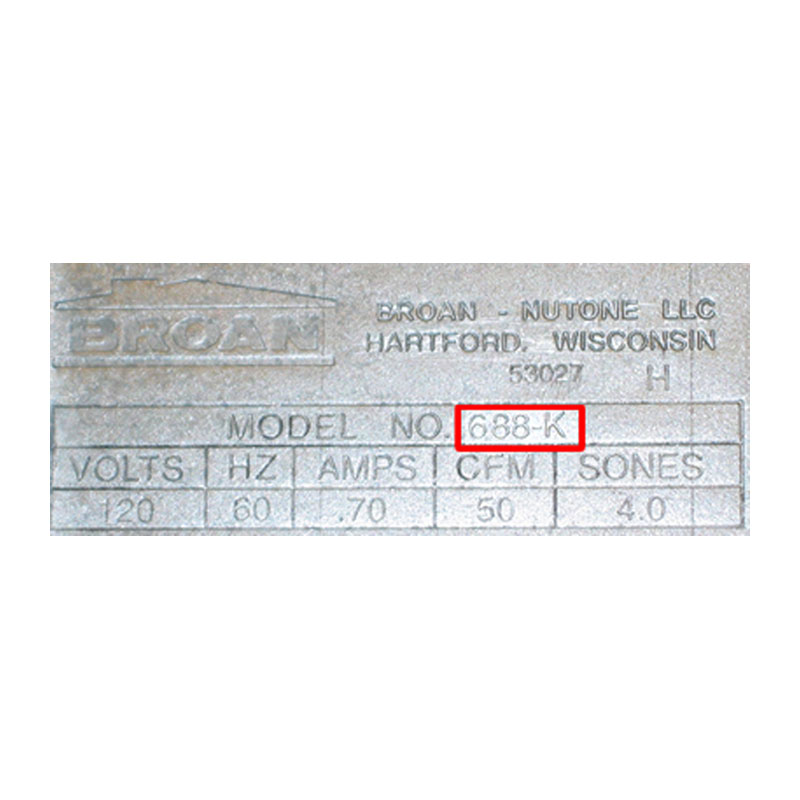

Broan Standard Bath Fan

Broan Standard Bath Fan


Label Placement
Remove the grille by pulling down 2 inches. Reach behind the grille and squeeze the mounting springs to remove the grille. The model label is located in the corner closest to the outlet. Some fans may have the model stamped into the motor plate instead of a printed sticker label.

NuTone Standard Bath Fan

NuTone Standard Bath Fan


Label Placement
Remove the grille by pulling down 2 inches. Reach behind the grille and squeeze the mounting springs to remove the grille. The model label is located in the corner closest to the outlet. Some fans may have the model stamped into the motor plate instead of a printed sticker label.

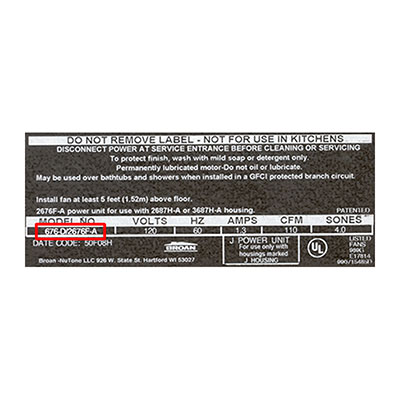

Broan Mid-Level Bath Fan

Broan Mid-Level Bath Fan


Label Placement
Remove the grille by pulling down 2 inches. Reach behind the grille and squeeze the mounting springs to remove the grille. The model label is located on the underside of the motor plate.

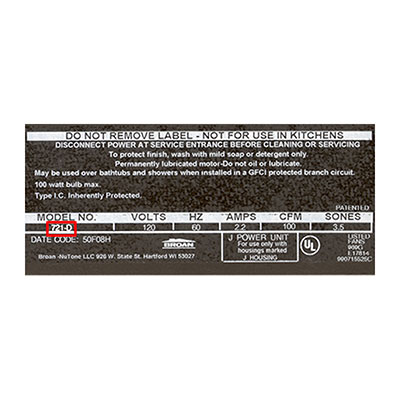

Broan Designer Style Bath Fan

Broan Designer Style Bath Fan


Label Placement
Remove the glass lens which is attached by two leaf springs. Use a small flat head screwdriver to carefully pry the glass lens from the grille. Screwdriver can be inserted into one of the small slots on the perimeter of the glass lens. To avoid scratching the surface of the grille the screwdriver can be wrapped in a thin cloth or tissue. Reach over lens and push in on springs to release. Grille is held by two screws along rim or a single nut in the center. The model label is located on the underside of the motor plate.

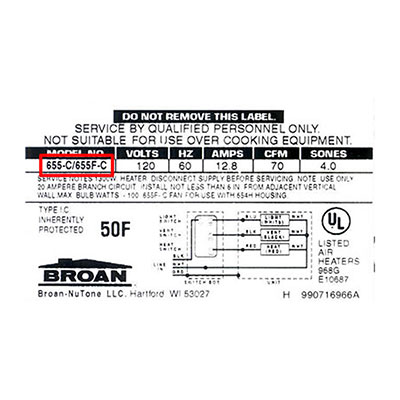

Broan Combination Heater Fan Light

Broan Combination Heater Fan Light


Label Placement
Remove light lens by pressing in on the sides and pulling down. Remove the light bulb. Remove the light reflector and grille by removing the center acorn nut. The model label is located on either the inside perimeter of housing or underside of motor plate.

NuTone Combination Heater Fan Light

NuTone Combination Heater Fan Light


Label Placement
Release the locking tabs on the lens. Remove the lens. Remove the reflector mounting screw. Remove the reflector and grille. The model number is located on the inside edge of the housing.

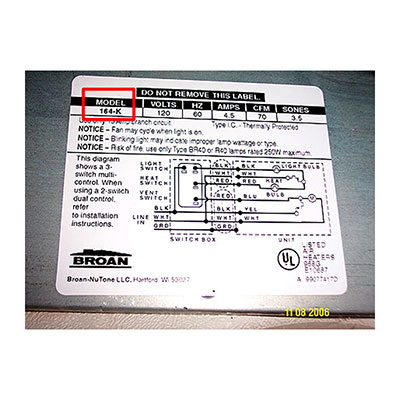

Broan Bulb Heater

Broan Bulb Heater


Label Placement
Remove the grille by unhooking the springs from the housing.  The model number can be found inside the housing on a specification label.

NuTone Bulb Heater

NuTone Bulb Heater


Label Placement
Remove the bulb(s) from the unit. Remove the springs from the hooks inside the rough-in box. The model number is located on the inside end of the rough-in box.

NuTone QuietTest Bath Fan

NuTone QuietTest Bath Fan


Label Placement
Remove the grille by pulling down 2 inches. Reach between the grille and ceiling and squeeze the mounting springs together. Pull springs out of slots in mounting plate. The model label is located on the power unit mounting plate.

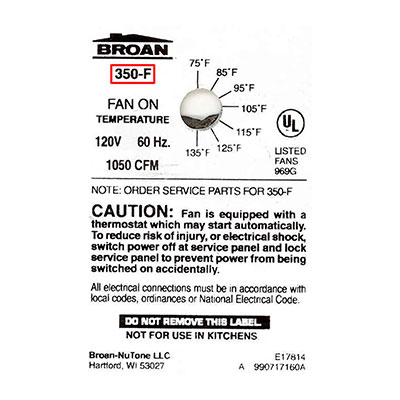

Broan Powered Attic Ventilators

Broan Powered Attic Ventilators


Label Placement
The model label is located on the cover of the wiring box which is visible from the attic.

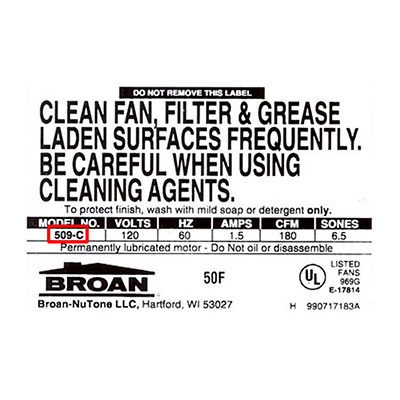

Broan Utility Ventilators

Broan Utility Ventilators


Label Placement
Removed the grille by a central knob or two screws. The model may be ceiling or wall mounted. The label is located on the inside perimeter of housing opposite wiring panel.

NuTone Whole House Ventilator

NuTone Whole House Ventilator


Label Placement
The data label is located on top corner of the unit housing.

NuTone Powered Attic Ventilators (PAVs)

NuTone Powered Attic Ventilators (PAVs)


Label Placement
The model label is located on the cover of the wiring box which is visible from the attic.

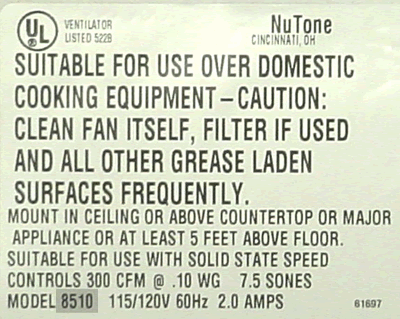

NuTone Utility Ventilators

NuTone Utility Ventilators


Label Placement
Remove the grille by a central knob or two screws. The model may be ceiling or wall mounted. The label is located on the inside perimeter of housing opposite wiring panel.

NuTone Central Vacuum – Power Head

NuTone Central Vacuum – Power Head


Label Placement
The model number is located on the bottom of the power head.

NuTone Central Vacuum – Power Unit

NuTone Central Vacuum – Power Unit


Label Placement
The model label is located on the side of the power unit.

NuTone Wired Door Chimes

NuTone Wired Door Chimes


Label Placement
The model number is located on the back of the chime cover. Remove the cover and look on the back side

NuTone Wireless Door Chimes

NuTone Wireless Door Chimes


Label Placement
The model number is located on the back of the chime.

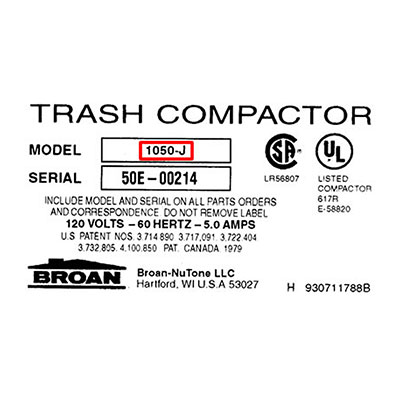

Broan Trash Compactors

Broan Trash Compactors


Label Placement
The model may be free standing or installed under cabinet. The label is located inside on the right wall of housing at the motor level, access through rear service panel if drawer cannot be removed.

All Broan 12" wide compactors use the same bags. Orders can be placed using Part #93620008 (12 pack).

All 15" wide units use Bag #15TCBL (12 pack).
