ULTRA GREEN™ Series

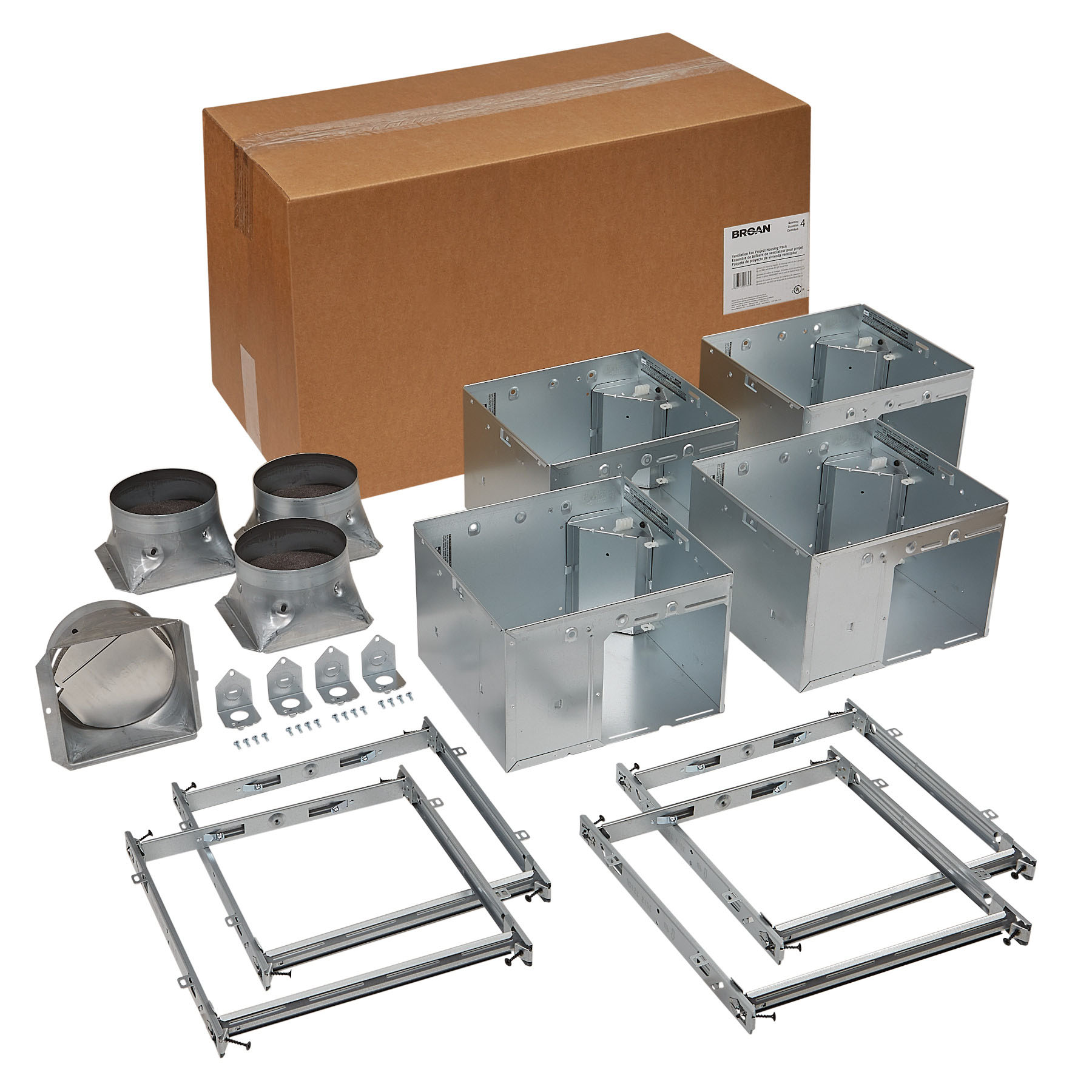

Broan® Exhaust Ventilation Fan Housing Pack, Use w/ ZB80F, ENERGY STAR®

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room.


Model:

ZB00H

Features

  • TrueSeal™ Damper Technology reduces the amount of air leakage in the housing
  • EzDuct™ Connector can be installed room-side with no attic access required
  • ULTRAQuick™ installation technology means faster retrofits and faster new construction installations
  • Unique telescoping mounting frame can be placed and fastened through drywall hole
  • ENERGY STAR® certified ventilation fan
  • UL listed and HVI-2100 Certified for safety
  • UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 100 sq. ft.
  • Corrosion resistant galvanized steel housing stands up to moisture

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

Duct Size 6
ENERGY STAR® certified Yes
Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
