Economy Series Project Packs

Broan® Housing Pack for 1671F, 1688F, E0F70, 696RNB and 695RB (damper and 4" plastic duct connector included)

Project packs are ideal for contractors and builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack (grilles and motor/blower wheels) can be made to add the finishing touches to the room. The 6884H housing pack consists of 18 housings with 4" duct connectors attached. Pair it with the 1688F, 1671F, E0F70, 696RNB or 696RB finish packs to create 4" ducted economy fans. Note: Three finish packs will need to be purchased to supplement one 6884H, as the finish packs come as 6-packs, and the 6884H is an 18-pack.


Model:

6884H

Features

  • 18 bath fan housings with 4" duct connectors attached
  • Galvanized steel housing provides durability
  • Purchase the 1688F finish pack to create a 50 CFM, 4.0 sone economy fan
  • Purchase the 1671F finish pack to create a 70 CFM, 6.0 sone economy fan
  • Purchase the E0F70 finish pack to create a 70 CFM, 4.0 sone economy fan
  • Purchase the 696RNB finish pack to create a 50 CFM, 4.0 sone NuTone economy fan
  • Purchase the 695RB finish pack to create a 70 CFM, 6.0 sone NuTone economy fan
  • Finish packs sold separately
  • UL Listed for use over the tub

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

Duct Size 4
ENERGY STAR® certified No

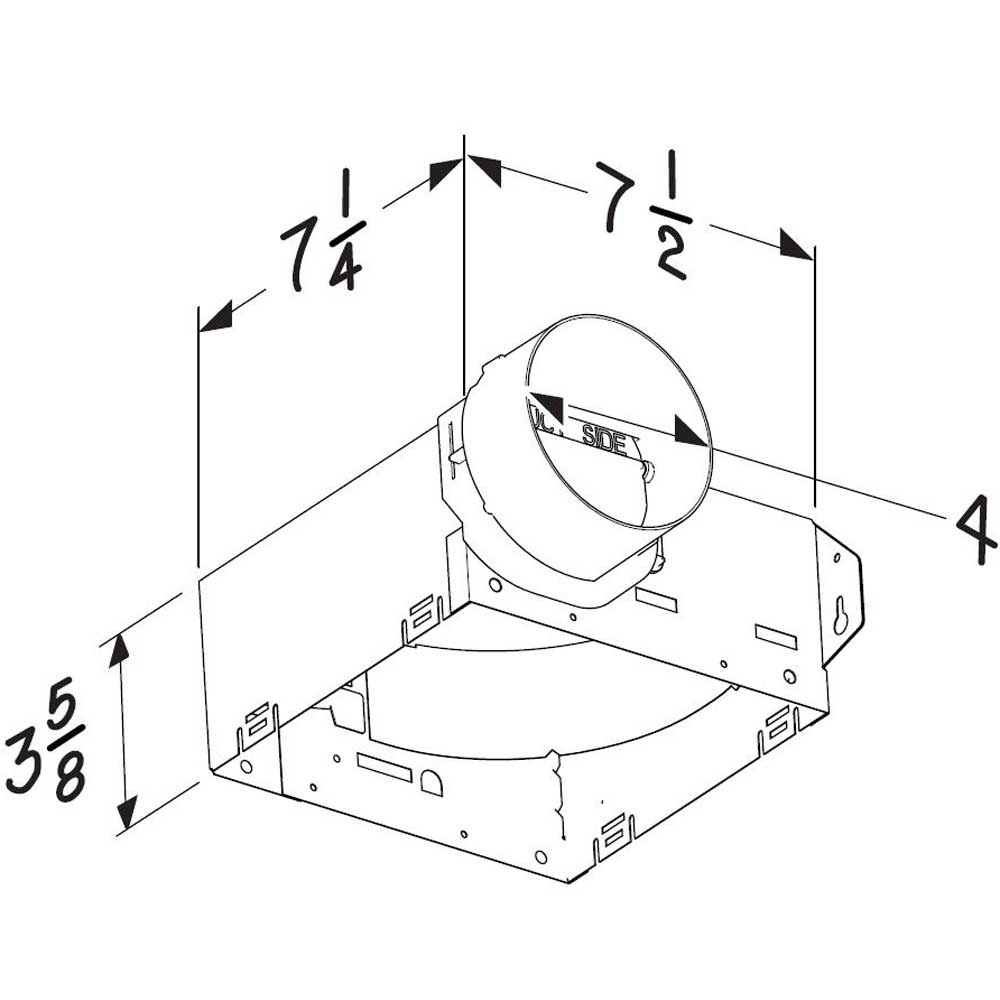

Housing Dimensions 7.25x7.5x3.625
UL Listed Yes
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 50
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 7.25x7.5x3.625
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
