Bath Fan Project Packs

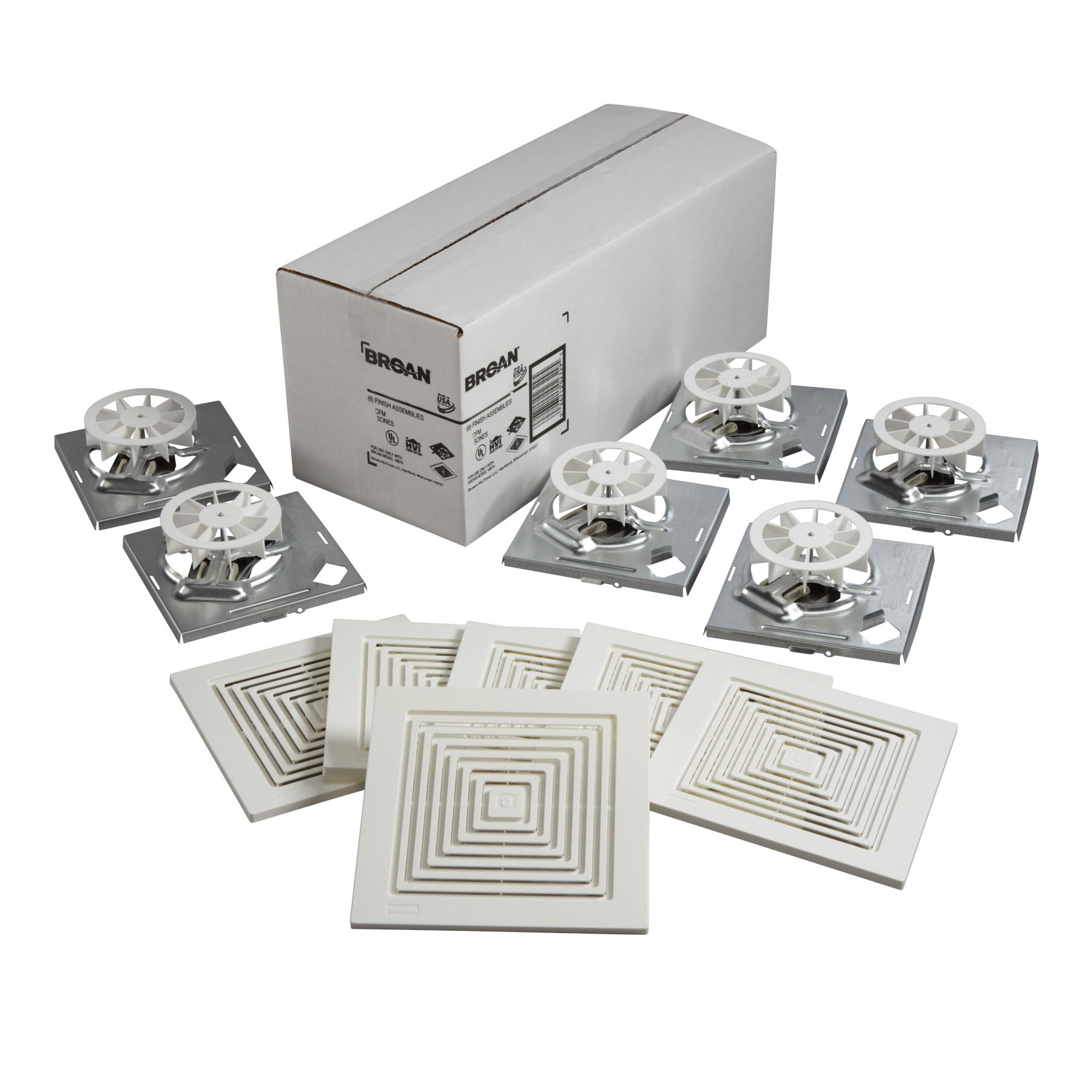

Broan® 70 CFM Bathroom Exhaust Ventilation Fan Finish Pack, 6.0 Sones

Project packs are ideal for Contractors and Builders who have yet to pick out the final product.   With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product.  Once all construction is complete, the purchase of a finish pack, with grilles and motor/blower wheels, can be made to add the finishing touches to the room.


Model:

1671F

Features

  • 70 CFM, sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 6.0 Audible Sones for privacy while using your bathroom
  • Can be mounted in the ceiling or wall
  • Housing packs sold separately
  • UL listed for use over tubs and showers
  • Powerful enough for rooms up to 65 sq. ft.

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Broan-NuTone® Steel Wall Cap for 3-Inch and 4-Inch Round Duct, Black

Broan-NuTone® Steel Wall Cap for 3-Inch and 4-Inch Round Duct, Black

Model:

885BL

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads

print

CFM 70
Color Finish
Duct Size 3
ENERGY STAR® certified No
Grille Length 9
Grille Width 9.25
Housing Dimensions 7-1/4" x 7-1/2" x 3-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 65
Rated Amps 1.15
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
