Economy Series Project Packs
Broan® Economy Series 70 CFM Ceiling/Wall Ventilation Fan Finish Pack, 4.0 sones

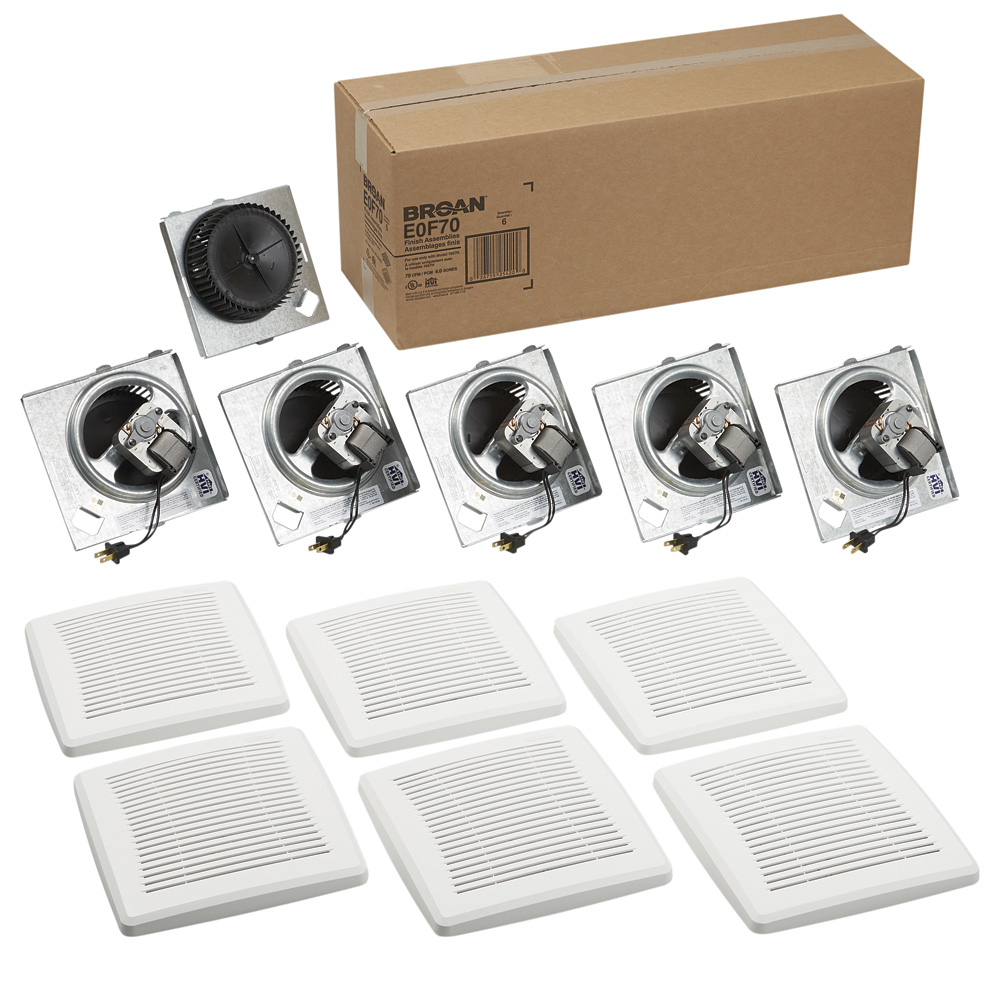

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 6 grilles and 6 motor/blower wheels, can be made to add the finishing touches to the room.
Model:
E0F70
Housing Packs Compatible to this Finish Pack
Features
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 Audible Sones for privacy while using your bathroom
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts
- Torsion spring grille mounting
- cUL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
- Powerful enough for rooms up to 65 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Housing and Finish packs sold separately
Suggested Installation Accessories
| CFM | 70 |
|---|---|
| Color Finish |
|
| Duct Size | 3 |
| ENERGY STAR® certified | No |
| Grille Length | 9.25 |
| Grille Width | 9.75 |
| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 1.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 year |
| High Efficiency Luminaire | No |
