Product Discontinued
ULTRA GREEN™ Series
ULTRA GREEN ZB Series 110 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with LED Light, ENERGY STAR® certified
Model:
ZB110L1
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3 Sones for Ultra quiet performance, you might not notice it's on
- Bright 3000K energy efficient LED lighting to help illuminate your room
- ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
- Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation
- Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
- ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
- Title 24 compliant
- Powerful enough for rooms up to 100 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Rugged, 26-Gauge galvanized steel housing stands up to moisture
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Suggested Installation Accessories
Radiation Dampers and Extension Compatible with this Model
- Specs
- Downloads
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13.75 |
| Grille Width | 14.25 |

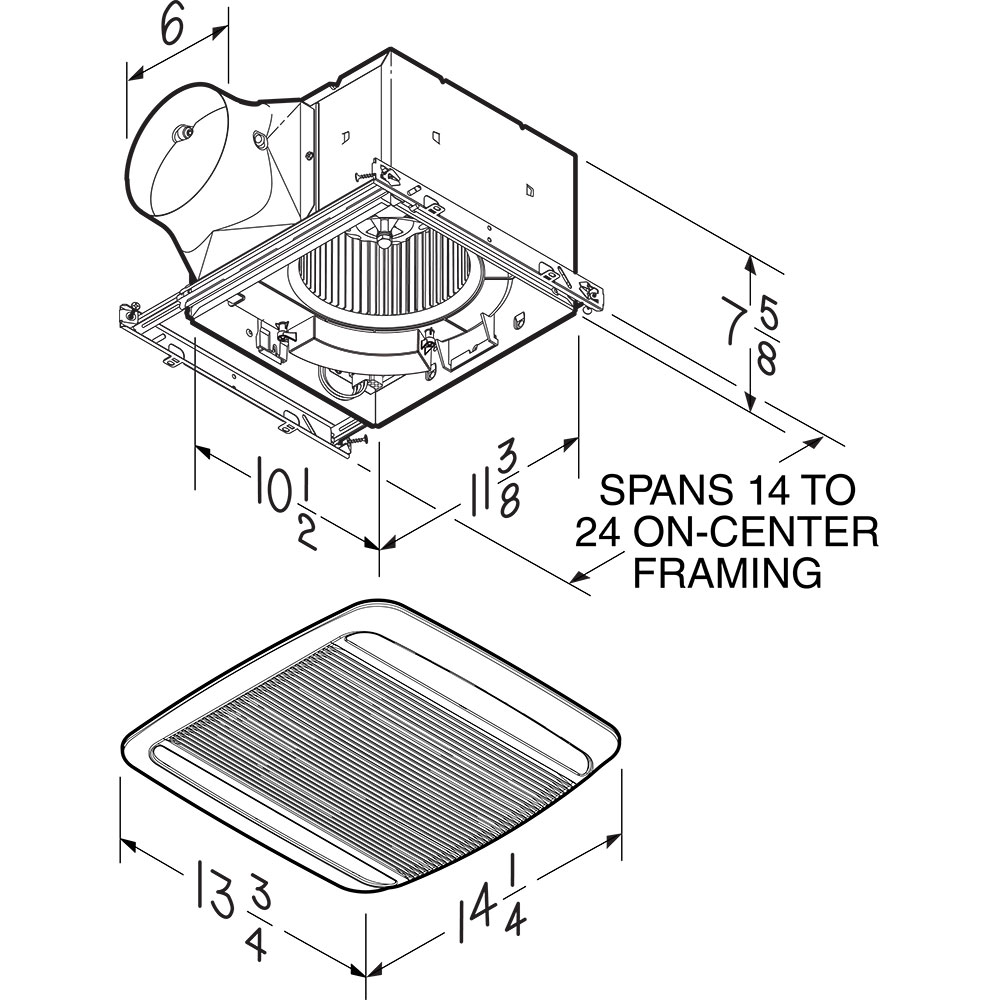

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | Yes |
| Minimum Recommended Flow | 30 |
