ULTRA GREEN™ Series

Broan® 80 CFM Ventilation Fan, ENERGY STAR®

Broan®'s XB80 ULTRA GREEN™ Series 80 CFM Ceiling Bathroom Exhaust Fan delivers everything you wished for in a bath fan. Premium ventilation helps reduce airborne pollutants. It has extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for spot ventilation in humid bathrooms. They also work well providing continuous ventilation to meet various building codes and Green Building standards around the United States.


Model:

XB80

Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3 Sones for Ultra quiet performance, you might not notice it's on
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
  • Powerful enough for rooms up to 75 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
  • Specs
  • Downloads

print

CFM 80
Color Finish
Duct Size 6
ENERGY STAR® certified Yes
Grille Length 13
Grille Width 13.75

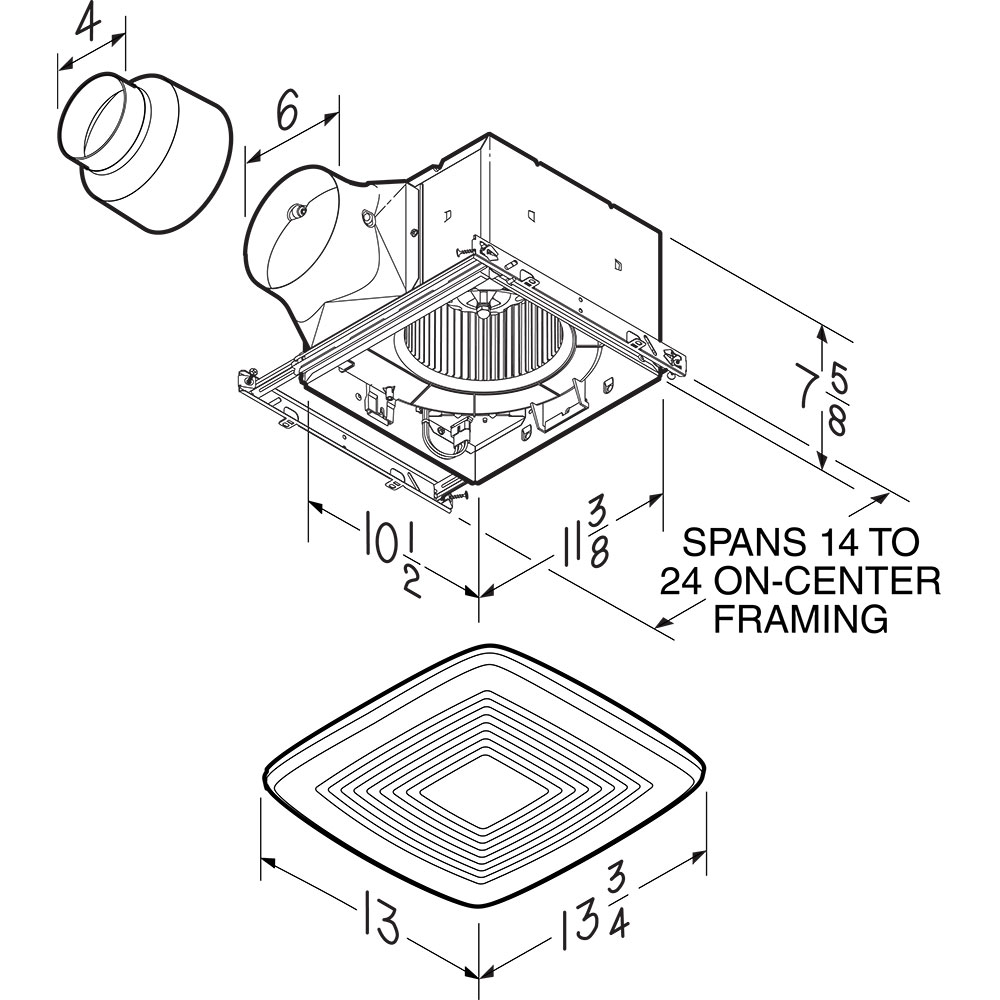

Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
Sones 0.3
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 Yes
Globe Lens Color
Globe Material
Bulb (Recommended Type)
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
