ULTRA GREEN™ Series
ULTRA GREEN XB Series 110 CFM Ceiling Bathroom Exhaust Fan with LED Light, ENERGY STAR® certified
Enjoy fast, easy installation with the Broan® XB110L1 ULTRA GREEN™ 110 CFM Ceiling Exhaust Bath Fan with LED Light. Now you can experience outstanding ventilating power that will quickly clear annoying steam and help prevent mold and mildew. Combine this with extremely quiet operation and energy efficiency in a product that can be retrofit installed entirely from the room-side, creating a relaxing, comfortable bathroom environment. This ENERGY STAR® fan includes dimmable LED lighting to keep your bathroom illuminated whenever you need.
Model:
XB110L1
$292.00
retailer prices may vary
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3 Sones for Ultra quiet performance, you might not notice it's on
- Bright 3000K energy efficient LED lighting to help illuminate your room
- ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
- Snap-in housing, snap-in blower, and an inside-out duct connector for the fastest, easiest, most universal installation
- Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
- ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
- Title 24 compliant
- Powerful enough for rooms up to 100 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Suggested Installation Accessories
Radiation Dampers and Extension Compatible with this Model
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13.75 |
| Grille Width | 14.25 |

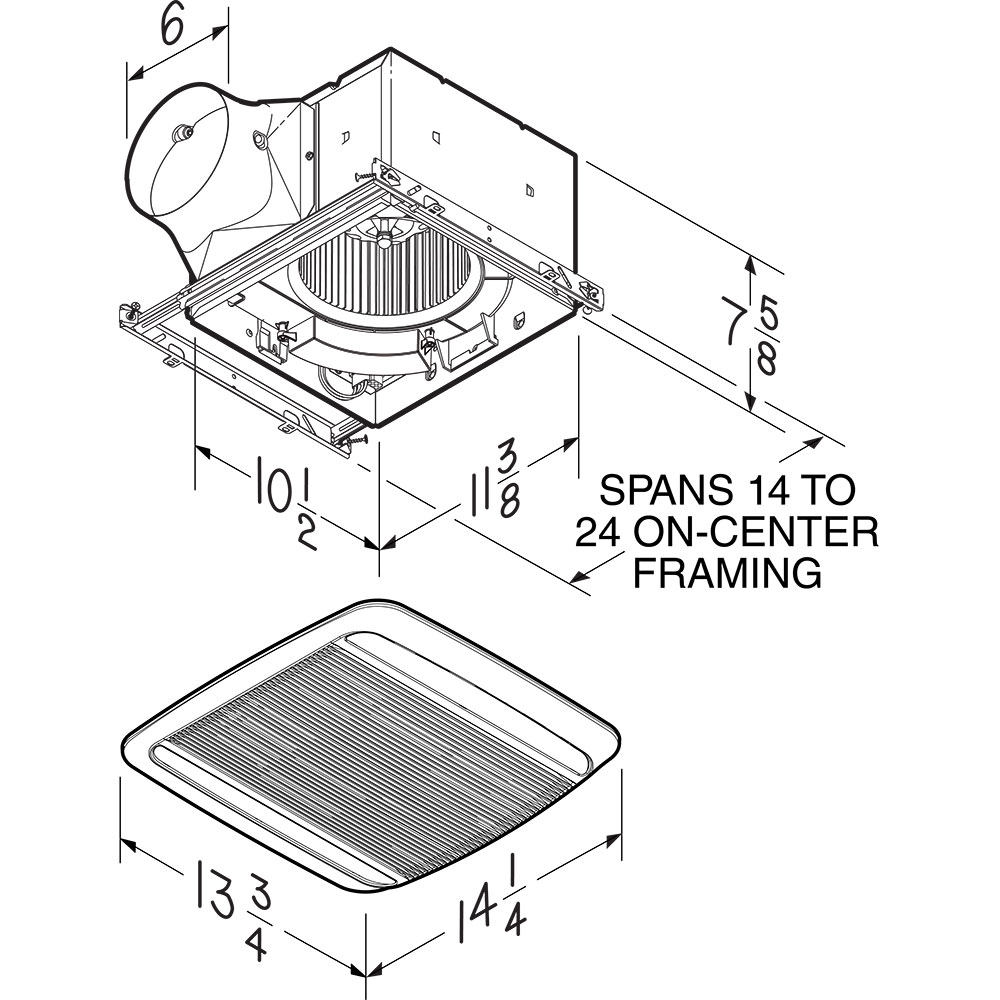

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | Yes |
| Minimum Recommended Flow | 0 |
