Broan® QT DC™ Series

Broan® Integrated LED Finish Pack, 110-130-150 Selectable CFM, ENERGY STAR®

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The QT DC Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor. With selectable CFM of 110-130-150, and a quiet operation of <0.3-0.4-0.7, the QT DC fan is suitable for all construction needs.


Model:

QTXE110150DCLF

Features

  • Selectable CFM with speeds of 110-130-150
  • <0.3-0.4-0.7 sones for ultra quiet performance, you might not notice it's on
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Hanger bars to position housing anywhere on center joists
  • Unique patented spacers for mounting to engineered "I" joists
  • ENERGY STAR® Certified
  • UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation

Suggested Installation Accessories

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Broan-NuTone® Steel Roof Cap for 6-Inch Round Duct with Backdraft Damper and Bird Screen, Black

Model:

634M

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Broan-NuTone® Wall Cap, Steel, Black, 6-Inch Round Duct

Model:

843BL

Flex Duct 6-Inch Insulated (25 ft.)

Flex Duct 6-Inch Insulated (25 ft.)

Model:

DT6W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

Product Selected ENERGY STAR® Most Efficient 2020

Product Selected ENERGY STAR® Most Efficient 2020

Products that are recognized as the Most Efficient of ENERGY STAR in 2020 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

See Product List
  • Specs
  • Downloads

print

CFM 110-130-150
Color Finish
Duct Size 6
ENERGY STAR® certified Yes

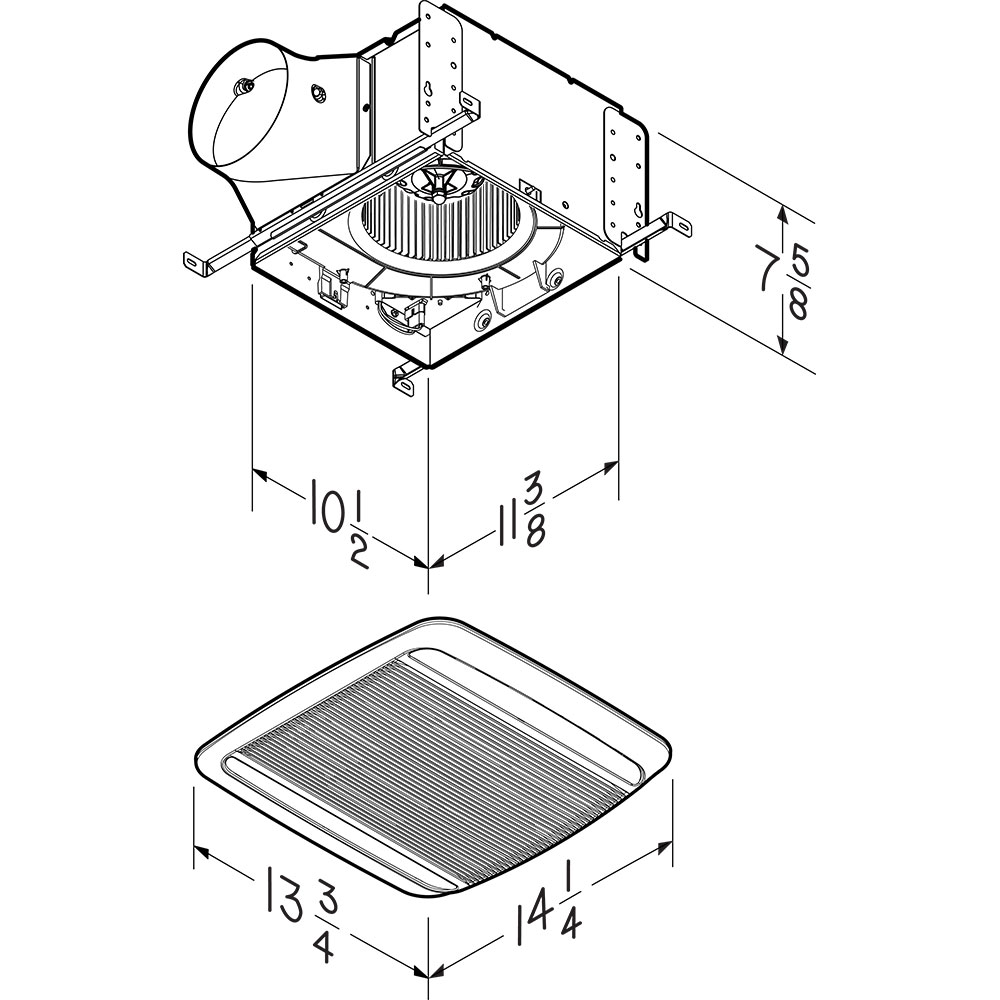

Grille Length 13.75
Grille Width 14.25
Housing Dimensions 10-1/2" x 11-3/8" x 7-5/8"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 8"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
