Broan® QT DC™ Series
Broan® Exhaust Ventilation Finish Pack, 110-130-150 Selectable CFM, ENERGY STAR®
Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The QT DC Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor. With selectable CFM of 110-130-150, and a quiet operation of <0.3-0.4-0.7, the QT DC fan is suitable for all construction needs.
Model:
QTXE110150DCF
QTXEDCH
Housing Pack Compatible to this Finish Pack
This Housing Pack is compatible with this finish pack. A housing pack, with grilles and motor/blower wheels, completes the installation and adds the finishing touches to the room.
learn moreFeatures
- Selectable CFM with speeds of 110-130-150
- <0.3-0.4-0.7 sones for ultra quiet performance, you might not notice it's on
- Housing and finish packs sold separately
- Hanger bars to position housing anywhere on center joists
- Unique patented spacers for mounting to engineered "I" joists
- ENERGY STAR® Certified
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit

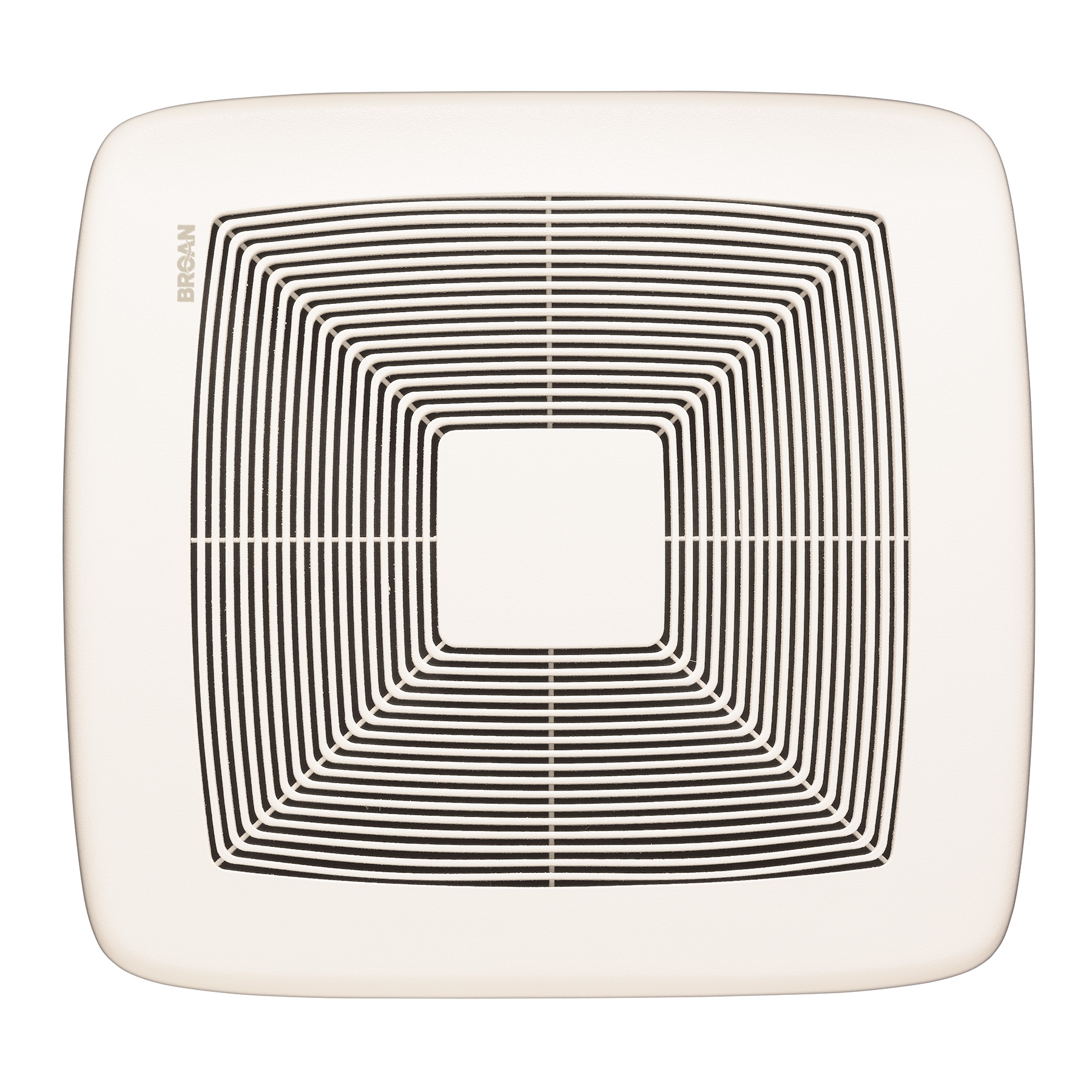

- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Suggested Installation Accessories
Radiation Damper Compatible with this Model
Product Selected ENERGY STAR® Most Efficient 2022
Products that are recognized as the Most Efficient of ENERGY STAR in 2022 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency
See Product List| CFM | 110-130-150 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |

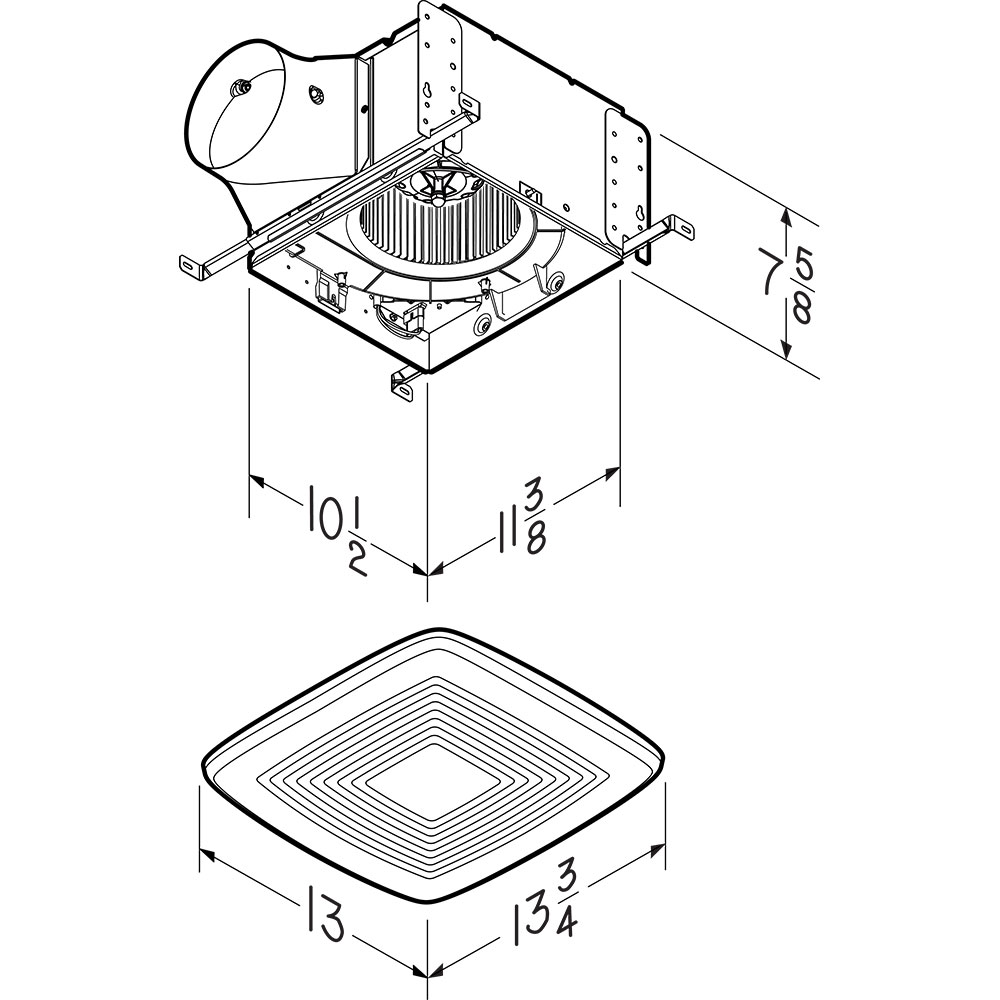

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
