QT™ Series
Broan® 130 CFM Ventilation Fan, ENERGY STAR®
The Broan® QT Series Quiet 130 CFM Ceiling Exhaust Bath Fan, ENERGY STAR® Certified features a quiet motor design intended to operate at just 1.5 sones, as well as galvanized steel housing material. This fan is UL Listed and HVI certified, and is compliant with ENERGY STAR® standards to help maximize energy efficiency. Use it in bathrooms up to 125 sq. ft. in size.
Model:
QT130E
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- 130 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms.
- 1.5 Sones for Quiet performance, enough sound to know your fan is on.
- Motor engineered for continuous operation
- Fits in 2" x 8" ceiling construction
- Includes unique spacer for easy "I" joist mounting
- 6" duct connector with 6" to 4" reducer included
- ENERGY STAR® Certified
- U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
- Powerful enough for rooms up to 125 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
Suggested Installation Accessories
Radiation Dampers Compatible with this Model
| CFM | 130 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |

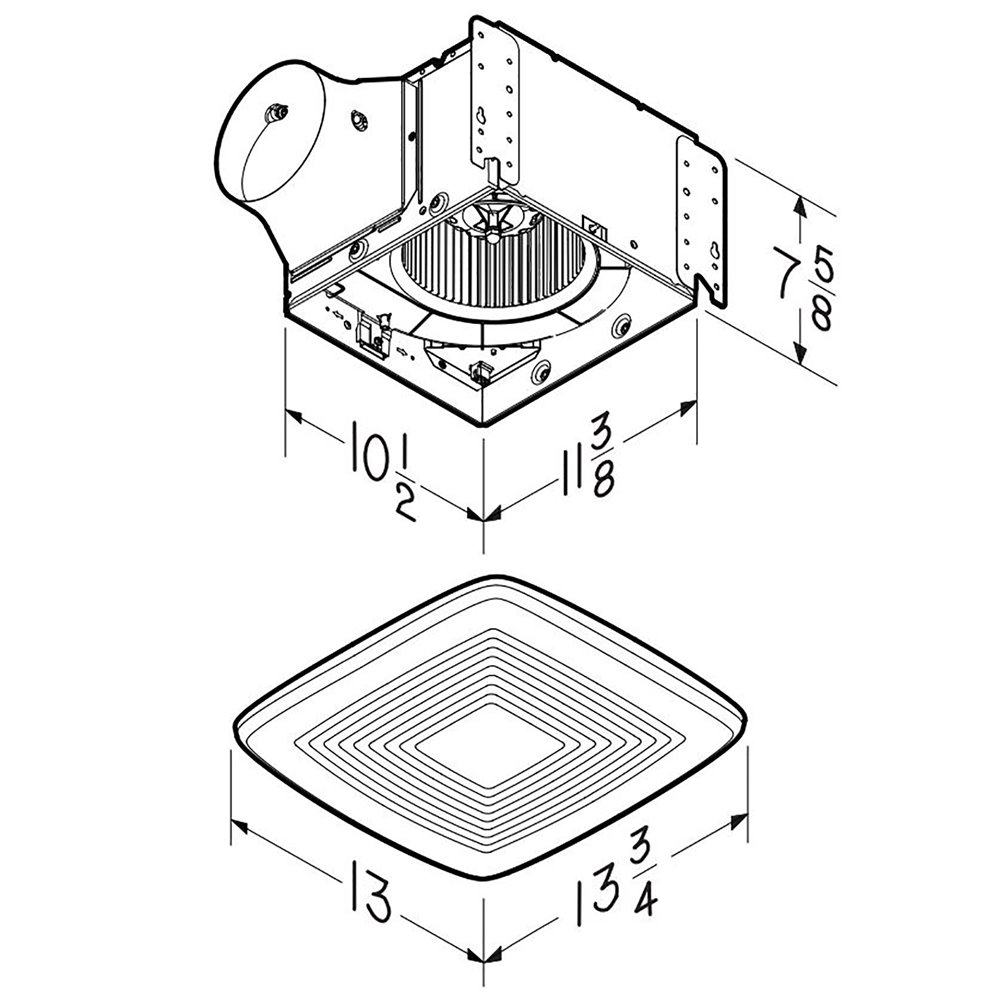

| Housing Dimensions | 10-1/2" X 11-3/8" X 7-5/8" |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 125 |
| Rated Amps | 0.7 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
