Economy Series

NuTone® 80 CFM Ventilation Fan with Interchangeable Bulb

The NuTone® HB80RL ventilation fan with light features a square lens surrounded by a decorative white grille that coordinates with the most popular ceiling white paints. With the standard E26 light socket, consumers are given the flexibility to choose an A19 bulb that works best for the room and lighting preference. With a powerful CFM of 80, the fan effectively clears the air of humidity, odor and airborne particulates and helps prevent mold and mildew.




retailer prices may vary


Compatible with Overture™ Connected IAQ System

Compatible with Overture™ Connected IAQ System

UL Listed

UL Listed

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 2.5 Sones for Quiet performance, enough sound to know your fan is on.
  • Sturdy light-diffusing lens accepts up to 100W incandescent lamp. (Bulb not included)
  • Fan and light can be wired to operate together or independently
  • Compact housing for versatile installation
  • UL listed for use in insulated ceilings (Type IC)
  • UL listed for use over bathtubs or showers when connected to a GFCI circuit
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Specs
  • Downloads


CFM 80
Color Finish
Duct Size 4
ENERGY STAR® certified No
Grille Length 12
Grille Width 10.75

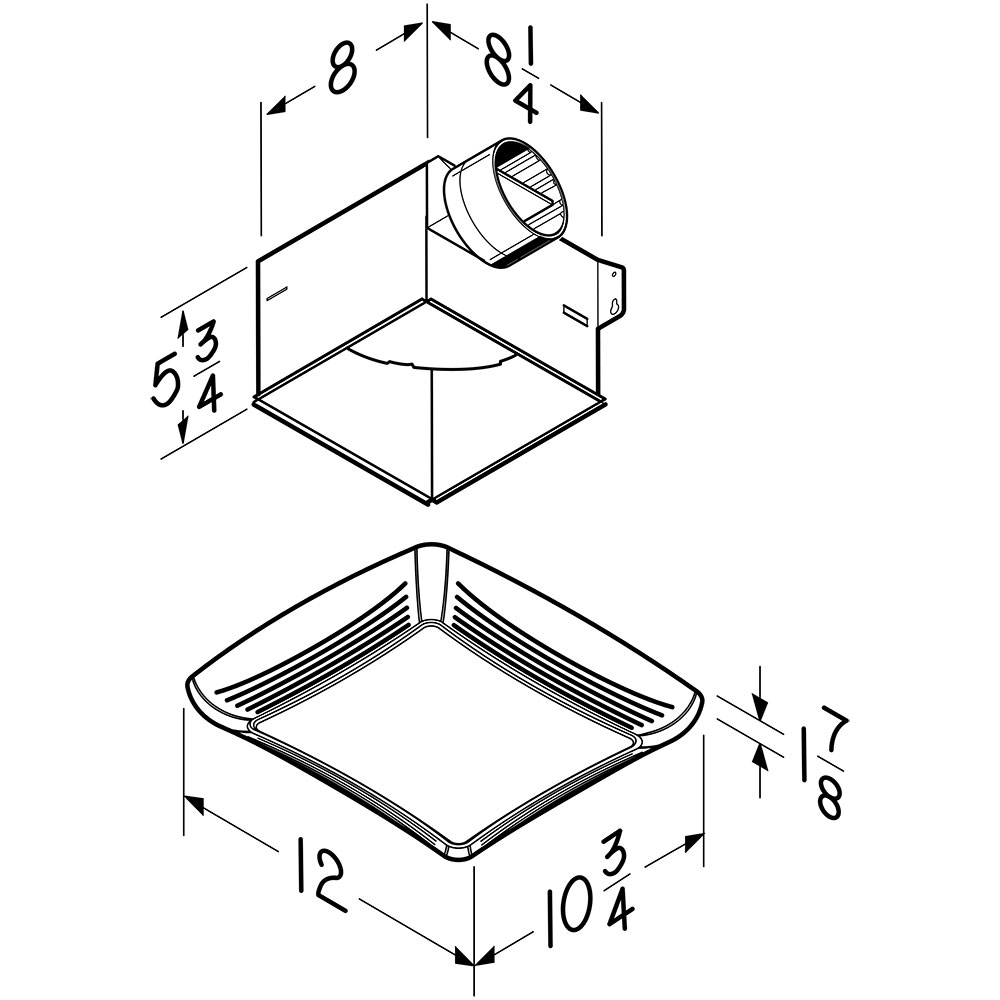

Housing Dimensions 8-1/4" x 8" x 5-3/4"
Sound Level (Sones) 2.5
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 1.5
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) LED or Incandescent
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
