NuTone® Roomside Series
NuTone® Roomside Series 80 CFM 0.7 Sones Ventilation Fan with CleanCover™ ENERGY STAR®
The NuTone® Roomside Series Ventilation fan with CleanCover grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.
Model:
AERN80K
$98.00
retailer prices may vary
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for Ultra quiet performance, you might not notice it's on
- CleanCover grille stays cleaner longer with fewer vent slots to collect dust
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ damper technology reduces air leakage up to 50%
- SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR certified, Title 24 compliant
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint

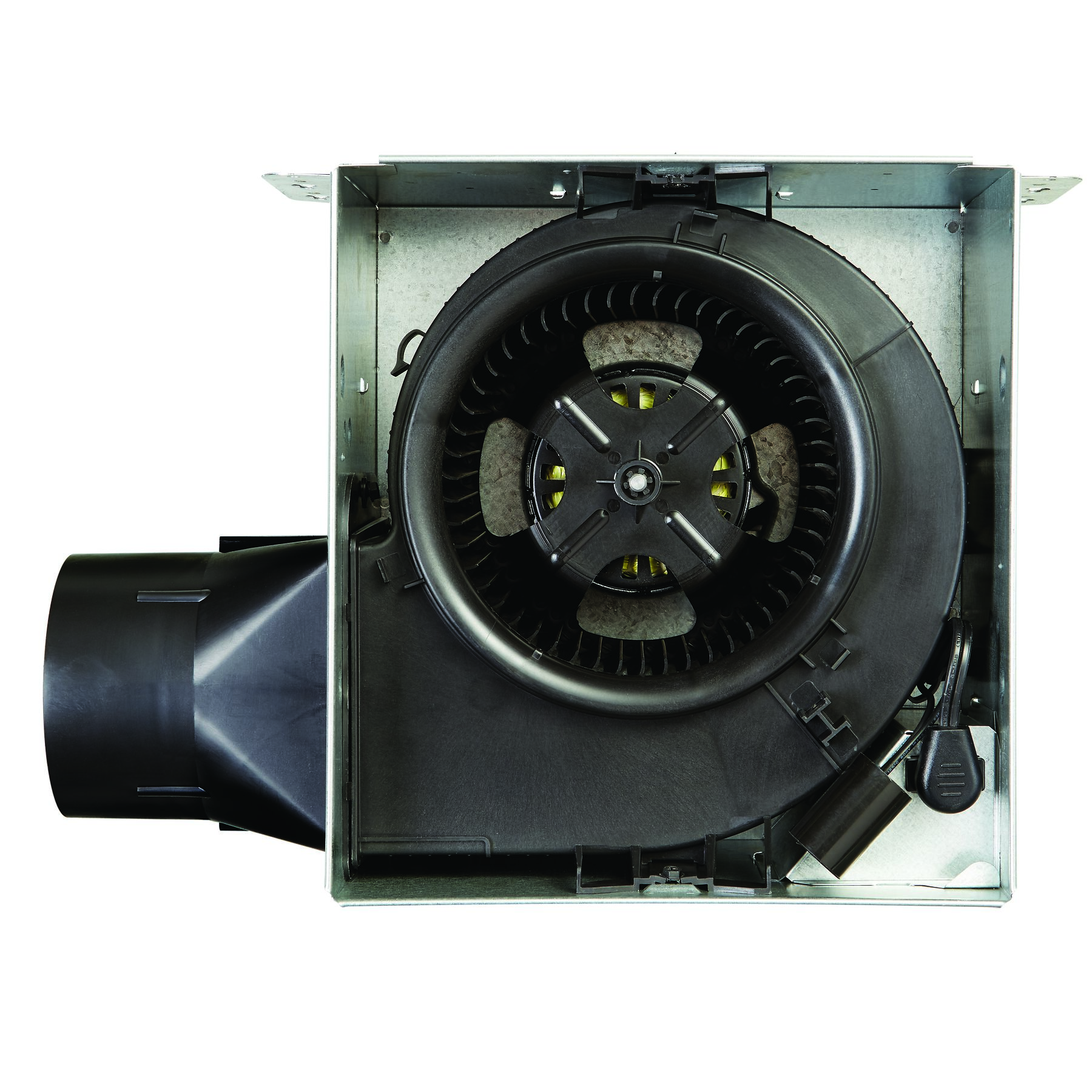

- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
- TrueSeal™ damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- Comparable to Broan Model AE80K
No Cutting or Patching Drywall
Upgrade This Broan-NuTone Ventilation Fan
Broan® Universal CleanCover™ Bathroom Exhaust Fan Upgrade Grille/Cover. This fresh, stylish grille is designed to fit small, medium and large size Broan® and NuTone® ventilation fans. It has a crisp, bright white finish to match the most popular white ceiling paint colors.
Buy NowSuggested Installation Accessories
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 12.25 |
| Grille Width | 12.25 |

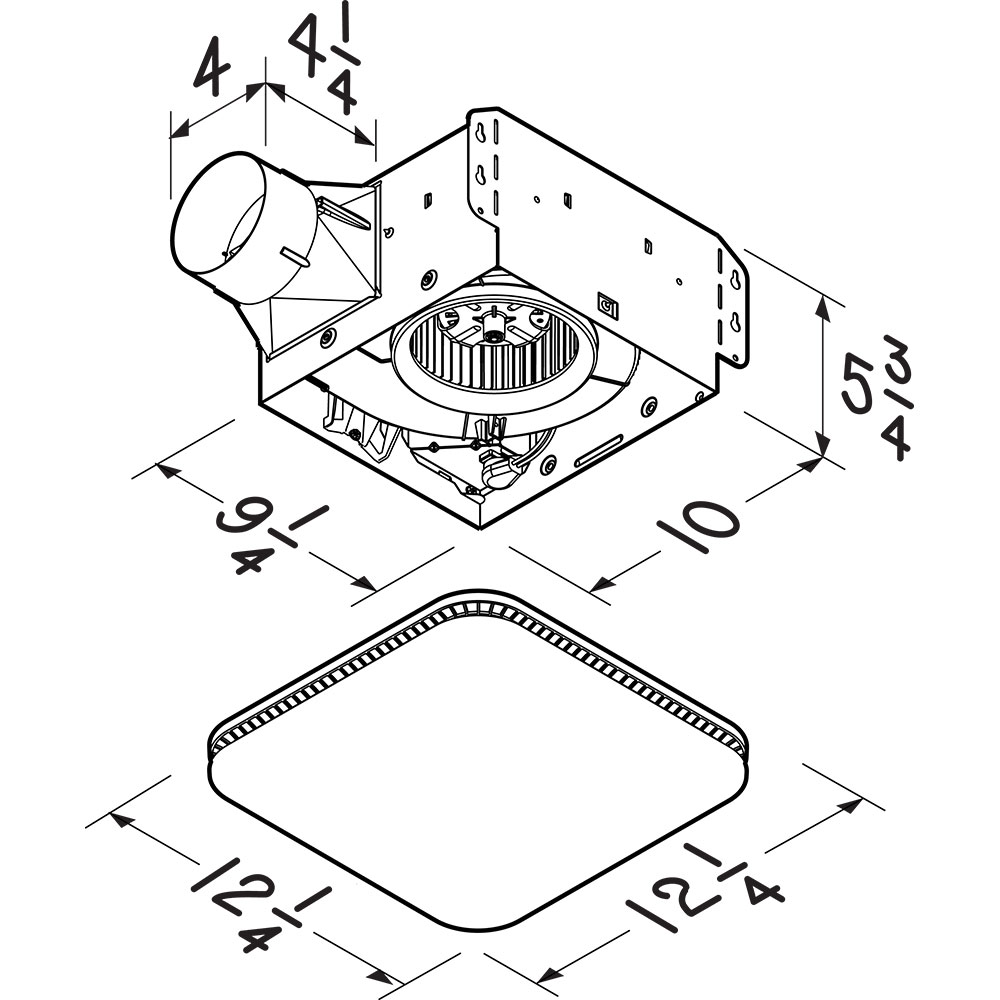

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
