Coming Soon
Flex SeriesTM
Flex Series™ ventilation Fan with selectable CFM

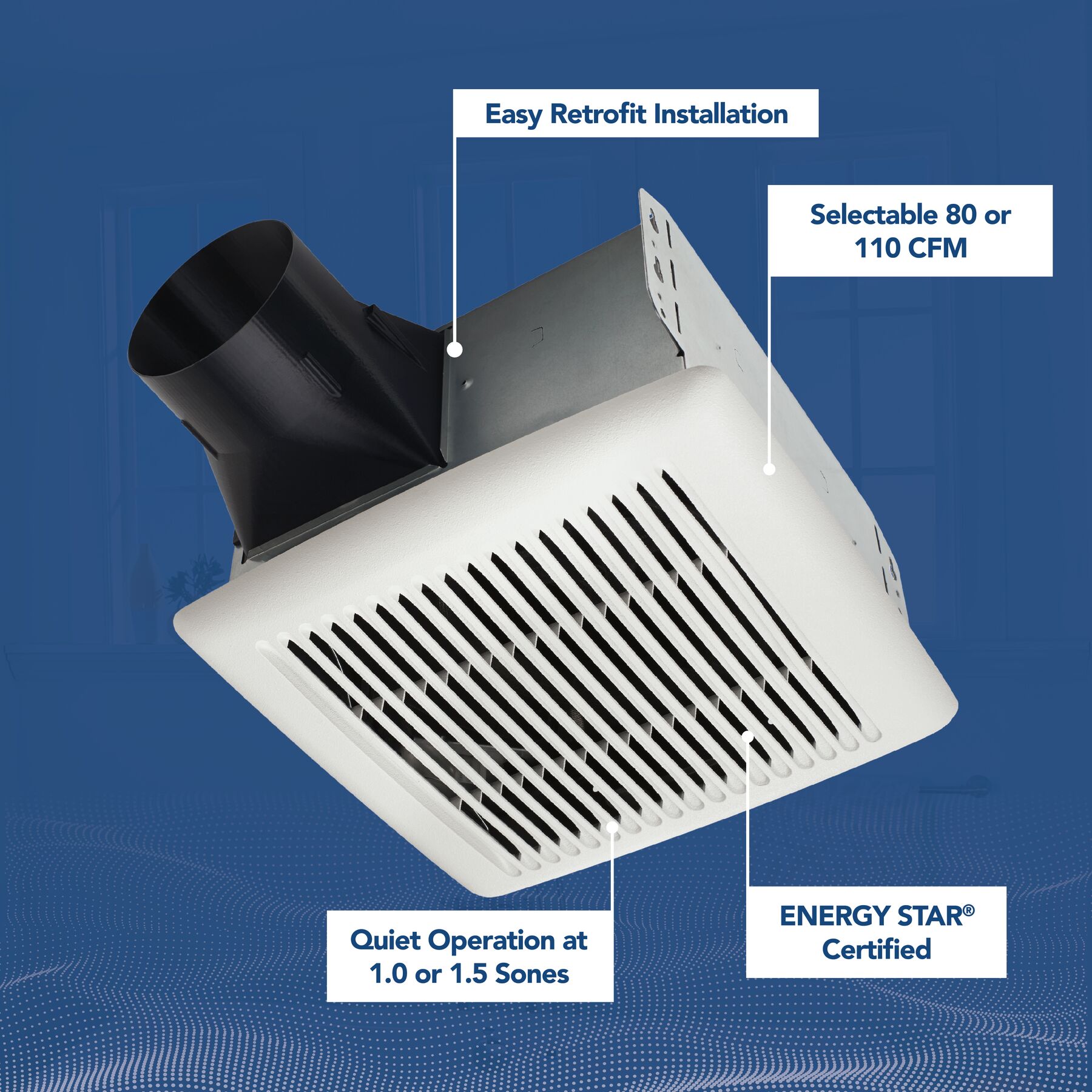

Enjoy easy exhaust bath fan installation with the Flex Series™ selectable 80/110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR®. Room side installation eliminates the need for Attic Access. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct™ connector for a fast and simple installation. Operating capabilities allows the user to easily adjust between 80/110 CFM while offering a quiet 1.0/1.5 sones for a smooth run.

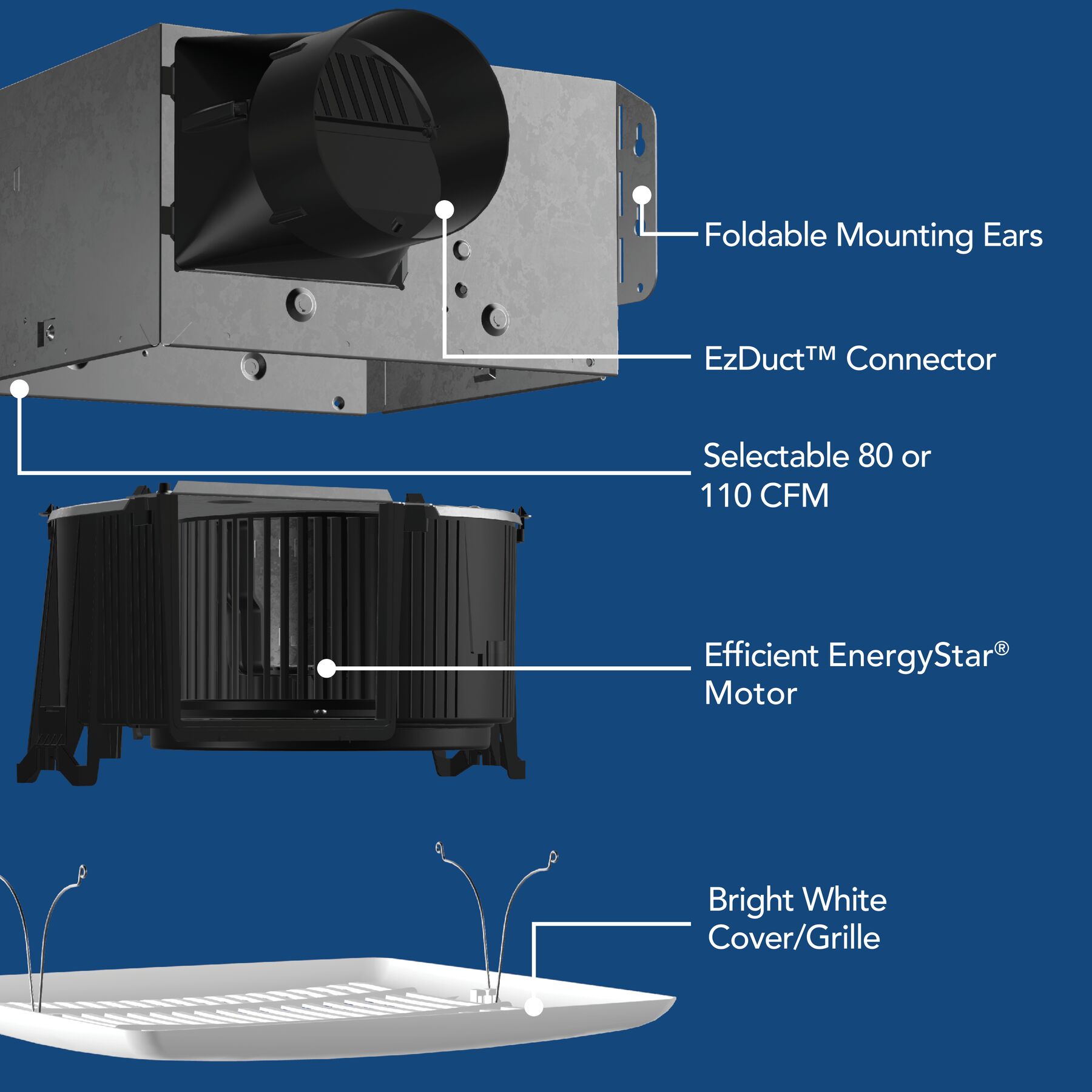

Model:
PEN811
Features
- Selectable energy efficient fan to help control air quality
- Powerful enough for rooms (including bathroom) up to 140 sq. ft.

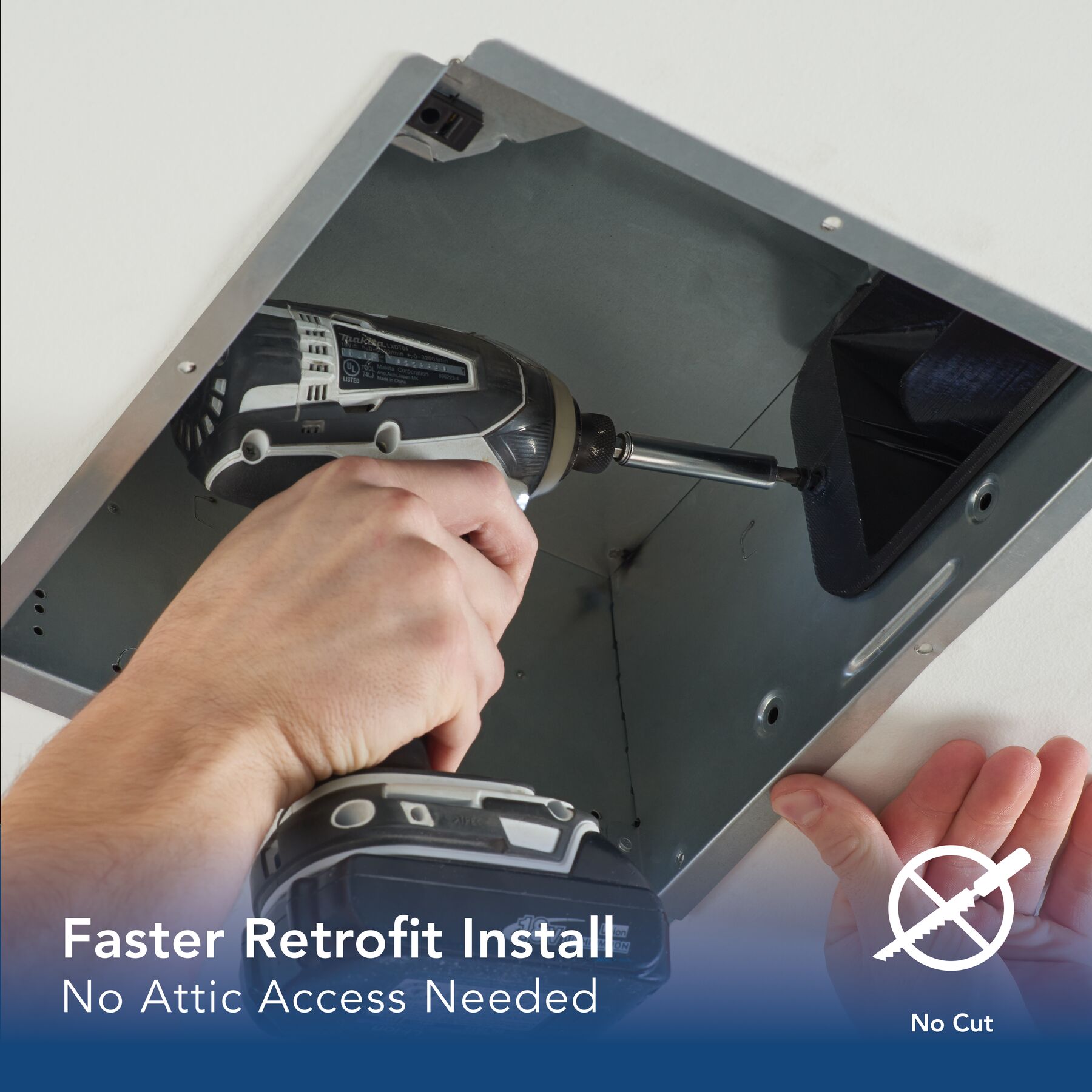

- Easy installation from the room side, which makes it possible to retrofit to spaces with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- TrueSeal damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
- Energy Star Certified
CFM | 80-110 |
---|---|
Color Finish |
|
Duct Size | 4" |
ENERGY STAR® certified | Yes |

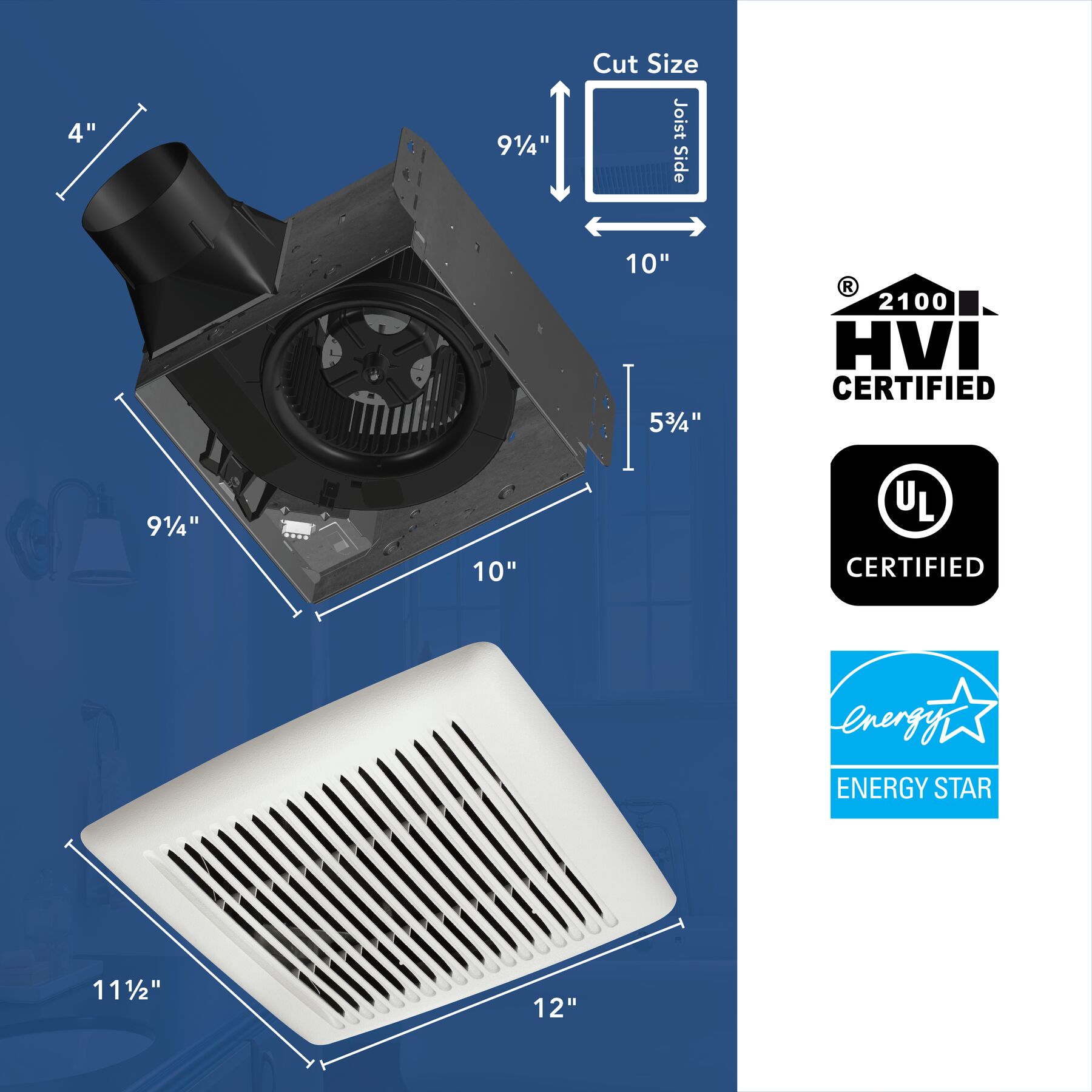

Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Sound Level (Sones) | 1.0-1.5 |
UL Listed | Yes |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | No |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Recommended Room Size (Sq Ft) | 60-99sq and 100 and above |
Rated Amps | 0.3 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | Yes |
Minimum Construction Space Required | 2x6 |
Manufacturer Warranty | 5 Years |
High Efficiency Luminaire | No |
