Bath Fan Project Packs

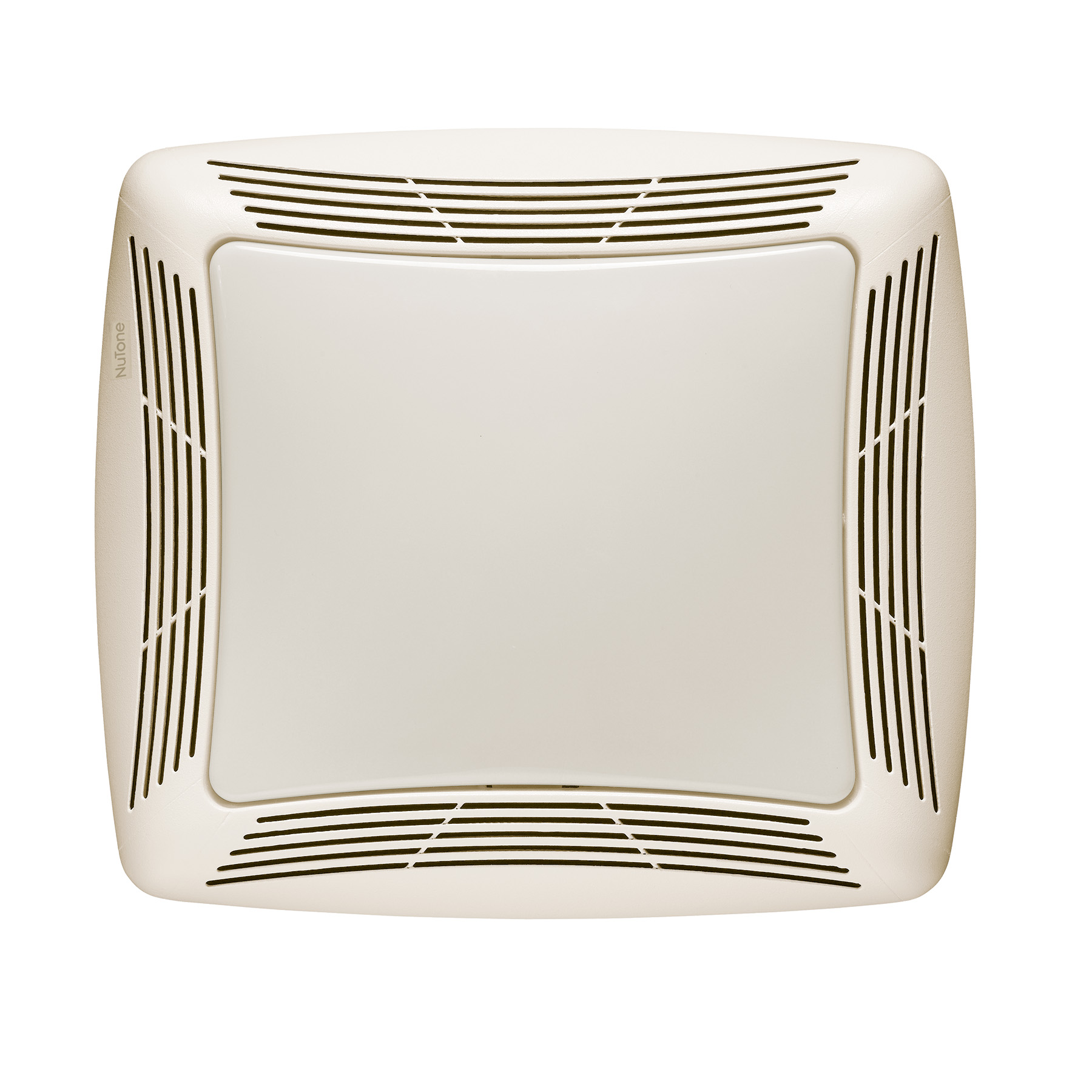

**DISCONTINUED** NuTone® 50 CFM Ventilation Fan/Light with Transparent Polymeric Lens & Resin Grille Finish (2-Pk)
763H
Housing Pack Compatible to this Finish Pack
This Housing Pack is compatible with this finish pack. A housing pack, with grilles and motor/blower wheels, completes the installation and adds the finishing touches to the room.
learn moreFeatures
- 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 2.5 Sones for Quiet performance, enough sound to know your fan is on.
- Up to 100-watt incandescent A19 bulb (not included) provides ample lighting so you can complete your tasks
- 4" duct connector for installation flexibility
- May be wired for simultaneous or separate fan light operation providing you the choice of fan, light, or both
- UL Listed for use over tub or shower with a GFCI circuit; that means you can optimize ventilation effectiveness by locating your fan exactly where you need it the most
- Powerful enough for rooms up to 45 sq. ft.
- Translucent white polymeric lens is surrounded by an engineered white resin grille which blends nicely with your ceiling and any decor (12" x 10-3/4")
- For use with NuTone® 763H fan Housing Packs to complete the installation
Suggested Installation Accessories
- Specs
- Downloads
CFM | 50 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | No |

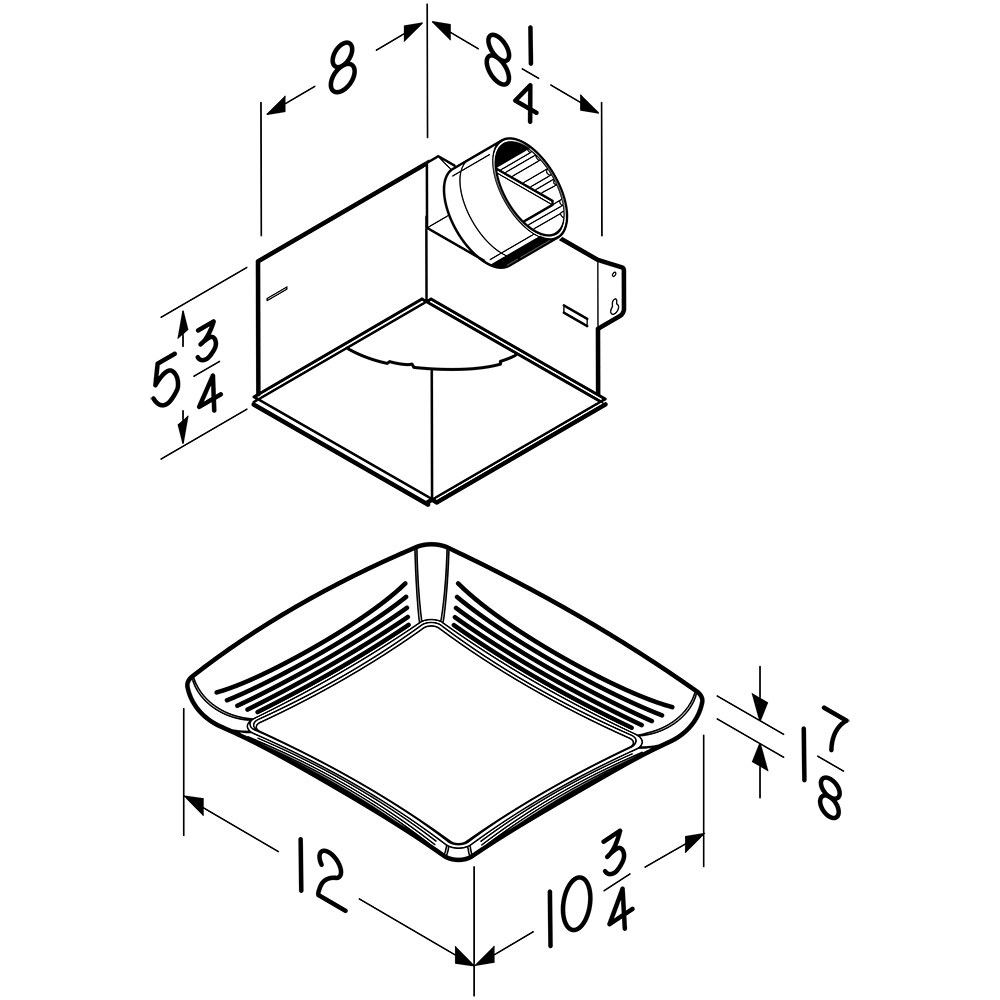

Grille Length | 12 |
Grille Width | 10.75 |
Sound Level (Sones) | 2.5 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Light Bulb Quantity | 1 |
Motion Sensing | No |
Motor Engineered For Continuous Operation | No |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 45 |
Rated Amps | 1.6 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Bulb (Recommended Type) | A19 |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
