Product Discontinued
QT DC™ Series
Broan® Humidity Sensing Exhaust Ventilation Fan w/ LED Light, 110-130-150 Selectable CFM, ENERGY STA
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- Selectable CFM with speeds of 110-130-150
- Quiet operation of <0.3-0.4-0.7 sones
- DC motor helps maintain static pressure to ensure installed performance
- Motor engineered for continuous operation
- ENERGY STAR® Certified
- Hanger bars to position housing anywhere on center joists
- Highly energy efficient integrated LED light that is dimmable
- Humidity sensing capability to properly ventilate the room
- Rugged, galvanized steel construction to withstand moisture
- Unique patented spacers for mounting to engineered "I" joists
- UL listed for use in insulated ceilings (Type IC)
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Suggested Installation Accessories
Radiation Damper and Extension Compatible with this Model
Product Selected ENERGY STAR® Most Efficient 2022
Products that are recognized as the Most Efficient of ENERGY STAR in 2022 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency
See Product List- Specs
- Downloads
| CFM | 110-130-150 |
|---|---|
| Color Finish |
|
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13.75 |
| Grille Width | 14.25 |

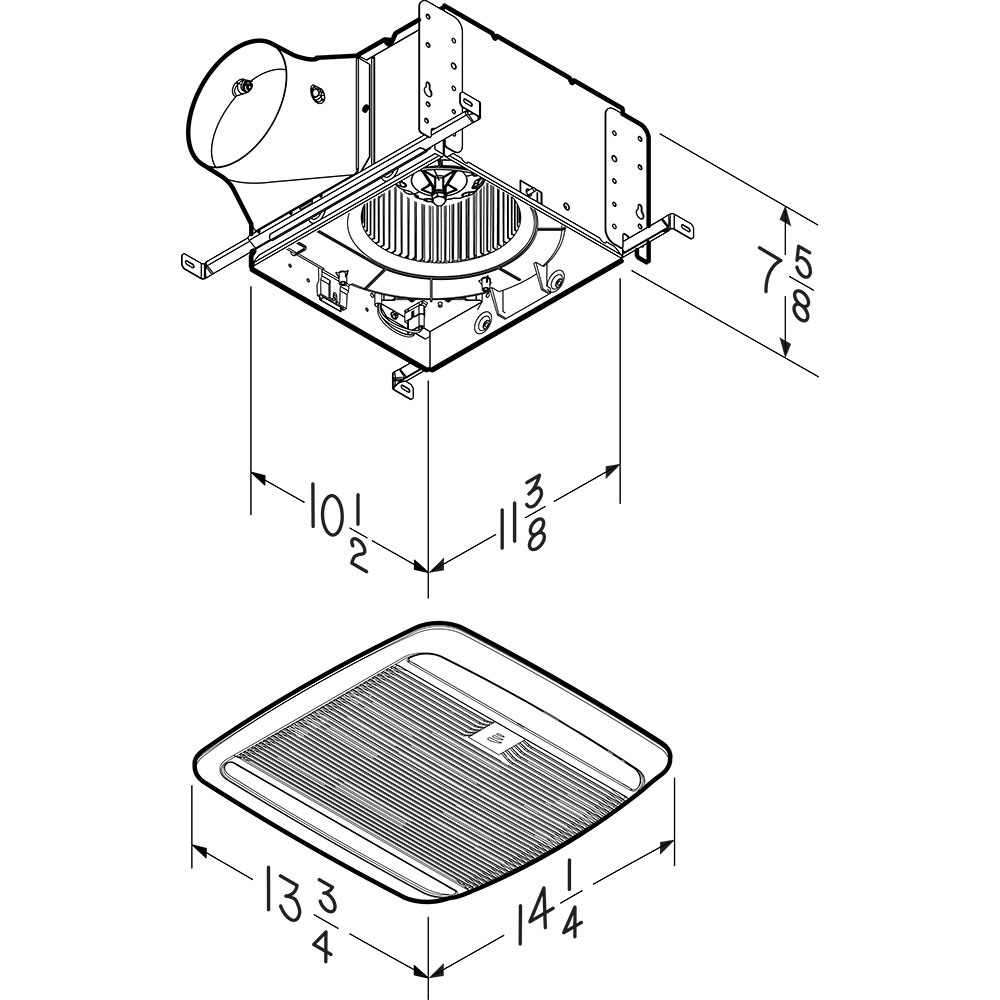

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105+ |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
