Product Discontinued
LoProfile™ Project Packs
**DISCONTINUED** NuTone® LoProfile™ Series 80 CFM Ventilation Fan Project Finish Pack with White Grille, 1.0 Sones
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it's on
- Compatible with Radiation Damper RDF1 which helps prevent flame and heat from spreading to other areas in multi-level buildings
- Fits in 2x4 ceiling or wall construction
- Plug-in, permanently lubricated motor - engineered for continuous operation
- Dynamically balanced centrifugal blower wheel for quiet, efficient performance
- Finish pack includes blower assembly and grille
- Ideal for multi-family applications
- ENERGY STAR® Certified for efficient operation and lower utility bills
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
Suggested Installation Accessories
- Specs
- Downloads
CFM | 80 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | Yes |
Grille Length | 13 |
Grille Width | 14 |

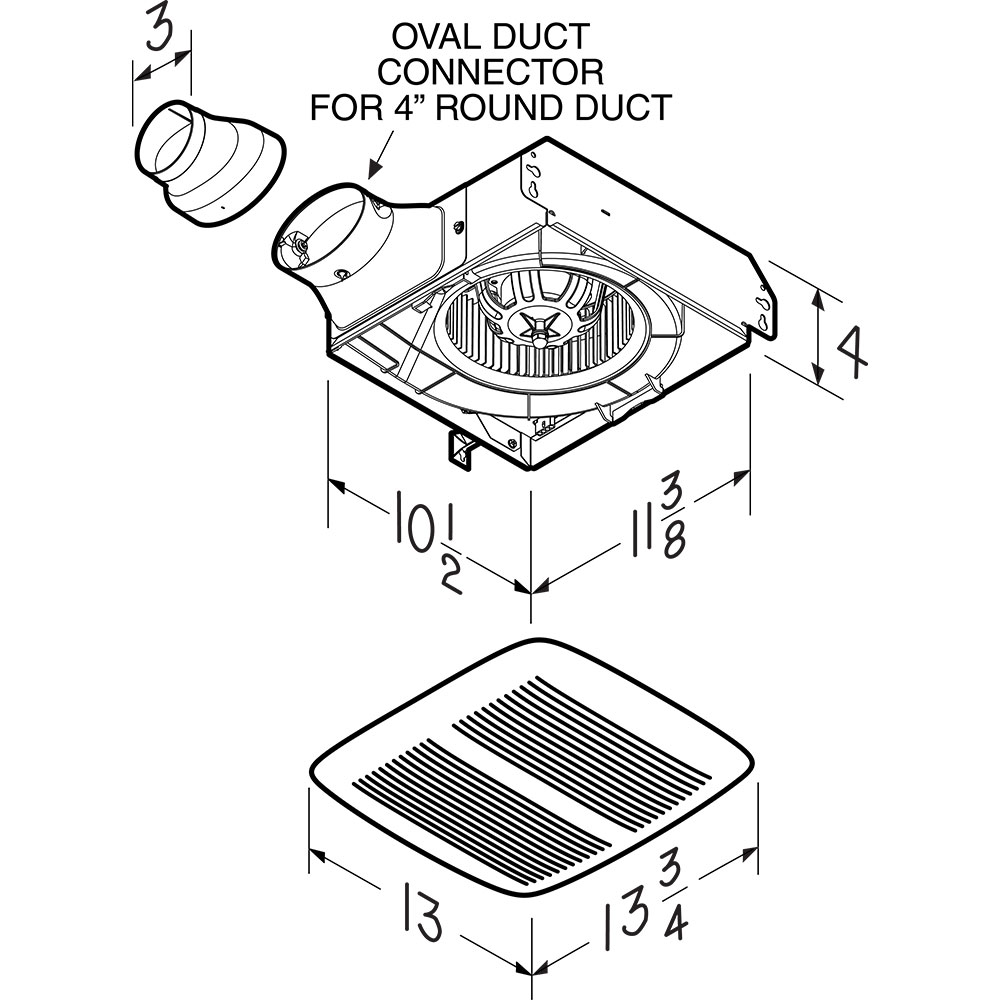

Housing Dimensions | 10-1/2" x 11-3/8" x 4" |
Sound Level (Sones) | 1 |
UL Listed | Yes |

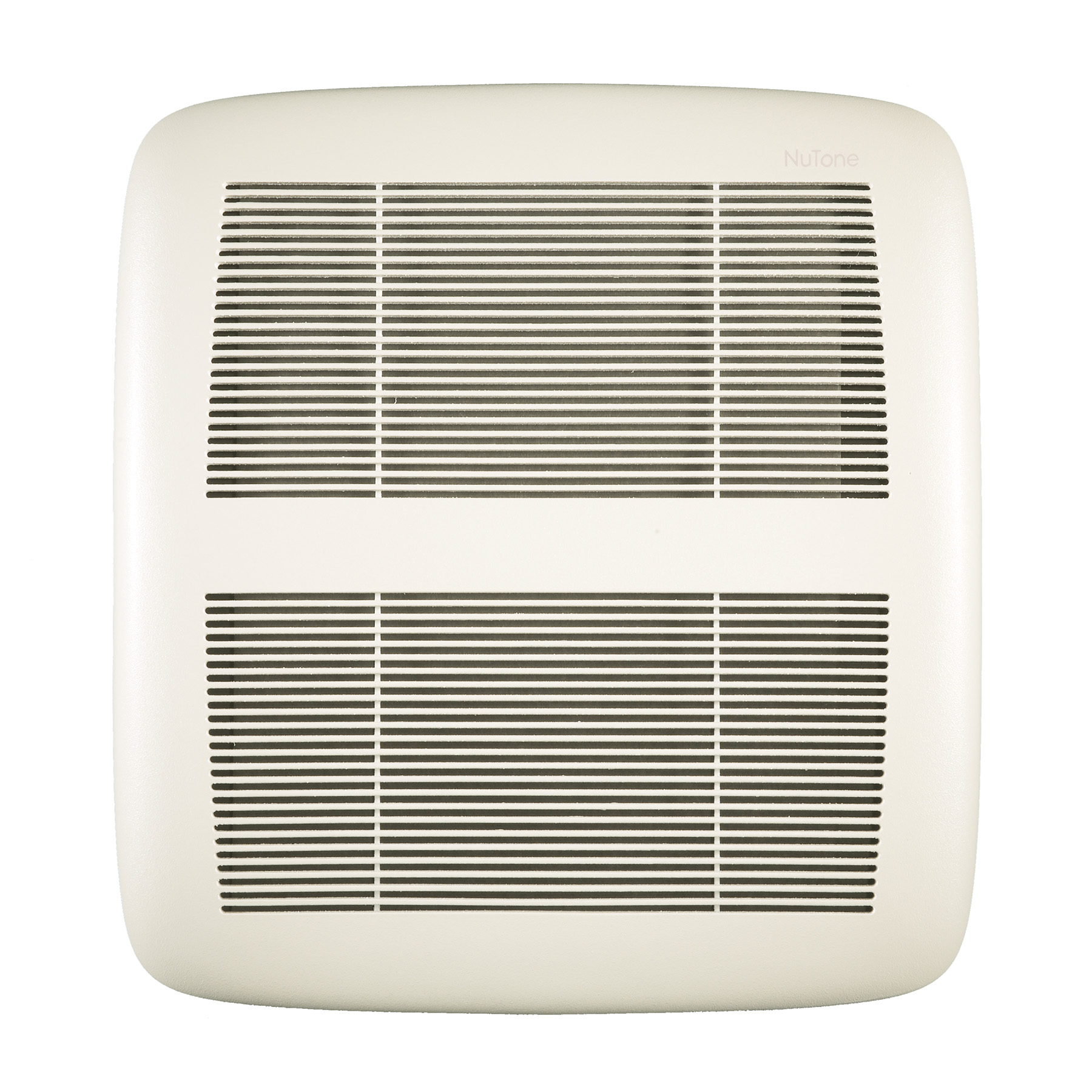

Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | Yes |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 75 |
Rated Amps | 0.3 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | Yes |
Minimum Construction Space Required | 2" x 4" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
