Product Discontinued

LoProfile™ DC Series

**DISCONTINUED** Broan® Lo-Profile Series Finish Pack, 50-80-100 Selectable CFM, ENERGY STAR®


Model:

LP50100DCF

Suggested Replacement: LP510RF

Housing Pack Compatible to this Finish Pack
LPDCH

Housing Pack Compatible to this Finish Pack

This Housing Pack is compatible with this finish pack. A housing pack, with grilles and motor/blower wheels, completes the installation and adds the finishing touches to the room.

learn more

Features

  • Selectable CFM with speeds of 50-80-100 for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3-0.7-1.2 Sones for quiet performance, enough sound to know your fan is on
  • Can be installed in either the ceiling or the wall
  • Housing and finish packs sold separately
  • ENERGY STAR® Certified
  • UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
  • Powerful enough for rooms up to 90 sq. ft.
  • Compatible with RDF2 Radiation Damper
Product Selected ENERGY STAR® Most Efficient 2022

Product Selected ENERGY STAR® Most Efficient 2022

Products that are recognized as the Most Efficient of ENERGY STAR in 2022 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

See Product List
  • Specs
  • Downloads

print

CFM 50-80-100
Color Finish
  • White
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 13
Grille Width 14

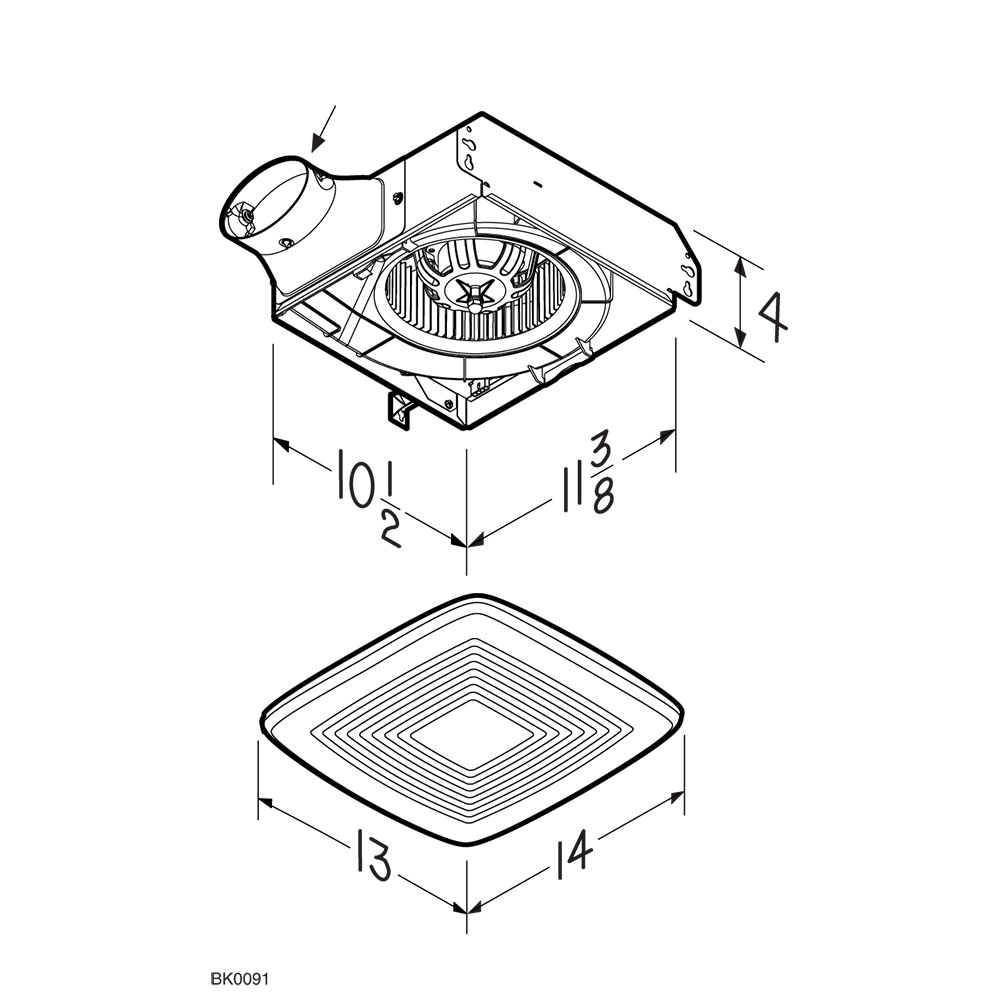

Housing Dimensions 10-1/2" x 11-3/8" x 4"
Sound Level (Sones) 1.2
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Rated Amps 0.4
Voltage 120
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
