Product Discontinued
EZFit™ Series Ventilation Fans
**DISCONTINUED** NuTone® EZFit 80 CFM Ventilation Fan, 1.0 Sones; ENERGY STAR® Certified
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Quiet performance, enough sound to know your fan is on
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
- EzDuct™ Connector can be installed room-side with no attic access required
- EZ Connect wiring connectors eliminate clumsy wire nuts
- EZ Hold pre-installed blower attachment screws mean no third hand is needed
- Slim housing design fits in virtually all ceiling spaces
- EZ Lock tabs secure fan directly to drywall eliminating need for joist/truss mounting
- ENERGY STAR® certified ventilation fan
- UL listed and HVI-2100 Certified for safety
- UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
- Specs
- Downloads
CFM | 80 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | Yes |
Grille Length | 14.375 |
Grille Width | 13 |

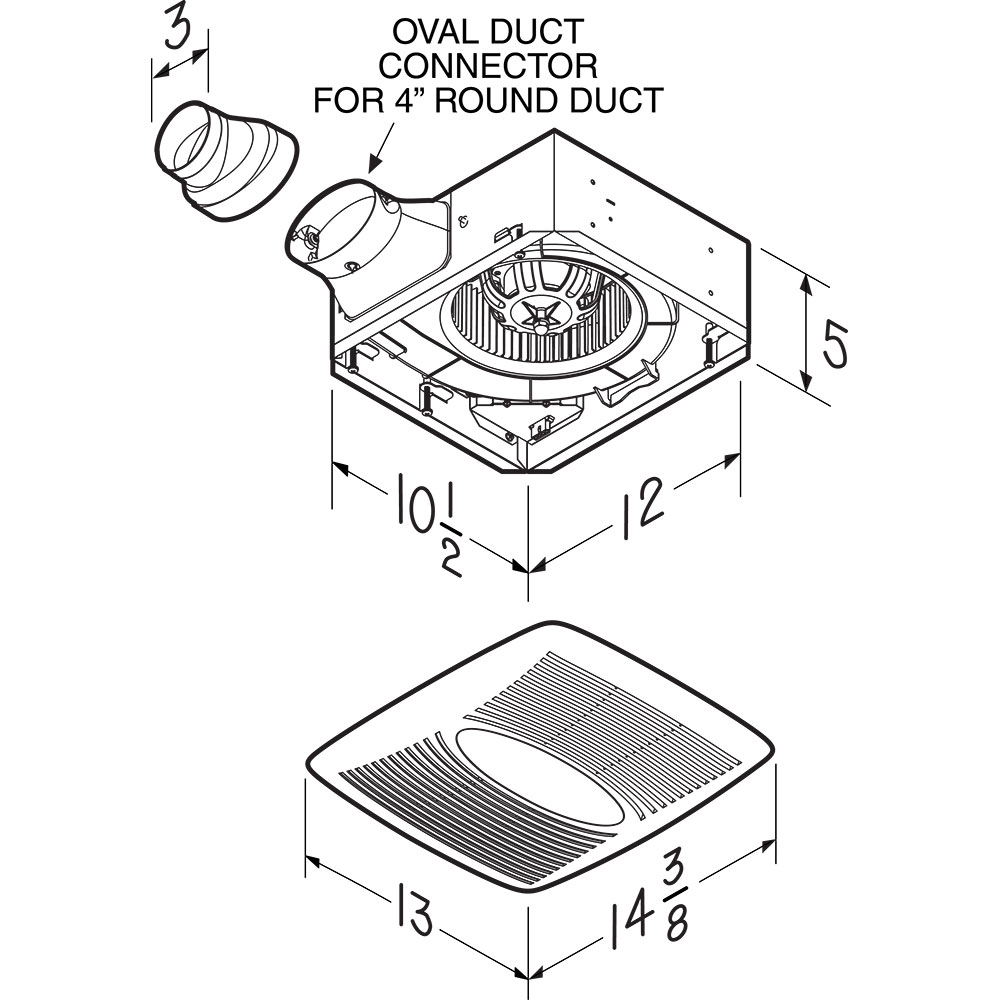

Housing Dimensions | 12" x 10-1/2" x 5" |
Sound Level (Sones) | 1 |
Sound Level (Sones) | 1 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 65 |
Rated Amps | 0.3 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
Minimum Recommended Flow | 0 |
