Broan® Roomside Series
Broan® Roomside Series 80 CFM 2.0 Sones Ventilation Fan Light Energy Star®
Broan® ARW80L Roomside Series White 80 CFM Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 80 CFM and quiet operation at 2.0 sones.
Model:
ARW80L
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 2.0 Sones for Quiet performance , enough sound to know your fan is on
- Bright 3000K energy efficient LED lighting to help illuminate your room
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- Paintable white grilles blends in with any décor
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- UL Listed for use over tubs and showers with a GFCI circuit; so you can Capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match the most common ceiling paint
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
CFM | 80 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | Yes |
Grille Length | 11.5 |
Grille Width | 12.25 |

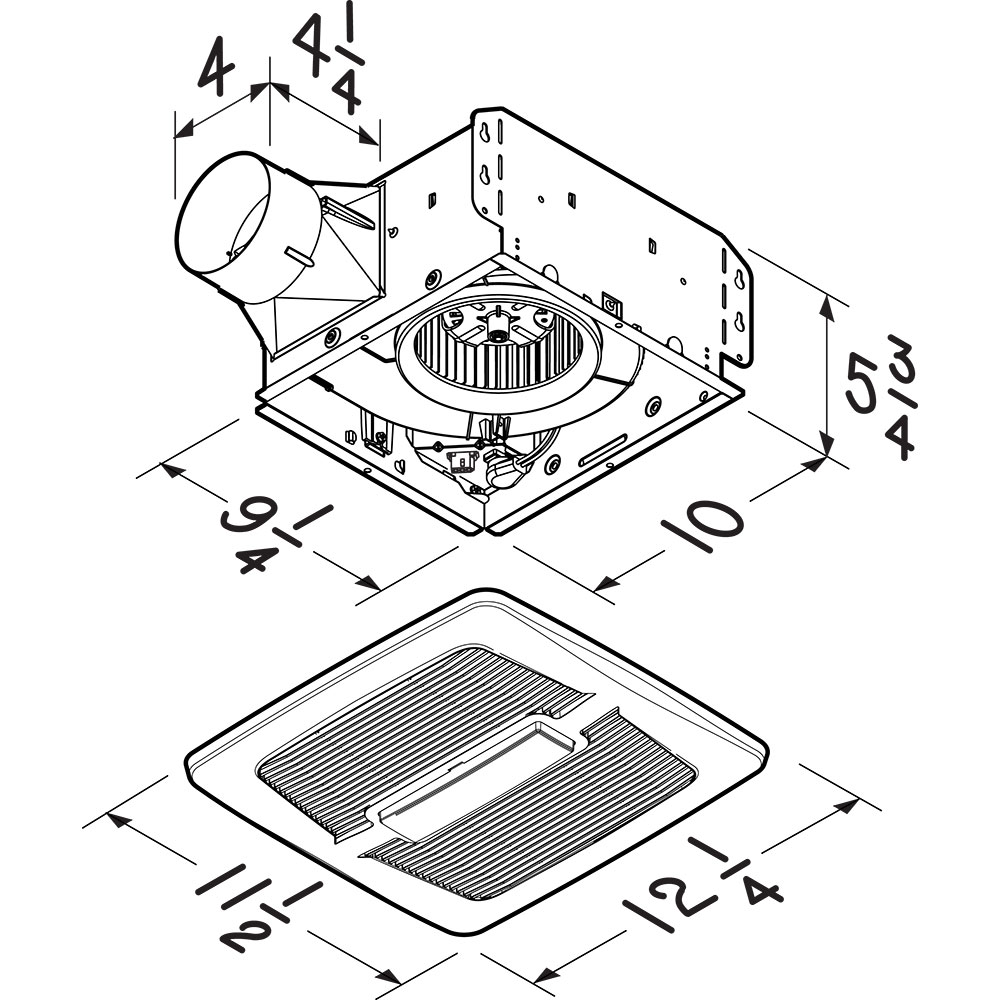

Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Sound Level (Sones) | 2 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Light Bulb Quantity | 1 |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 75 |
Rated Amps | 0.5 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Bulb (Recommended Type) | Integrated LED Module |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
Minimum Recommended Flow | 0 |
