Broan® Roomside Series
Broan® Roomside Series 80 CFM 2.0 Sones Ventilation Fan
Clear up foggy mirrors, whisk away odors and enjoy a more comfortable bathroom in minutes. The Broan® ARN80HD Roomside Series White 80 CFM Exhaust Bath Fan moves air at a brisk 80 CFM, quickly reducing moisture and humidity to prevent mildew. Boasting a 2.0 sones sound rating for quiet operation, this durable bath fan efficiently ventilates bathrooms up to 75 sq. ft. Broan® Roomside Series fans offer hassle-free room-side installation with no attic access needed, thanks to an EzDuct™ connector and foldable mounting ears.
Model:
AR80X
$100.00
retailer prices may vary
Features
UL Listed
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 2.0 Sones for Quiet performance , enough sound to know your fan is on
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- Can be installed in a wall if mounted 8-ft. or more above the floor
- UL listed and HVI-2100 Certified for safety
- UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

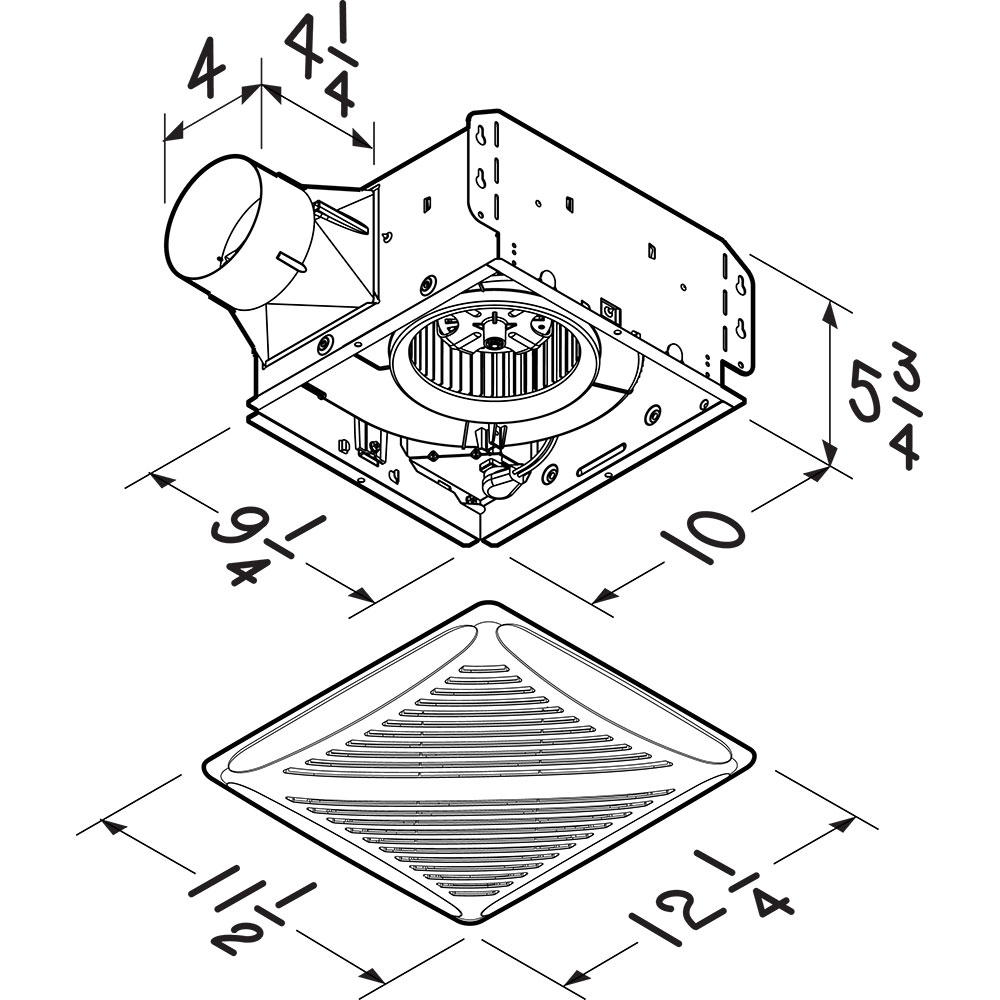

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
