Broan® Roomside Series
Broan® Roomside Series 110 CFM 3.0 Sones Ventilation Fan
The Broan® Roomside Series 110 CFM Ceiling Exhaust Bath Fan offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 110 CFM and a very quiet 3.0 sones.
Model:
AR110
$90.00
retailer prices may vary
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 3 Sones for Quiet performance, enough sound to know your fan is on.
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
![Upgrade This Broan-NuTone Ventilation Fan](https://www.broan-nutone.com/getmedia/63ac8375-70e3-4dbc-b005-5b620949c63d/FG701_FG701S_2.jpg?width=1800&height=1800&ext=.jpg)
No Cutting or Patching Drywall
Upgrade This Broan-NuTone Ventilation Fan
Broan® Universal CleanCover™ Bathroom Exhaust Fan Upgrade Grille/Cover. This fresh, stylish grille is designed to fit small, medium and large size Broan® and NuTone® ventilation fans. It has a crisp, bright white finish to match the most popular white ceiling paint colors.
Buy NowSuggested Installation Accessories
CFM | 110 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | No |
Grille Length | 11.5 |
Grille Width | 12.25 |

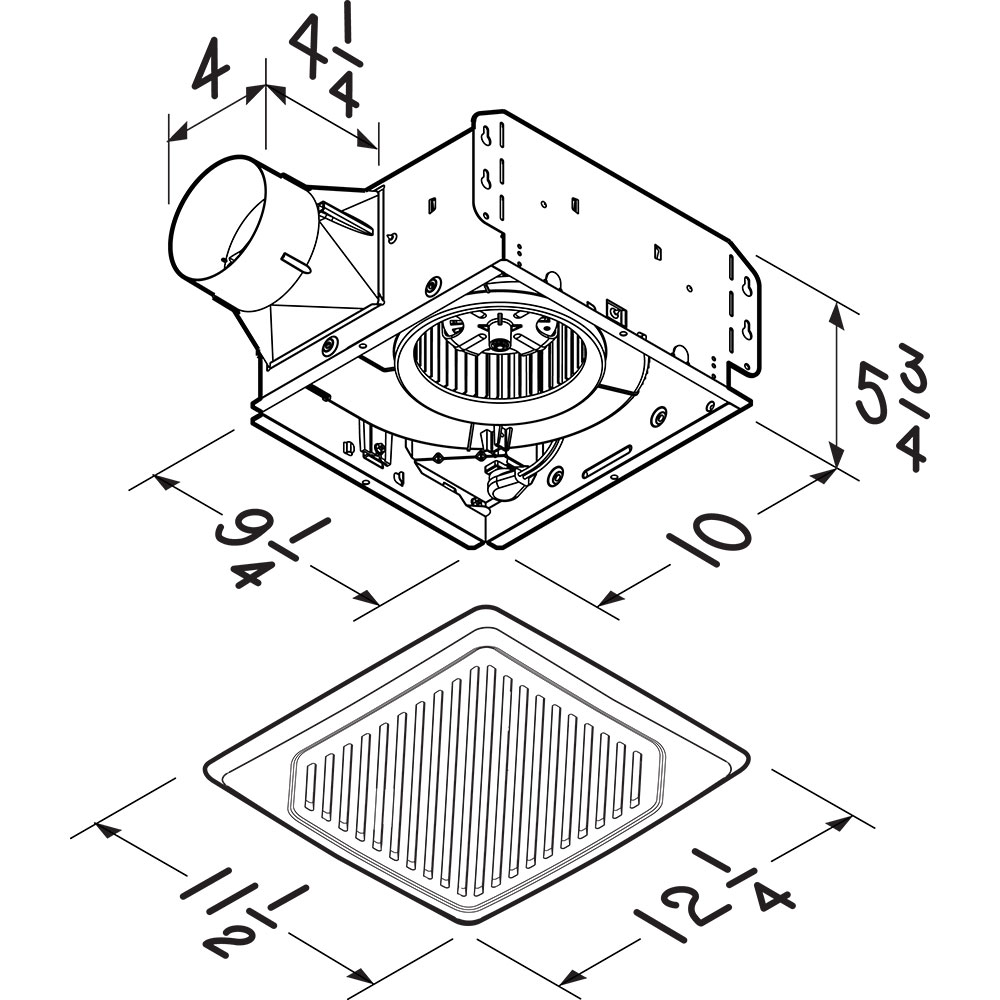

Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Sound Level (Sones) | 3 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | Yes |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 105 |
Rated Amps | 0.4 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
Minimum Recommended Flow | 0 |
