Broan® Roomside Series

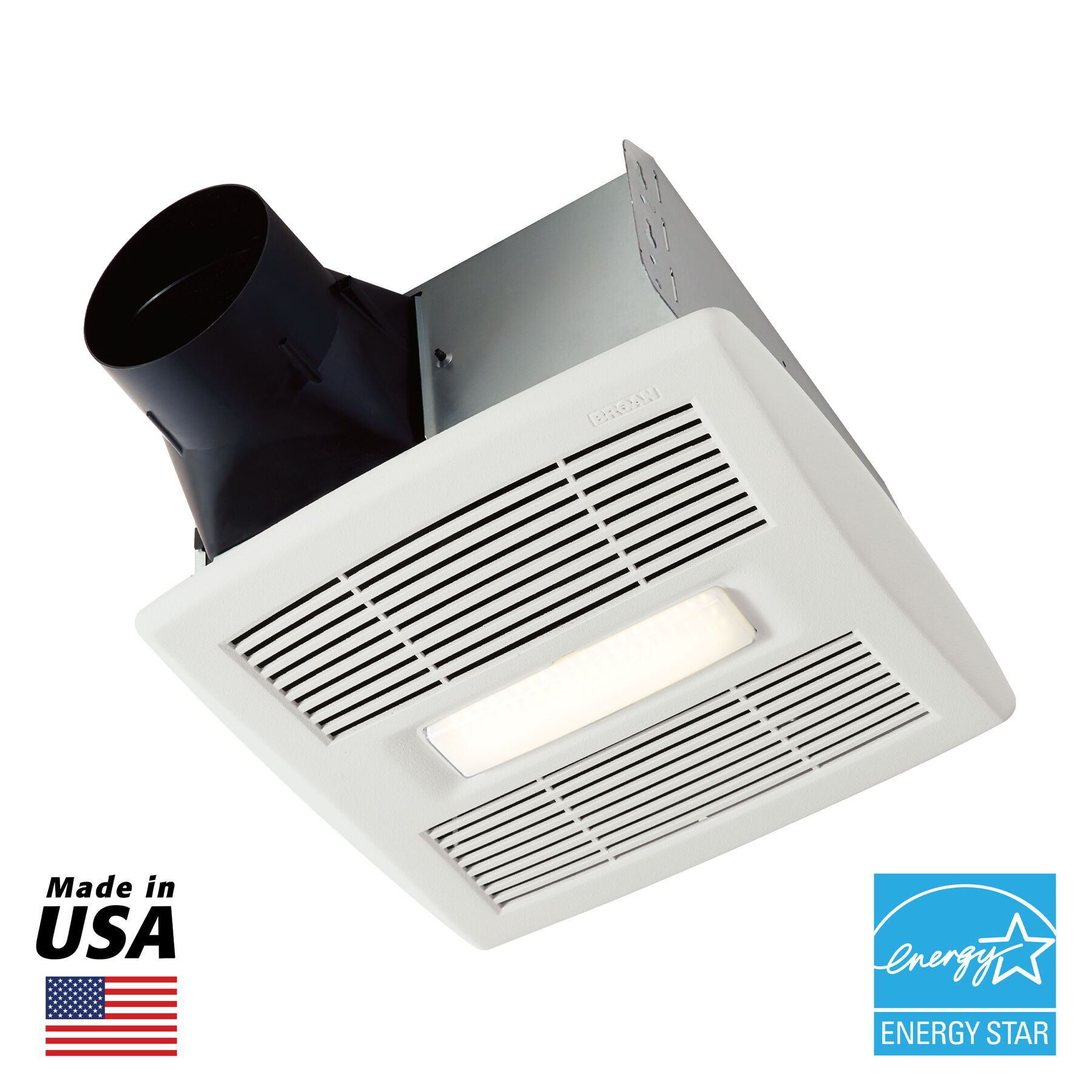

Broan® Roomside Series 110 CFM 1.0 Sones Ventilation Fan Light Energy Star®
With a super-quiet sound rating of 1.0 sone, the Broan® Roomside Series White 110 CFM Exhaust Bath Fan with Light generates powerful air circulation with minimal background noise. Broan® Roomside Series fans offer an EzDuct™ connector for hassle-free room-side installation with no attic access needed. With the addition of the EzDuct™ connector, other new additions have been added including foldable mounting ears, a new damper and housing technology that improves airtightness like never before. This bath fan includes soft white LED lighting for energy savings and a grille that compliments any decor.
Model:
AER110L
$157.00
retailer prices may vary
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![ENERGY STAR certified](https://www.broan-nutone.com/getmedia/a2da36a5-2fff-4026-b6ff-4d0ce8c19c64/ENERGY-STAR-logo.jpg?width=1237&height=1266&ext=.jpg)
ENERGY STAR certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

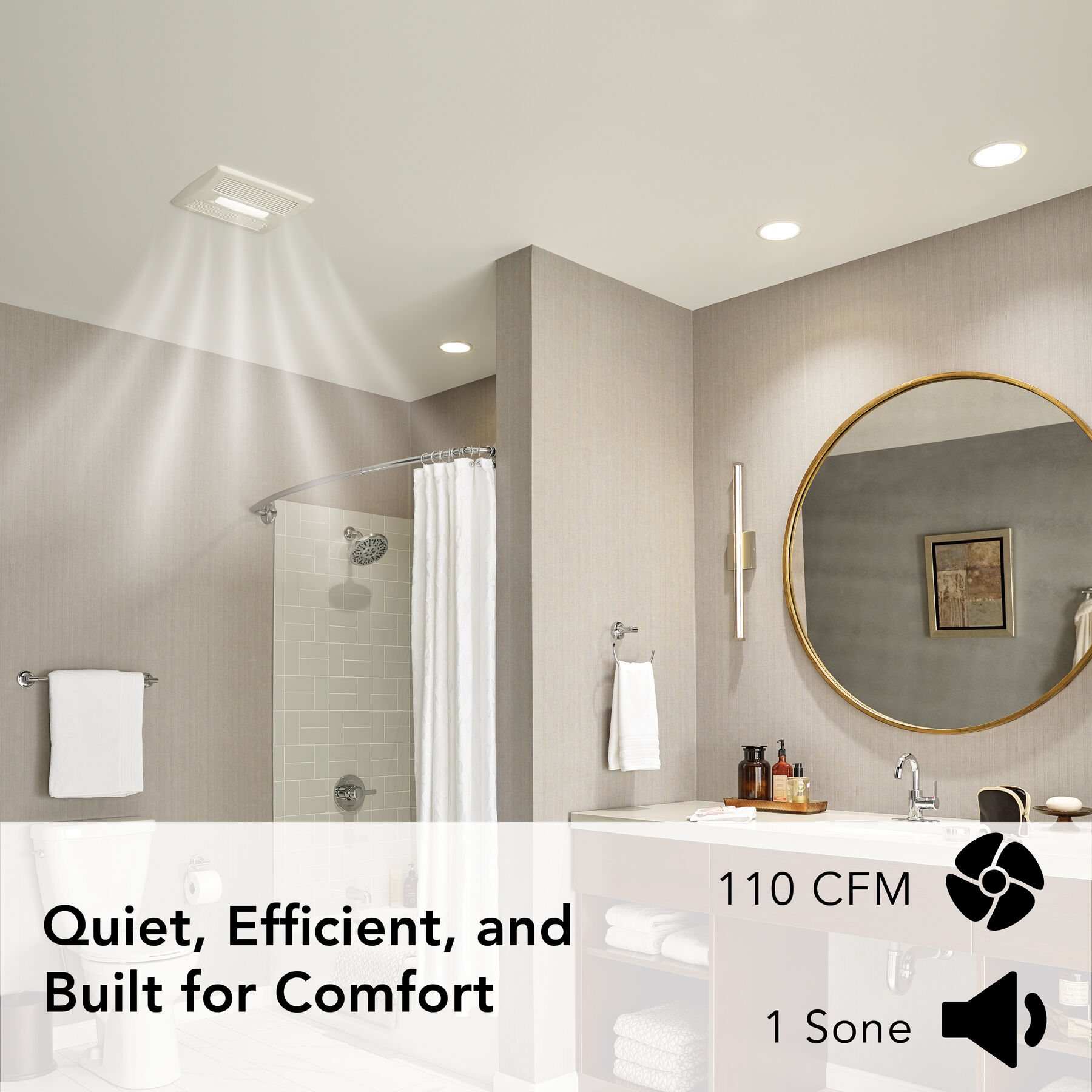

- 1.0 Sones for Ultra quiet performance, as quiet as a gentle breeze.

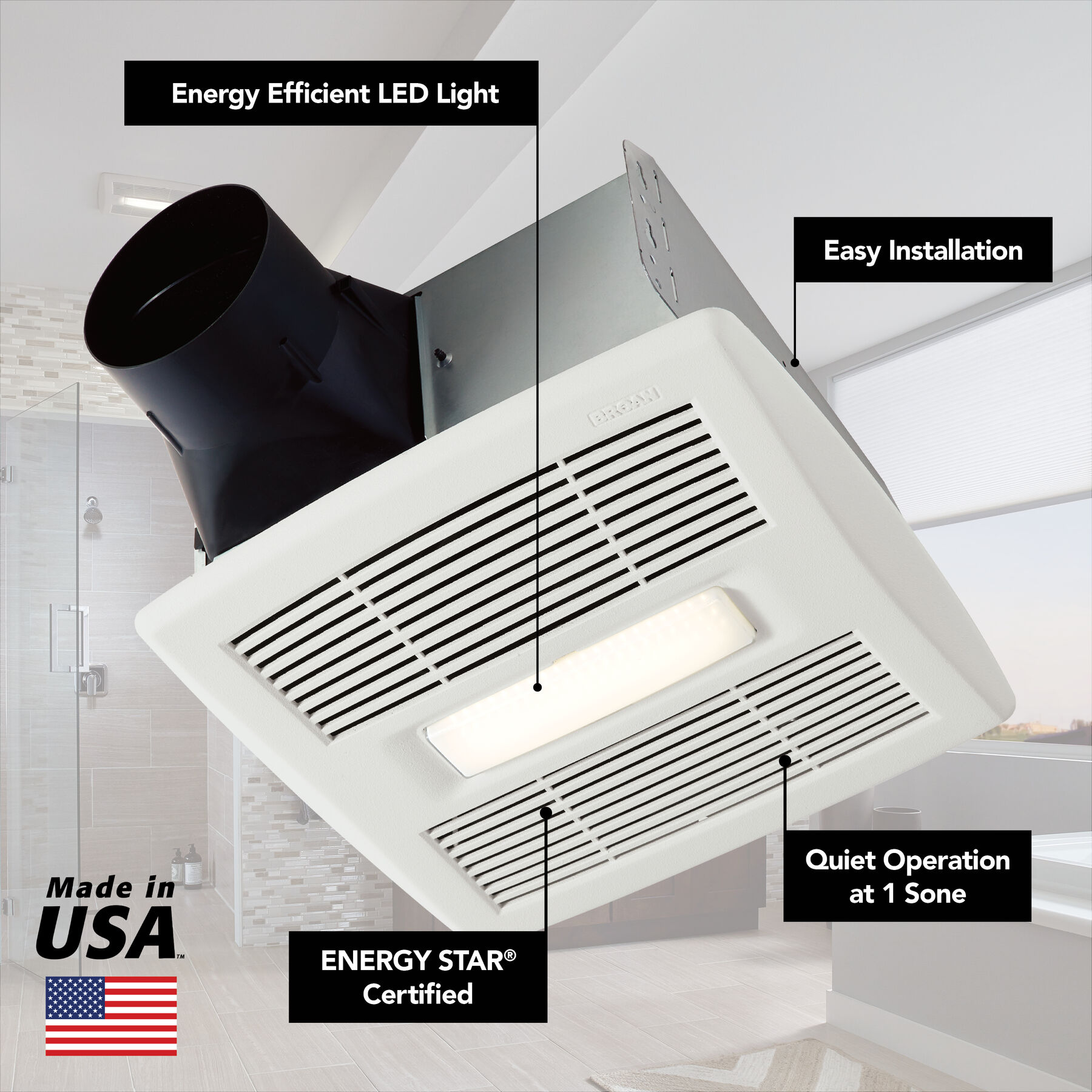

- Bright 3500K energy efficient LED lighting to help illuminate your room

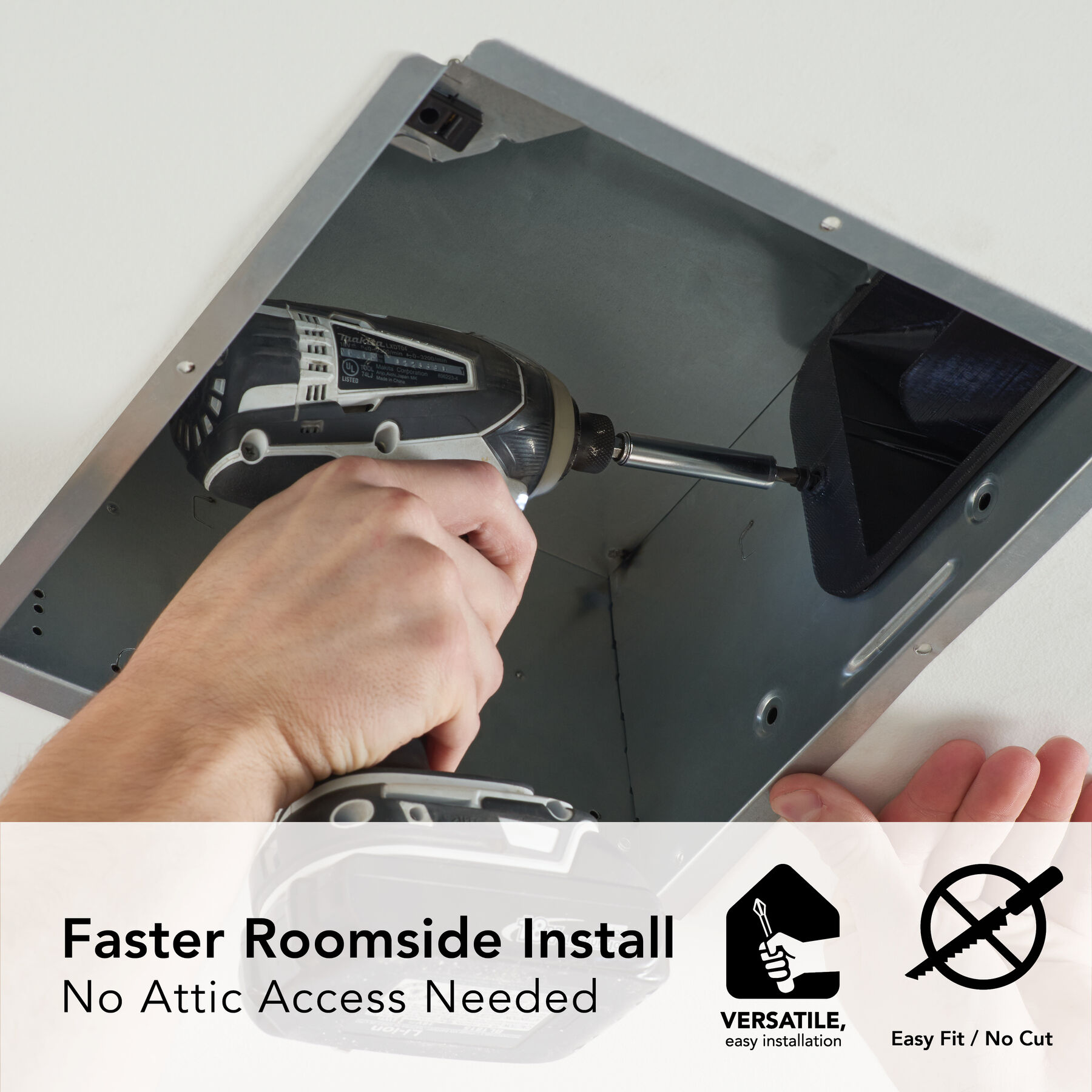

- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® Certified
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
![Broan® SurfaceShield™ LED Exhaust Fan Upgrade Grille/Cover with Vyv™ Antibacterial Light](https://www.broan-nutone.com/getmedia/65e5e41a-1438-4bc1-8524-f7ea20a499d5/FG1000VV_1.jpg?width=1800&height=1800&ext=.jpg)
FITS THIS MODEL: prevent mold, bacteria and fungi growth on surfaces
Broan® SurfaceShield™ LED Exhaust Fan Upgrade Grille/Cover with Vyv™ Antibacterial Light
SurfaceShield™ with Vyv™ antimicrobial light technology combined with Broan’s powerful ventilation offers effective protection against bacteria, mold and fungi growth in your home.
Quickly and easily installs in under 5 minutes; No additional wiring needed, plugs directly into existing lighting connection; No cutting of ceiling material required. Cover hides existing drywall cuts!
Suggested Installation Accessories
CFM | 110 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | Yes |
Grille Length | 11.75 |
Grille Width | 12.5 |

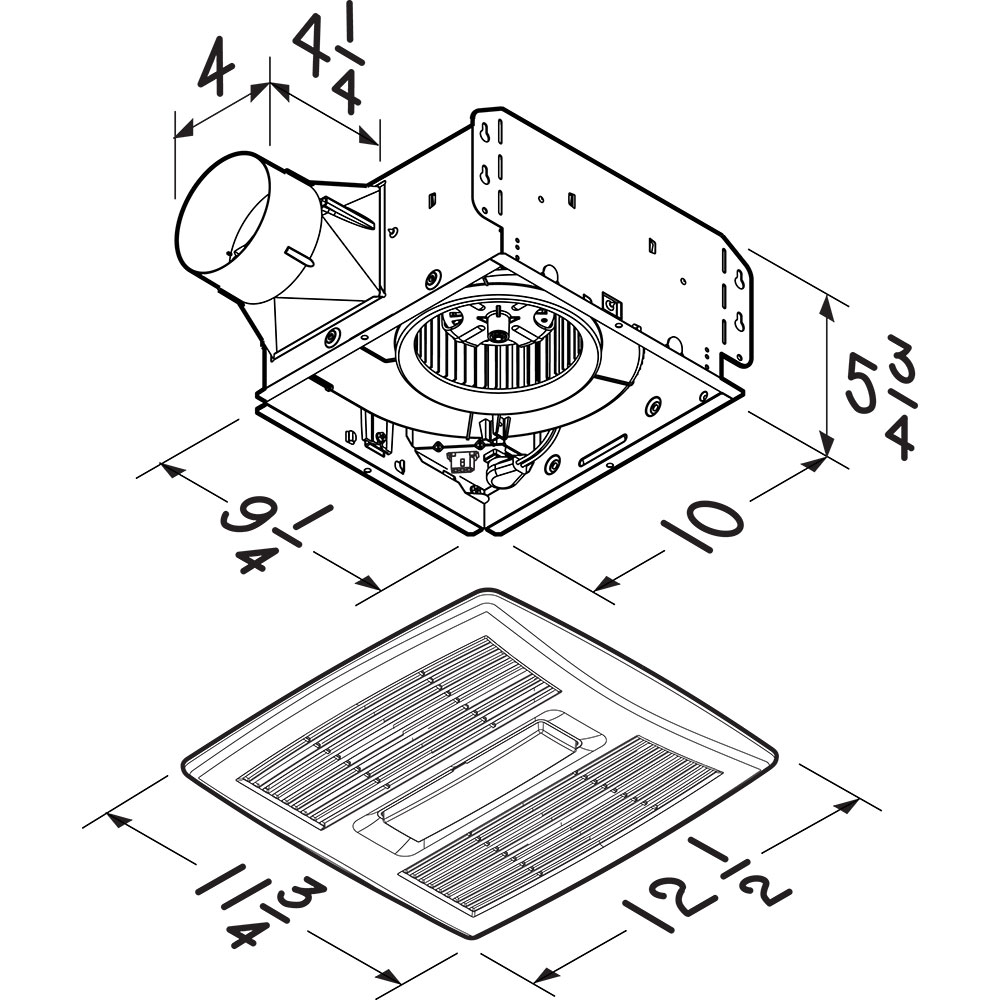

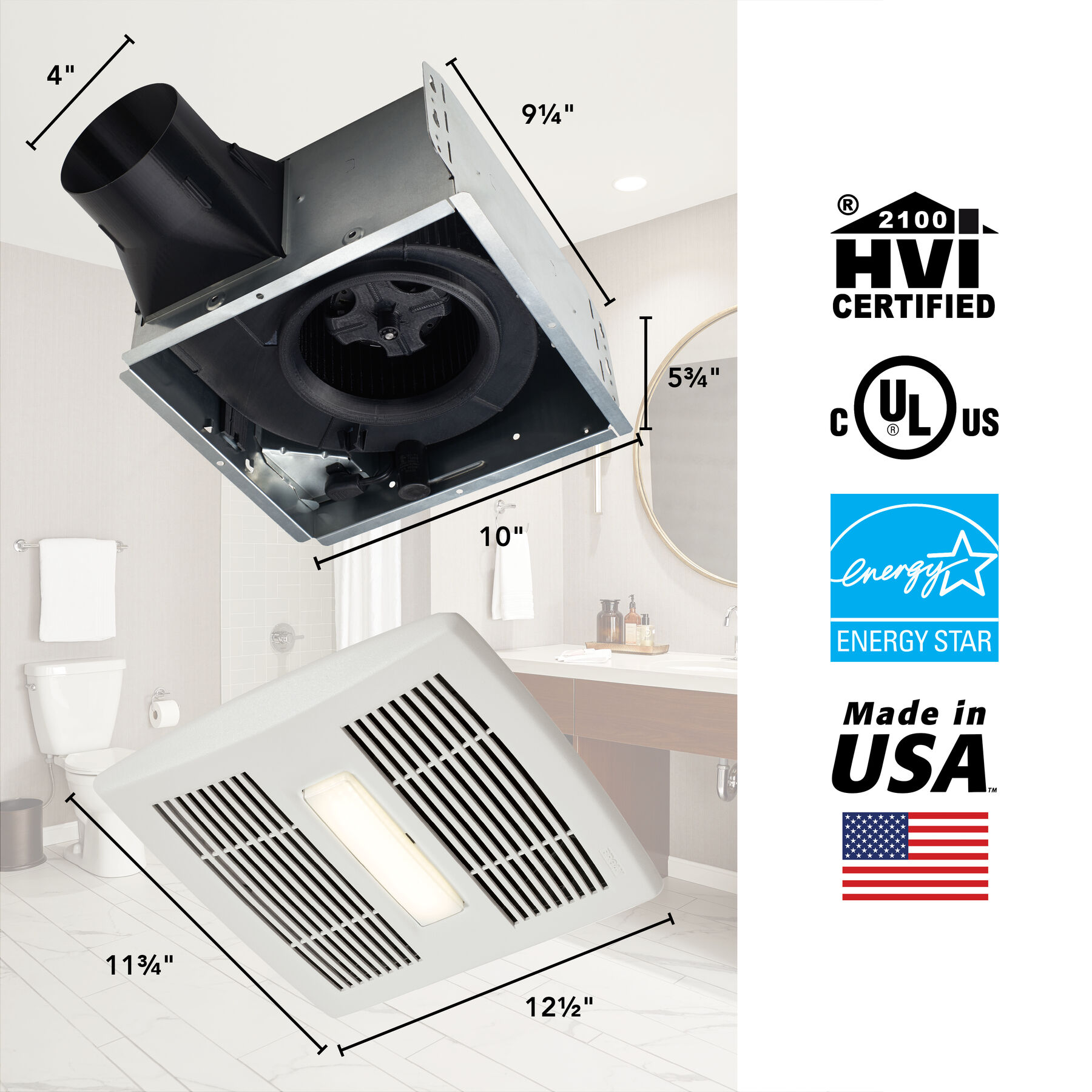

Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Sound Level (Sones) | 1 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Light Bulb Quantity | 1 |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | Yes |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |

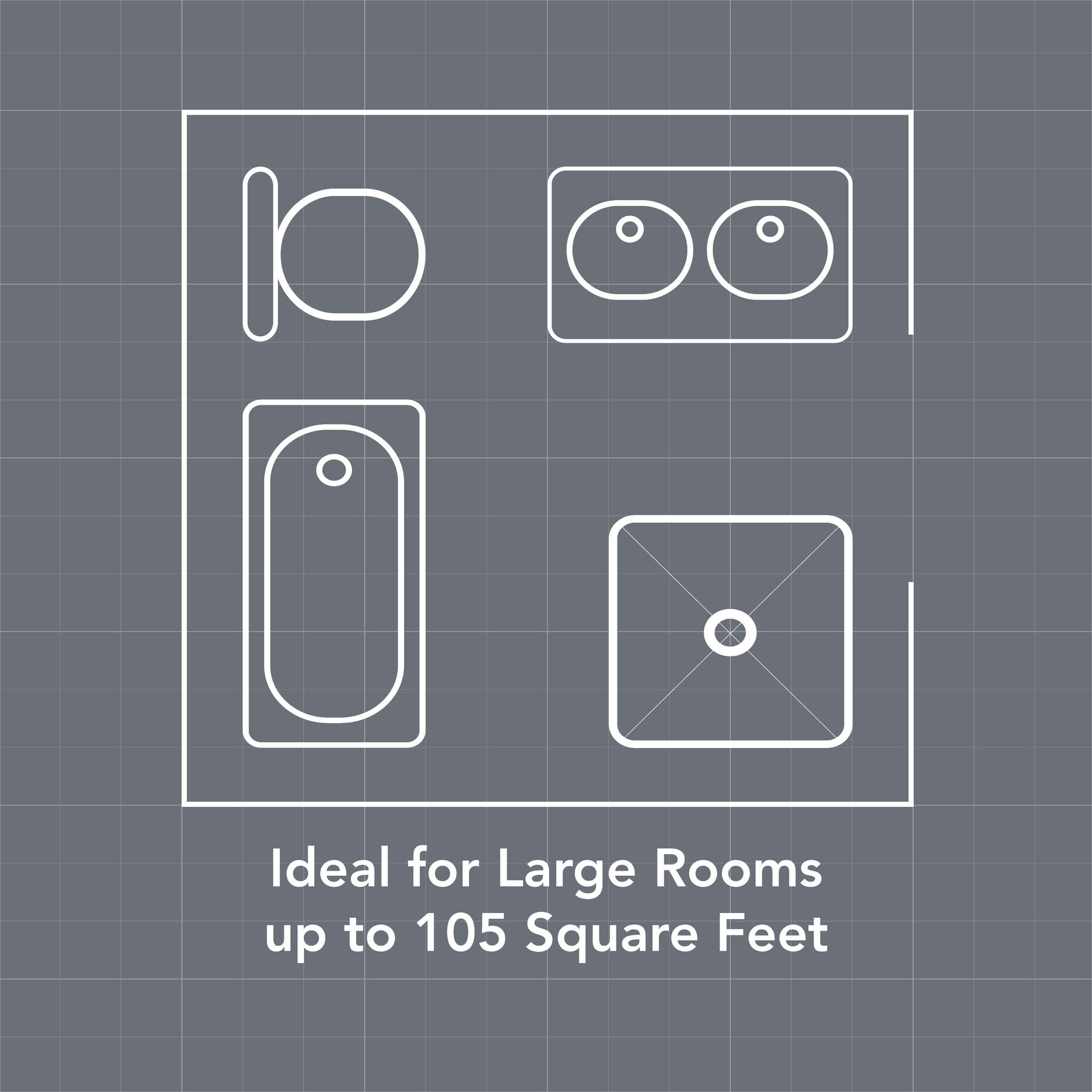

Recommended Room Size (Sq Ft) | 105 |
Rated Amps | 0.3 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Bulb (Recommended Type) | Integrated LED Module |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 3 Years |
High Efficiency Luminaire | No |
Minimum Recommended Flow | 0 |
