Broan Flex™ Series
Broan Flex™ Series 80 CFM 0.7 Sones Humidity Sensing Ventilation Fan Energy Star®

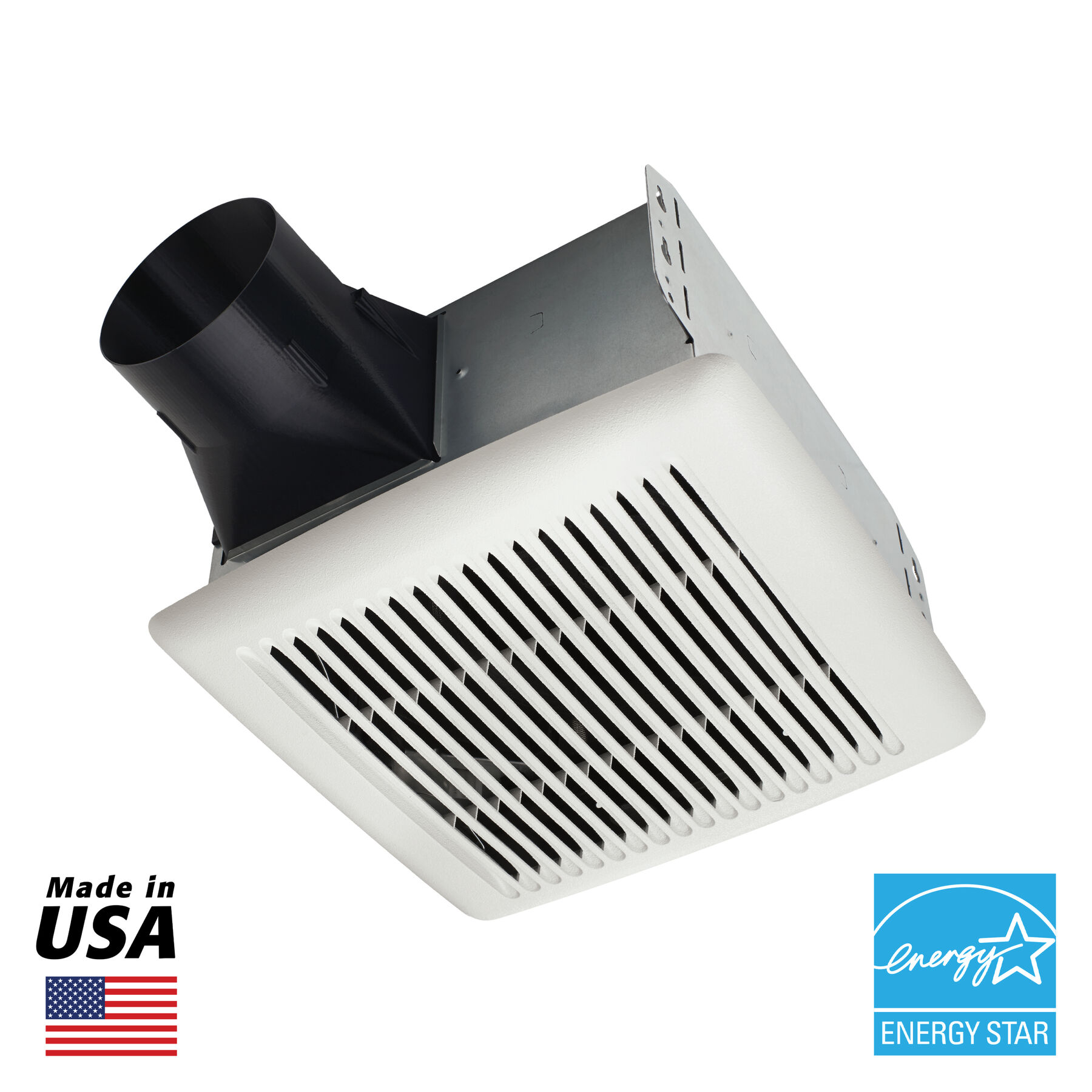

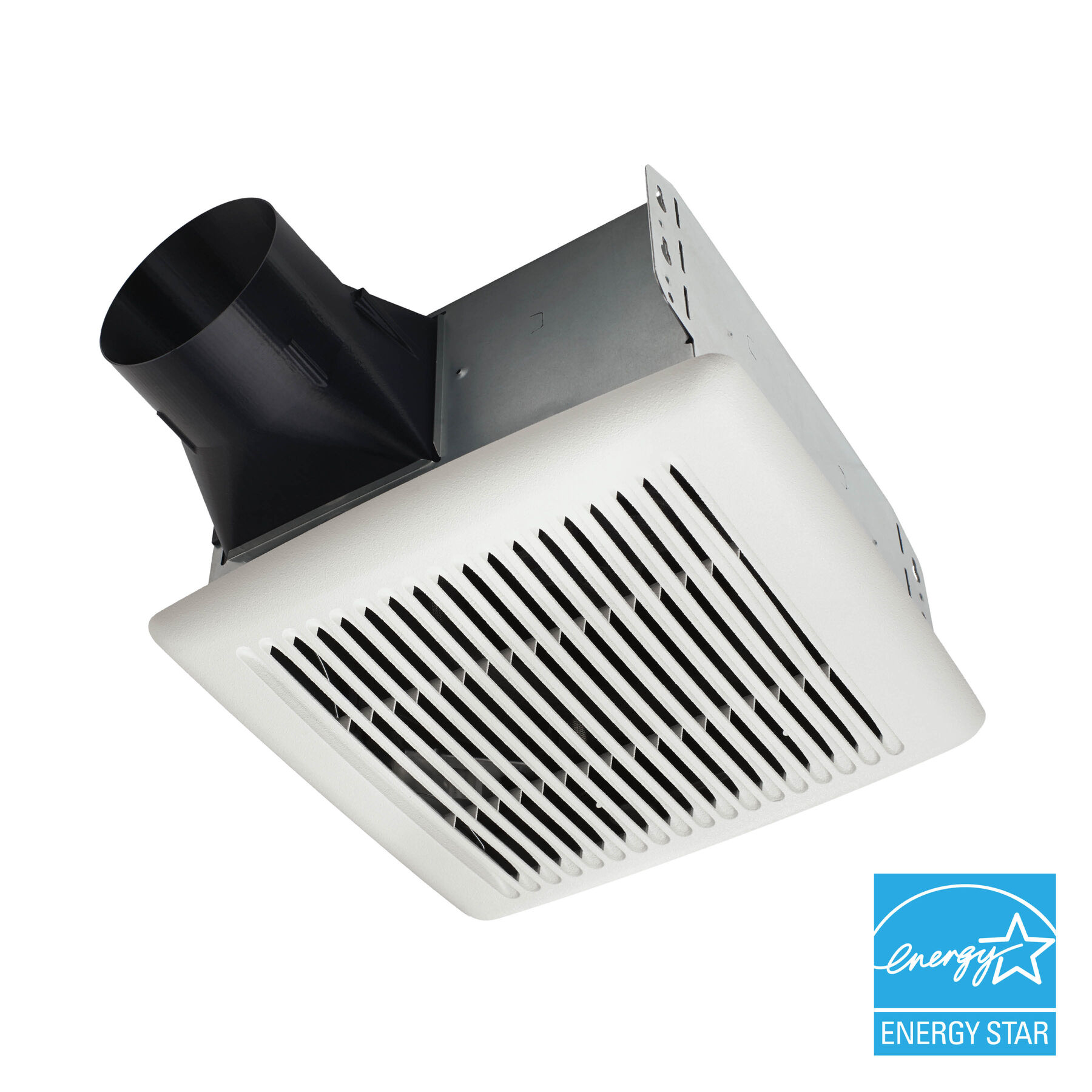

Broan® AE80S Roomside Series White 80 CFM Ceiling Exhaust Bath Fan, offers easy, room side installation, with No Attic Access Required. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. The humidity sensing feature offers the flexibility to set a user-adjustable set-point to have moisture eliminated from the room without the need to turn the fan on manually. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 80 CFM and a very quiet 0.7 Sones.
Model:
AE80S
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![ENERGY STAR certified](https://www.broan-nutone.com/getmedia/a2da36a5-2fff-4026-b6ff-4d0ce8c19c64/ENERGY-STAR-logo.jpg?width=1237&height=1266&ext=.jpg)
ENERGY STAR certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed

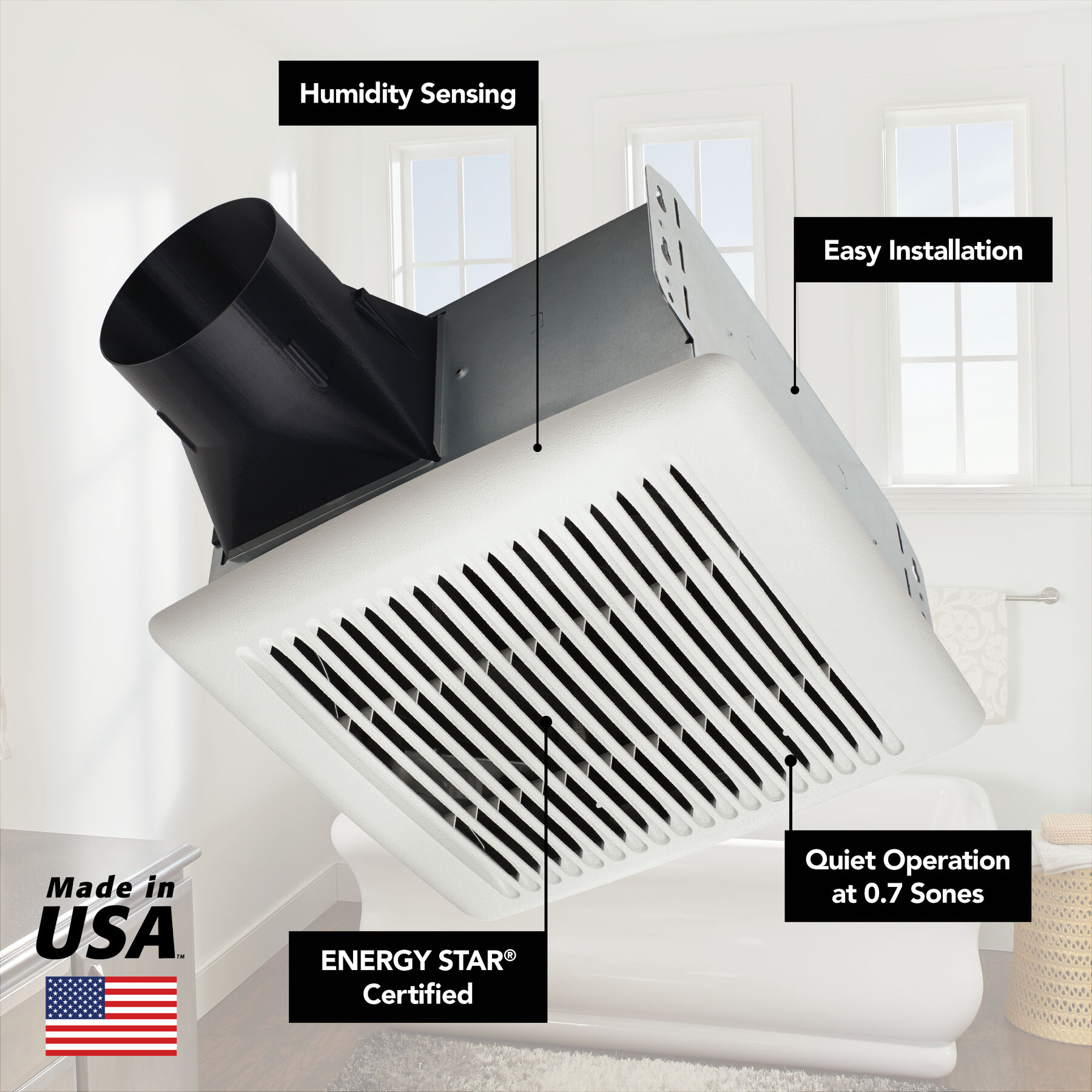

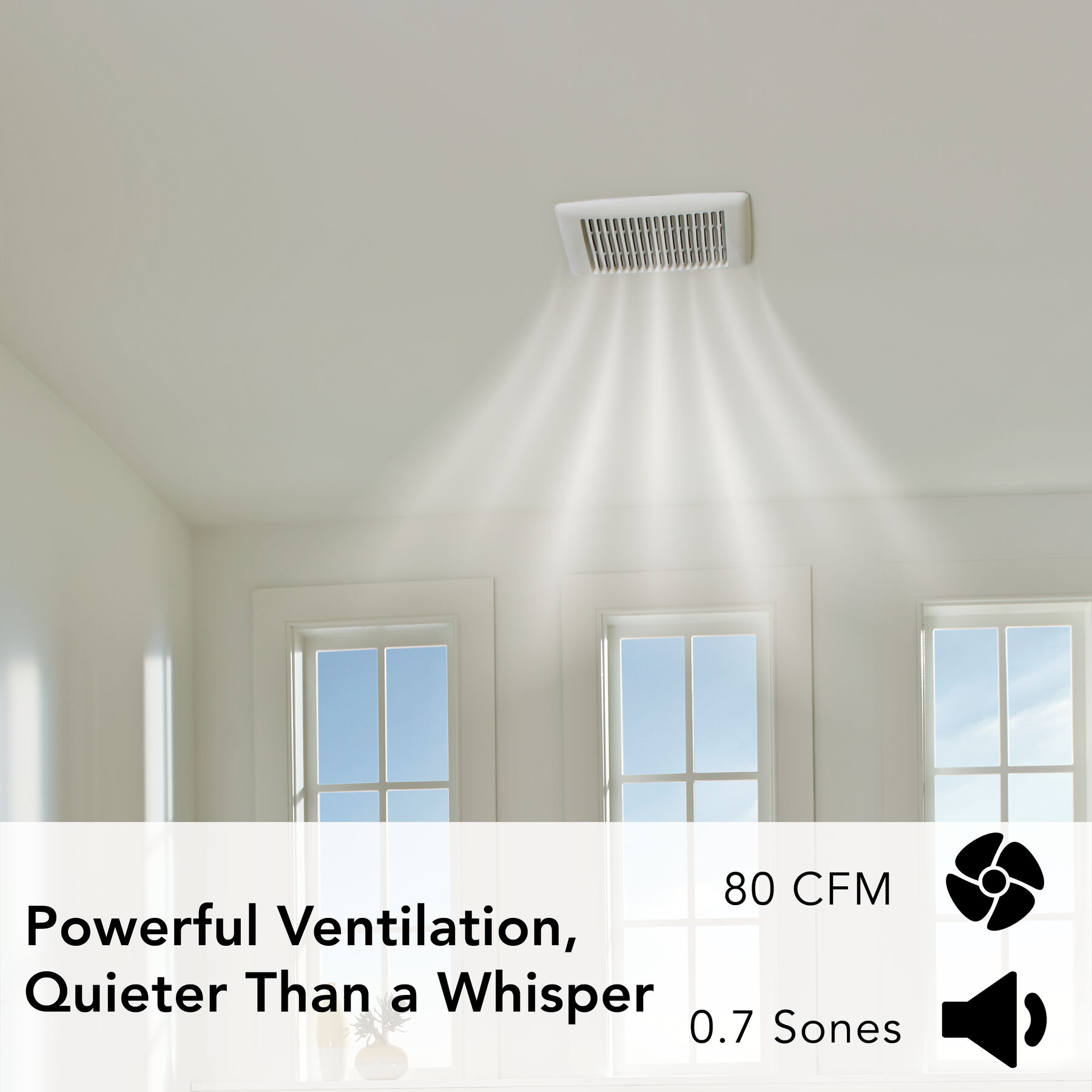

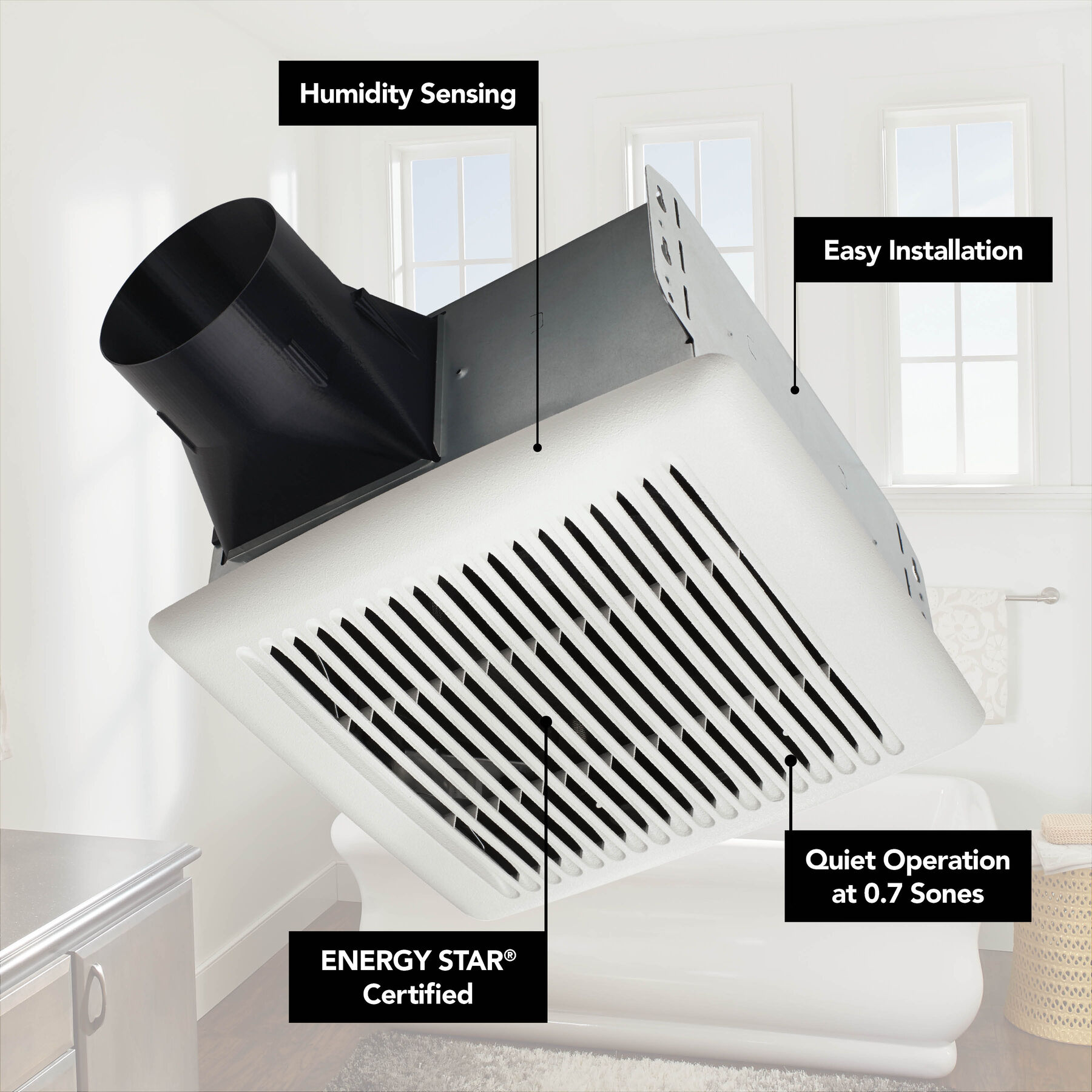

- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for Ultra quiet performance, you might not notice it's on
- Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition

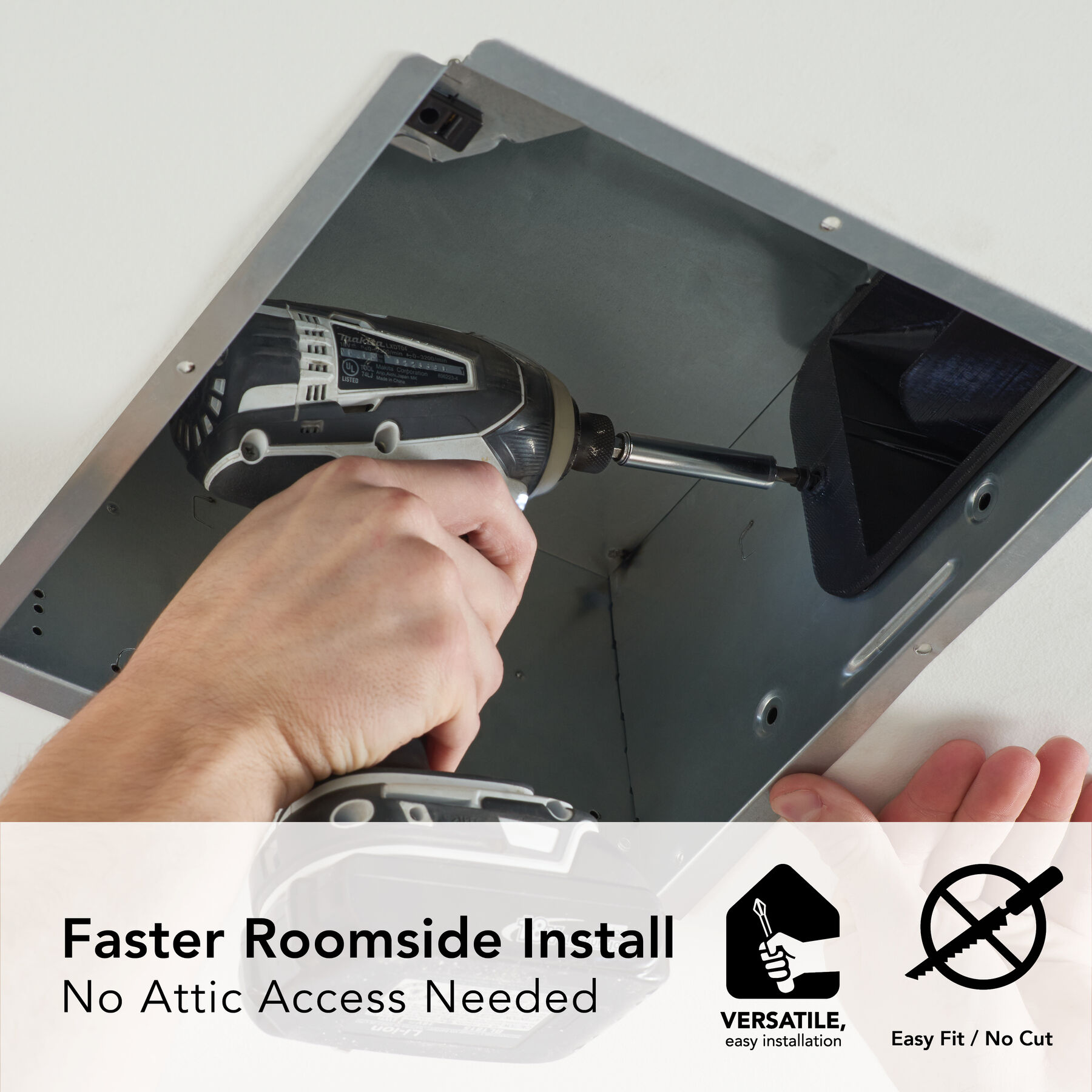

- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® certified product
- UL Listed for use over tubs and showers with a GFCI circuit

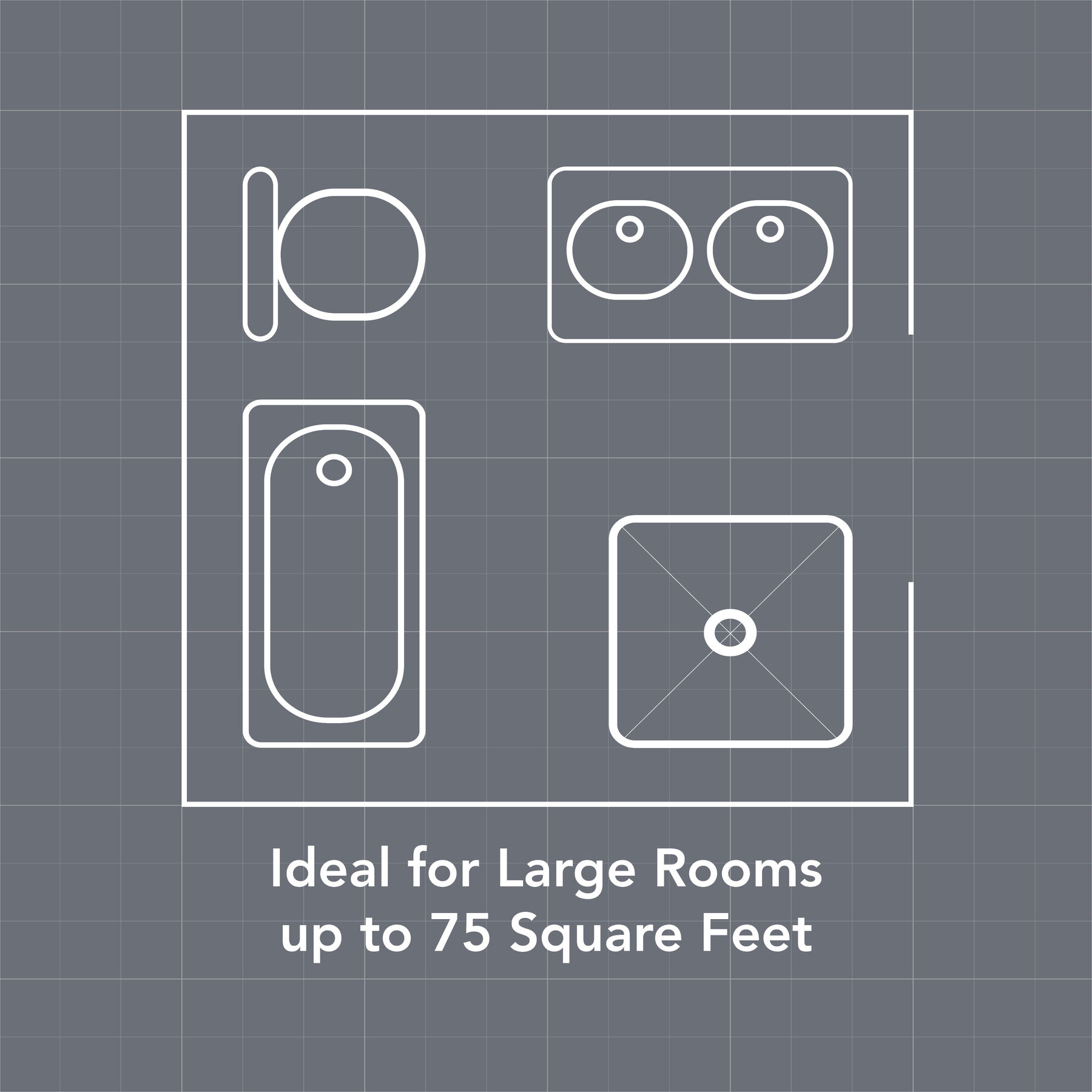

- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
CFM | 80 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | Yes |
Grille Length | 11.5 |
Grille Width | 12 |

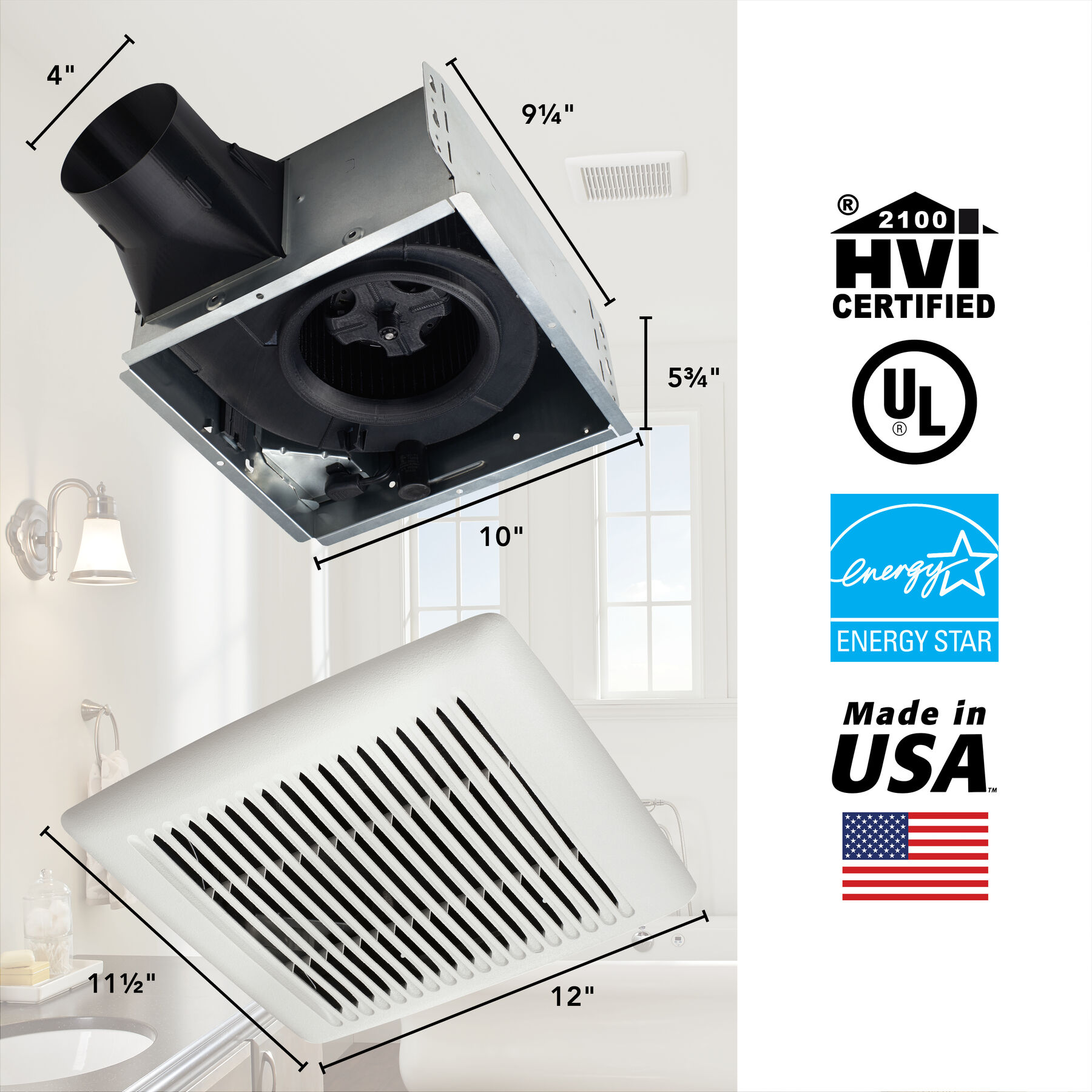

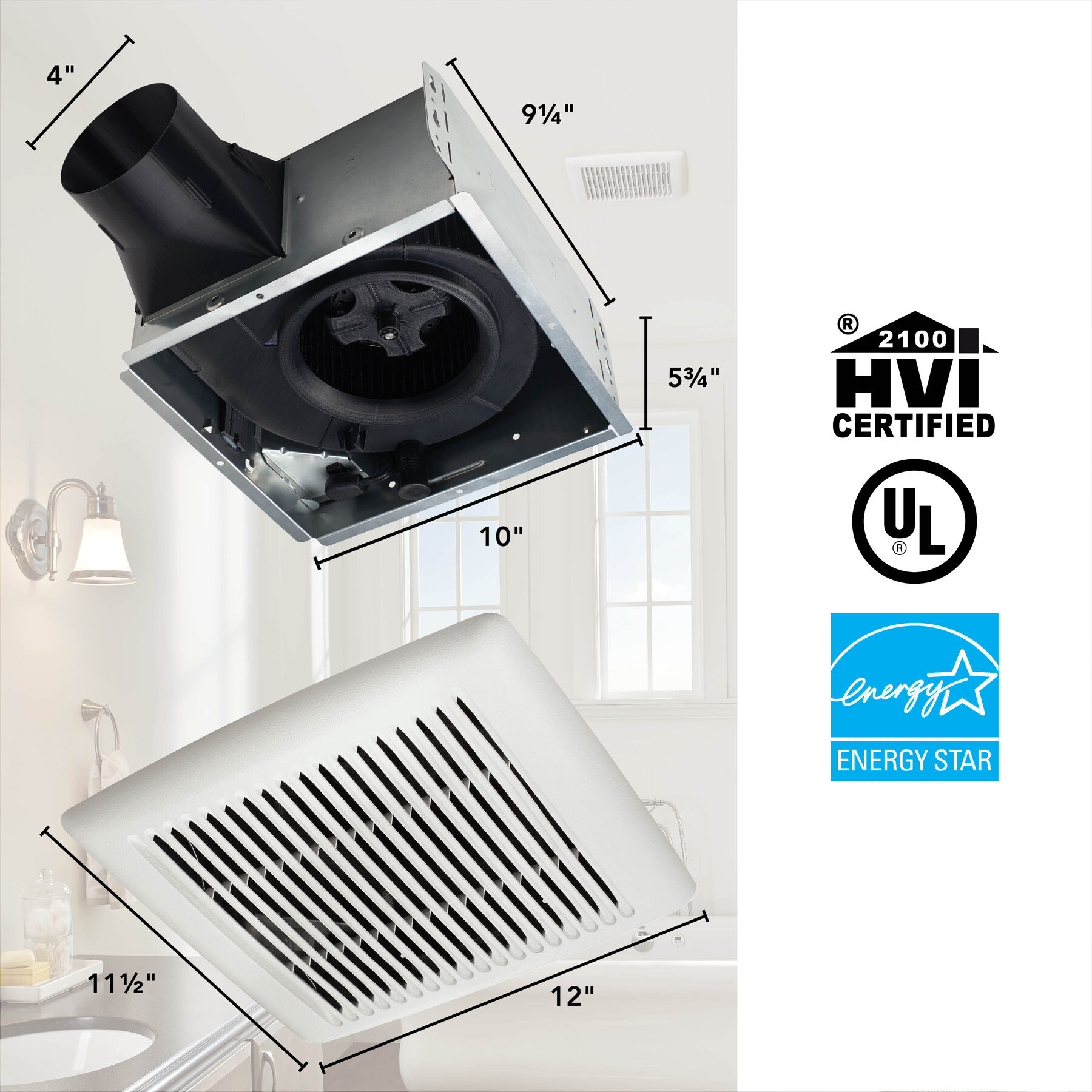

Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Sound Level (Sones) | 0.7 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | Yes |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | Yes |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 75 |
Rated Amps | 0.3 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 3 Years |
High Efficiency Luminaire | No |
Minimum Recommended Flow | 0 |
