Broan Flex™ Series 110 CFM 1.0 Sones Humidity Sensing Ventilation Fan Energy Star®

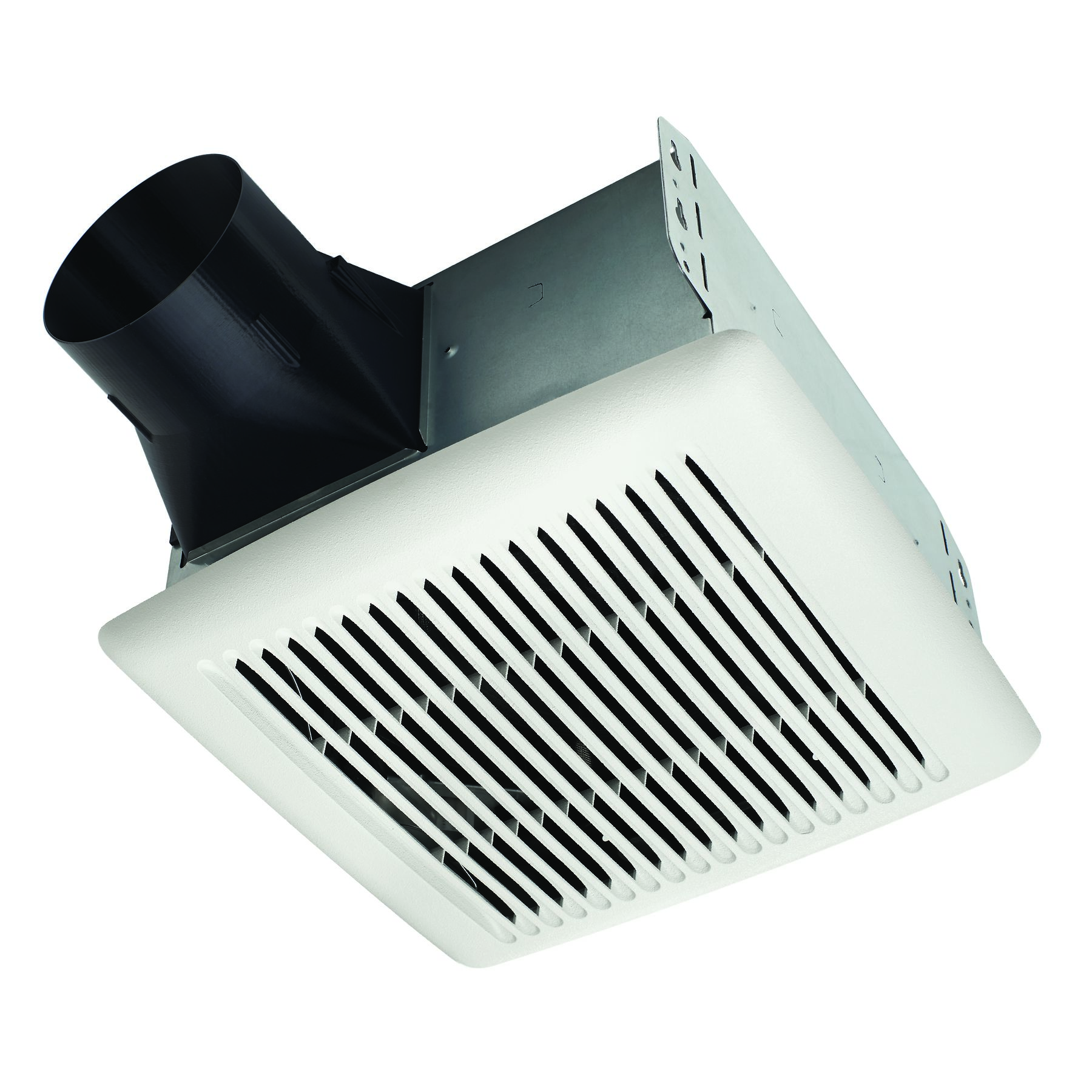

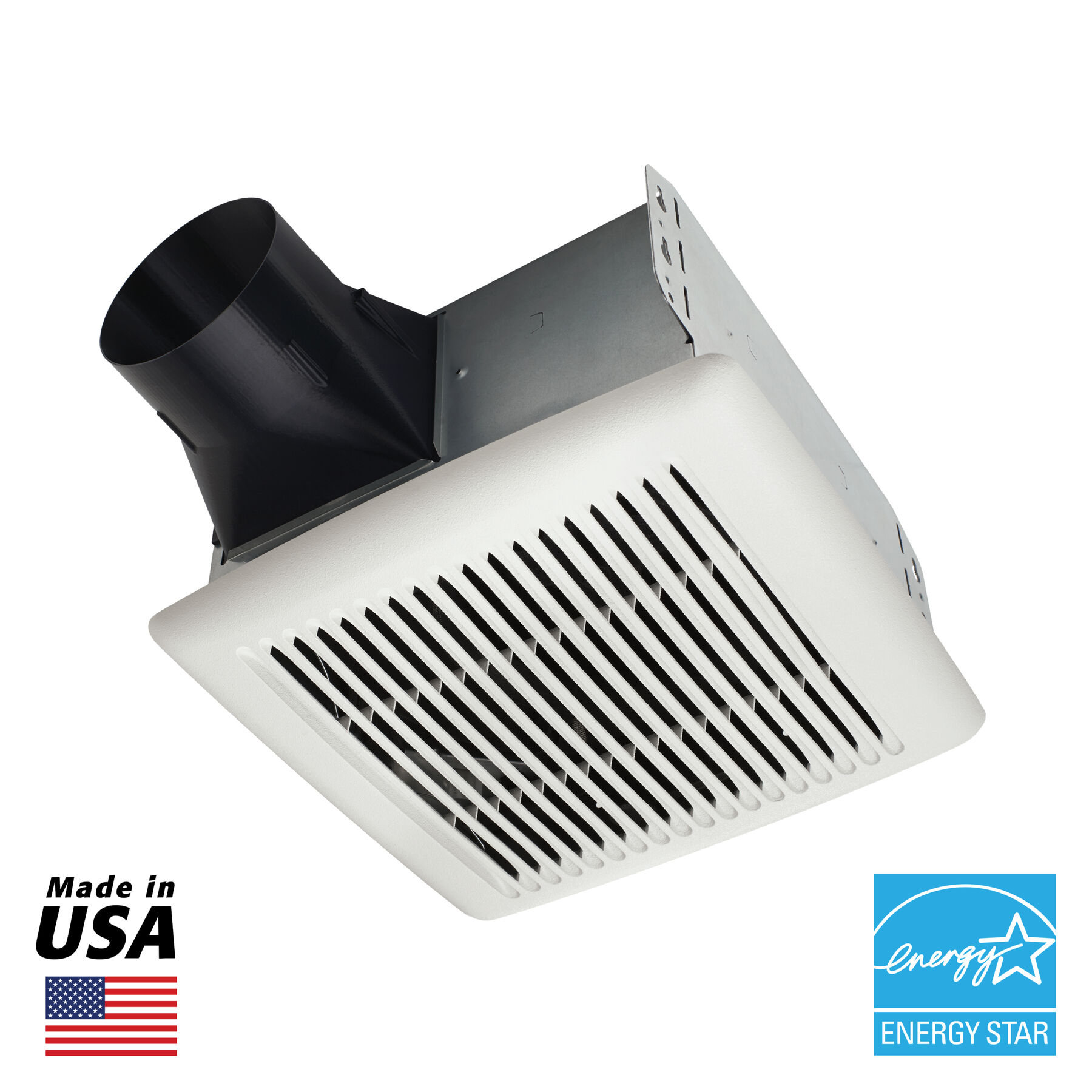

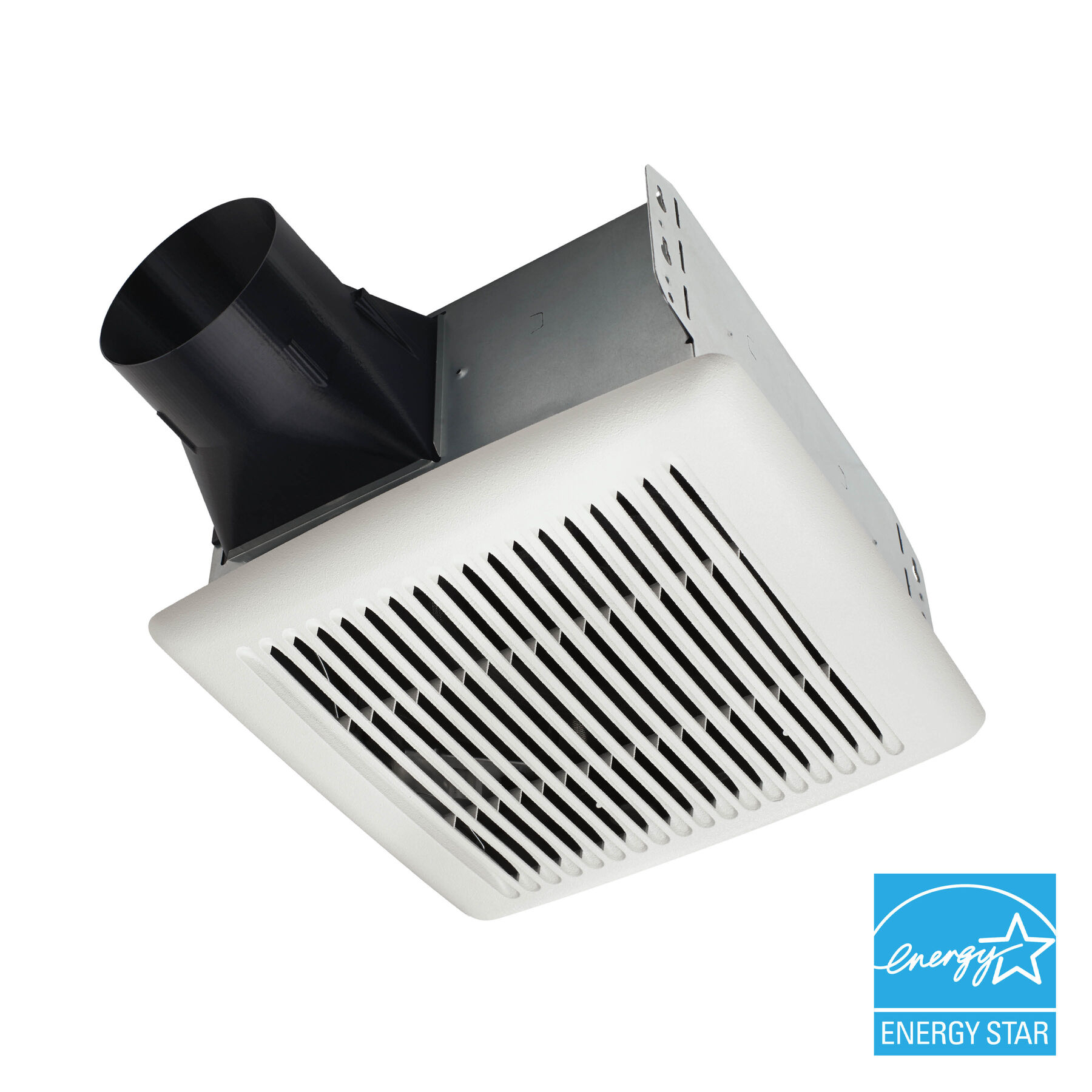

Broan® AE110S Flex Series 110 CFM humidity sensing exhaust bath fan, offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. With the humidity sensing feature, the bath fan will automatically turn on and off when humidity in the room reaches the set point by the consumer. This energy efficient fan operates at 110 CFM and a quiet 1.0 sone.
Model:
AE110S

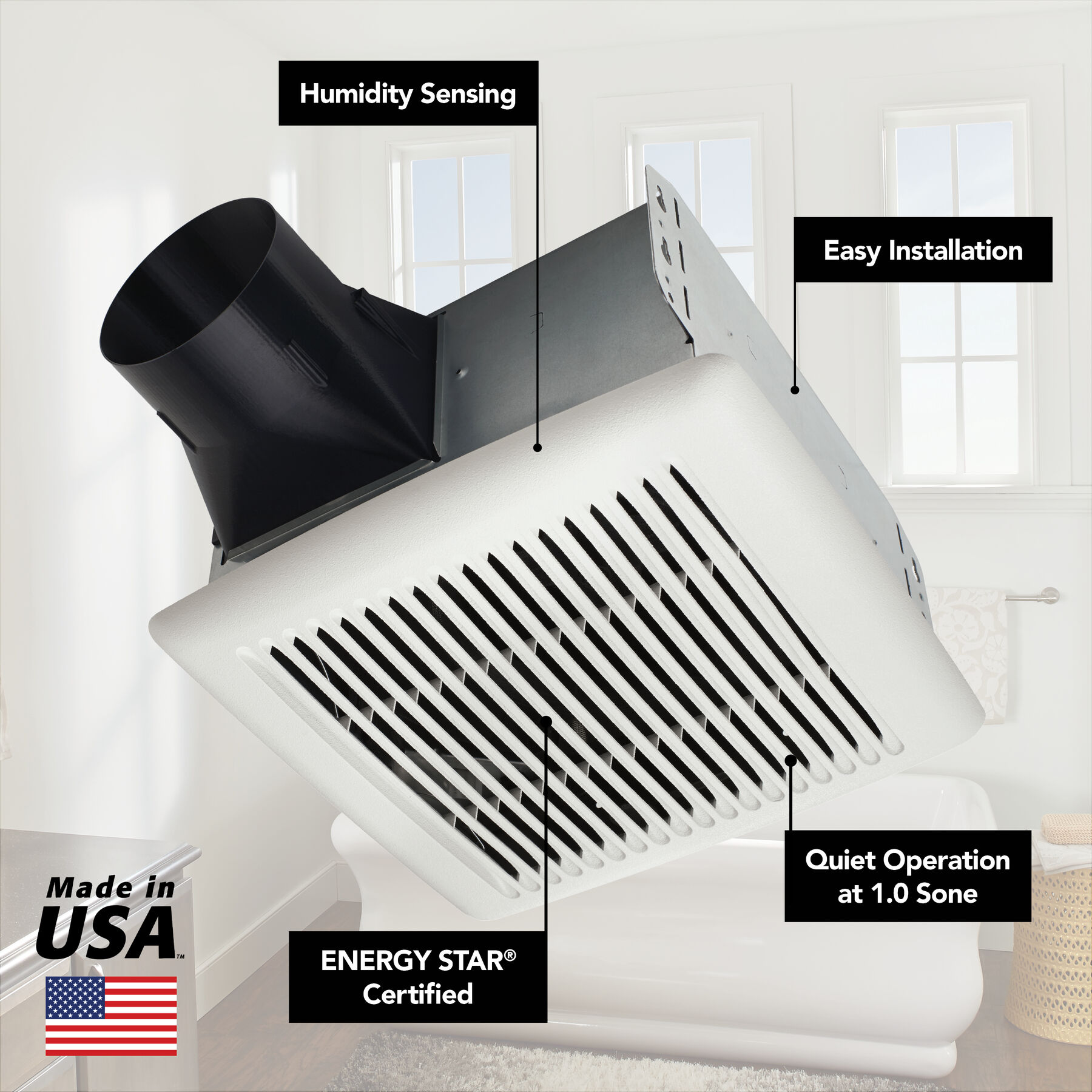

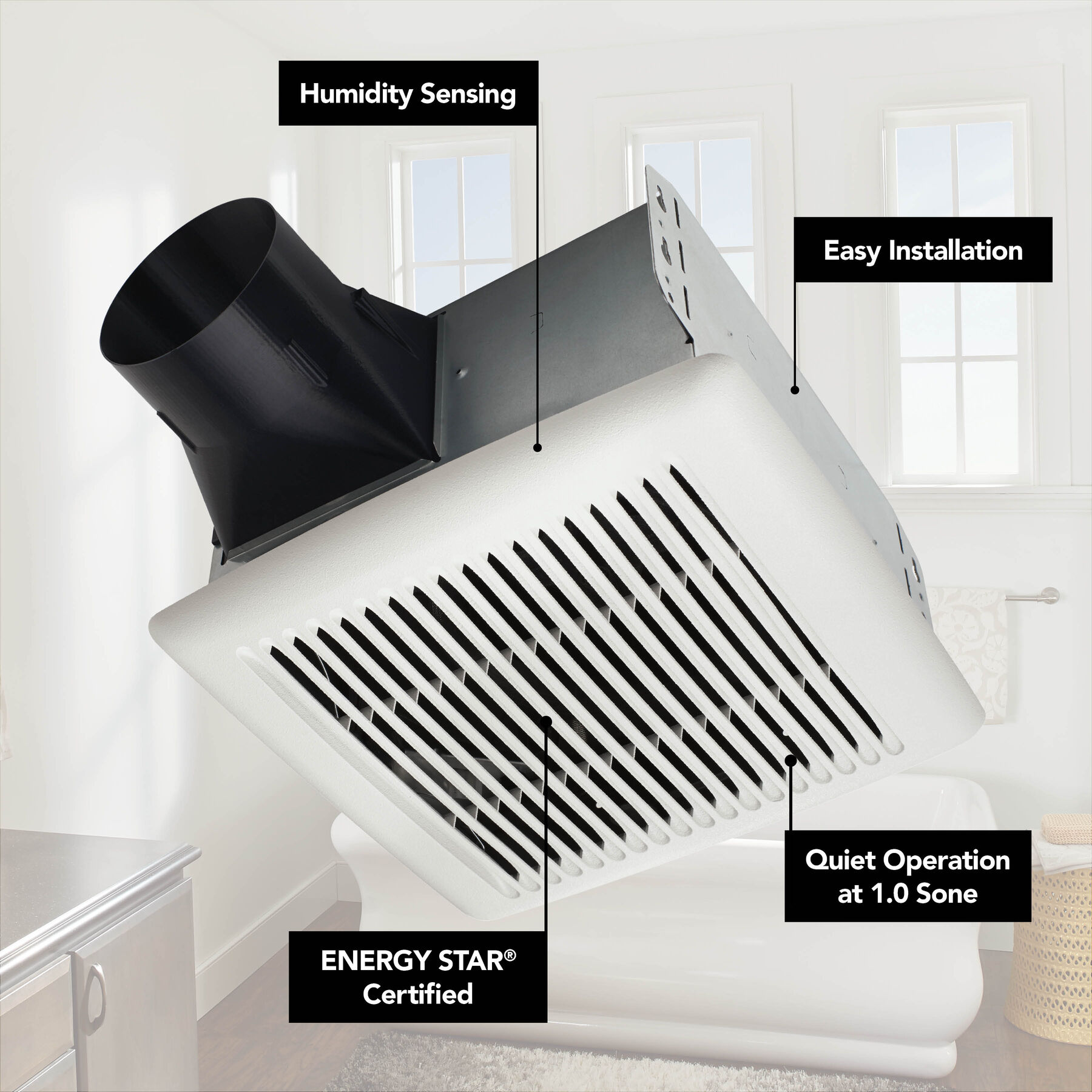

Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it's on
- Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition

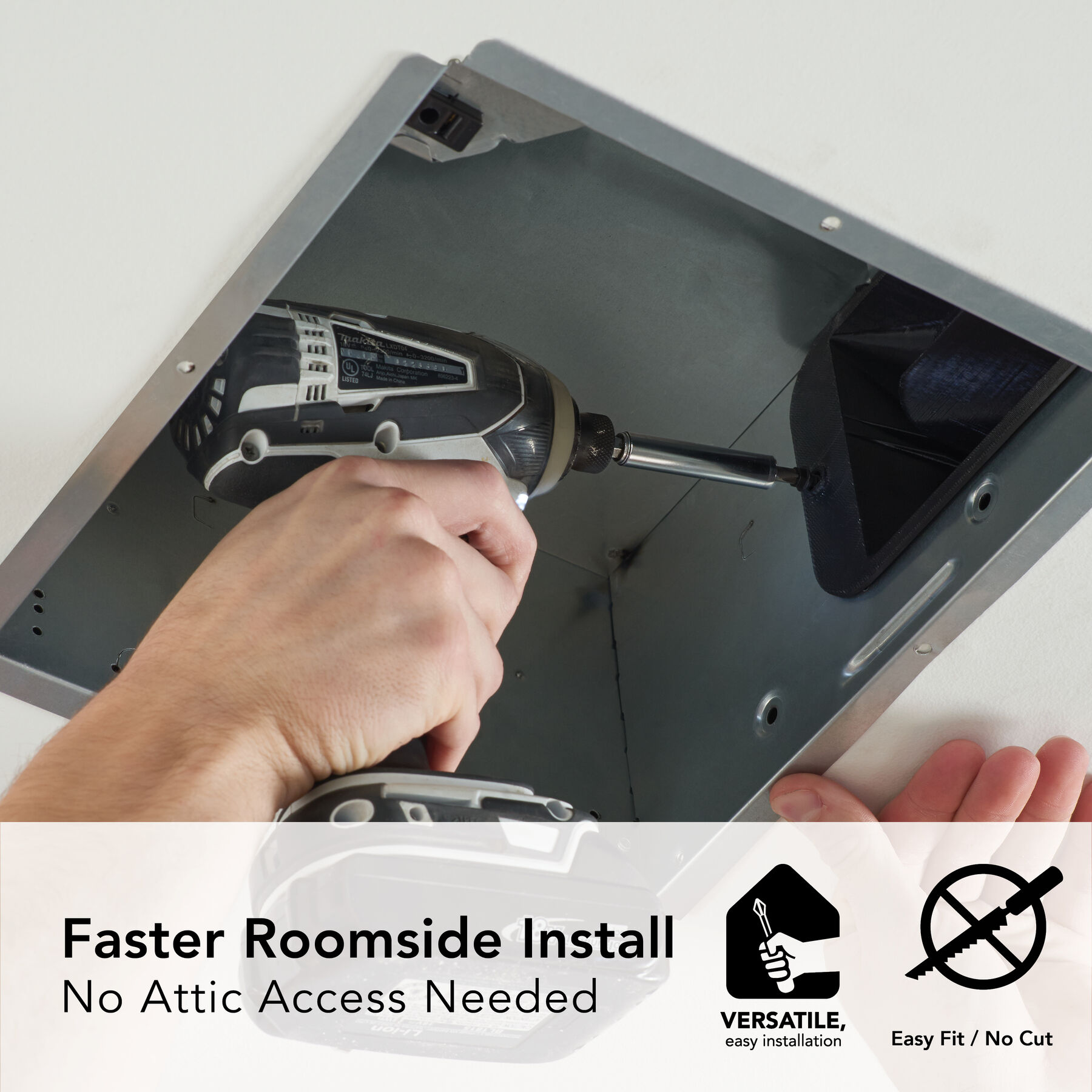

- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® certified product
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
- Powerful enough for rooms up to 100 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |

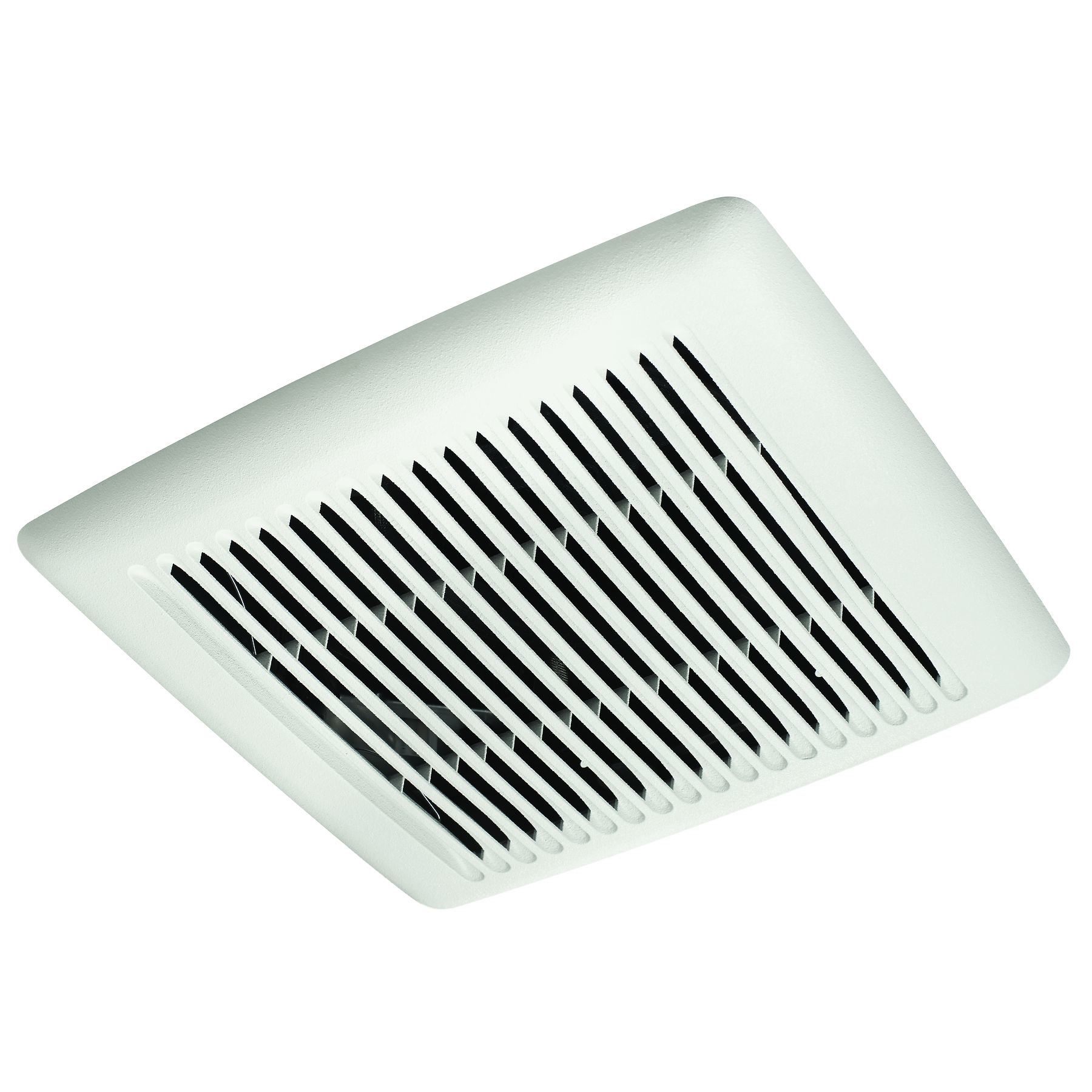

| Grille Length | 11.5 |
| Grille Width | 12 |

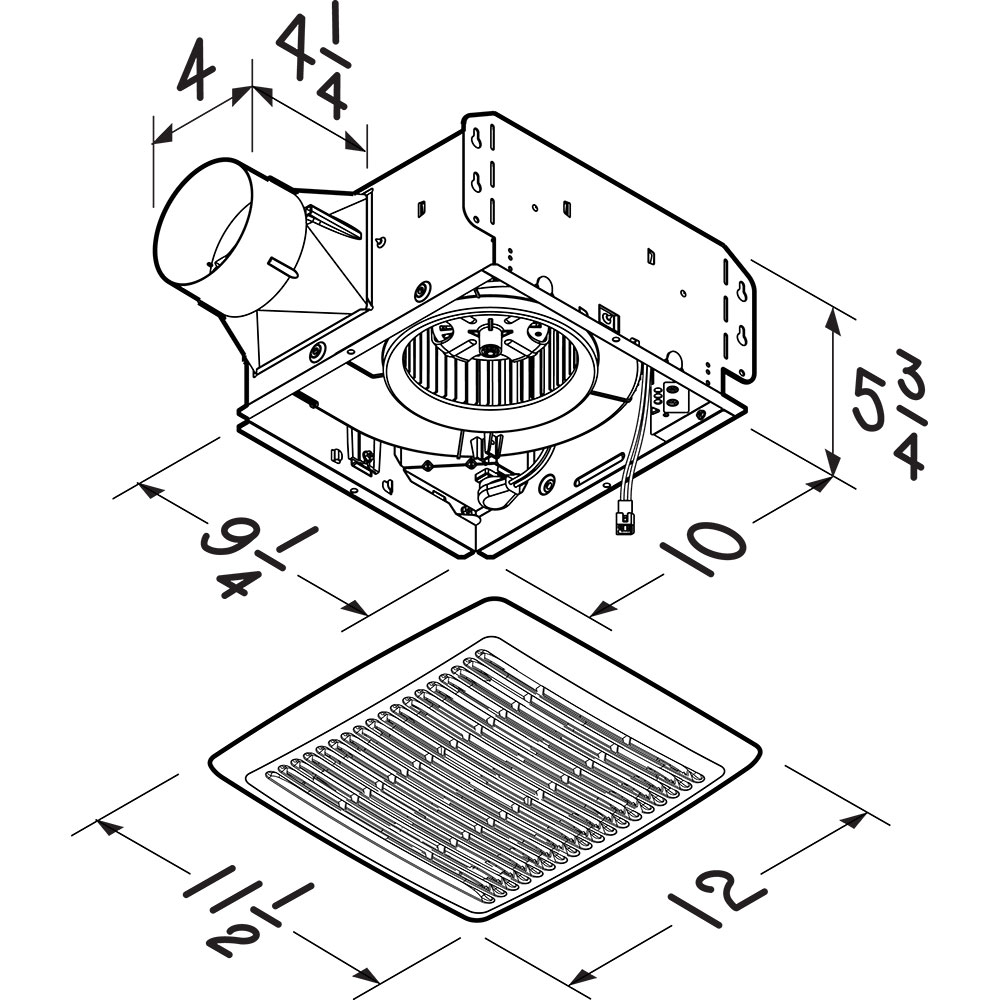

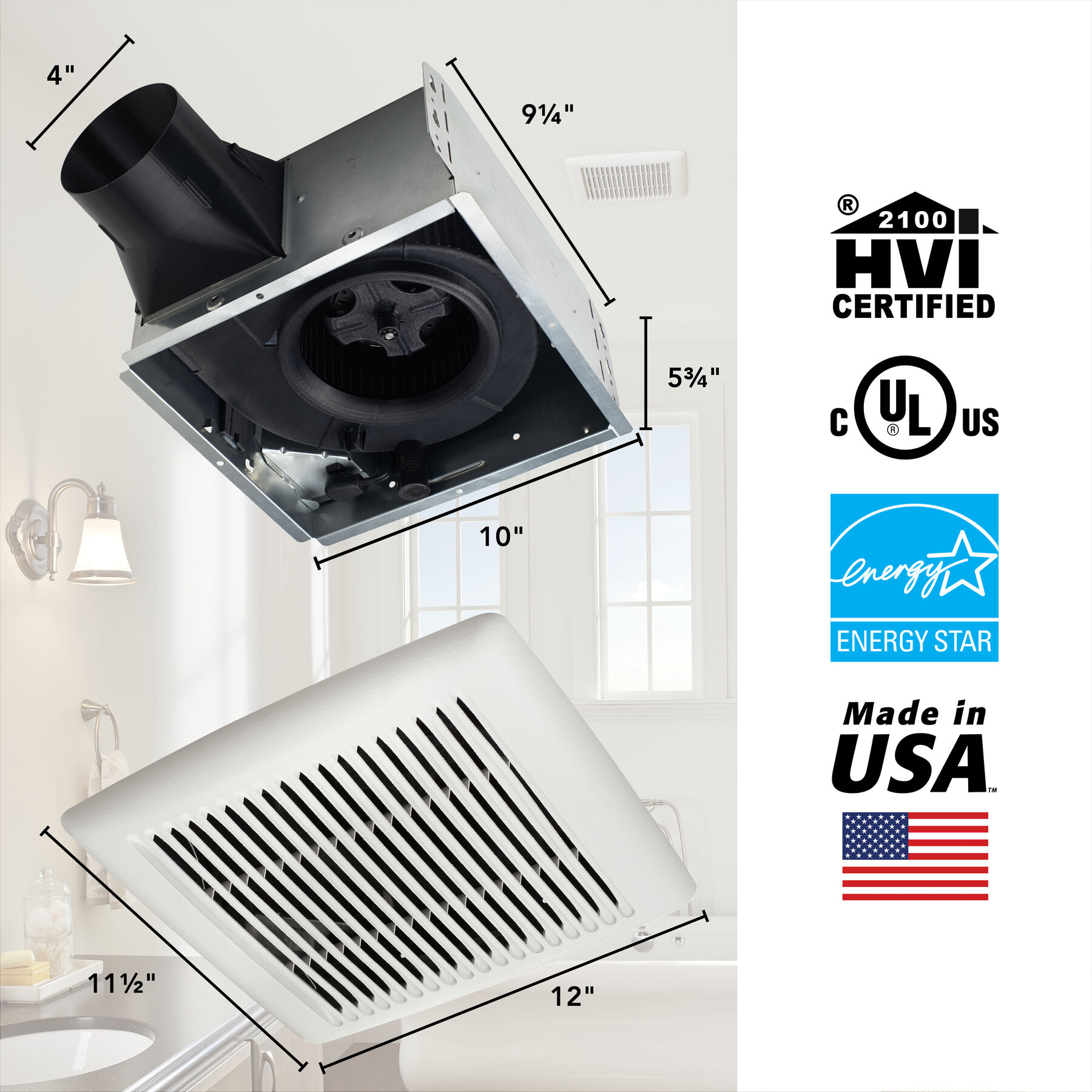

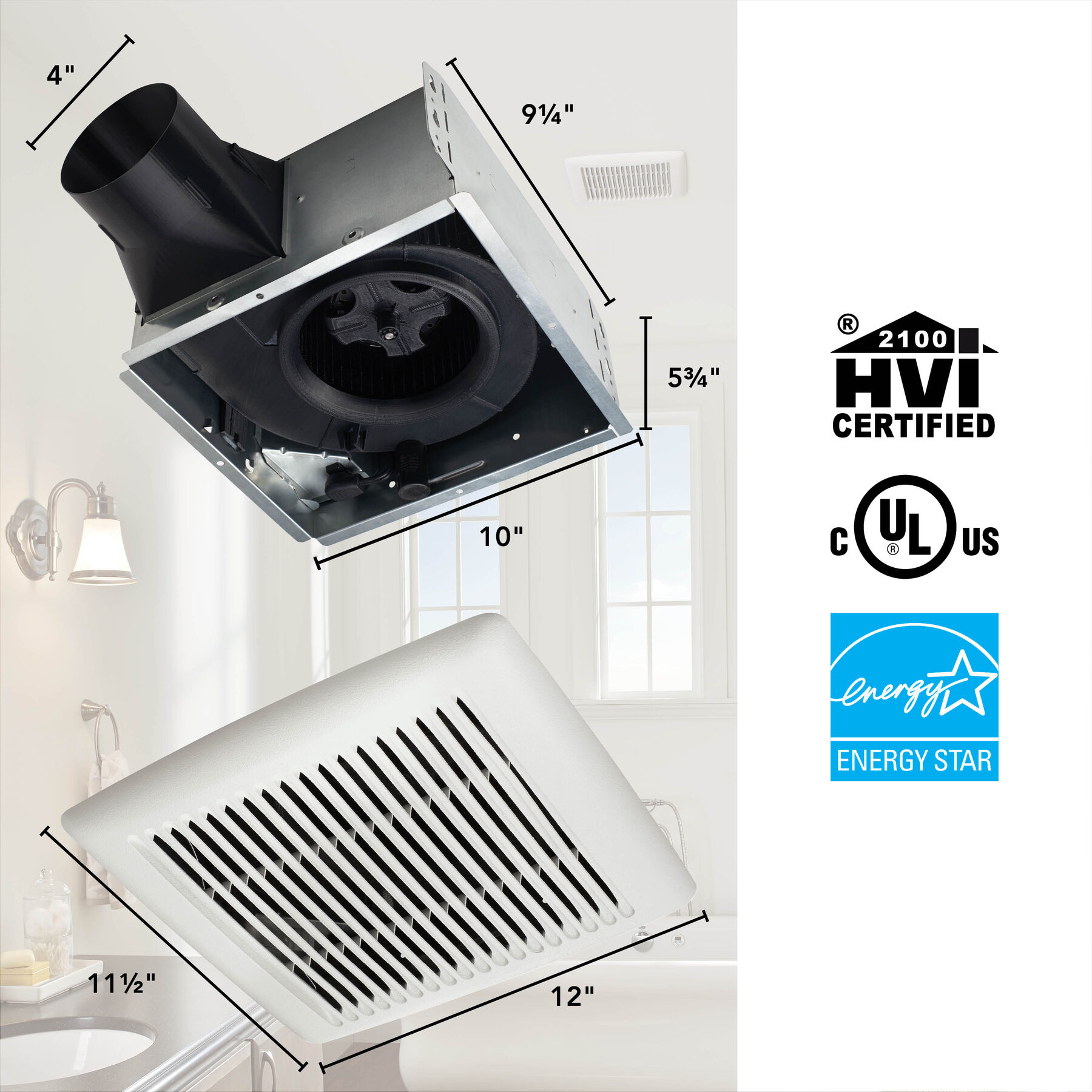

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |

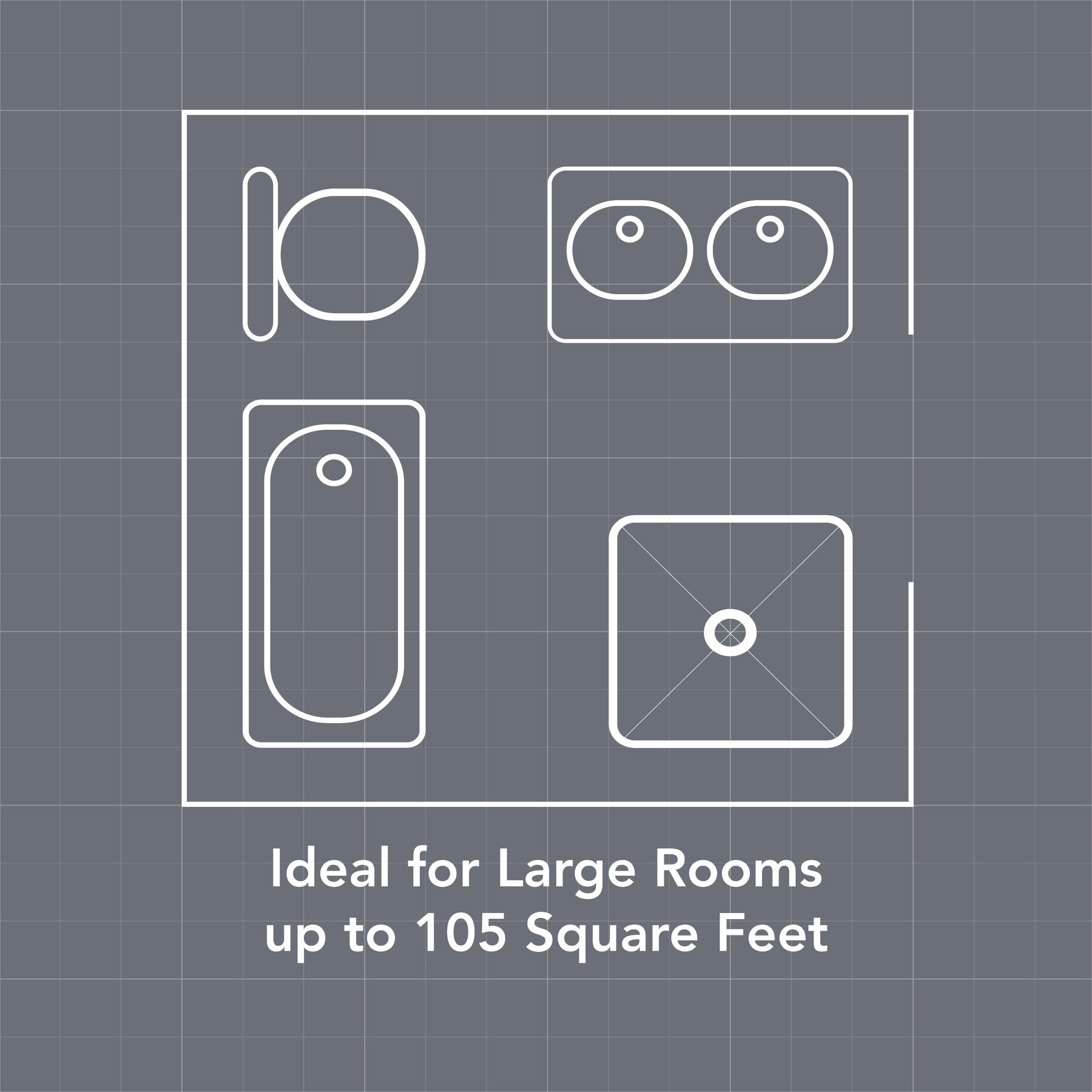

| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
