Broan Flex™ Series
80 CFM Bathroom Exhaust Fan with LED Lighted CleanCover™ Grille, ENERGY STAR
The Broan® Flex Series Ventilation fan with LED lighted CleanCover™ grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover™, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.
Model:
AE80LK
$125.00
retailer prices may vary
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed
- 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.8 Sones for whisper quiet operation
- Broan® Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

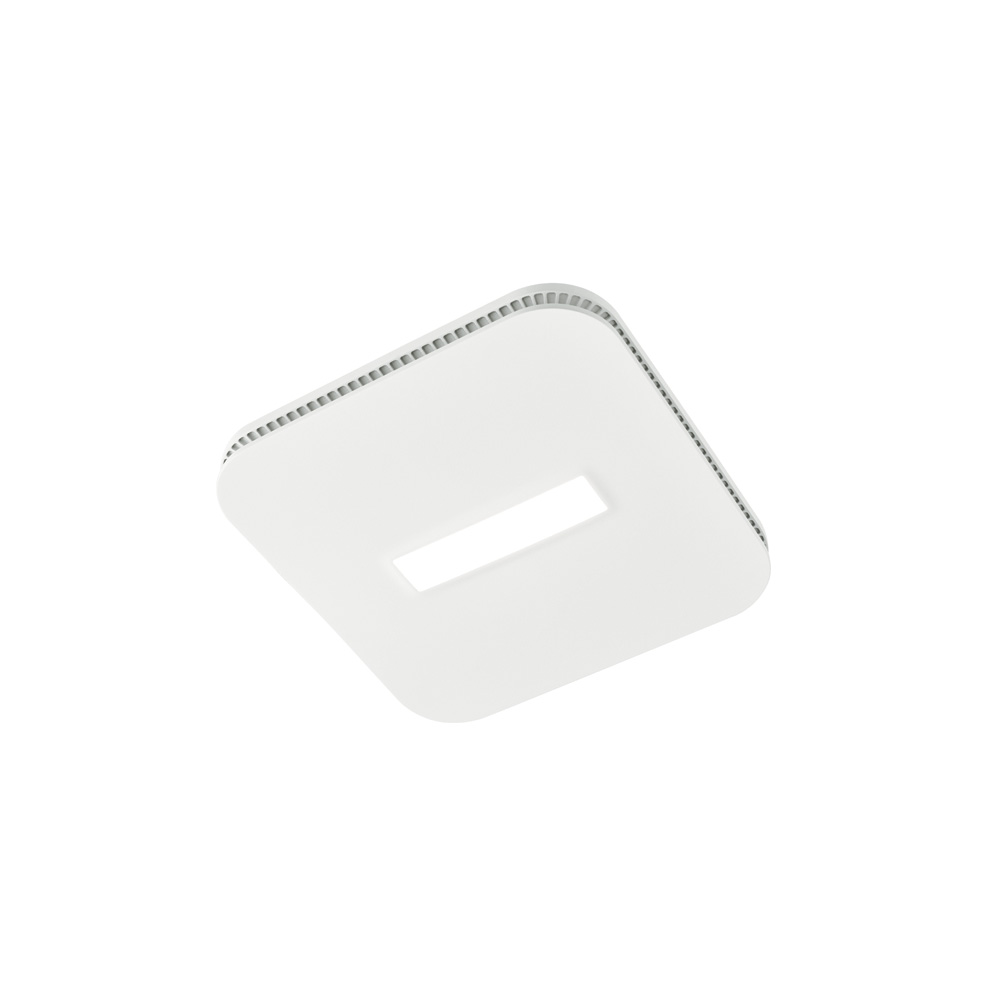

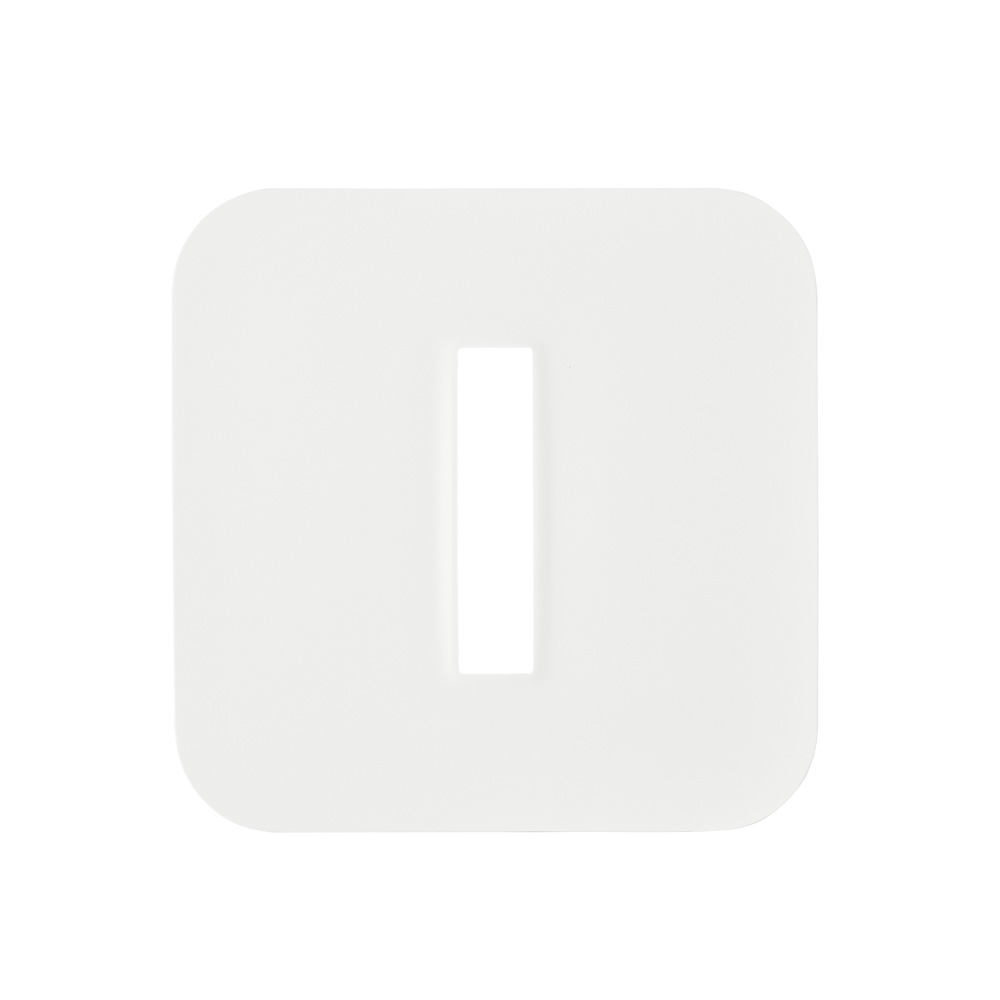

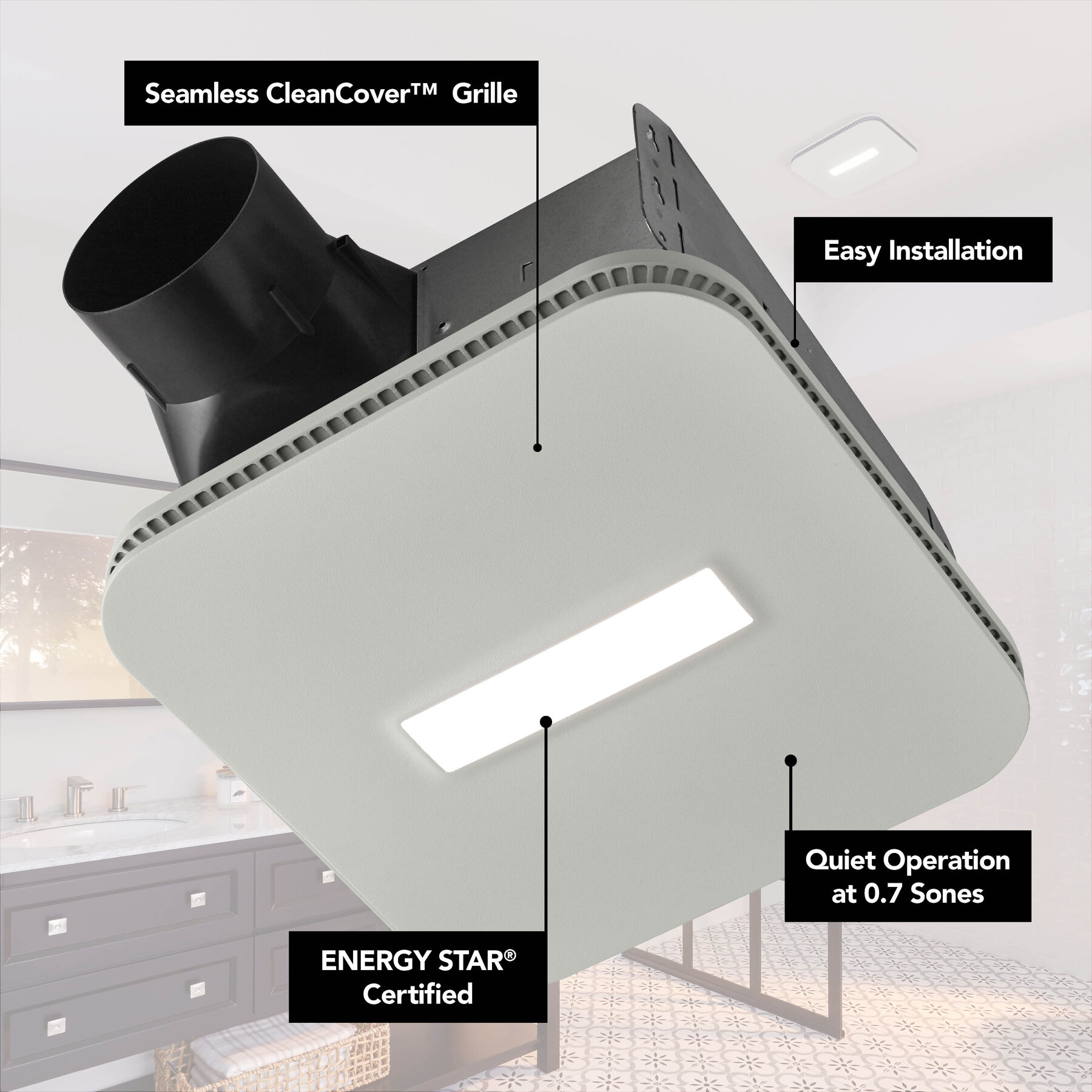

- CleanCover™ grille stays cleaner longer with fewer vent slots to collect dust
- Integrated LED module to provide energy efficient lighting
- FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- TrueSeal™ damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
- SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
- ENERGY STAR® certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- 3-year limited warranty
FITS THIS MODEL: prevent mold, bacteria and fungi growth on surfaces
Broan® SurfaceShield™ LED Exhaust Fan Upgrade Grille/Cover with Vyv™ Antibacterial Light
SurfaceShield™ with Vyv™ antimicrobial light technology combined with Broan’s powerful ventilation offers effective protection against bacteria, mold and fungi growth in your home.
Quickly and easily installs in under 5 minutes; No additional wiring needed, plugs directly into existing lighting connection; No cutting of ceiling material required. Cover hides existing drywall cuts!
Suggested Installation Accessories
Radiation Damper Compatible with this Model
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 12.25 |
| Grille Width | 12.25 |

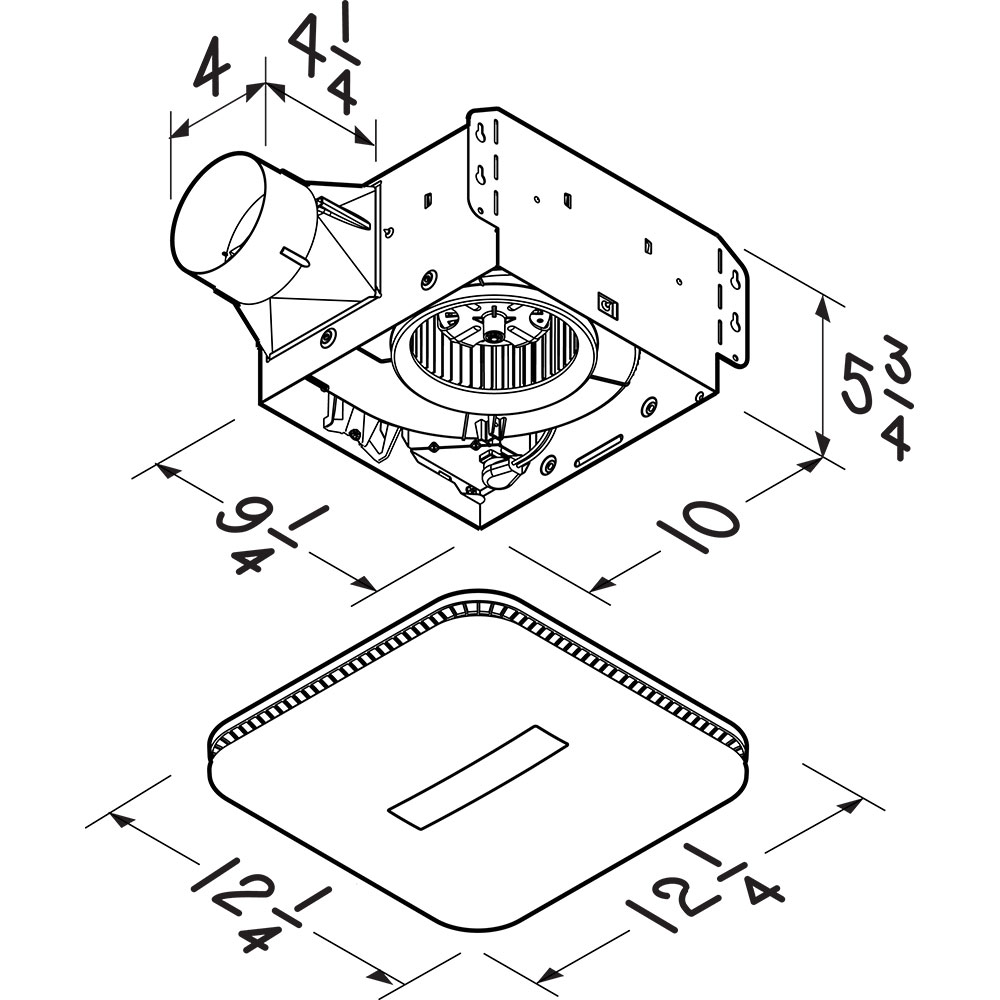

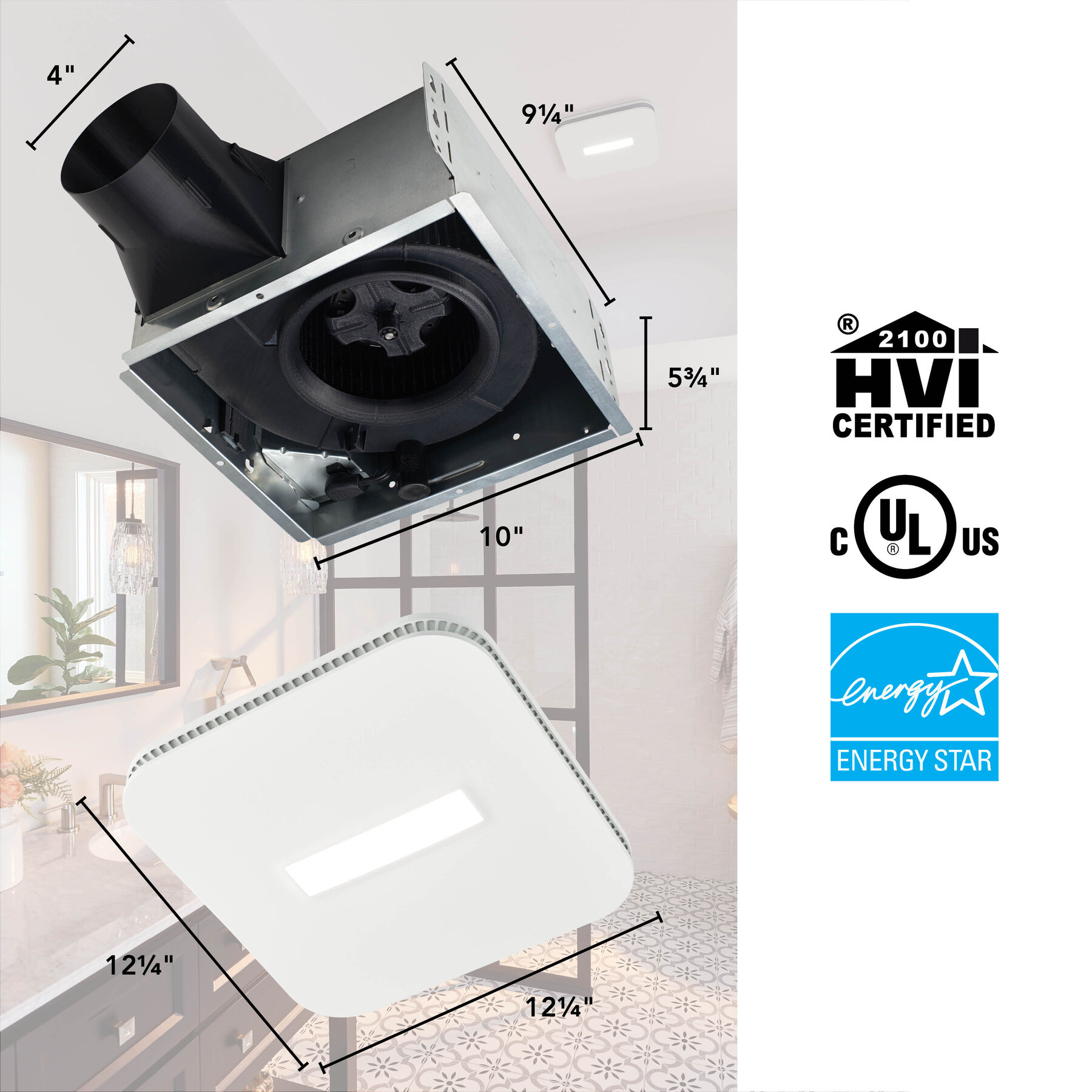

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
