Broan® Flex DC™ Series

Broan® Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Light Finish Pack

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex DC™ Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.


Model:

AE50110DCLF

Features

  • Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3-0.4-0.9 sones for ultra quiet performance, you might not notice it's on
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • Can be installed in a wall if mounted 8-ft. or more above the floor
  • ENERGY STAR® certified product
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Product Selected ENERGY STAR® Most Efficient 2020

Product Selected ENERGY STAR® Most Efficient 2020

Products that are recognized as the Most Efficient of ENERGY STAR in 2020 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency

See Product List

Suggested Installation Accessories

Broan-NuTone® Wall Vent Kit,  3" or 4" Round Duct

Broan-NuTone® Wall Vent Kit, 3" or 4" Round Duct

Model:

WVK2A

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Broan® Roof Vent Kit, 8-Foot of 4-Inch flexible aluminum duct.

Model:

RVK1A

Flex Duct, 4-Inch, Insulated (25 ft.)

Flex Duct, 4-Inch, Insulated (25 ft.)

Model:

DT4W

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Broan-NuTone® Sensaire™ Humidity Sensing Wall Control, White, Single Pack

Model:

82W

  • Specs
  • Downloads
  • Videos

print

CFM 50-80-110
Color Finish
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.75
Grille Width 12.5

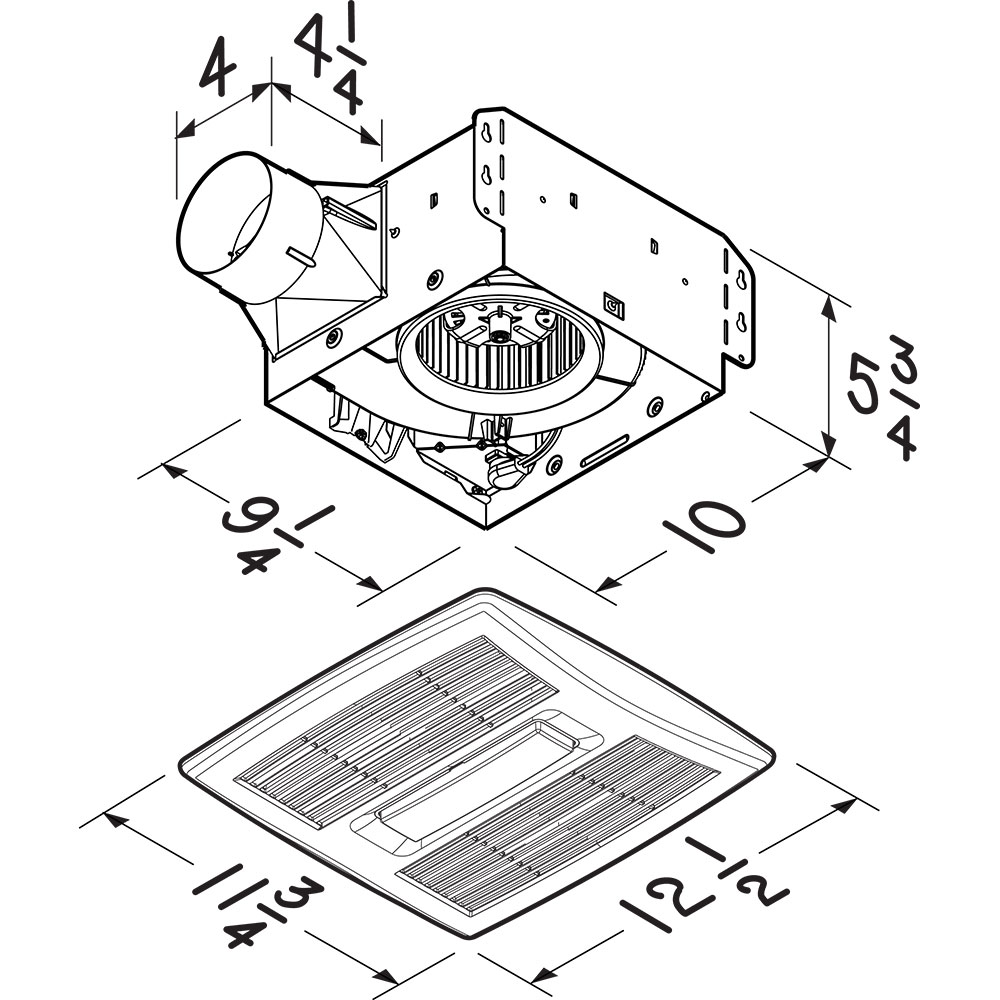

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.4
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Broan FLEX Series Bathroom Ventilation Fan Installation Video
