Broan® Flex DC™ Series
Broan® Bathroom Exhaust Fan w/ LED Light, ENERGY STAR®, 50-110 CFM

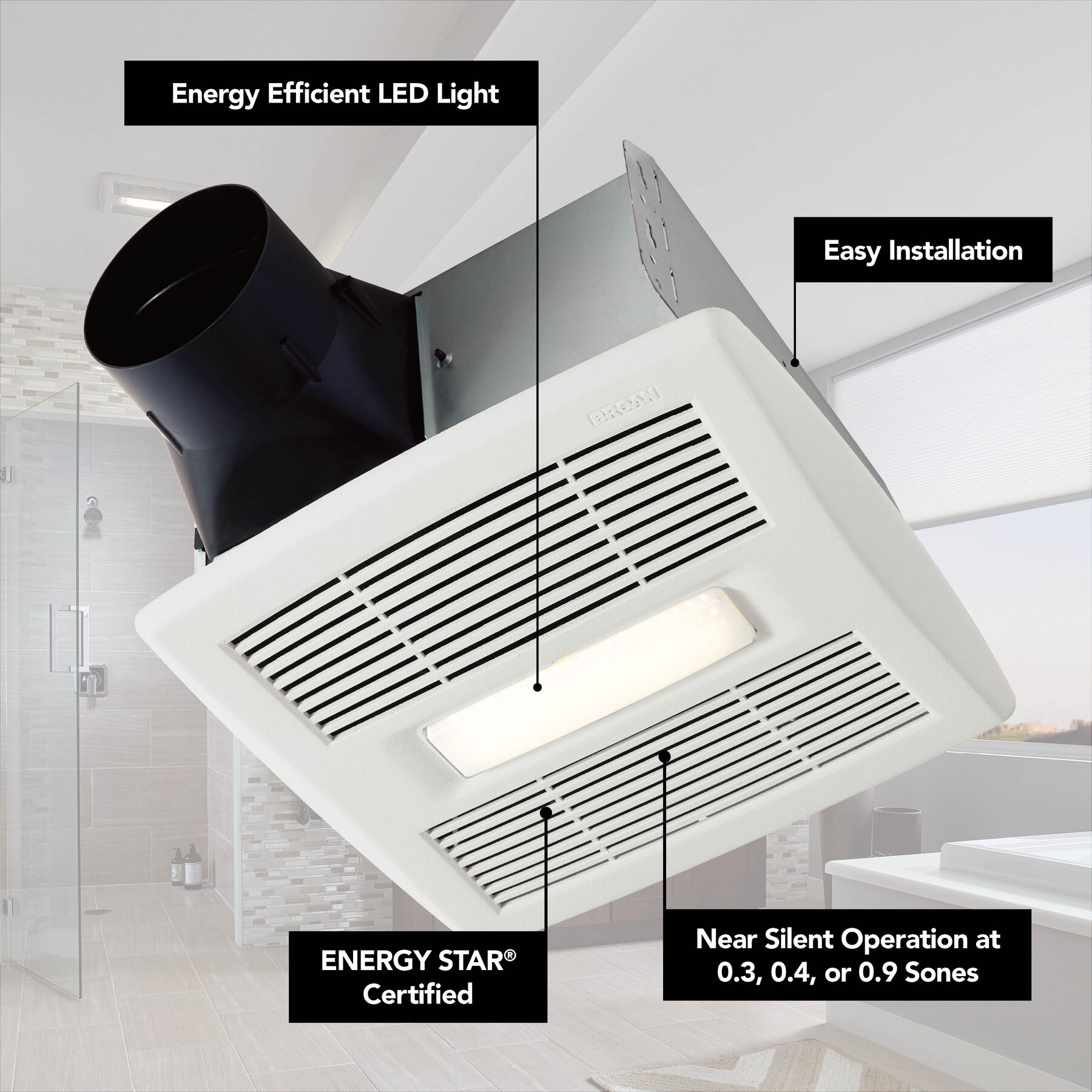

Broan® AE50110DCL Flex DC™ Series Exhaust Bath Fan with LED, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.
Model:
AE50110DCL
$201.00
retailer prices may vary
Product Data:
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed

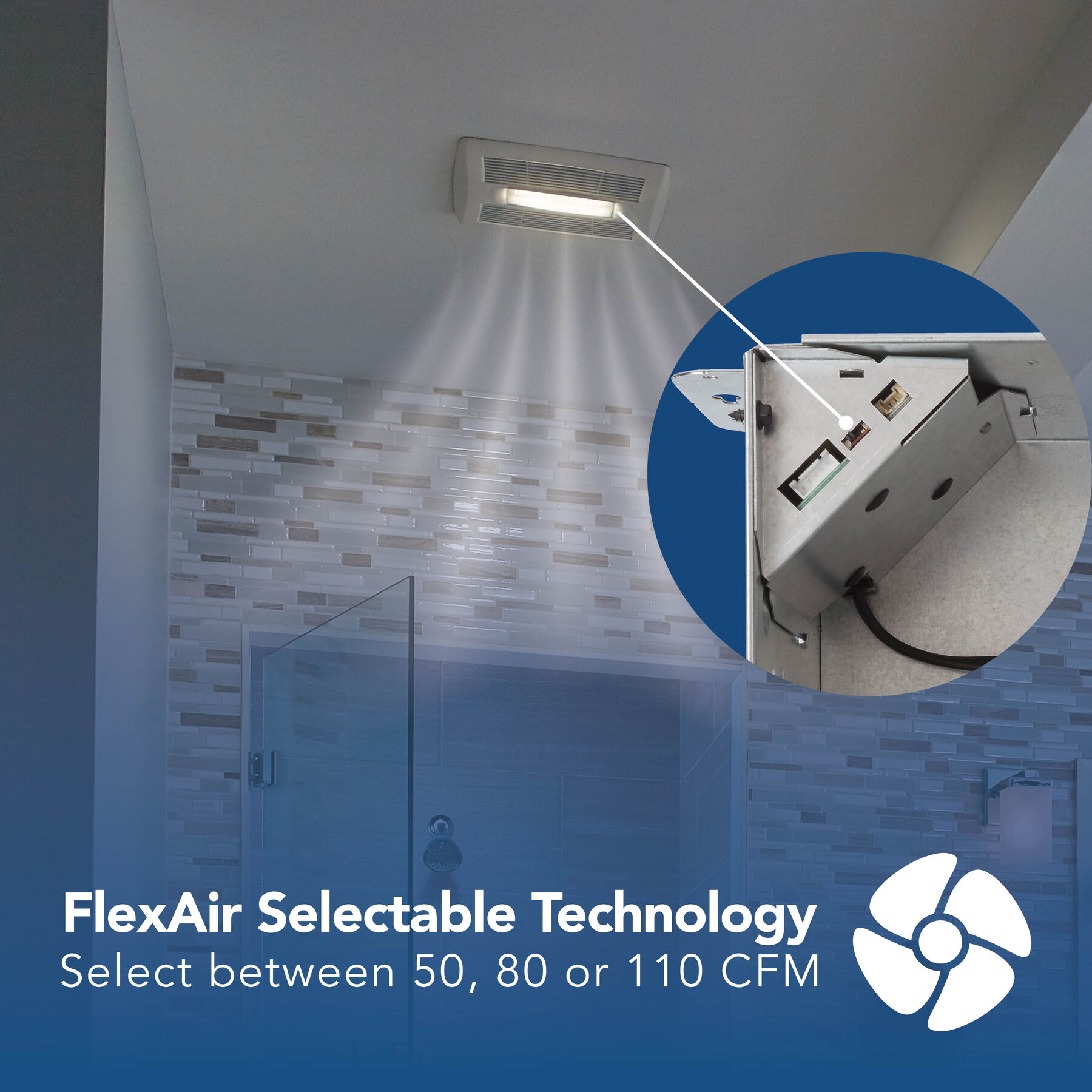

- FlexFlow™ technology, select between 50, 80 or 110 CFM

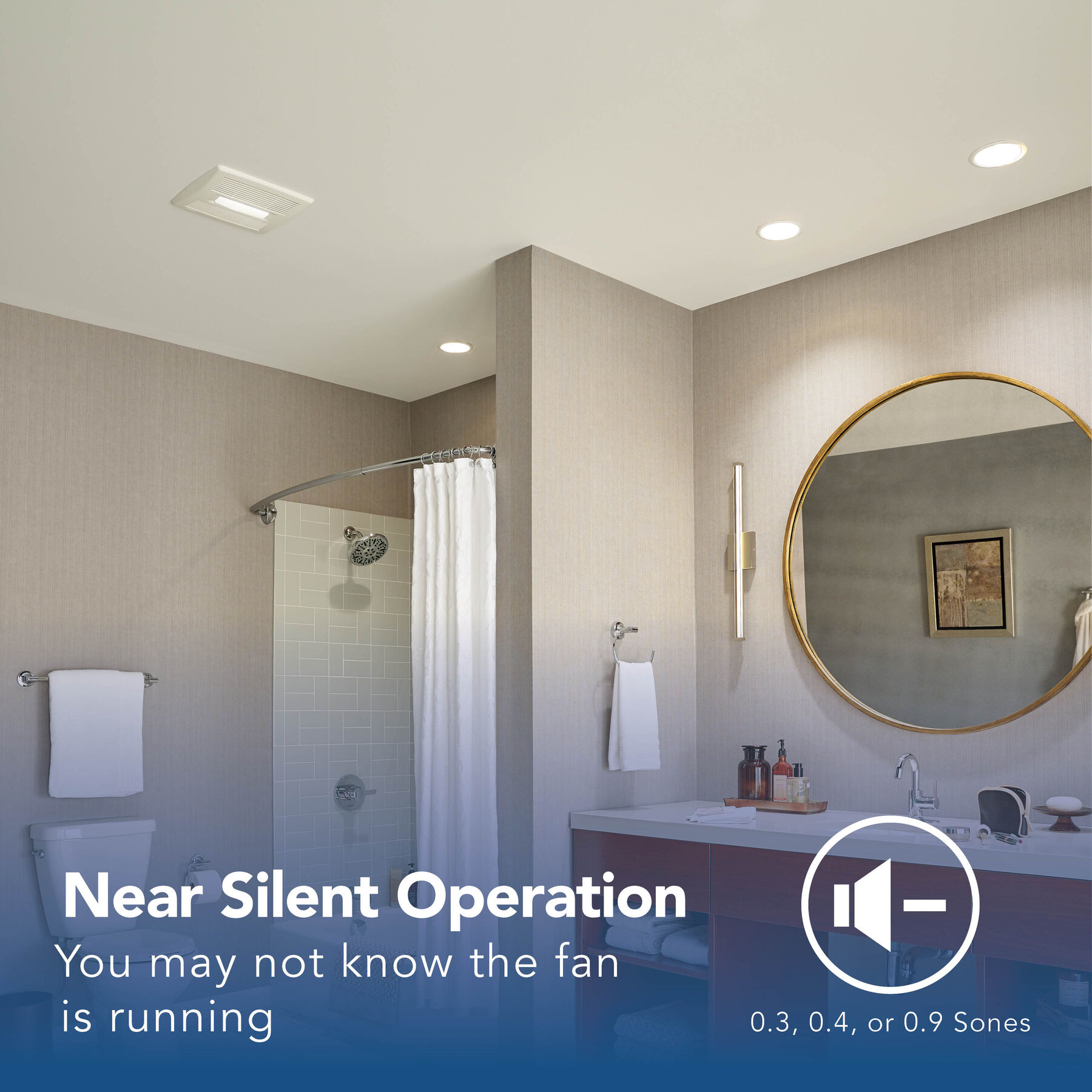

- Quiet operation at <0.3-0.4-0.9 sones
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable

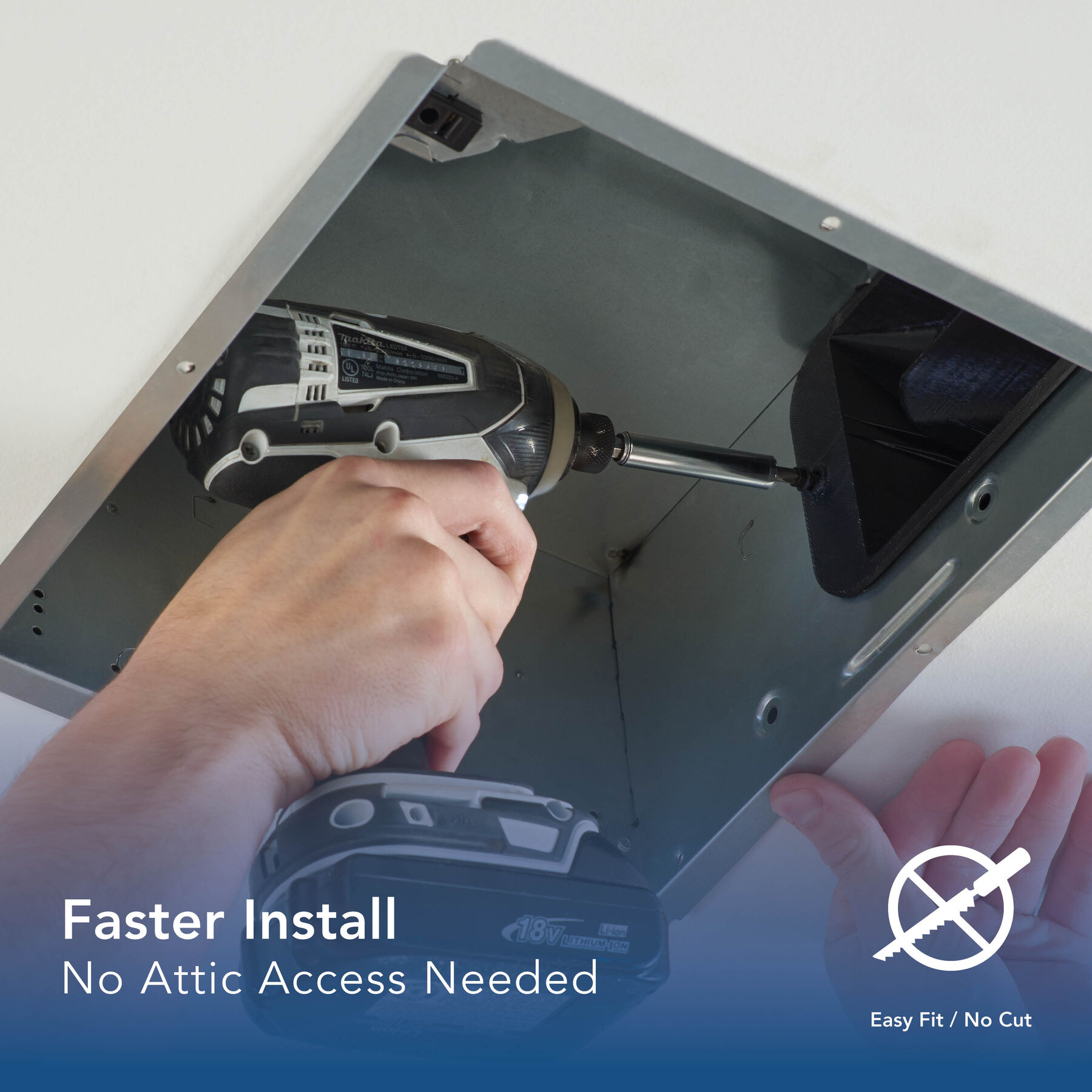

- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else

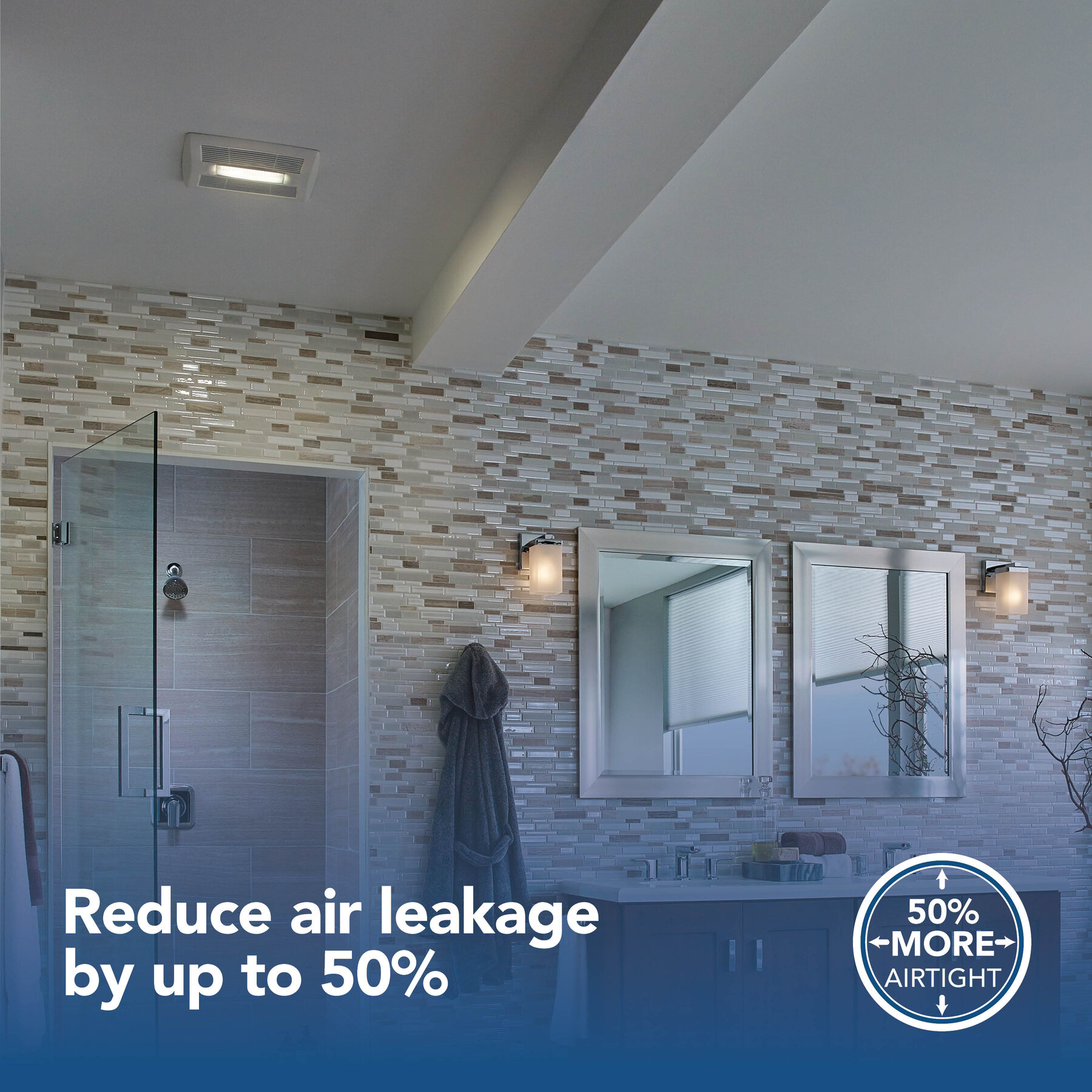

- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
- Can be installed in a wall if mounted 8-ft. or more above the floor
- Includes an 11 watt, 3500K, integrated LED module that lasts up to 25,000 hours for maintenance-free convenience
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- ENERGY STAR® certified product
- Quiet, energy efficient exhaust fan to help control air quality
- Selectable CFM For flexible installation
- Easy to install new / replace existing product from the roomside
FITS THIS MODEL: prevent mold, bacteria and fungi growth on surfaces
Broan® SurfaceShield™ LED Exhaust Fan Upgrade Grille/Cover with Vyv™ Antibacterial Light
SurfaceShield™ with Vyv™ antimicrobial light technology combined with Broan’s powerful ventilation offers effective protection against bacteria, mold and fungi growth in your home.
Quickly and easily installs in under 5 minutes; No additional wiring needed, plugs directly into existing lighting connection; No cutting of ceiling material required. Cover hides existing drywall cuts!
Product Selected ENERGY STAR® Most Efficient 2022
Products that are recognized as the Most Efficient of ENERGY STAR in 2022 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency
See Product ListSuggested Installation Accessories
Radiation Dampers Compatible with this Model
| CFM | 50-80-110 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

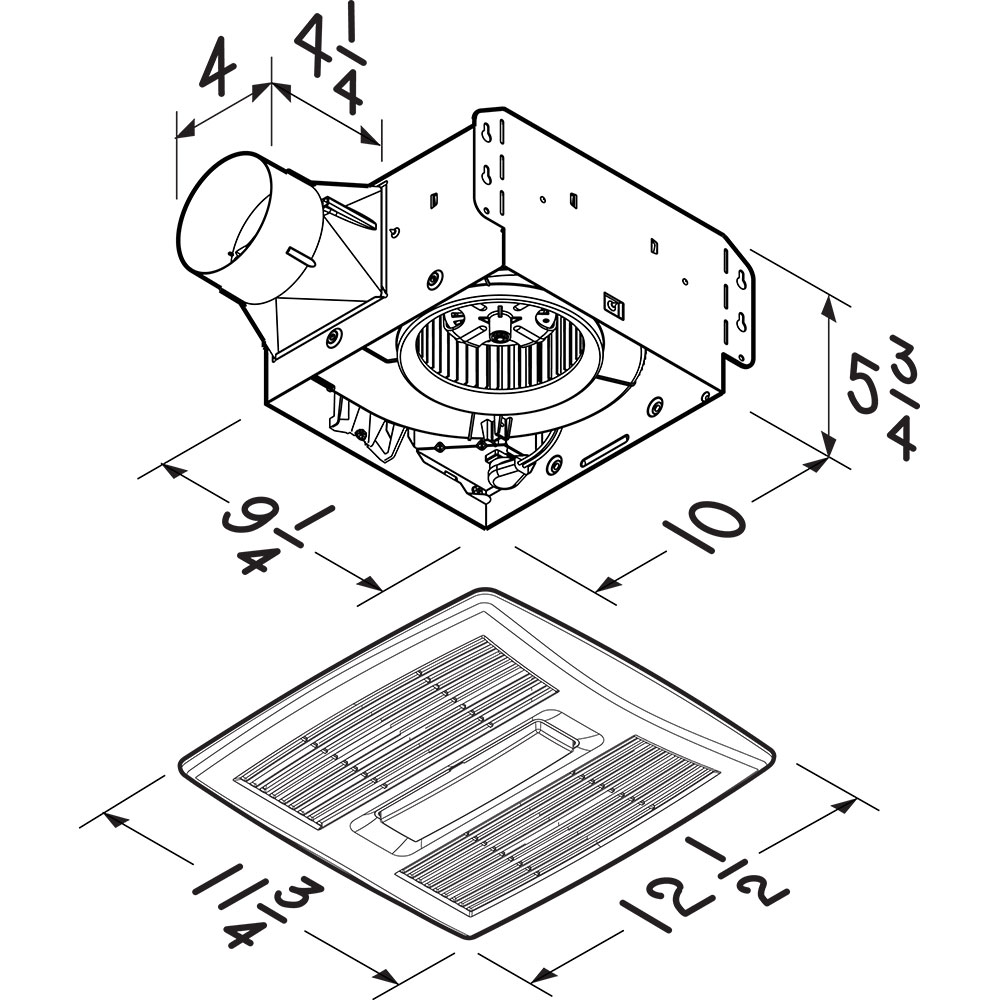

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Broan FLEX Series Bathroom Ventilation Fan Installation Video
