Product Discontinued
Broan Flex™ Series
**DISCONTINUED** Broan Flex™ Series 110 CFM 1.0 Sones Humidity Sensing Ventilation Fan Light Energy Star®
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![ENERGY STAR certified](https://www.broan-nutone.com/getmedia/a2da36a5-2fff-4026-b6ff-4d0ce8c19c64/ENERGY-STAR-logo.jpg?width=1237&height=1266&ext=.jpg)
ENERGY STAR certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it's on
- Bright 3000K energy efficient LED lighting to help illuminate your room

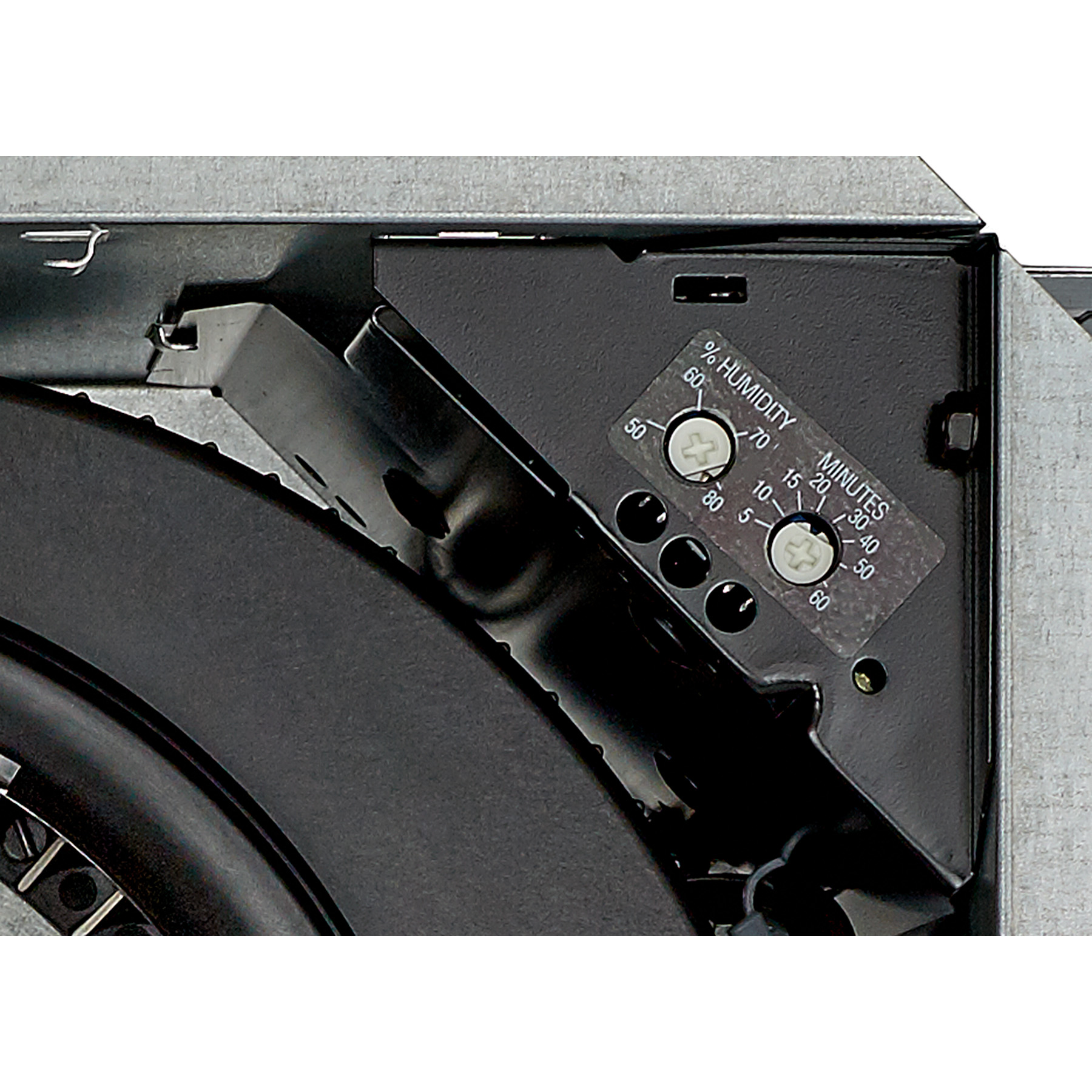

- Sensire™ humidity sensing technology, senses humidity up to 4X faster than the competition
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® certified product
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
- Powerful enough for rooms up to 100 sq. ft.
- Permanently lubricated AC motor engineered for continuous operation
Suggested Installation Accessories
- Specs
- Downloads
CFM | 110 |
---|---|
Color Finish |
|
Duct Size | 4 |
ENERGY STAR® certified | Yes |
Grille Length | 11.75 |
Grille Width | 12.5 |

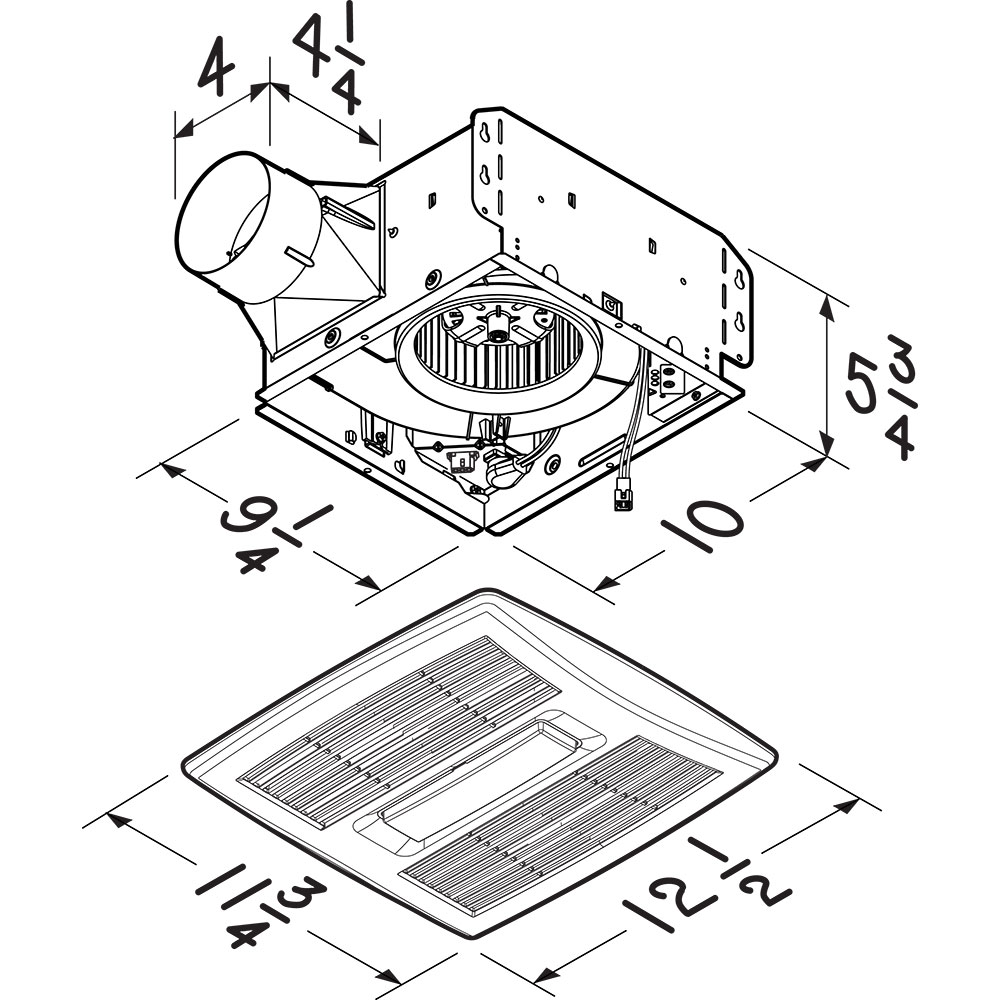

Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Sound Level (Sones) | 1 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | Yes |
Light Bulb Quantity | 1 |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | Yes |
Room Side Installation | Yes |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 105 |
Rated Amps | 0.5 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Bulb (Recommended Type) | Integrated LED Module |
Minimum Construction Space Required | 2" x 6" |
Manufacturer Warranty | 3 Years |
High Efficiency Luminaire | No |
Minimum Recommended Flow | 0 |
