Broan Flex™ Series

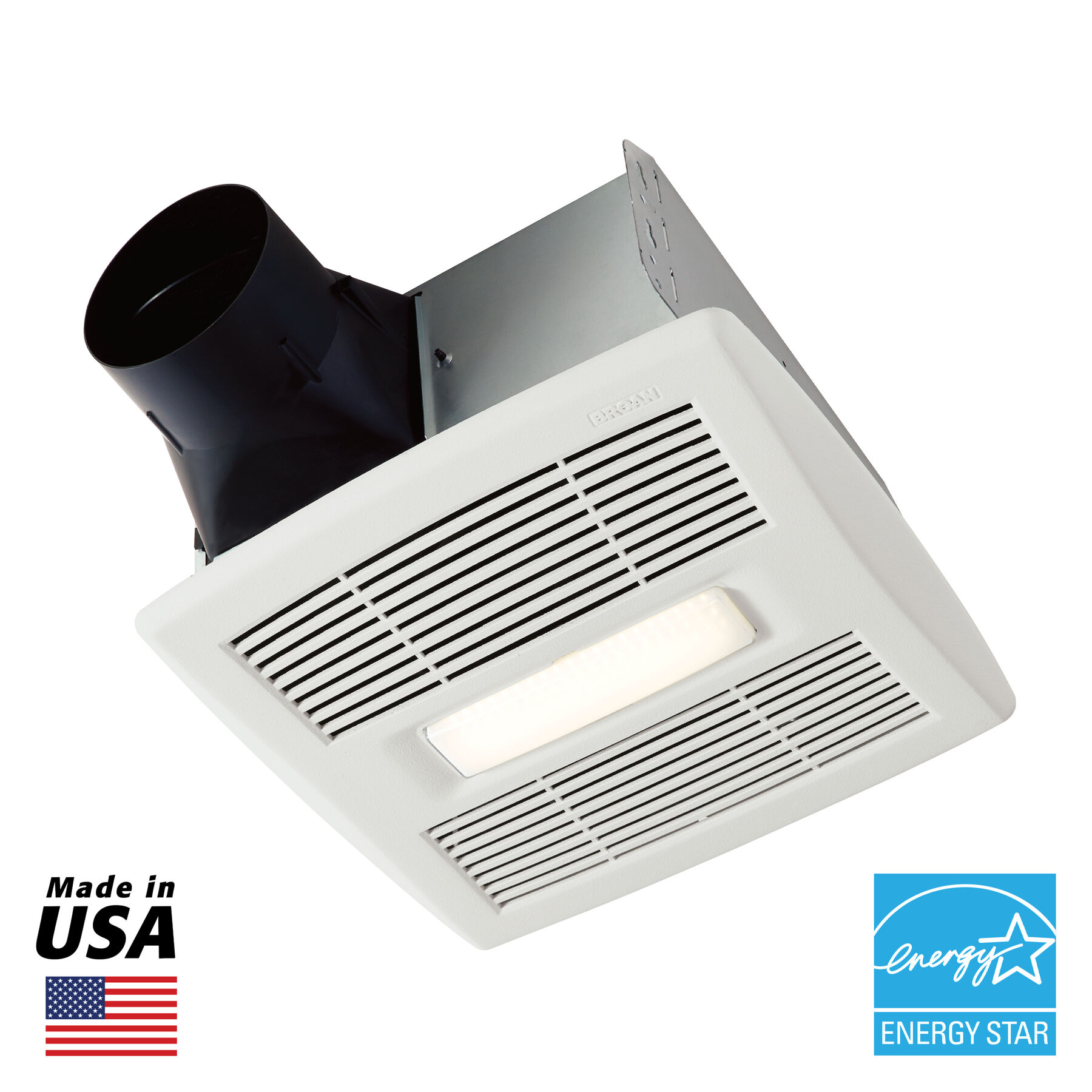

Flex Series 110 CFM Ceiling Roomside Installation Bathroom Exhaust Fan with Light, ENERGY STAR*
Enjoy easy exhaust bath fan installation with the Broan® AE110L Flex Series White 110 CFM ceiling exhaust bath fan with Light ENERGY STAR®. Room side installation eliminates the need for Attic Access. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct™ connector for a simple installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 110 CFM and a quiet 1.0 sone. LED lighting lasts up to 25,000 hours.
Model:
AE110L
$140.00
retailer prices may vary
Features
Compatible with Overture™ Connected IAQ System
ENERGY STAR certified
UL Listed

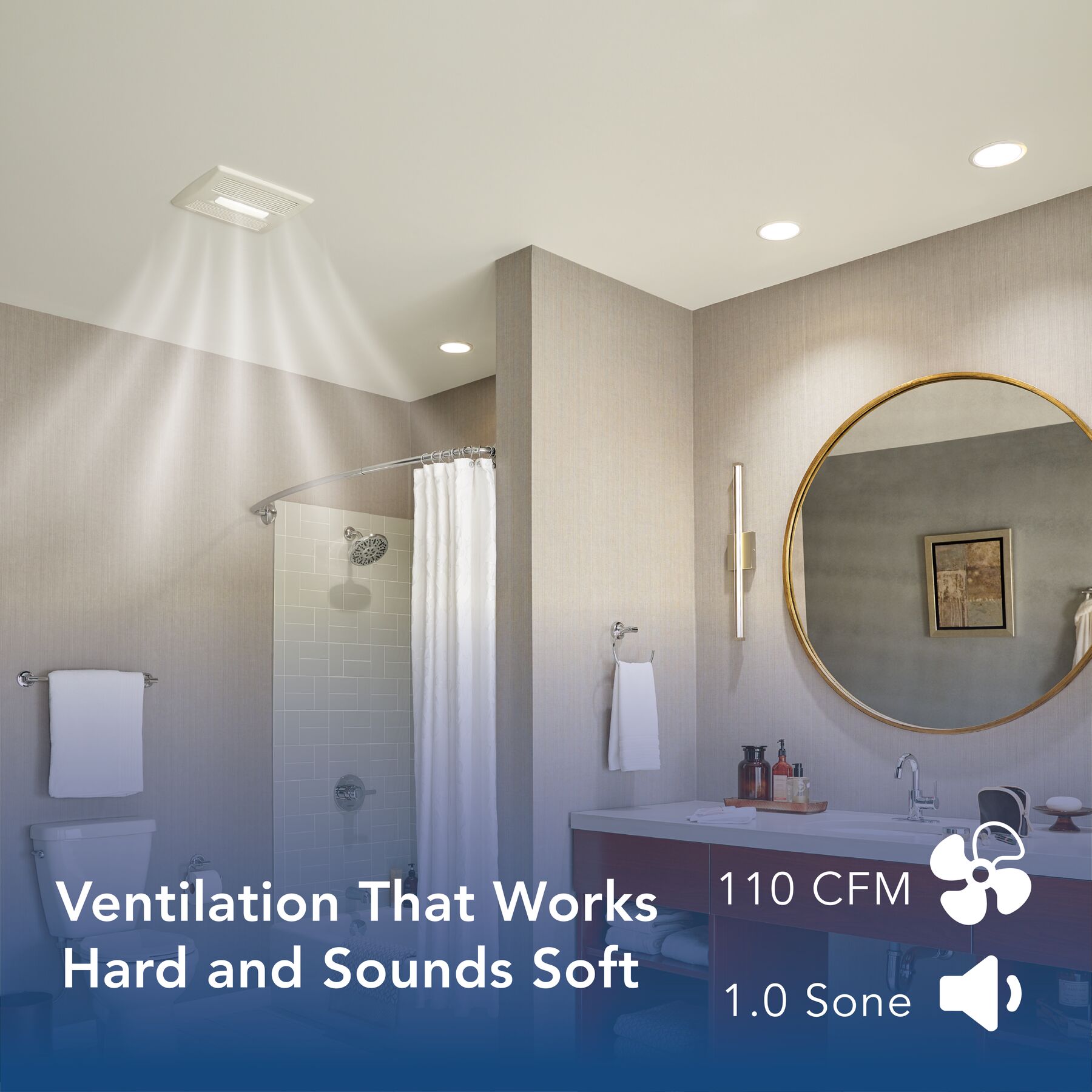

- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

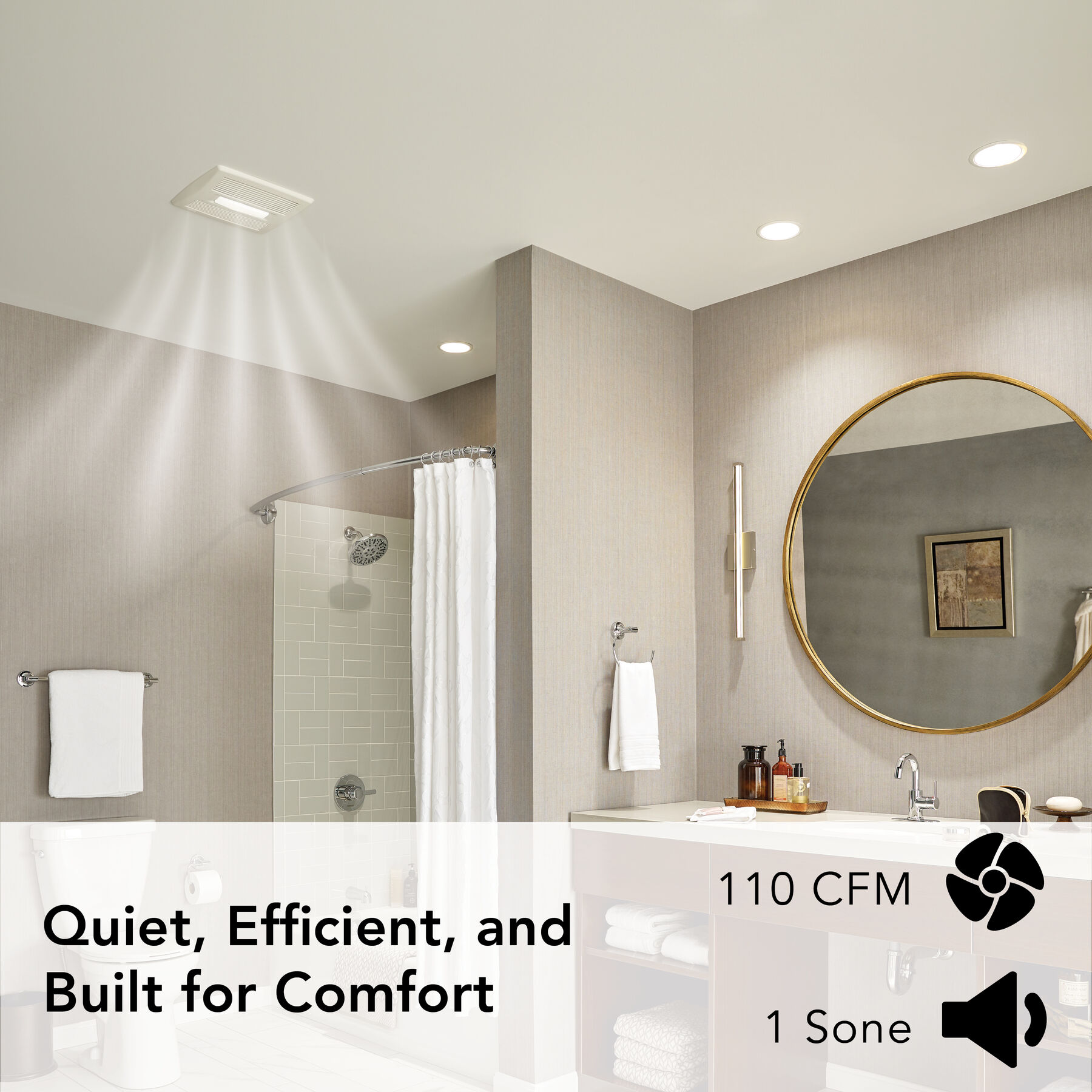

- 1.0 Sones for Ultra quiet performance, you might not notice it's on

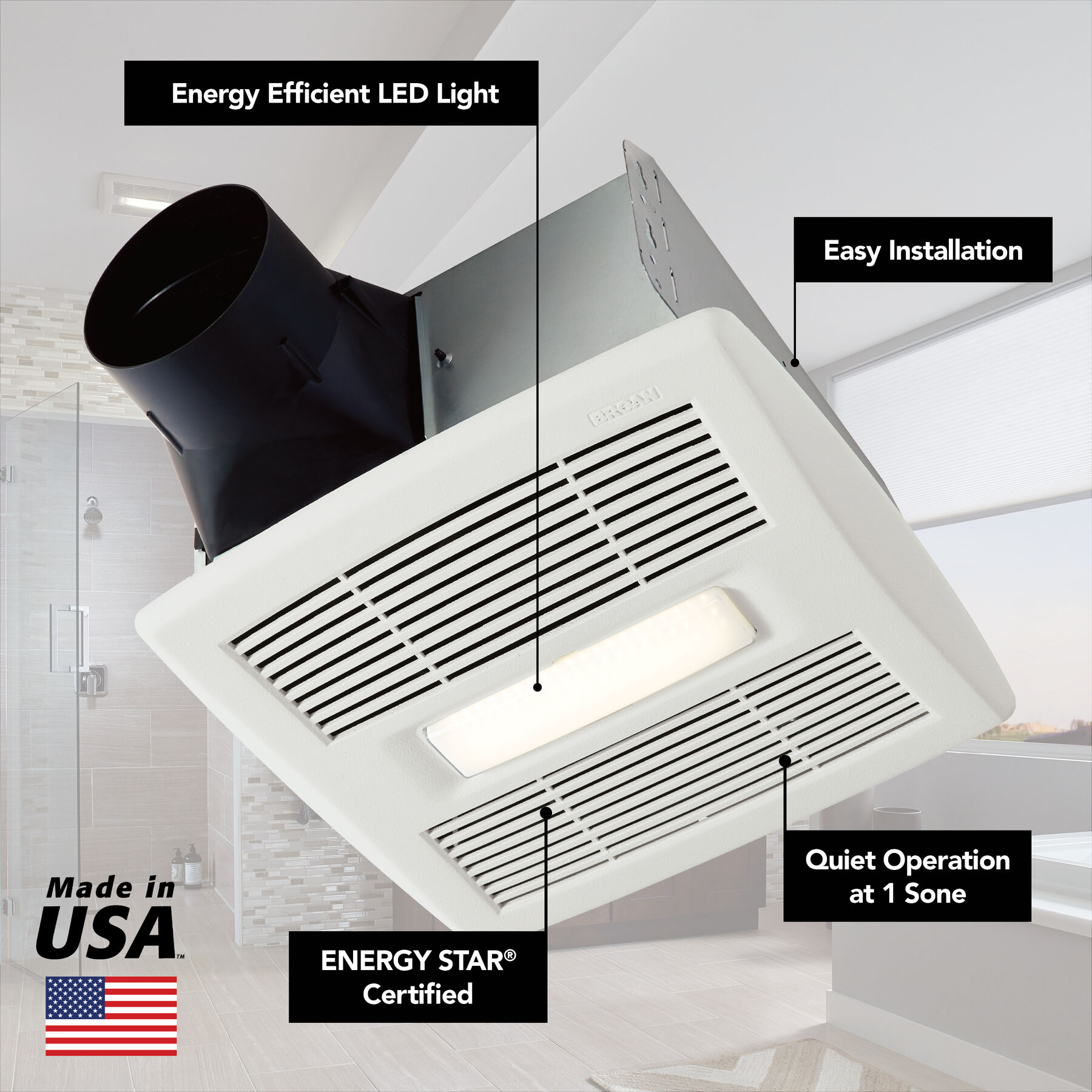

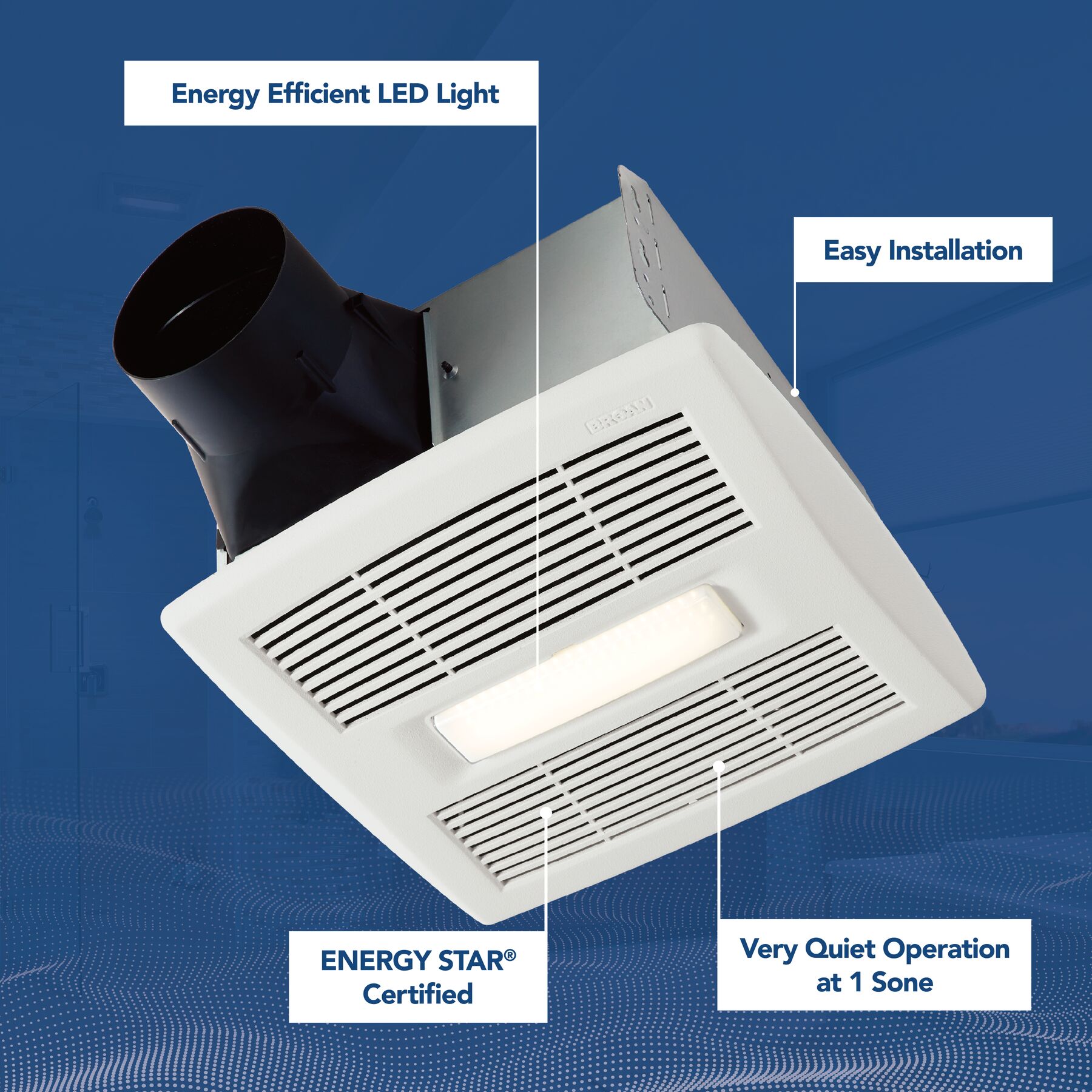

- Bright 3500K energy efficient LED lighting to help illuminate your room

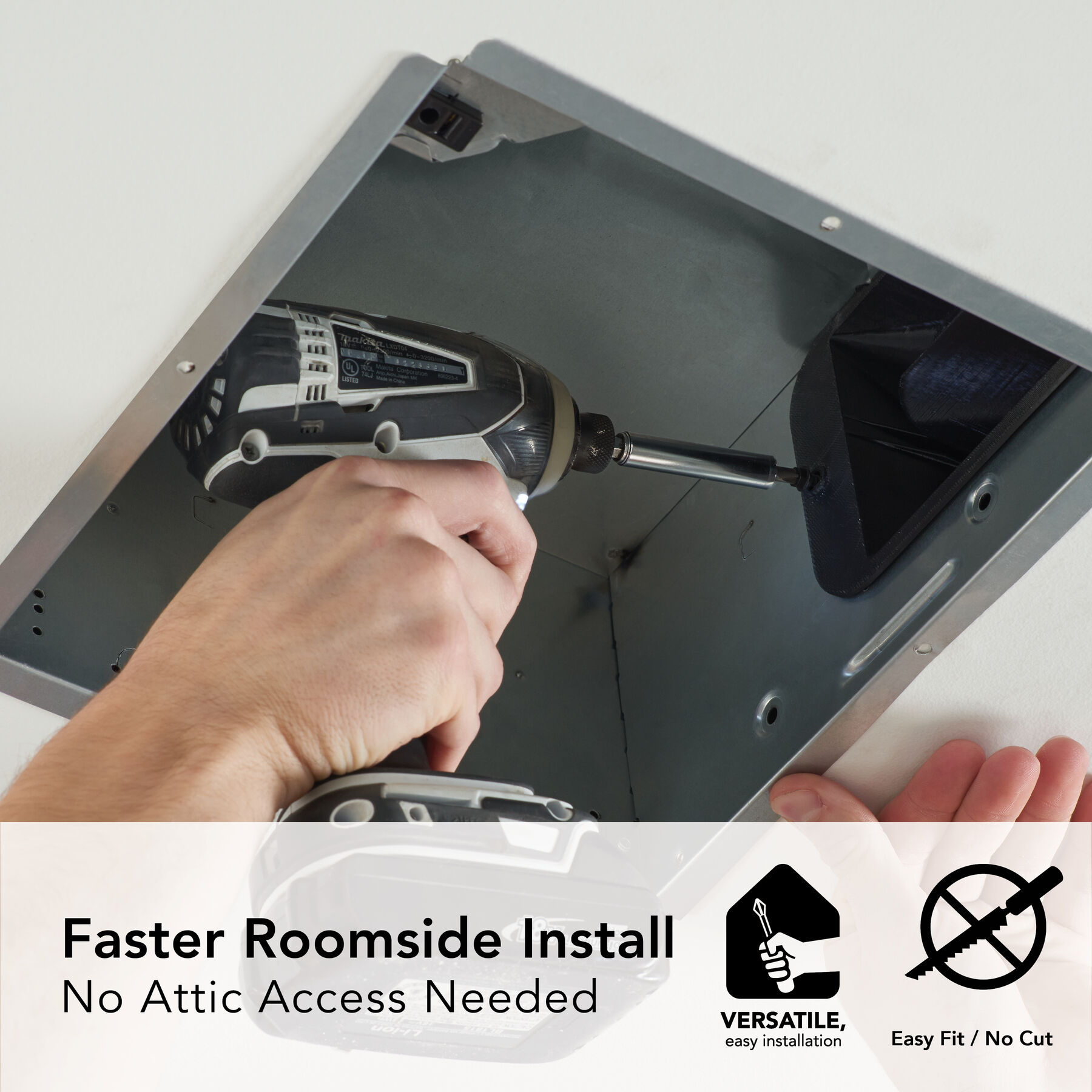

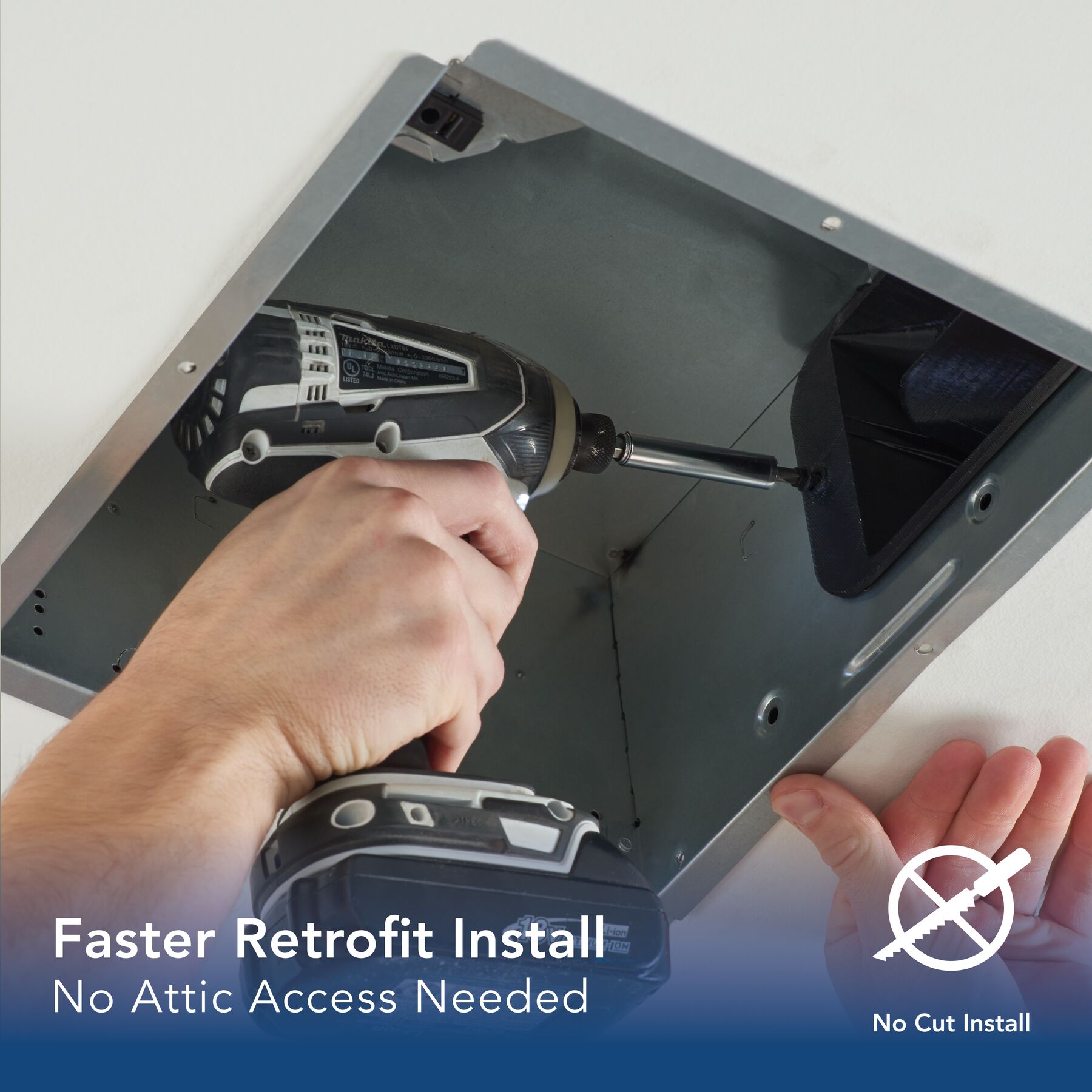

- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® Certified for energy efficient operation
- UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
- Powerful enough for rooms up to 100 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
FITS THIS MODEL: prevent mold, bacteria and fungi growth on surfaces
Broan® SurfaceShield™ LED Exhaust Fan Upgrade Grille/Cover with Vyv™ Antibacterial Light
SurfaceShield™ with Vyv™ antimicrobial light technology combined with Broan’s powerful ventilation offers effective protection against bacteria, mold and fungi growth in your home.
Quickly and easily installs in under 5 minutes; No additional wiring needed, plugs directly into existing lighting connection; No cutting of ceiling material required. Cover hides existing drywall cuts!
Suggested Installation Accessories
Radiation Dampers Compatible with this Model
- Specs
- Downloads
- Videos
| CFM | 110 |
|---|---|
| Color Finish |
|
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

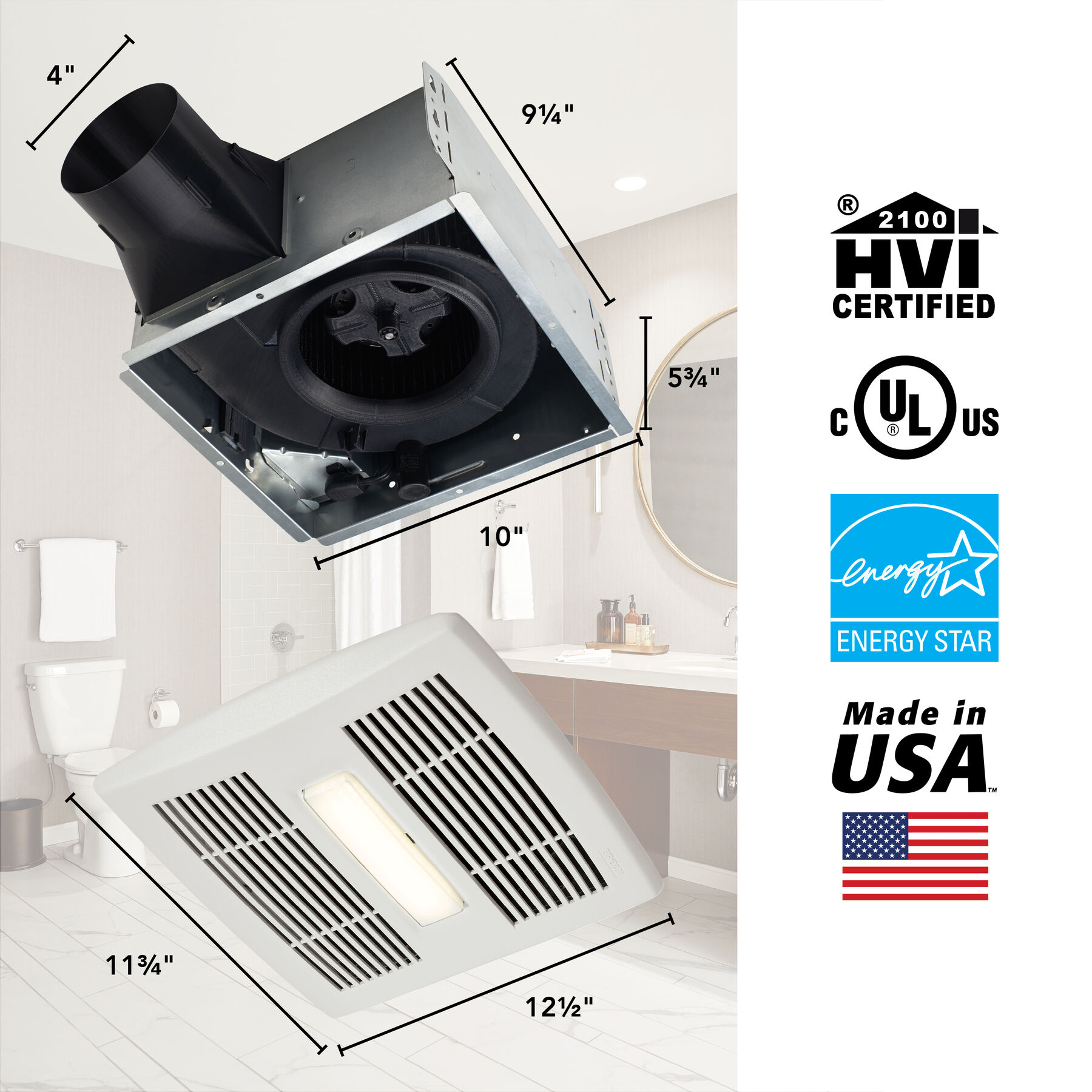

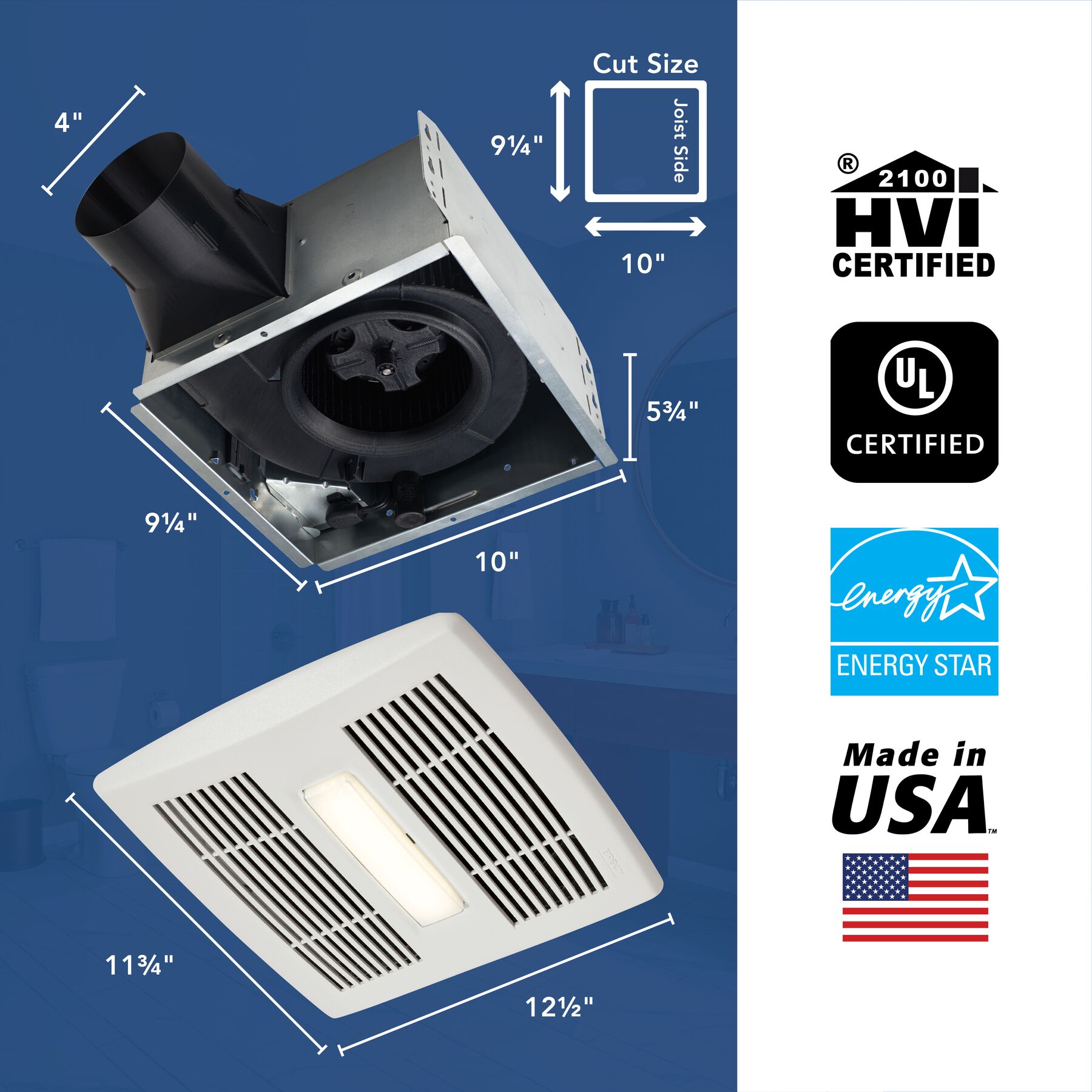

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |

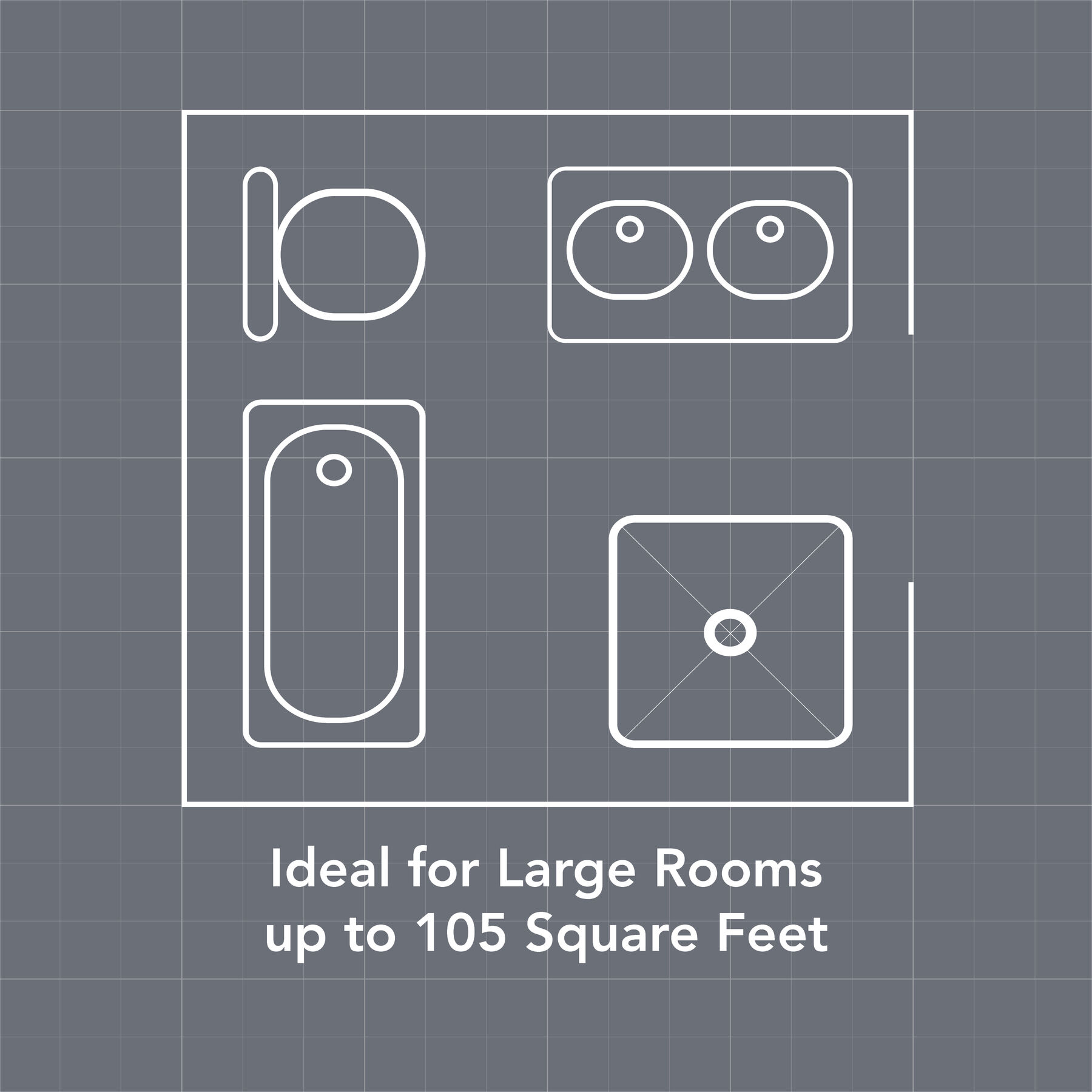

| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
