Broan Flex™ Series

Flex Series 110 CFM Ceiling Roomside Installation Bathroom Exhaust Fan, ENERGY STAR*

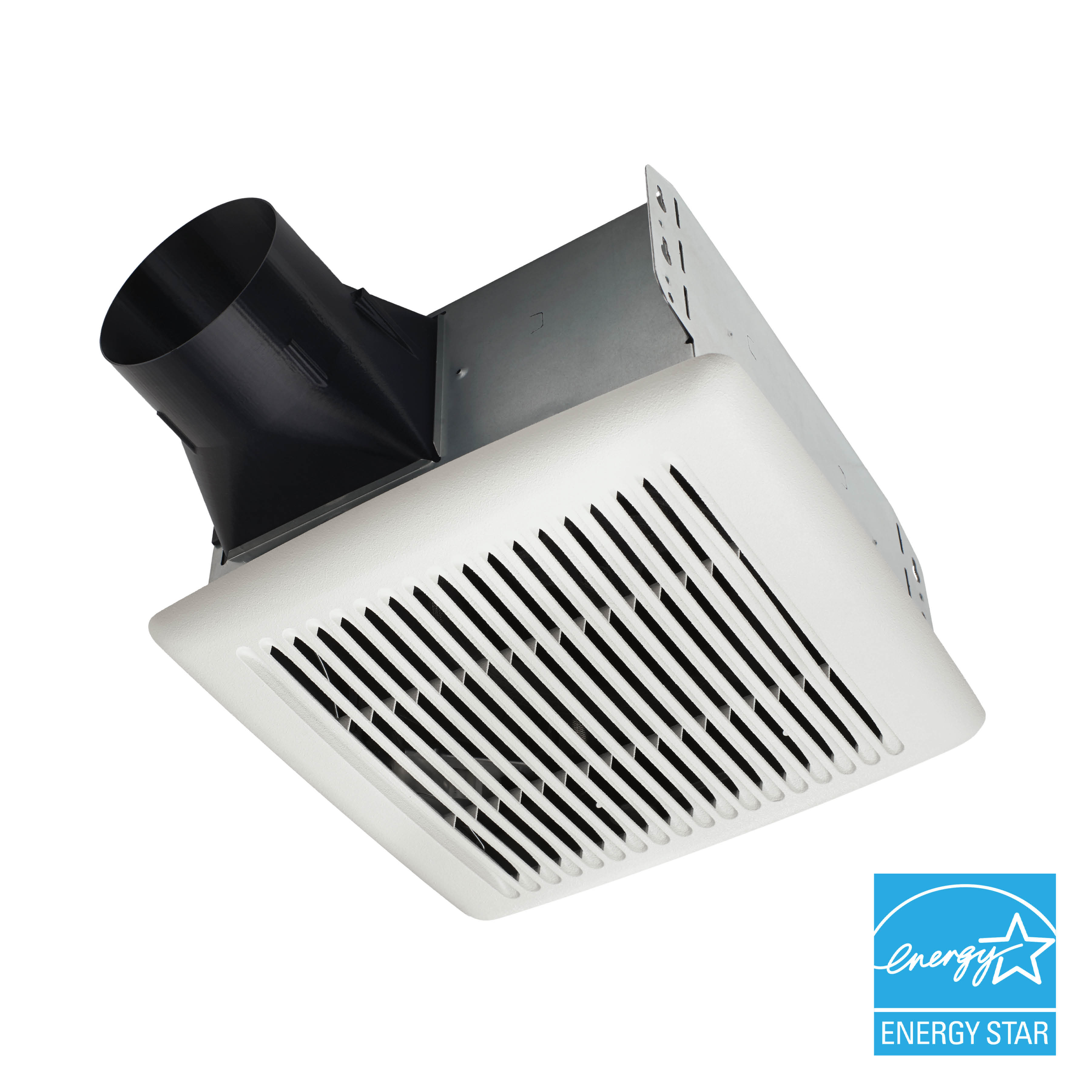

Broan® AE110 Flex Series 110 CFM ceiling exhaust bath fan, offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 110 CFM and a quiet 1.0 sone.


Model:

AE110

$110.00

retailer prices may vary

Features

Compatible with Overture™ Connected IAQ System

Compatible with Overture™ Connected IAQ System

ENERGY STAR certified

ENERGY STAR certified

HVI Certified

HVI Certified

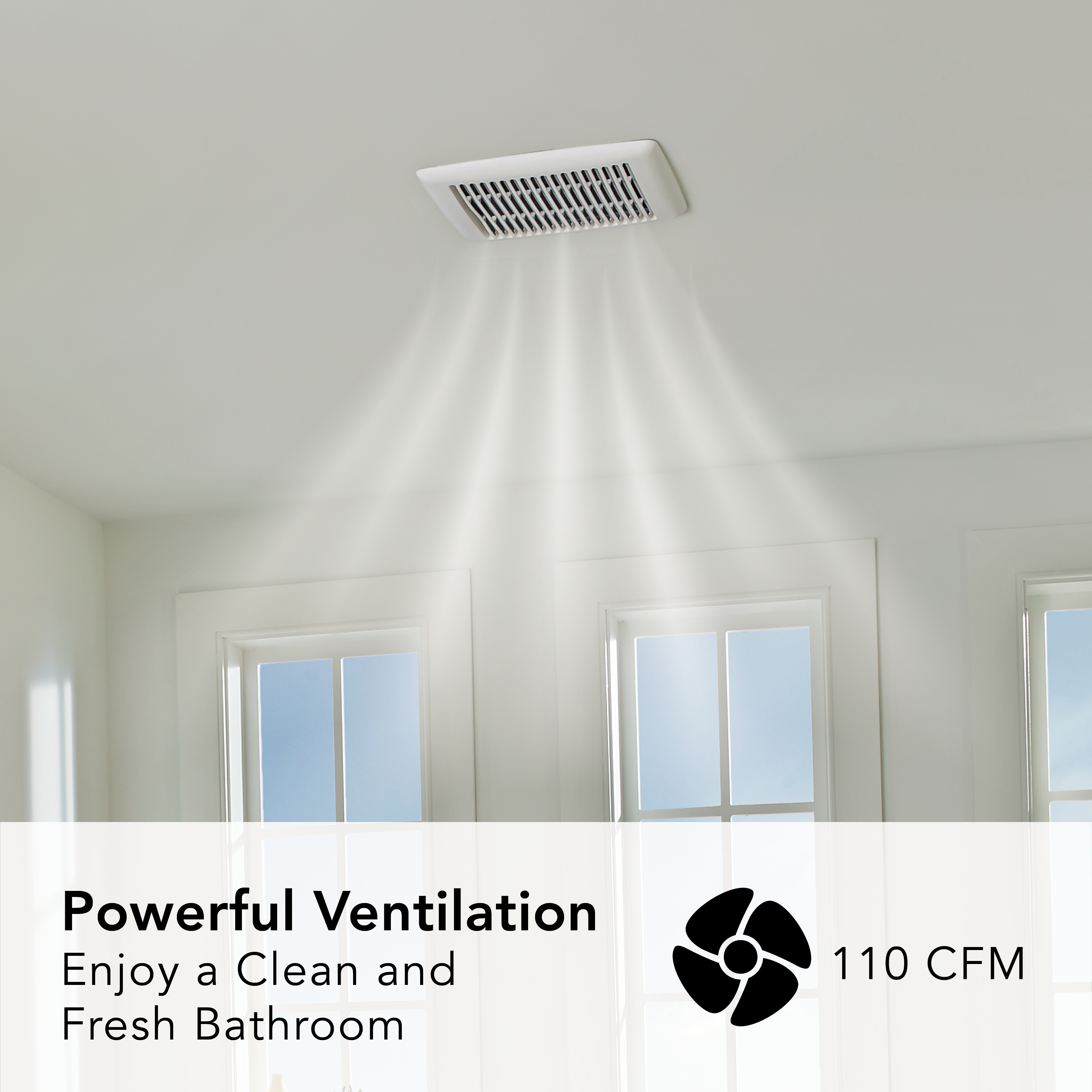

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 Sones for Ultra quiet performance, you might not notice it's on

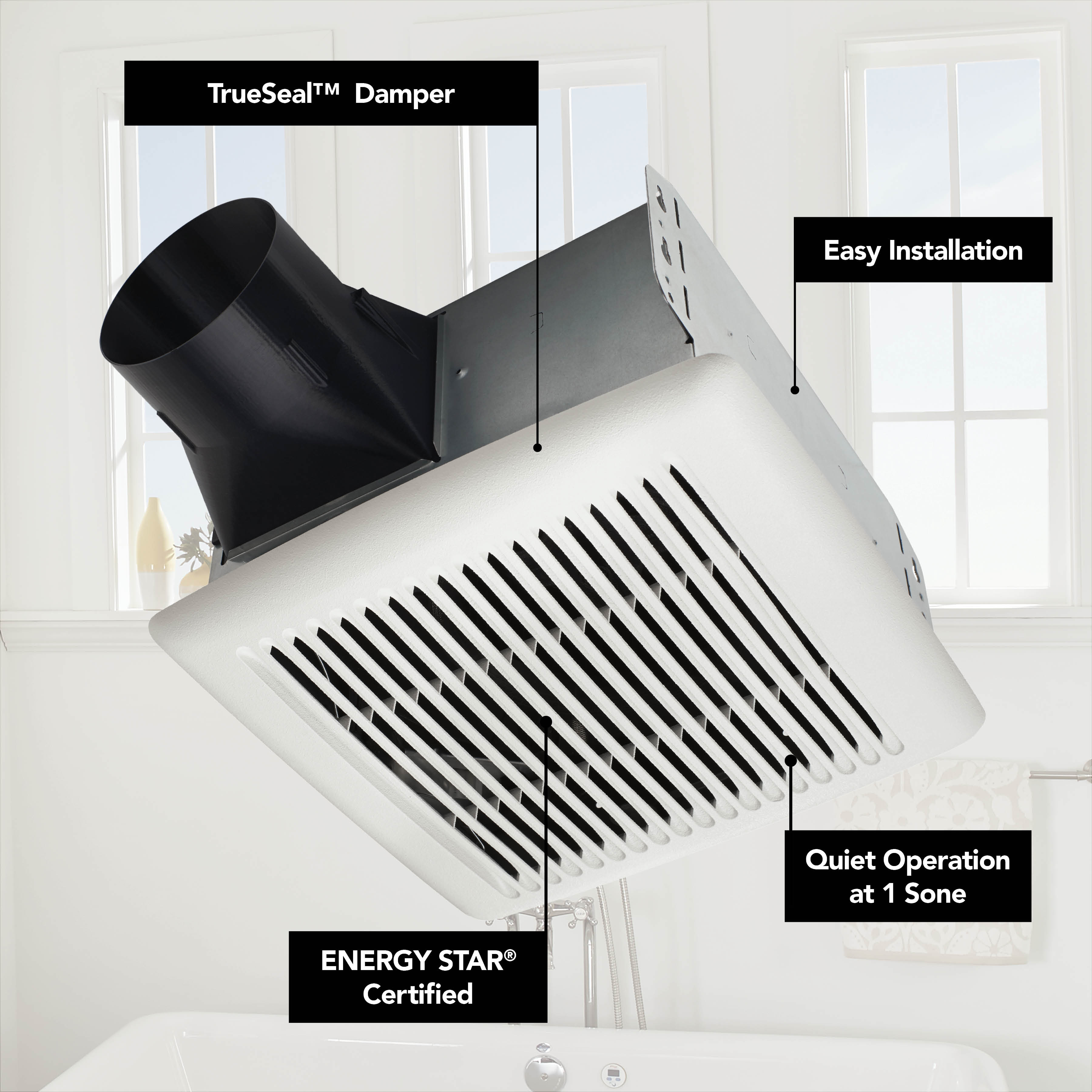

  • TrueSeal™ Damper technology reduces air leakage up to 50%

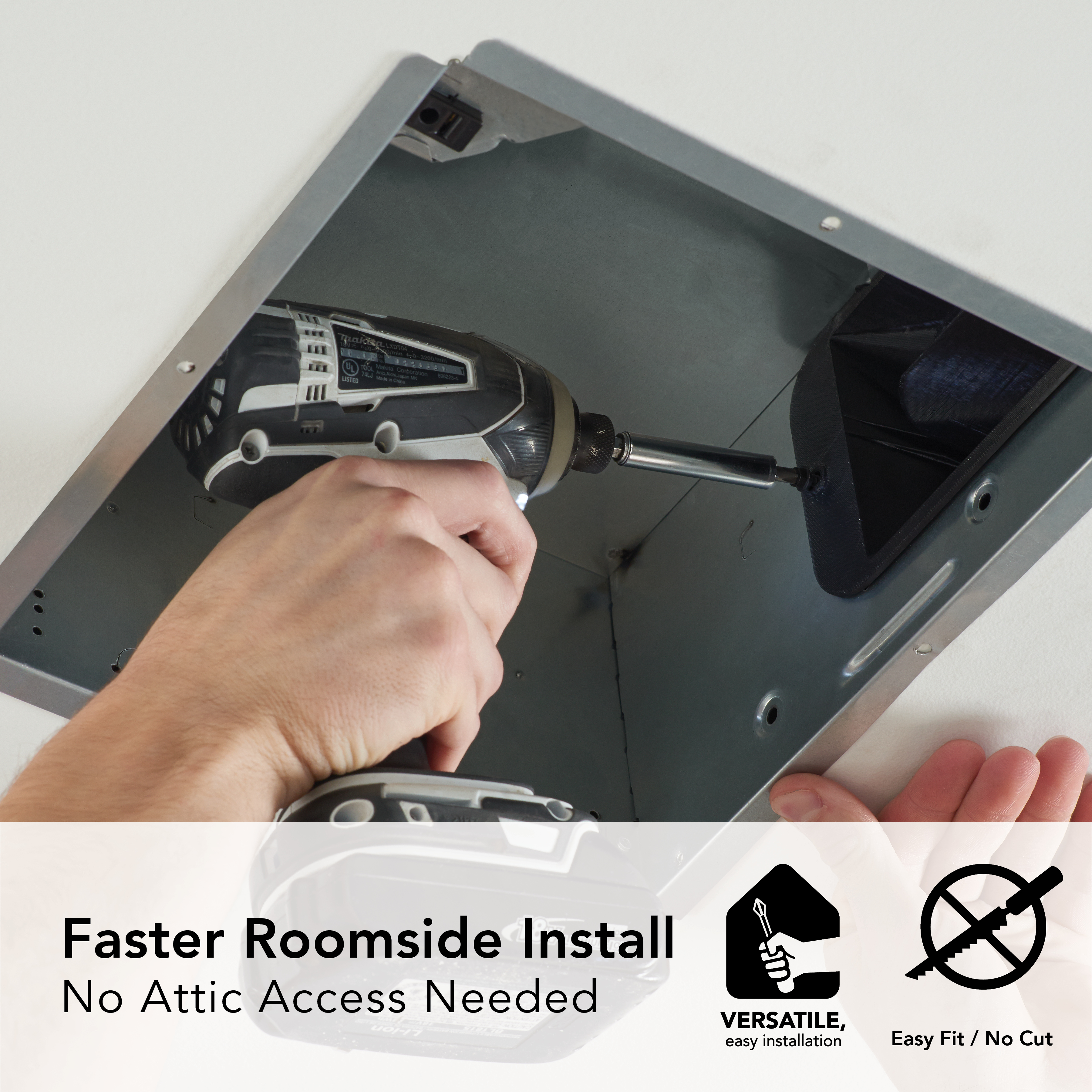

  • EzDuct™ connector can be installed from the room side, with no attic access required
  • ENERGY STAR® Certified for energy efficient operation
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Optional galvanized steel duct expander for use with 6" ducting and optional installation brackets are sold separately
  • Comparable to NuTone Model AEN110
Upgrade This Broan-NuTone Ventilation Fan
No Cutting or Patching Drywall

Upgrade This Broan-NuTone Ventilation Fan

Broan® Universal CleanCover™ Bathroom Exhaust Fan Upgrade Grille/Cover. This fresh, stylish grille is designed to fit small, medium and large size Broan® and NuTone® ventilation fans. It has a crisp, bright white finish to match the most popular white ceiling paint colors.

Buy Now

print

CFM 110
Color Finish
  • White
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.5
Grille Width 12

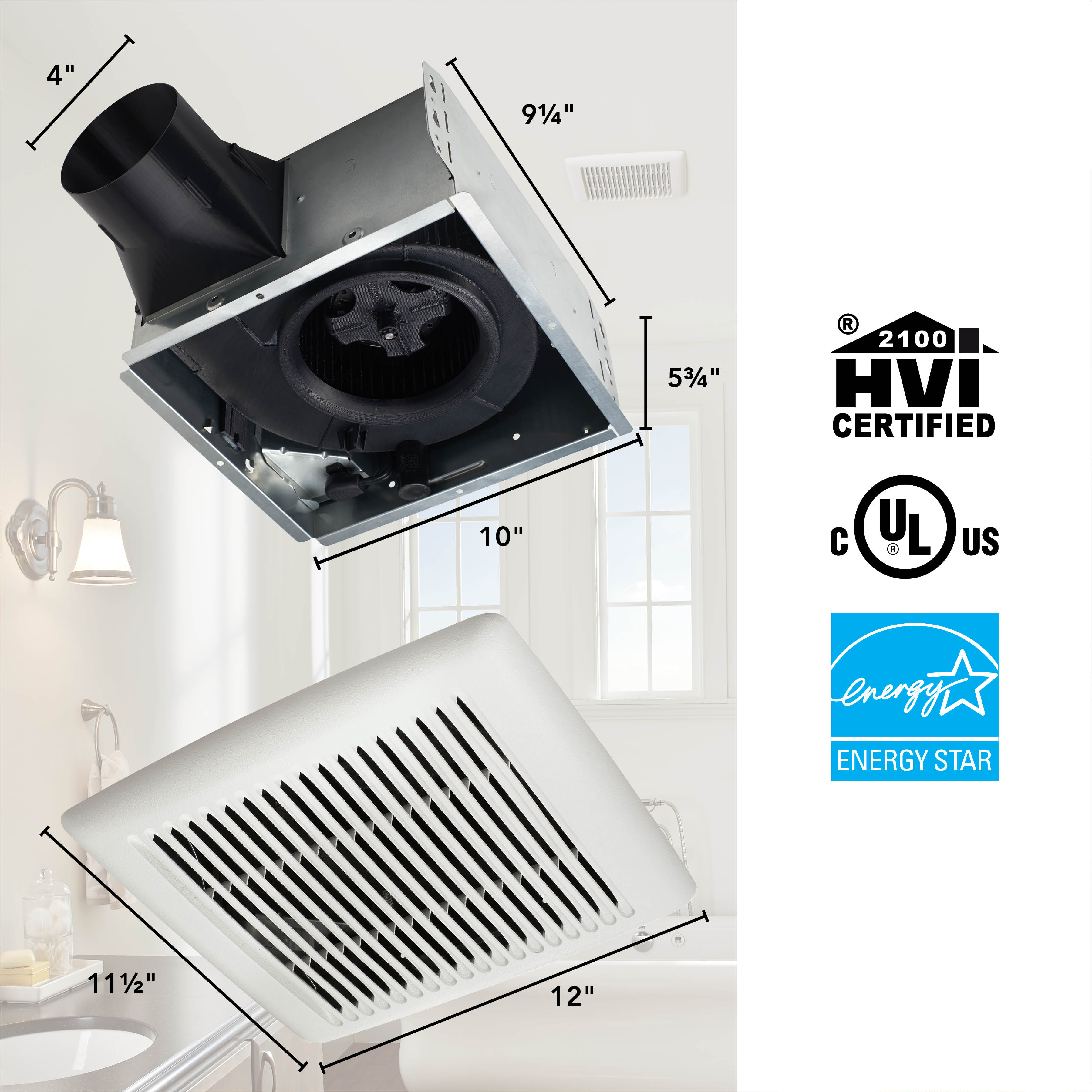

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0

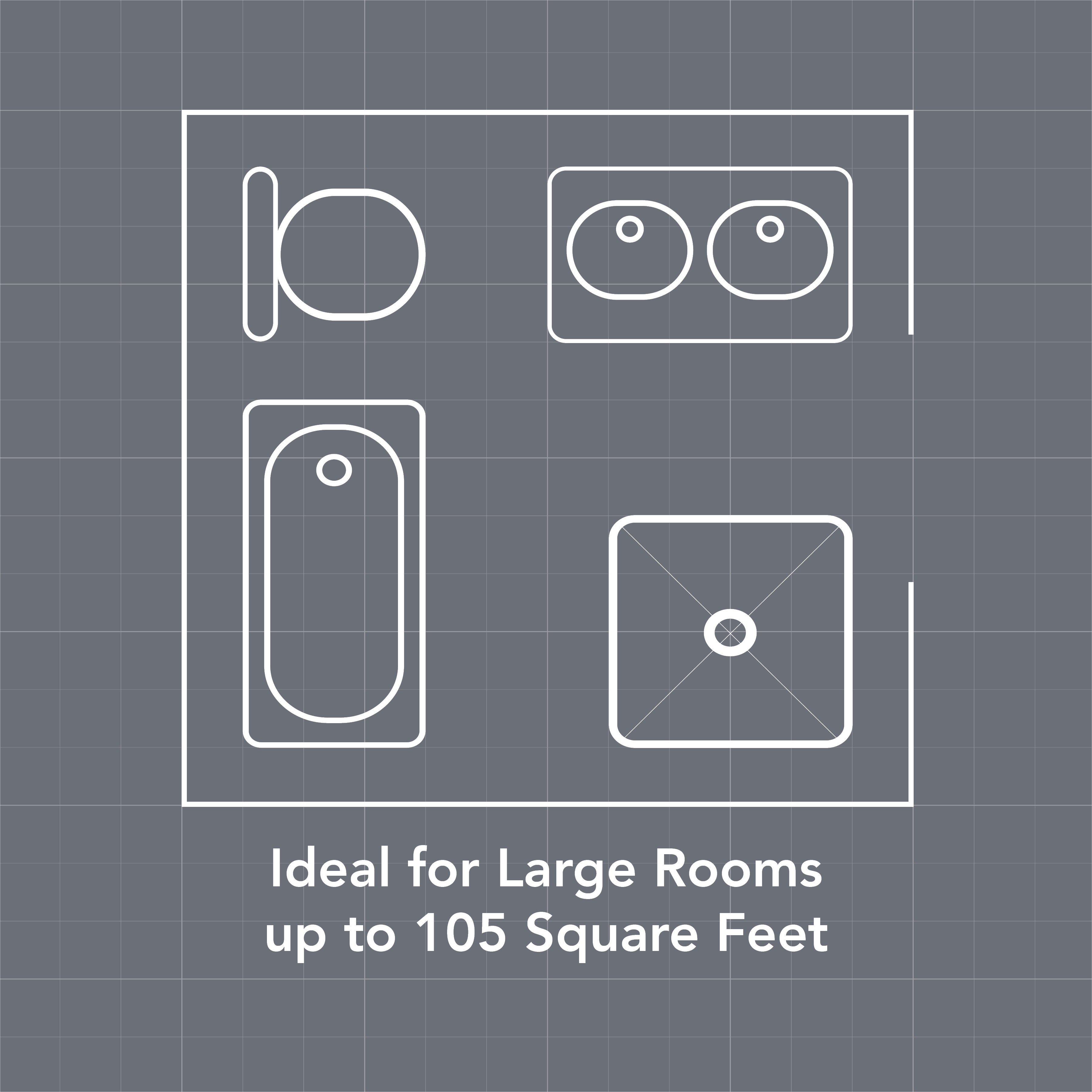

Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Minimum Recommended Flow 0

Broan FLEX Series Bathroom Ventilation Fan Installation Video
