Roomside Series

Broan® 50 CFM Ventilation Fans

The Broan® Roomside Series A50L White 50 CFM Single-Speed Exhaust Bath Fan with Light offers easy, room-side installation with no attic access required. It accepts one 100-watt maximum A19 incandescent light bulb (or CFL/LED equivalent, sold separately) to provide reliable overhead lighting. The ceiling-mounted ventilation fan features foldable mounting ears and an EZ Duct connector for no-hassle installation. New duct-damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts from the rafters above. The fan exhausts air at 50 CFM and operates quietly at 1.5 sone.


Model:

A50L

Features

  • 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 1.5 Sones for Quiet performance, enough sound to know your fan is on.
  • Uses one 100-watt maximum incandescent A19 type bulb or energy-efficient equivalent bulb with maximum overall length (M.O.L.) of 4.4 in. or less (bulb not included)
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use in insulated ceilings (type I.C.) and for use over bathtubs and showers when connected to a GFCI-protected branch circuit
  • Powerful enough for rooms up to 45 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Specs
  • Downloads

print

CFM 50
Color Finish
Duct Size 4
ENERGY STAR® certified No
Grille Length 11.5
Grille Width 12.125

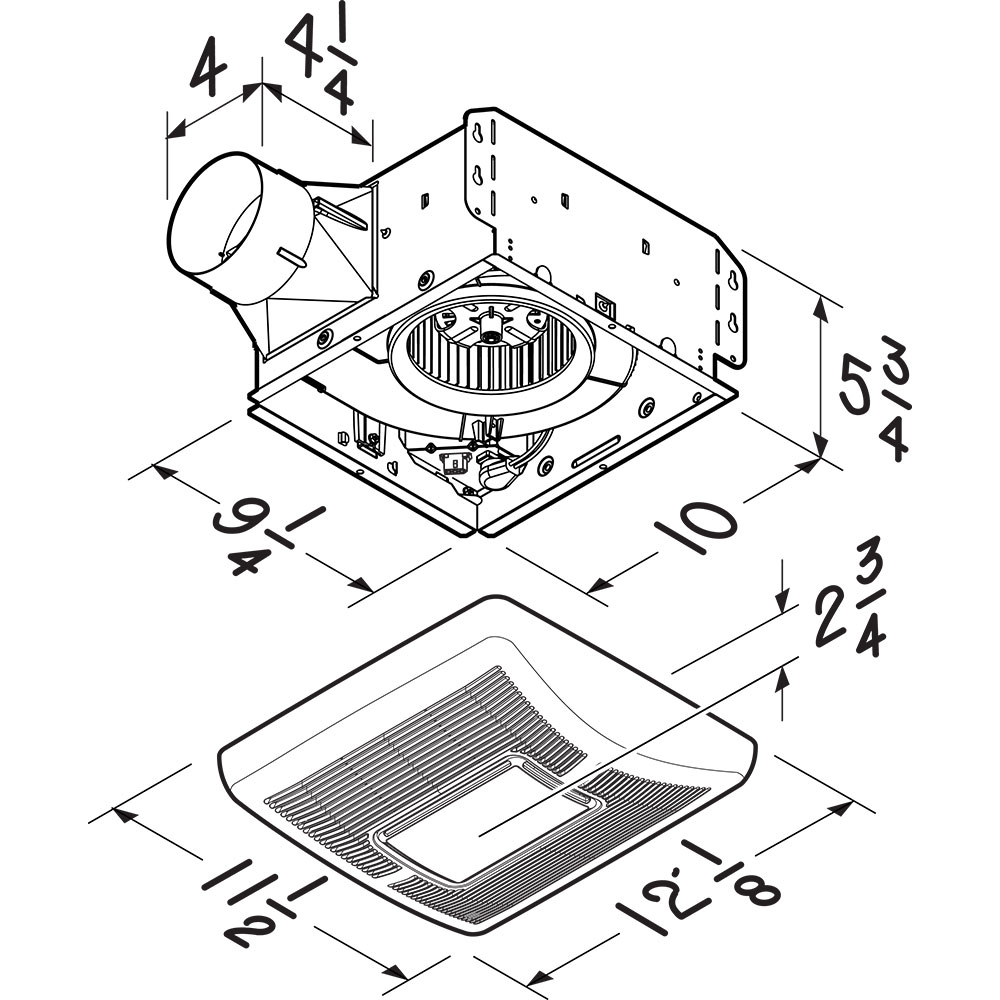

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sones 1.5
UL Listed Yes
Grille Finish White Painted Enamel
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 45
Rated Amps 1
Voltage 120
Can Be Used To Comply With Title 24 No
Globe Lens Color
Globe Material
Bulb (Recommended Type) A19
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
