Bath Fan Project Packs

Broan® 70 CFM Heater/Fan/Light Assembly and Grille Finish Pack, 100W Light, 1300W Heater, 4.0 Sones

To simplify installation, a Project Pack is available with multiple fan housings. When drywall work and painting is complete, the fan components needed to finish the job are available in a separate packages and model numbers. The finish kit allow motor/blower and grille assemblies to be ordered separately, nearer project completion, to help avoid losing, damaging or having to store components.


Model:

655F

Housing Pack Compatible to this Finish Pack
654H

Housing Pack Compatible to this Finish Pack

This Housing Pack is compatible with this finish pack. A housing pack, with grilles and motor/blower wheels, completes the installation and adds the finishing touches to the room.

learn more

Features

  • 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 4.0 Audible Sones for privacy while using your bathroom
  • PowerHeat™ design ensures powerful heating, light, and ventilation are available at the touch of a switch
  • Suitable for use in insulated ceilings (Type IC)
  • UL listed
  • Powerful enough for rooms up to 65 sq. ft.
  • Housing packs and finish packs are sold separately
  • Housing packs and finish packs are sold separately
  • Specs
  • Downloads

print

CFM 70
Color Finish
Duct Size 4
ENERGY STAR® certified No

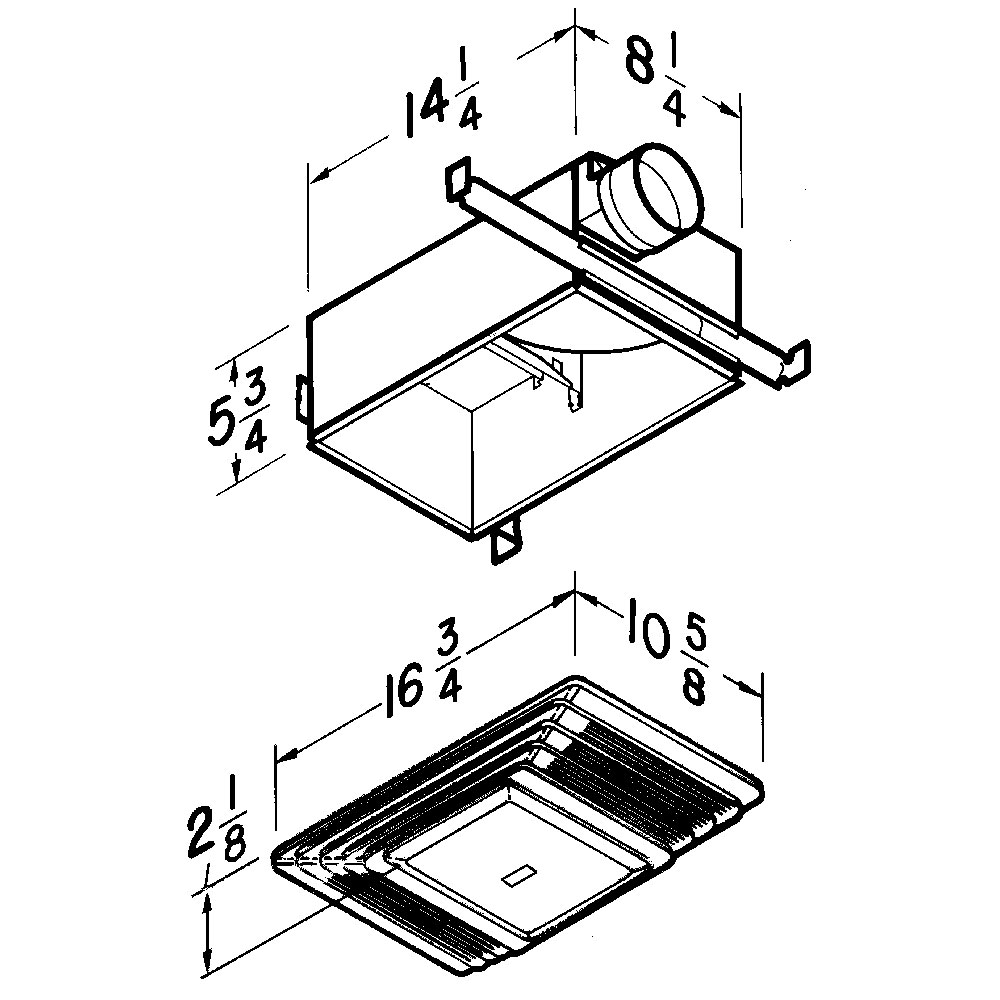

Grille Length 16.75
Grille Width 10.625
Housing Dimensions 14-1/4" x 8-1/4" x 5-3/4"
Sound Level (Sones) 4
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 65
Rated Amps 12.8
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) A19
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
