Utility Fans

Broan® 10-Inch Side Discharge Exhaust Vent Fan, 270 CFM

The Broan® 270 CFM Side-Discharge Exhaust Fan installs easily between ceiling joists and wall studs. The 270 CFM fan speed helps eliminate humidity and tobacco smoke from recreation rooms and workshops and helps remove cooking odors from kitchens. The low-profile white polymeric grille can be painted to match your decor.


Model:

502

Features

  • 270 CFM, Whole home or Commercial Ventilation
  • 8.0 Audible Sones for privacy while using your bathroom
  • Built-in damper prevents back drafts
  • Installs easily between ceiling joists or wall studs.
  • Adjustable mounting brackets for easy installation
  • Motor assembly offers fast, easy "twist-lock" installation
  • Fan blade stays in balance and will not distort
  • UL listed
  • Powerful enough for rooms up to 240 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Permanently lubricated, thermally protected, plug in motor
  • Specs
  • Downloads

print

CFM 270
Color Finish
Duct Size
ENERGY STAR® certified No
Grille Length 13.5
Grille Width 13.5

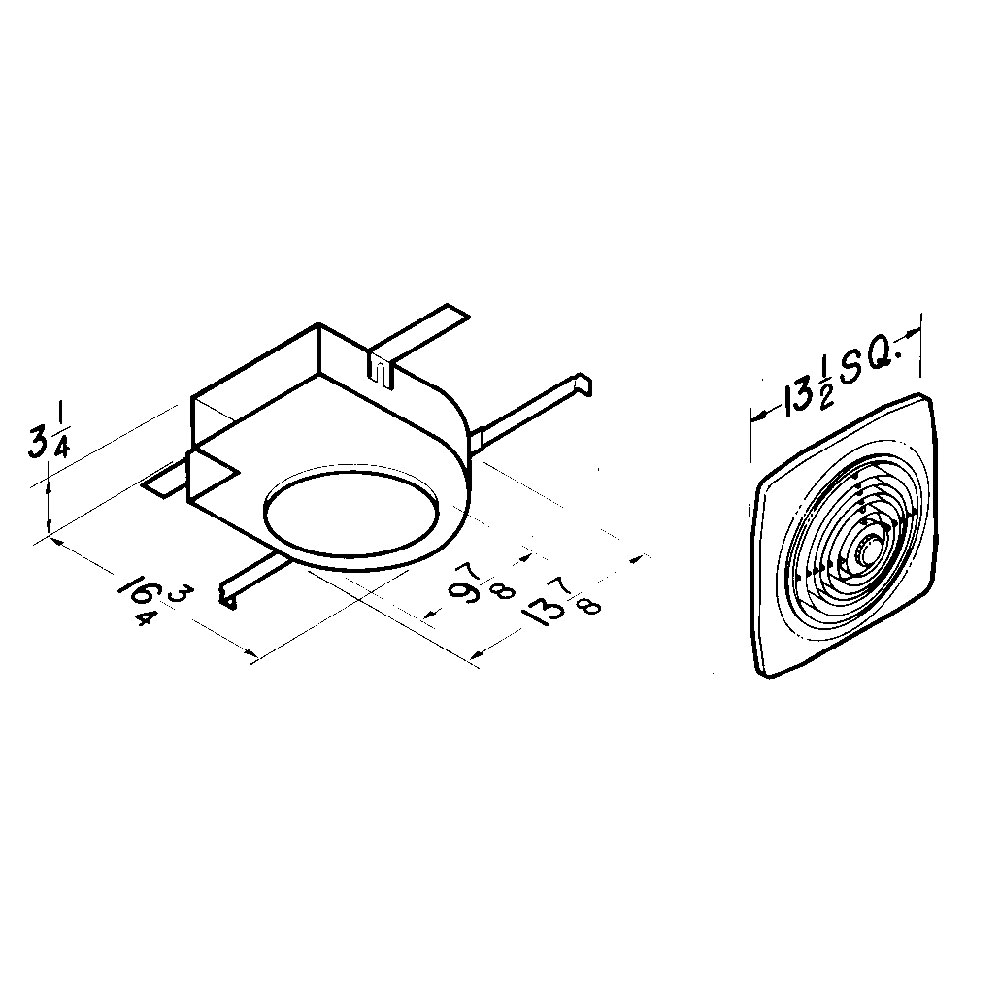

Housing Dimensions 16-3/4" x 13-7/8" x 3-1/4"
Sones 8
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Recommended Room Size (Sq Ft)
Rated Amps 1.7
Voltage 120
Can Be Used To Comply With Title 24 No
Globe Lens Color
Globe Material
Bulb (Recommended Type)
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
