Utility Fans
Broan® 8-Inch, 160 CFM Side Discharge Ventilation Fan with White Square Plastic Grille, 5.0 Sones
The Broan® 160 CFM Side-Discharge Exhaust Fan can be mounted on either the ceiling or the wall to eliminate humidity and smoke from recreation rooms and workshops or to help remove cooking odors from kitchens. The fan is 8 in. in diameter and features a low-profile white grille that can be painted to match your decor. A built-in damper helps prevent back drafts.
Model:
503
Features
Compatible with Overture™ Connected IAQ System
UL Listed
- 160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms
- 5.0 Audible Sones for privacy while using in any room
- Built-in damper minimizes backdrafts for energy efficiency
- Fits 3-1/4” x 10” duct
- Paintable white grilles blends in with any décor
- Galvanized steel housing for superior durability
- Specs
- Downloads
| CFM | 160 |
|---|---|
| Color Finish |
|
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 11.5 |

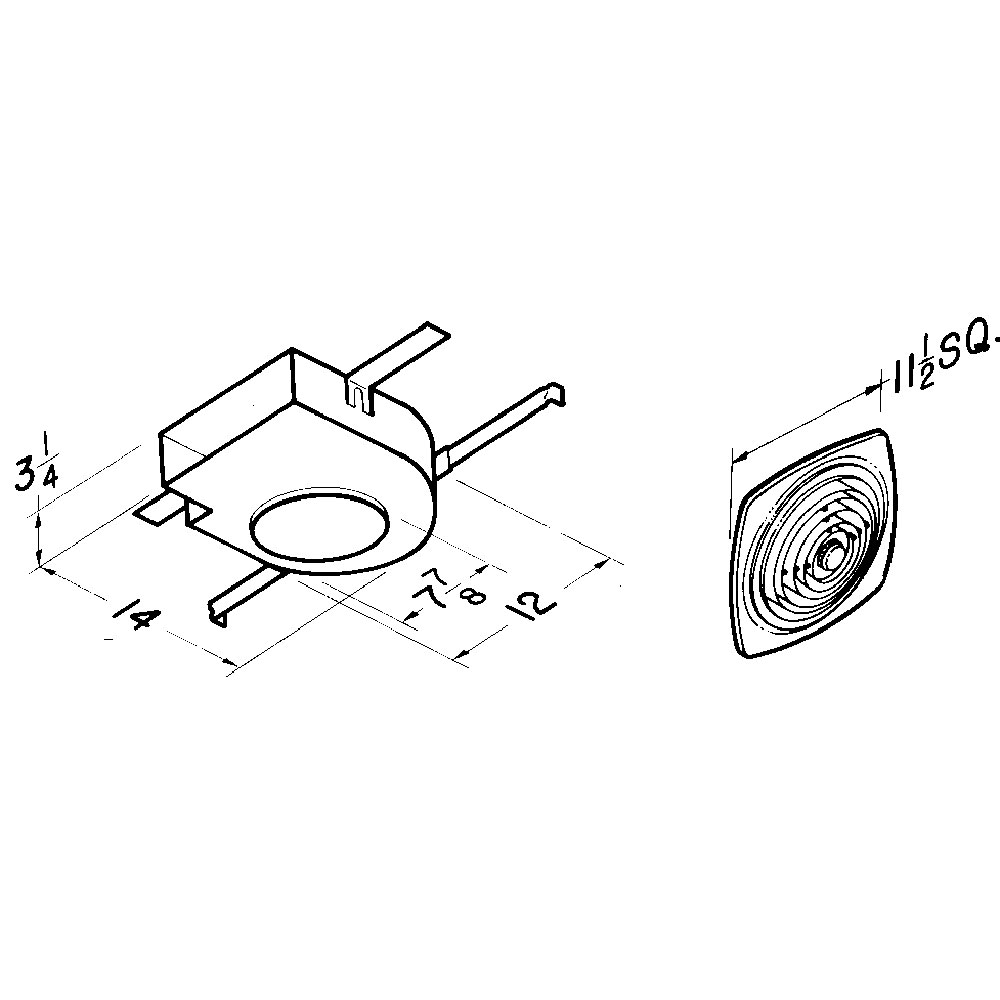

| Housing Dimensions | 14" x 12" 3-1/4" |
| Sound Level (Sones) | 5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Rated Amps | 1.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
