Whole-Home Series

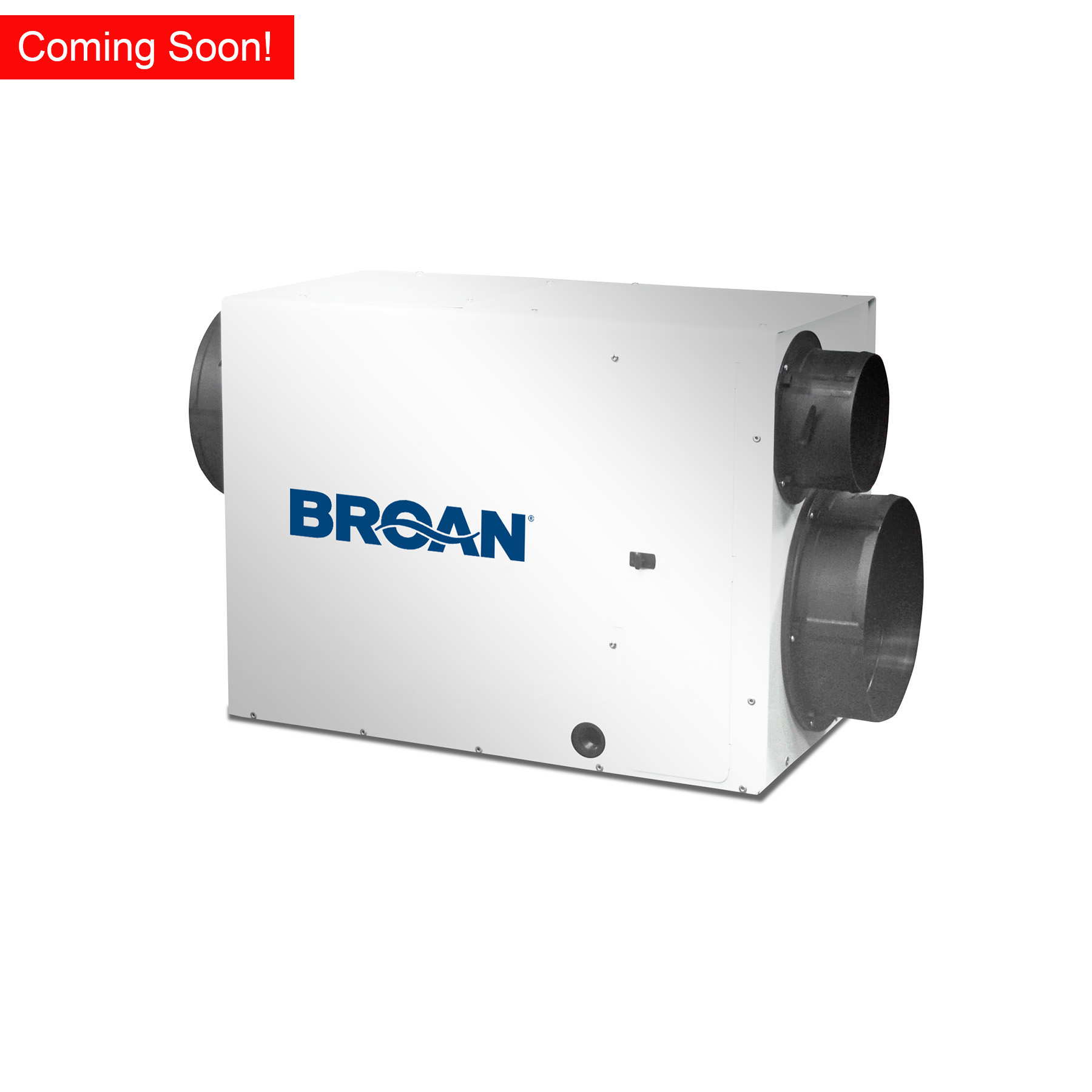

Broan® 98 Pint Dehumidifier
The Broan® 98 Pint Dehumidifier delivers superior indoor air quality through MERV 13 filtration and dedicated moisture control. The energy efficient system provides 98 pints of water removal a day while minimizing the energy consumed. The included outdoor air inlet provides the option of drawing fresh outdoor air into the system and be controlled using the integrated damper.
Model:
B98DHV
Features
- Removes up to 98 pints of water per day
- Provides up to 2,300 sq. ft. of coverage making it the ideal solution for whole-home applications
- MERV 13 filtration installed standard to provide superior air filtration
- Discharge duct can be installed in either a horizontal or vertical orientation providing additional install flexibility
- Humidity control can be done easily using either our DEH 3000 digital controller that is mounted in the interior space or with the DEH 3000 R digital control with its remote sensor that is mounted in the interior space where the humidity level needs to be managed
- Included fresh air inlet provides the option for fresh outdoor air to be ducted to the unit
Fresh Air + Dehumidification
Bring fresh, filtered air into the home while removing excess moisture from the indoor air by combining the Broan FIN-6MD motorized supply damper with any of our ducted whole-home dehumidifiers. This unique solution reduces the overall energy usage to provide the fresh ventilation air by utilizing the dehumidifier fan in place of the air handler central fan while still allowing the dehumidifier compressor to run only when dehumidification is needed in the home.
Learn More About Fresh AirAccessories
| Water Removal Capacity @ 80F & 60% RH (pints/day) | 98 |
|---|---|
| Efficiency (pints/kWh) | 6.1 |
| Energy Factor (liters/kWh) | 2.95 |
| Power (Watts) @ 80°F & 60% RH | 670 |
| Airflow (CFM) @ 0.0 in. WG | 320 |
| Airflow (CFM) @ 0.2 in. WG | 297 |
| Airflow (CFM) @ 0.4 in. WG | 215 |
| Filtration | MERV 13 |
| Optional Fresh Air Duct | 6" Round |
| Inlet Duct Size | 10" Round |
| Outlet Duct Size | 10" Round |
| Operating Current (Amps) | 5.9 |
| Power Cord | 9' Type B Plug |
| Integrated Circuit Breaker | Yes |
| Refrigerant Type | R410A |
| Refrigerant Qty (oz.) | 25 |
| Drain Connection | 3/4" Threaded Female NPT |
| Coverage (sq. ft) | 2300 |
| Weight | 81 |
| Manufacturer Warranty | 5 Year Full Unit Replacement plus 1 Year Parts |
| Product Dimensions | 14.5”W x 19.5”H x 32.375”D |
| Controls | DEH 3000 R |
