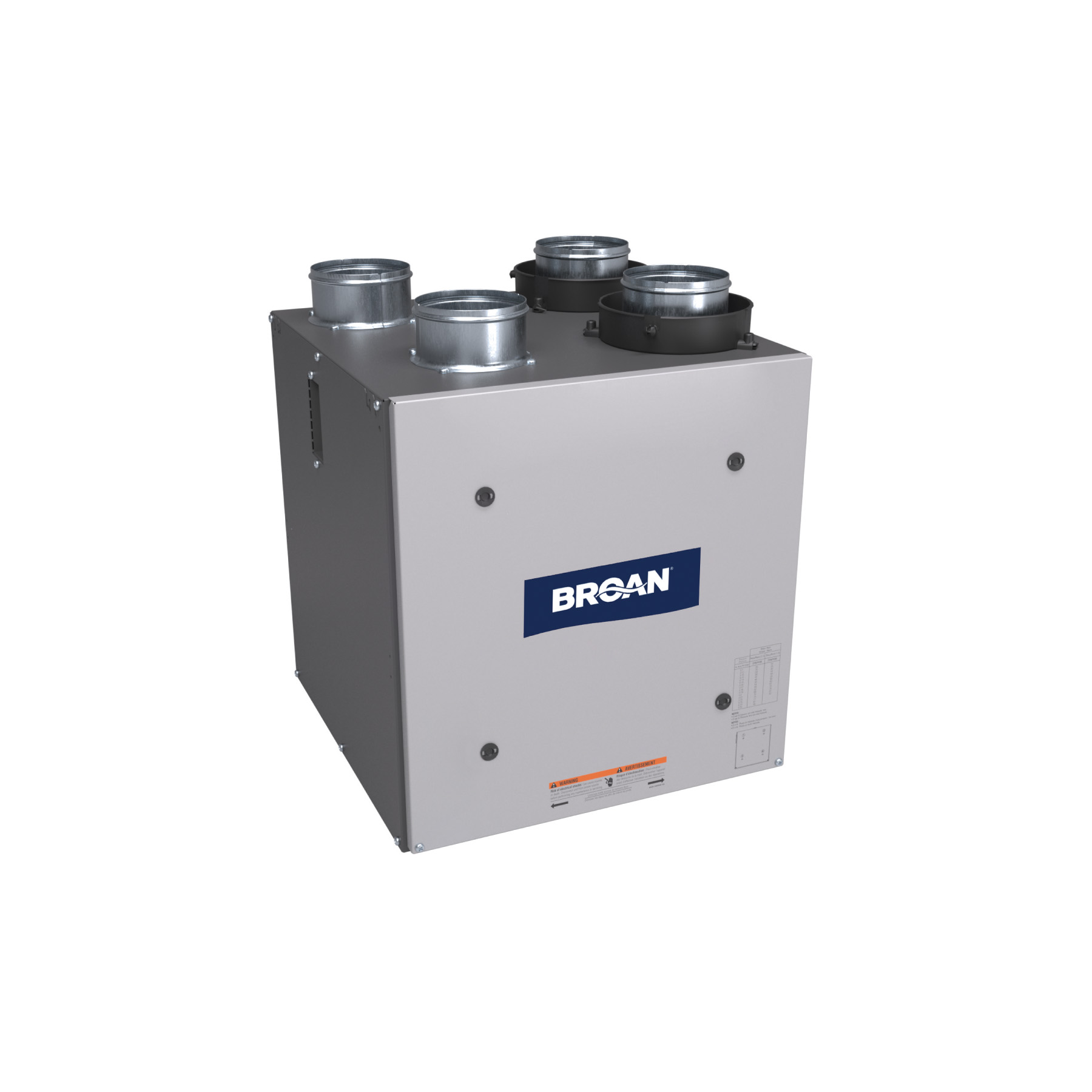

Broan® Compact Flex Series™ High Efficiency Heat Recovery Ventilator, 90 CFM at 0.4 in. w.g.

The Broan HRV90 airflow allows to cover ventilation needs of larger applications while being as easy to install as the other models taking part of the same series. Indeed, with its compact size and 4-inch vertical or horizontal ports, it can be installed in small spaces such as a closet or mechanical room above a hot water tank.


Model:

HRV90T

Features

  • A CUBE WITH AN ATTITUDE
  • The HRV90 has just one blower and is therefore quieter than any other similar HRV on the market.
  • Features pressure taps, balancing dampers, integrated hooks and port straps to simplify installation
  • Removable terminal block for quicker wall control connections
  • ENERGY STAR® qualified
  • Side or top port configurations
  • Pressure taps on access door enable installer to quickly read airflow
  • Optional VACCWMK wall bracket kit
  • ERV and HRV options across a wide CFM range (35–120 CFM)
Only one hole needed in exterior wall
Simplify Exchanger Installation

Only one hole needed in exterior wall

The revolutionary design of the Dual Exterior Hood Kit simplifies the installation because there is only one hole to cut in the exterior wall. The Tandem Transition Kit offers the simplest way to perform the outside connection for exchangers up to 110 CFM.


Learn More
  • Specs
  • Downloads

print

Anti-freeze Setting (Approved for Unheated Space) No
Automatic Shutoff No
Built-In Timer No
cETL Listed No
CSA Listed No
cUL Listed No
ETL Listed No
Humidity Sensing No
HVI Certified No
Filter Type Foam Filter
UL Listed No
Apparent sensible efficiency at 32°F 71
Filtration Level 30 PPI
Ports Location Top
Ports Size 4" Round
Sensible recovery efficiency at -13°F 61
Sensible recovery efficiency at 32°F 71
Core Warranty Limited Lifetime
Parts Warranty 5 Years
Product Length 15.625
Product Width 15.4375
Product Height 18.625
ENERGY STAR® certified Yes
High Efficiency Luminaire No
