Broan® Tandem Transition Kit

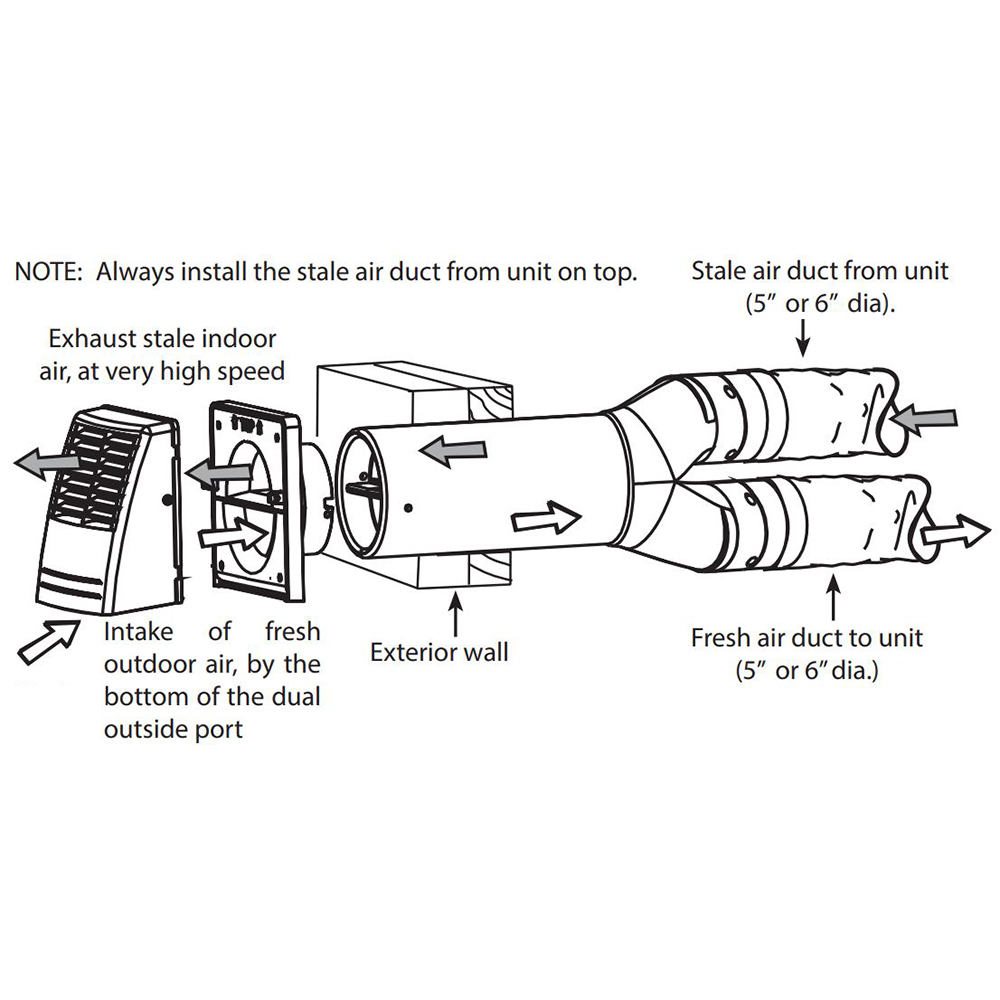

The revolutionary design of the Dual Exterior Hood Kit simplifies the installation because there is only one hole to cut in the exterior wall. In fact, every installer knows that locating efficiently one outside port is easier (and faster) than locating two. And moreover, there is almost no cross-contamination between the exhaust and intake airflows.
Model:
VTYIK1
Features
- This combined intake and exhaust termination could be used with H/ERV delivering up to 160 CFM at 0.4 in. w.g. To optimize sound performance during the override boost operation, we recommend to select the discretion (DIS) for the override (OVR) from our AI Series and any VIRTUO equipped H/ERV models.
- Only one 6” diameter hole in the exterior wall
- Light materials, handy design
- Outside connection performed in half of the time
- Aesthetic white polypropylene dual outside port
- Complies with CSA F326 requirements and ASHRAE 62.2-2016, 2019 section 6.8 exception 4 and 2022 revision section 6.6 exception 4
- Exclusive Tandem® transition fits both 5” or 6” diameter insulated flexible ducts
- The unique design limits the cross-contamination to less than 5%.
