Product Discontinued
LOSONE SELECT™ Series
**DISCONTINUED** Broan® LOSONE SELECT™ Ventilation Fan; 3452 CFM Straight Through, 14.5 Sones; 3696 CFM Right Angle
Model:
L3500EXL
Features
- 3452 CFM, Whole home or Commercial Ventilation
- 14.5 Audible Sones for privacy while using your bathroom
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Ducted horizontally or vertically, or in-line with separate adapter
- Not for use over tub or shower
- Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
- UL Listed and cUL listed for your safety and protection
- AMCA licensed for air and sound performance
- Powerful enough for rooms up to () sq. ft.
- Painted white enamel metal grille
- Heavy-gauge galvanized steel housing resists corrosion
- Single, impact-resistant centrifugal blower wheel
- Specs
- Downloads
| CFM | 3452 |
|---|---|
| Color Finish |
|
| ENERGY STAR® certified | No |
| Grille Length | 18.375 |
| Grille Width | 47.25 |

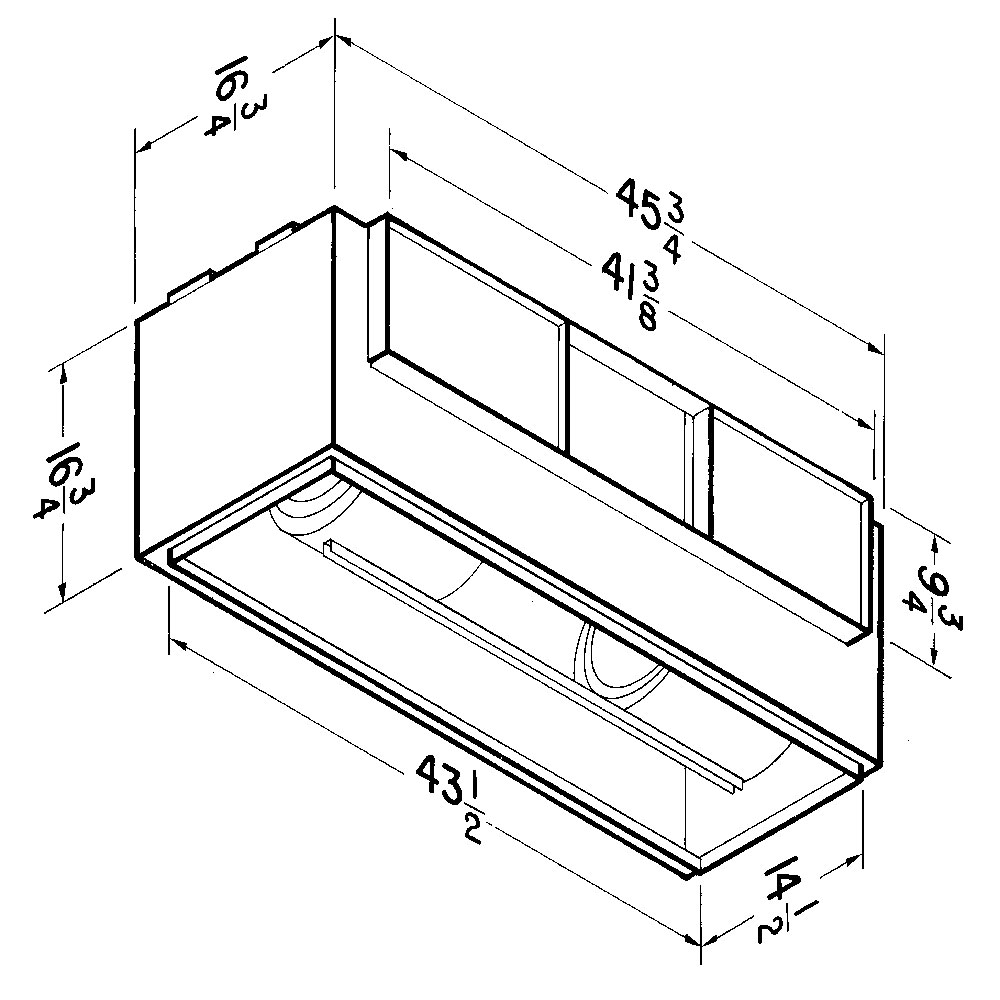

| Housing Dimensions | 16-3/4" x 45-3/4" x 16-3/4" |
| Sound Level (Sones) | 14.5 |
| UL Listed | Yes |
| Grille Finish | White Painted Enamel |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Rated Amps | 5.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
