New
Roomside Series
Broan-NuTone® Roomside Series Bathroom Exhaust Fan w/ LED Light, 80 CFM, ENERGY STAR®
The Broan-NuTone® BEL8 Roomside Series ENERGY STAR® bathroom exhaust fan, with LED light, offers versatile easy installation without attic access and no drywall cutting necessary. This bathroom exhaust fan is the perfect retrofit solution saving time and reducing complexity. The design features patent pending technology with SlideClip™ grille/cover, making cleaning easy with a springless attachment. The CleanCover™ grille also offers a seamless design that blends into the ceiling for a modern appearance. This series is ENERGY STAR® certified reducing energy consumption by over 50% compared to standard bath fans. Engineered for ENERGY STAR 4.1 this exhaust fan meets building code requirements and reduces call-backs. All the desired features of a premium bathroom exhaust fan at an affordable price for cost-conscious builders, contractors and DIYers. This HVI certified product has efficient performance to remove moisture, odors and pollutants to provide Better Quality of Air for Better Quality of Life.
Model:
BEL8
$79.00
retailer prices may vary

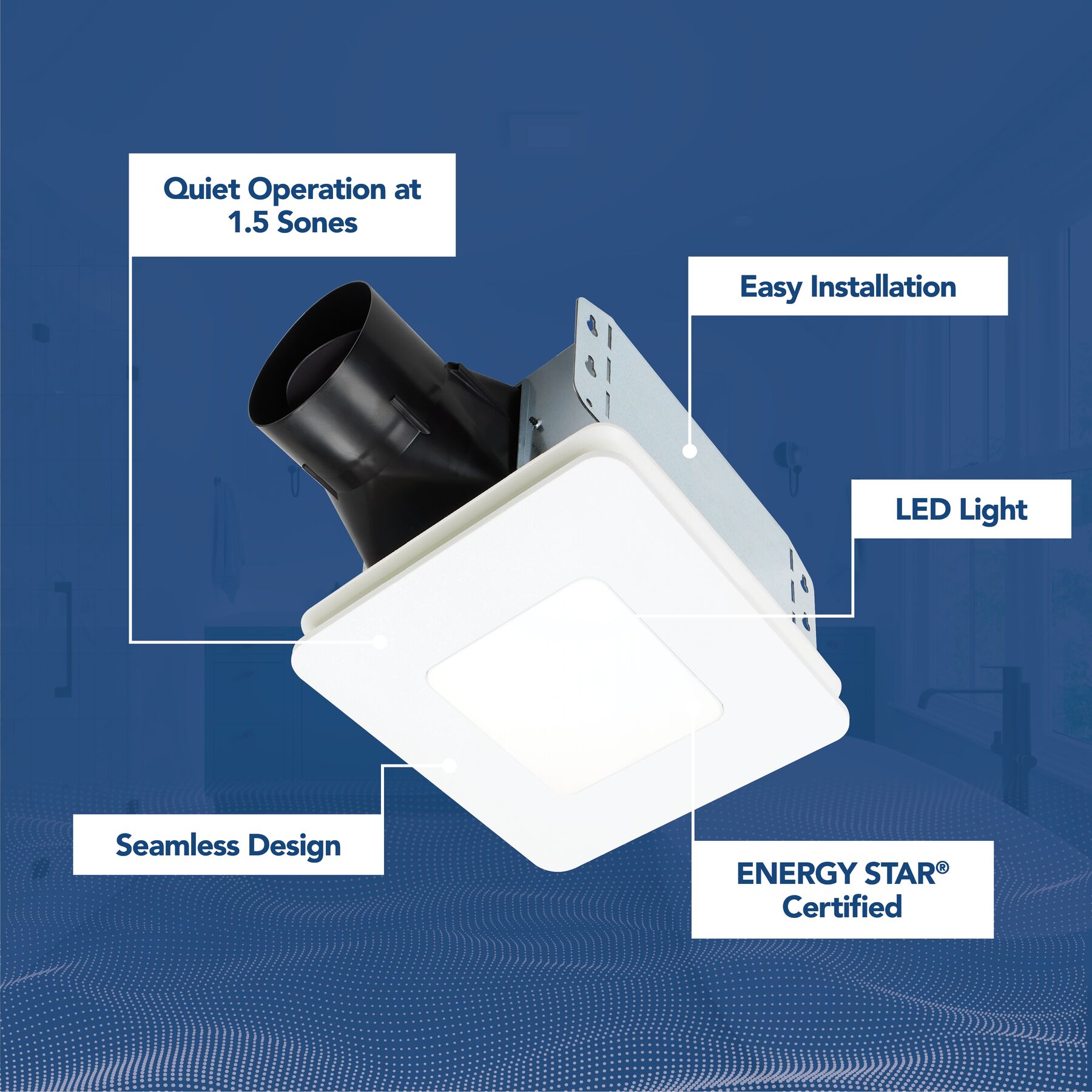

Features
- Versatile Easy Installation: Room side installation makes it possible to retrofit with no attic access and without having to cut drywall - saving time and reducing complexity.

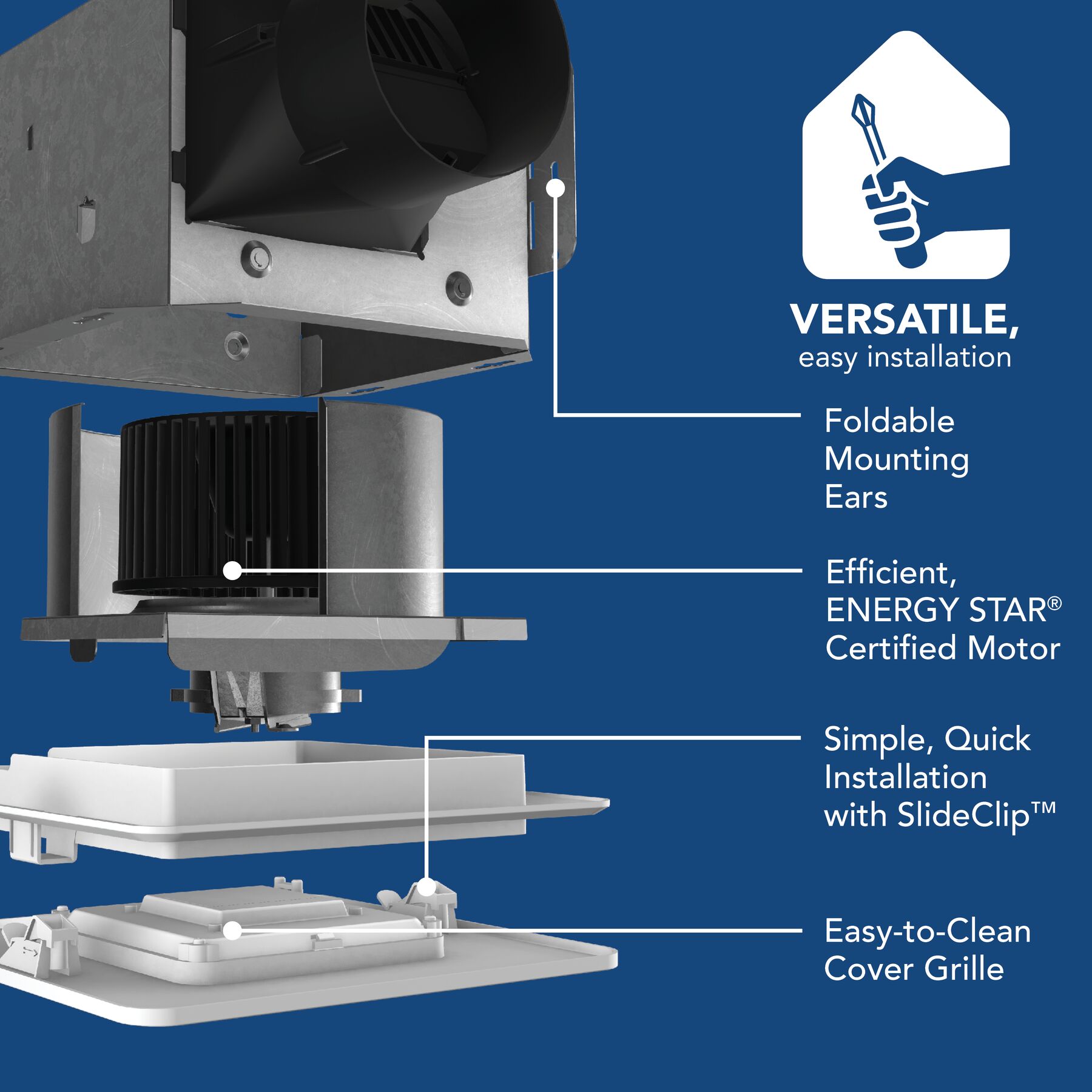

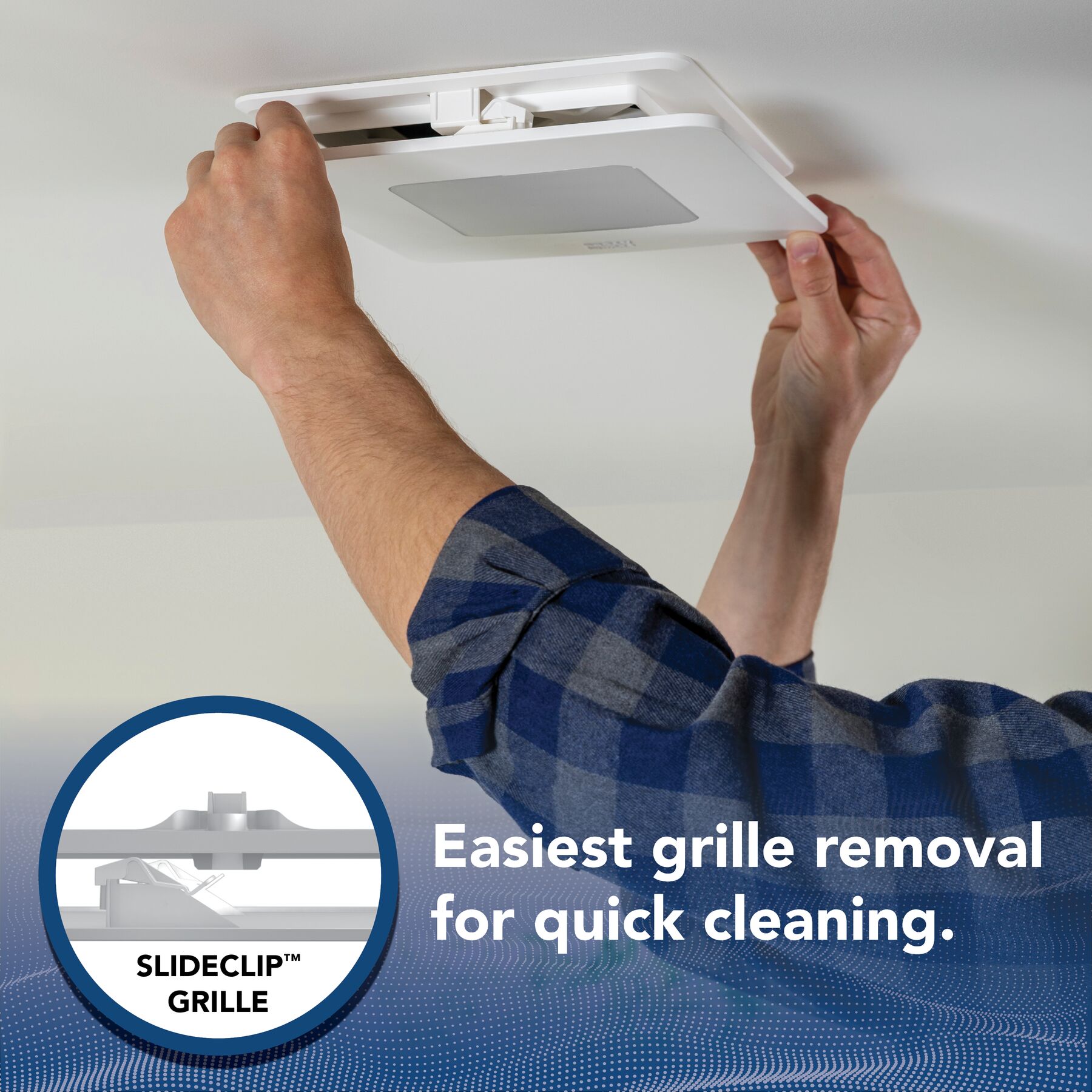

- SlideClip™ Grille: Patent pending technology for a springless attachment that allows for fast installation of the grille/cover and easy cleaning.
- Seamless Design for Easy Cleaning: Modern CleanCover™ grille blends into the ceiling and allows for quick, easy cleaning.
- ENERGY STAR® 4.1: Reduces energy consumption by over 50% compared to standard bath fans.
- Code Compliant: Engineered for Energy Star 4.1 meets building codes and reduces call-backs.
- Quiet Operation: Sound as quiet as a whisper (1.5 sones) with efficient ventilation for rooms up to 75 sq. ft.
- Durable LED Light: Long-lasting, integrated LED light is rated for 50,000 hours of life at a 3500K color temperature. Light is dimmable with the compatible wall control (sold separately).
- EZDuct™ Connector: Patented technology provides superior airflow and creates an airtight seal from inside the housing.

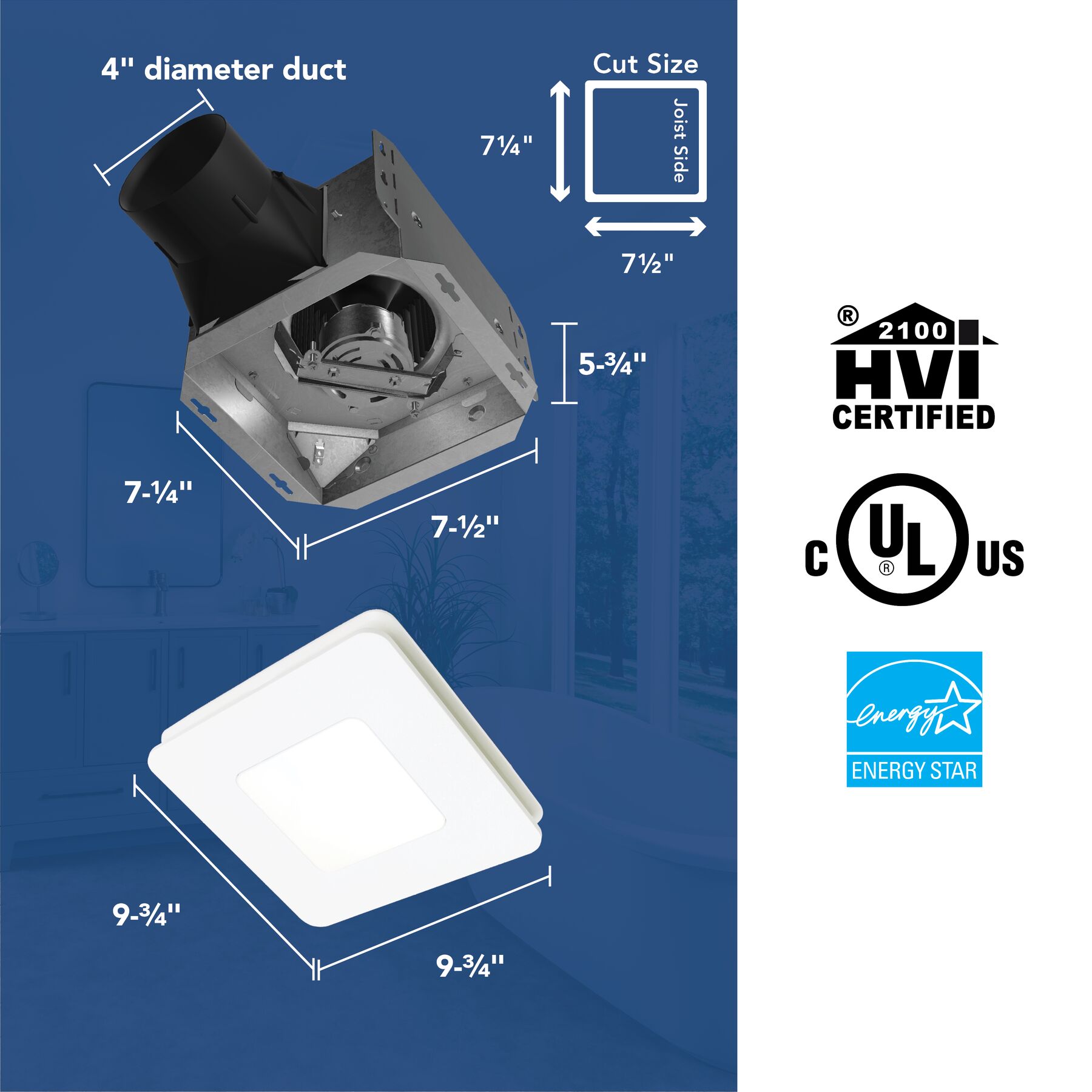

- Housing fits the most common fan size opening, 7.5” x 7.25”
| CFM | 80 |
|---|---|
| Color Finish |
|
| Duct Size | 4" |
| ENERGY STAR® certified | Yes |
| Grille Length | 9.75 |
| Grille Width | 9.75 |
| Housing Dimensions | 7.5" x 7.25" x 5.75" |
| Sound Level (Sones) | 1.5 |
| UL Listed | No |
| Grille Finish | Polymeric |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | Up to 75 sq. ft. |
| Rated Amps | 0.6 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Globe Lens Color | White |
| Globe Material | Polymeric |
| Minimum Construction Space Required | 2 x 6 |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
