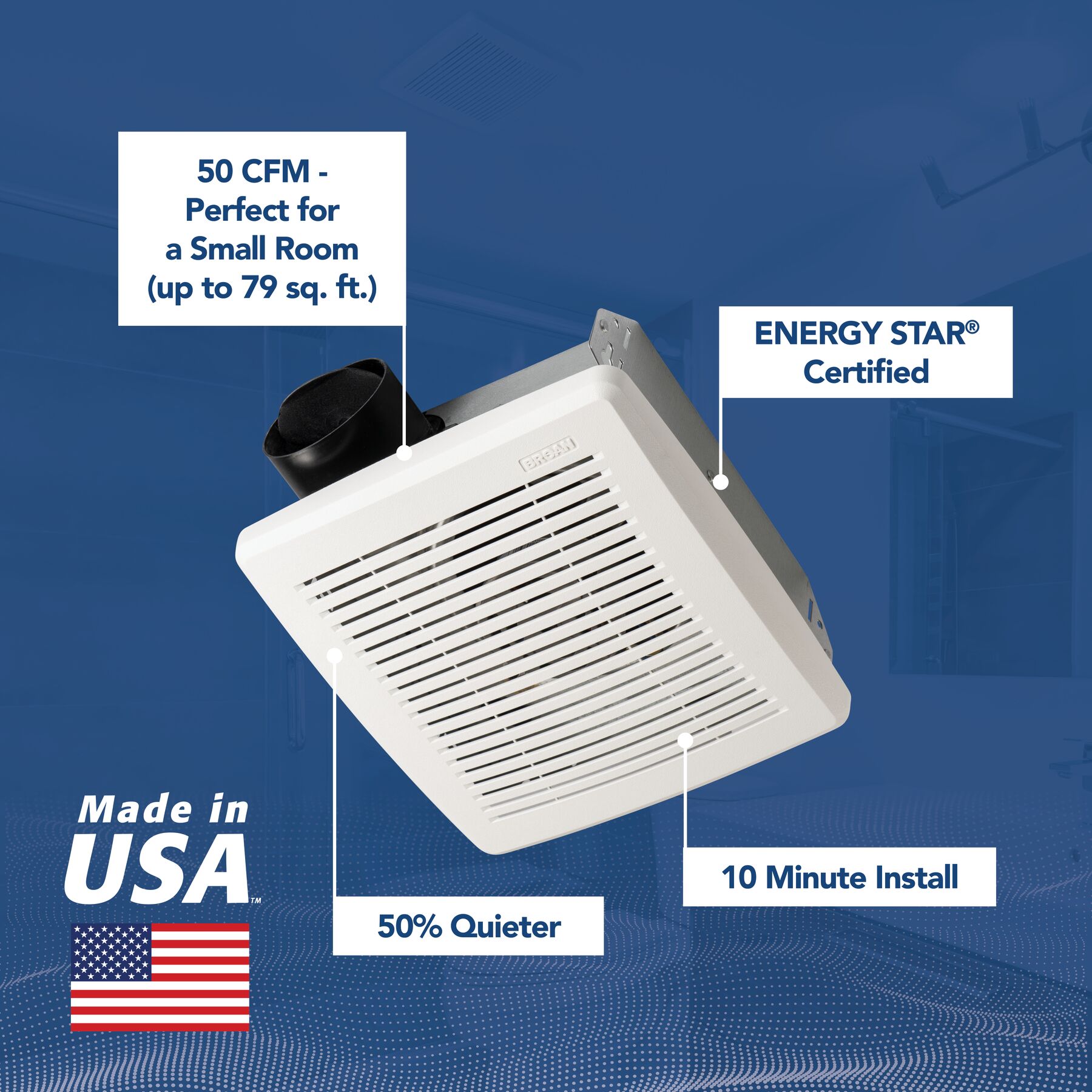

Broan-NuTone® Bathroom Exhaust Fan, ENERGY STAR, 50 CFM

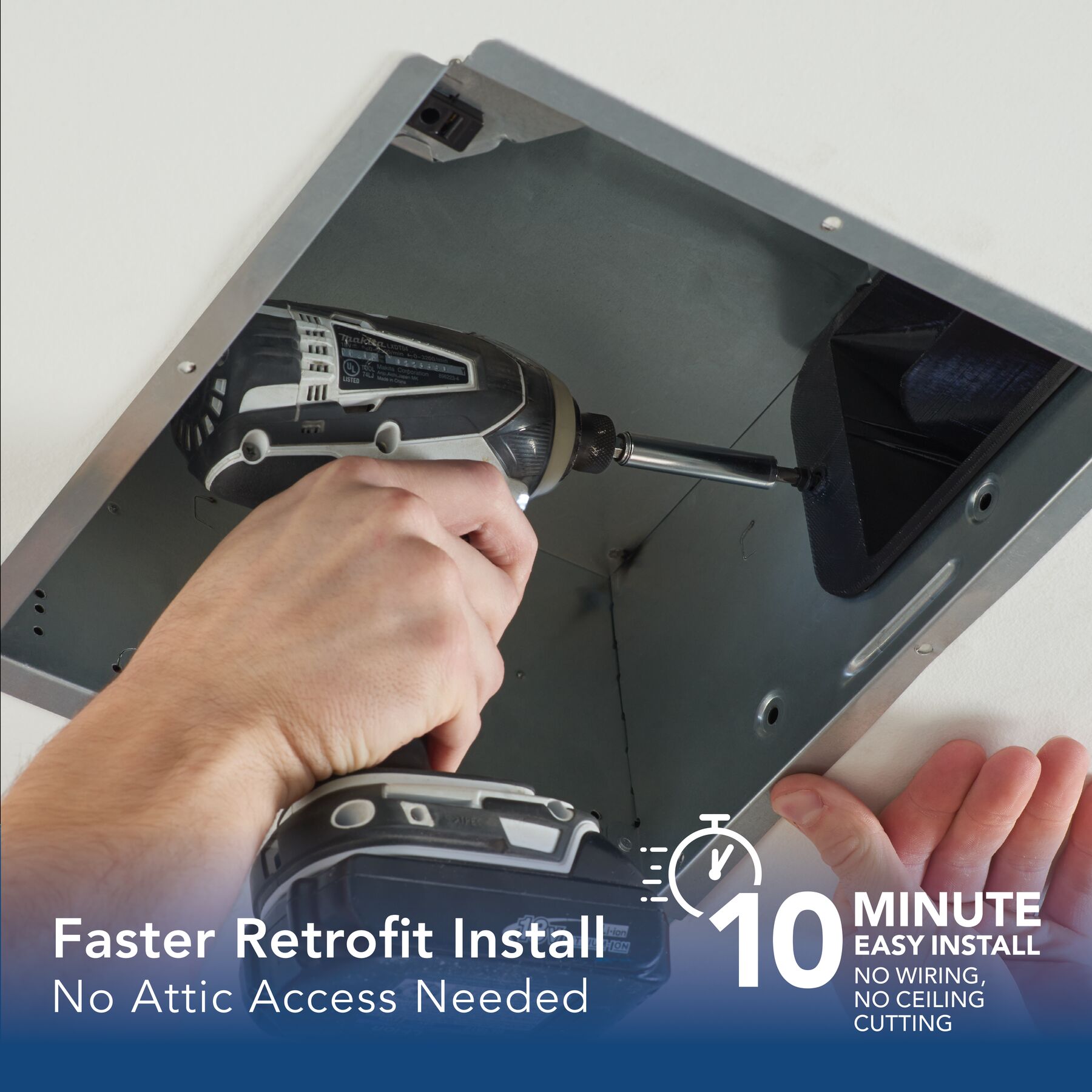

Make your bathroom ventilation more efficient with the Broan-NuTone® ENERGY STAR Series. Enjoy the convenience of no-cut installation, which means you can install these fans without cutting drywall or venturing into the attic. These fans are the ultimate solution for anyone seeking versatility, compactness, and cost-effectiveness. Featuring a durable galvanized steel housing and double-strength mounting flanges, they're built to last and offer efficient ventilation for clearing out steam and odors. ENERGY STAR® certified and 2.0 sones ensures privacy while efficiently ventilating air to prevent mold and mildew. Plus, the removable motor assembly and plug-in permanently lubricated motor make servicing and cleaning a breeze. Elevate your bathroom's air quality and enjoy long-term reliability with Broan-NuTone®.
Model:
696NE
Features

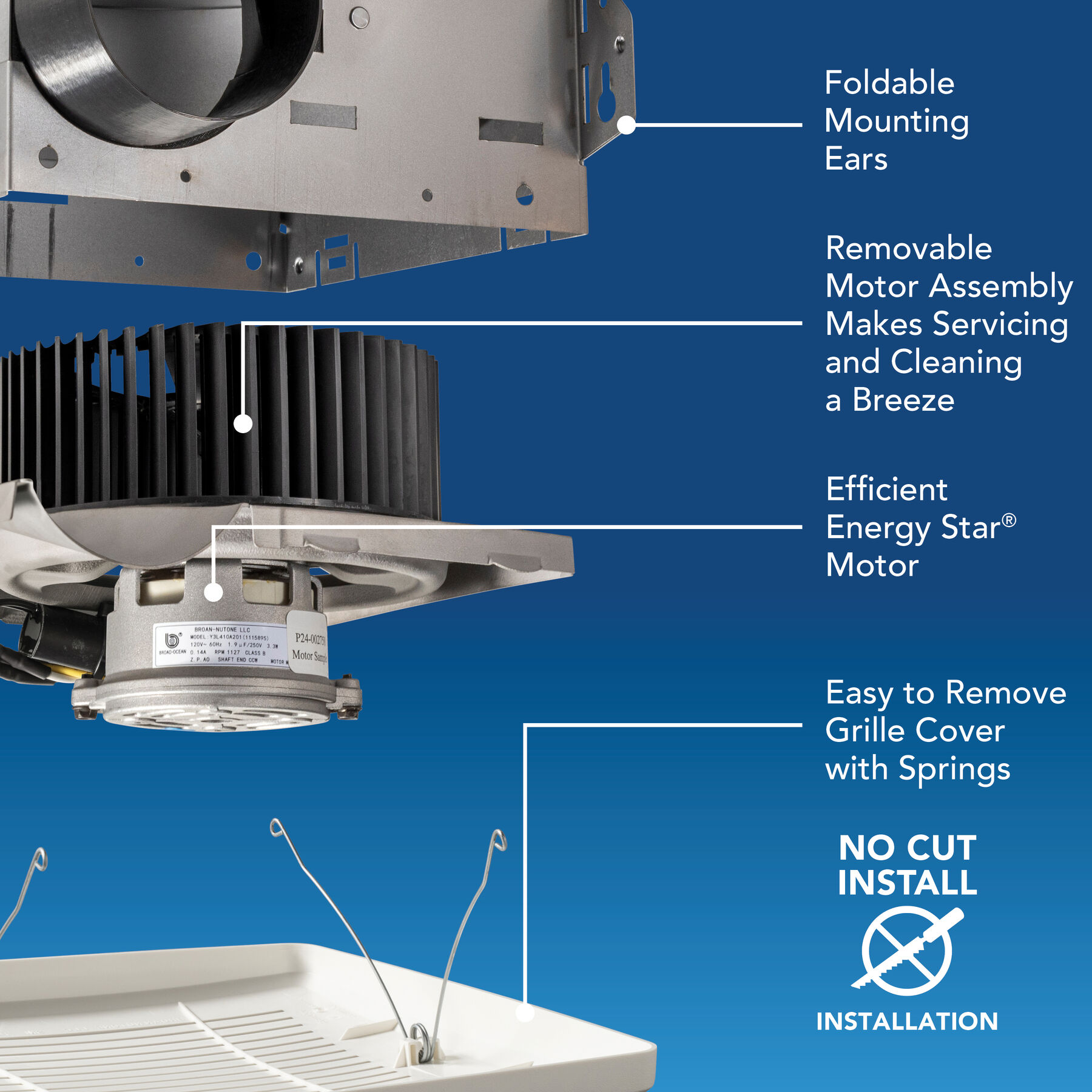

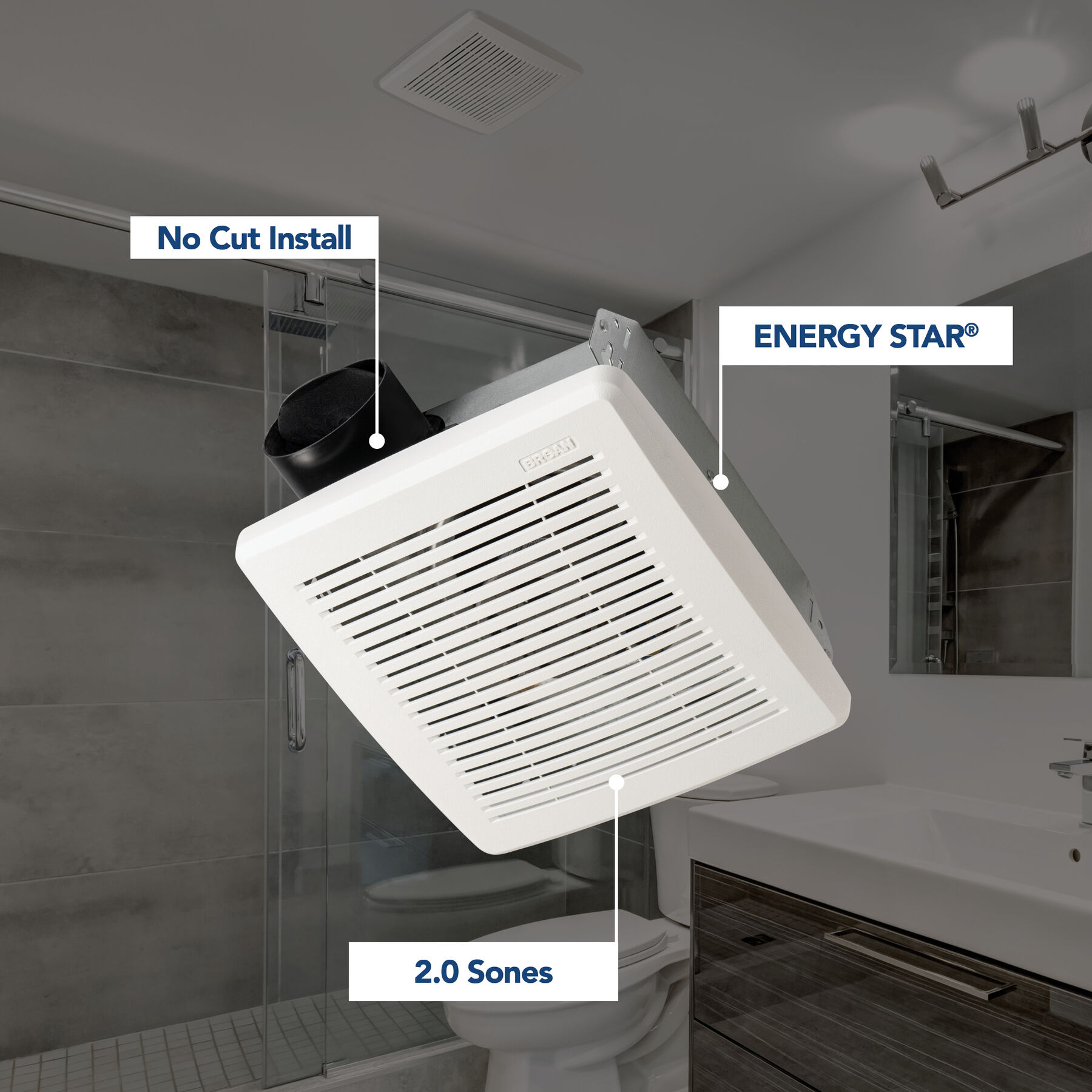

- No Cut Install: Compact housing with foldable mounting brackets for versatile installation
- ENERGY STAR Certified: Efficient ventilation at 50 CFM removing odors and pollutants from rooms up to 45 sq. ft.

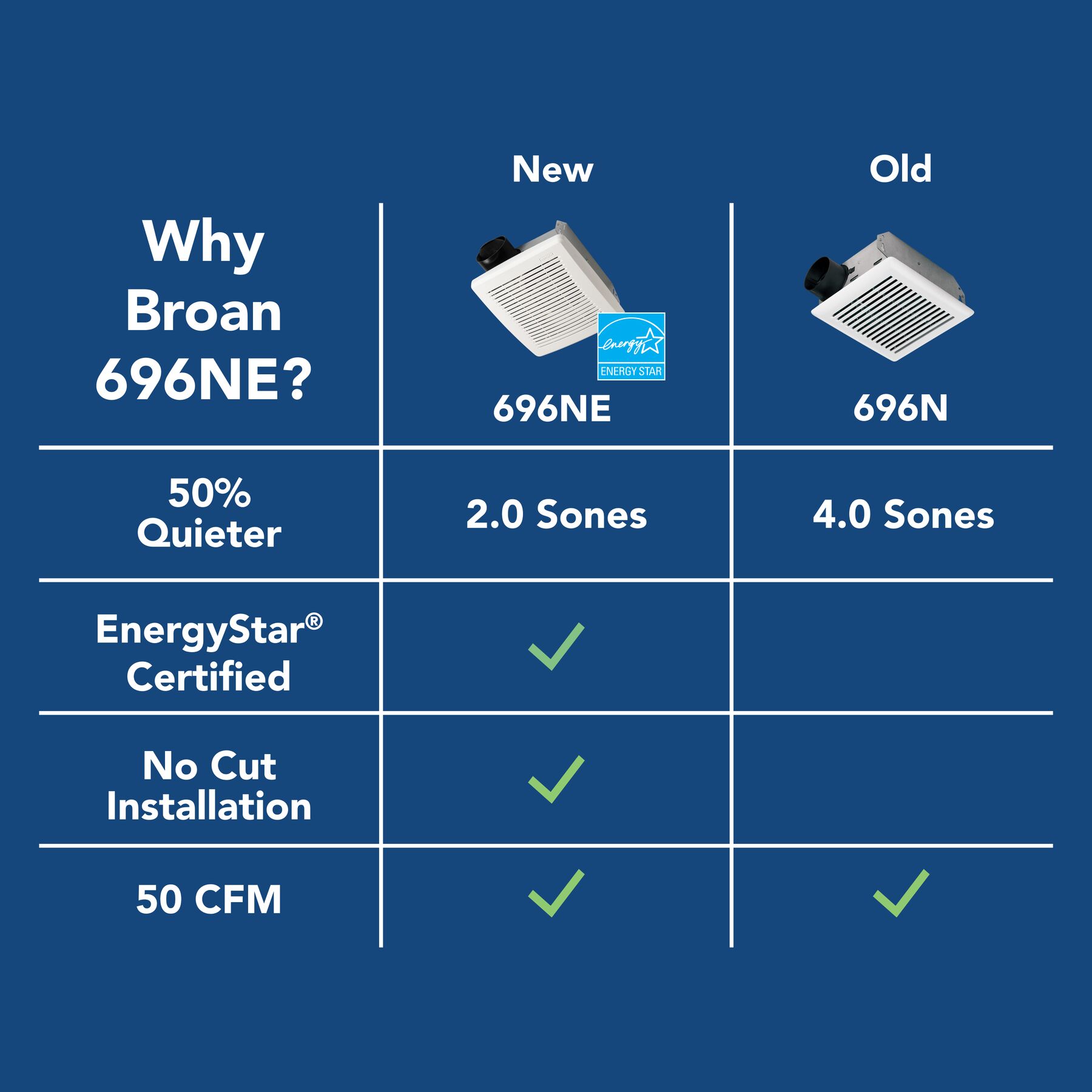

- Privacy: 2.0 audible sones for privacy while using your bathroom
- Brighter White Design: Louvered grille to match most common ceiling paint
- Durable Housing: Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover – make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
| CFM | 50 |
|---|---|
| Color Finish |
|
| Duct Size | 3" |
| ENERGY STAR® certified | Yes |
| Grille Length | 9 |
| Grille Width | 8.75 |

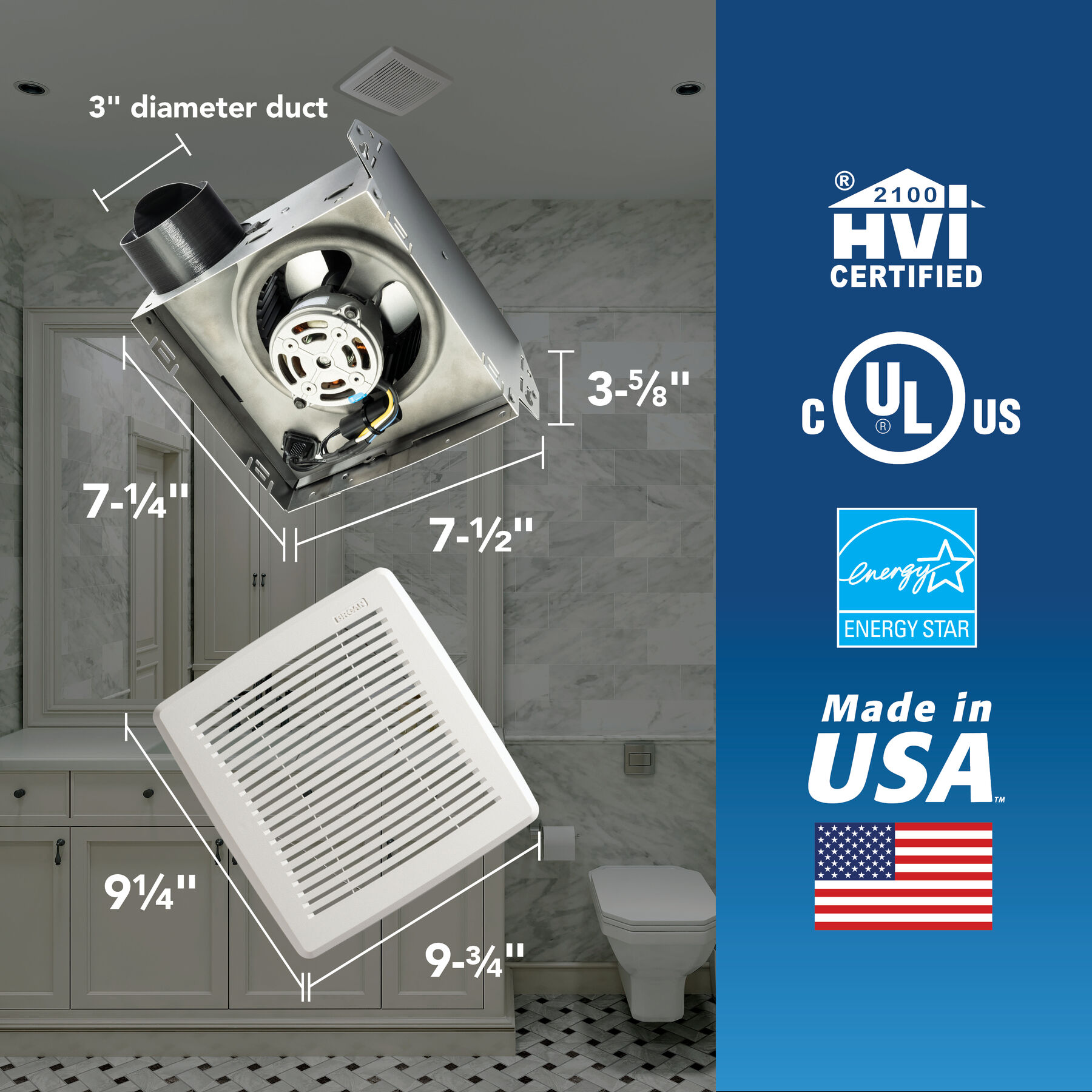

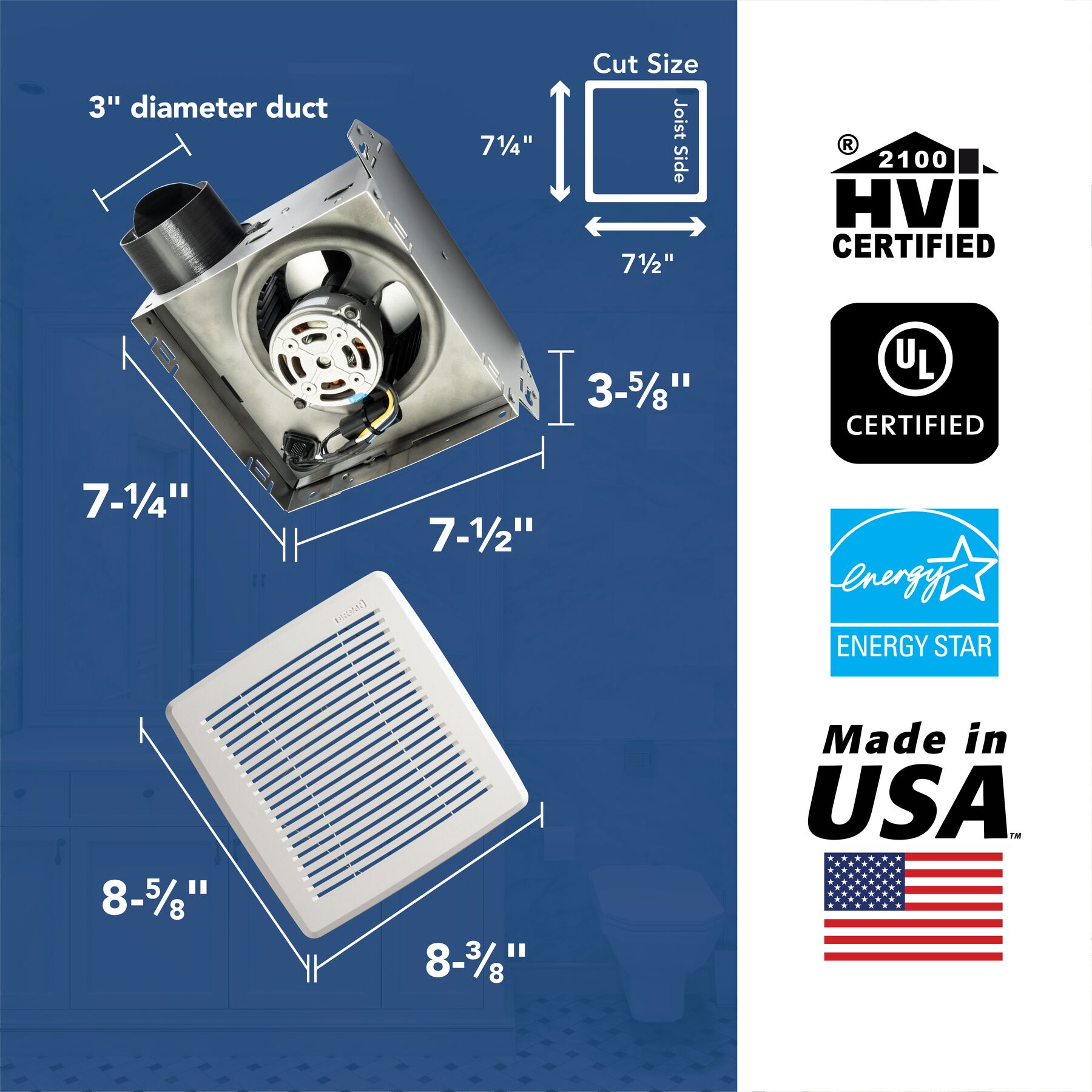

| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
