Economy Series

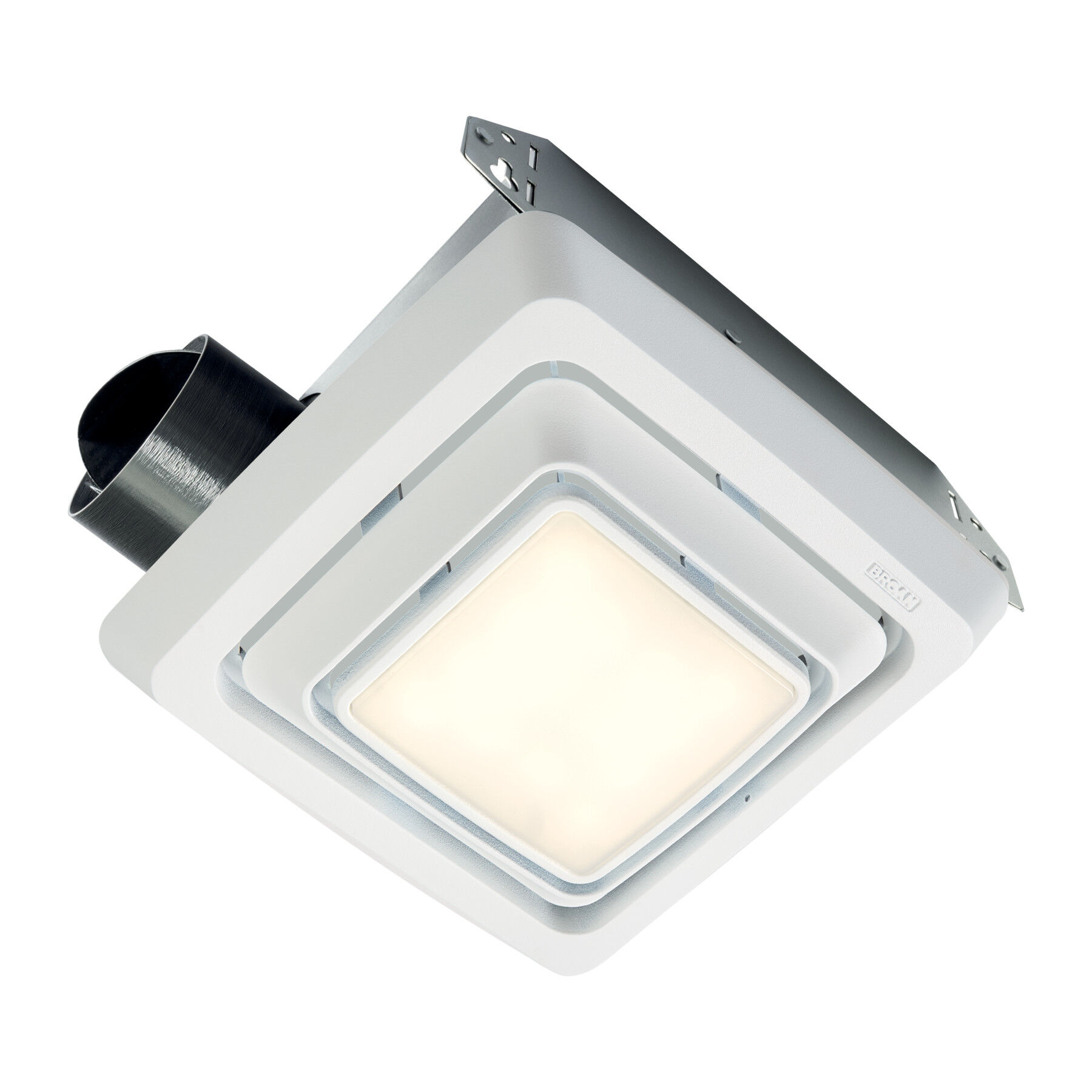

Broan-NuTone® Bath Exhaust Fan w/LED Light, 50 CFM, Energy Star, 2.0 Sones
The Broan-NuTone Energy Star bathroom exhaust fan is a versatile, compact, and economical ventilation solution. Designed for easy installation, this fan can be installed in just 10 minutes without the need for attic access or drywall cutting. Featuring a lit grille with LED lighting, galvanized steel housing, and double strength mounting flanges, it delivers powerful ventilation performance at 2.0 sones, helping to prevent mold and mildew. Additionally, the fan includes a removable motor assembly and a plug-in, permanently lubricated motor for easy service and cleaning.
Model:
688ESL
Features

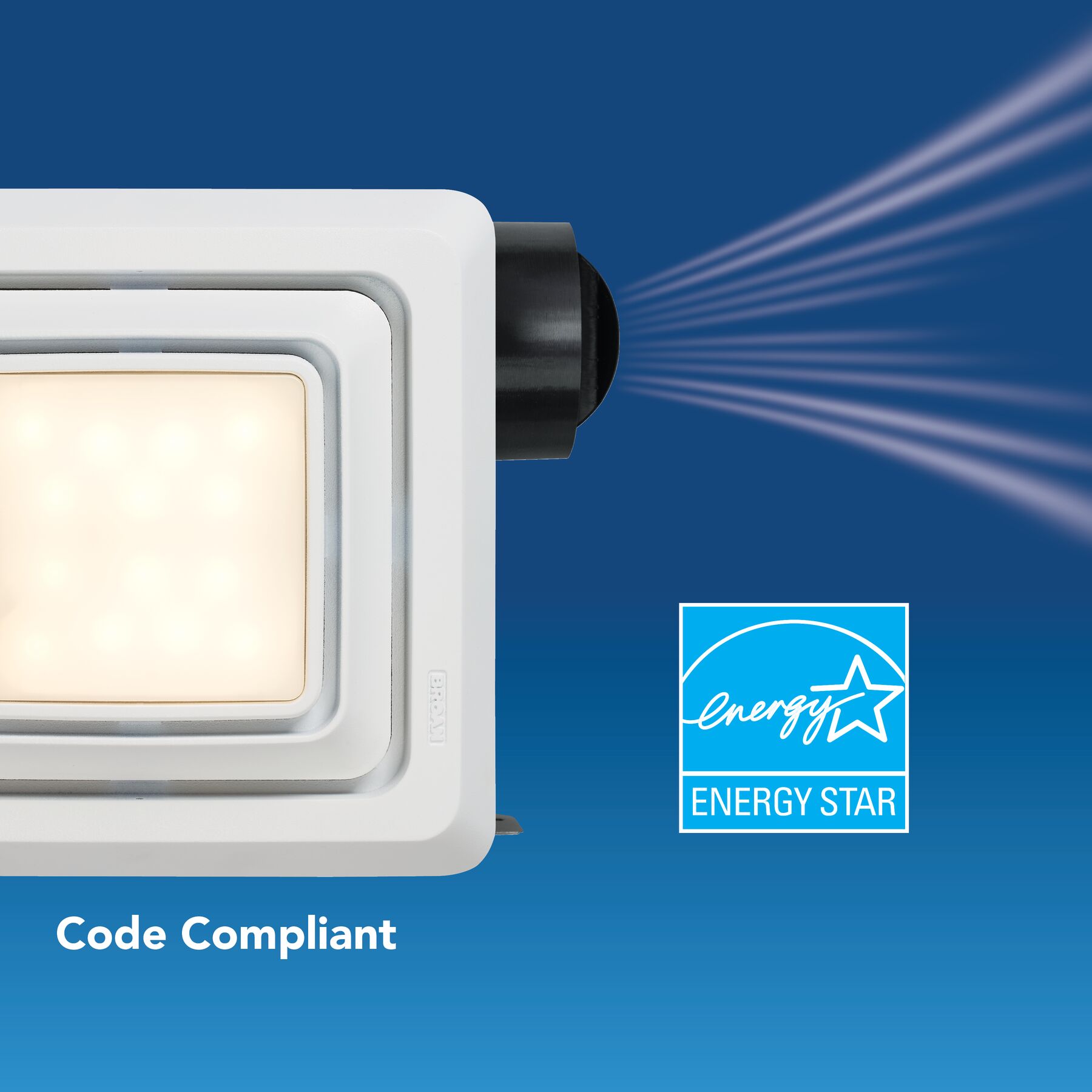

ENERGY STAR certified
California Title 24 Compliance – FID Requirements

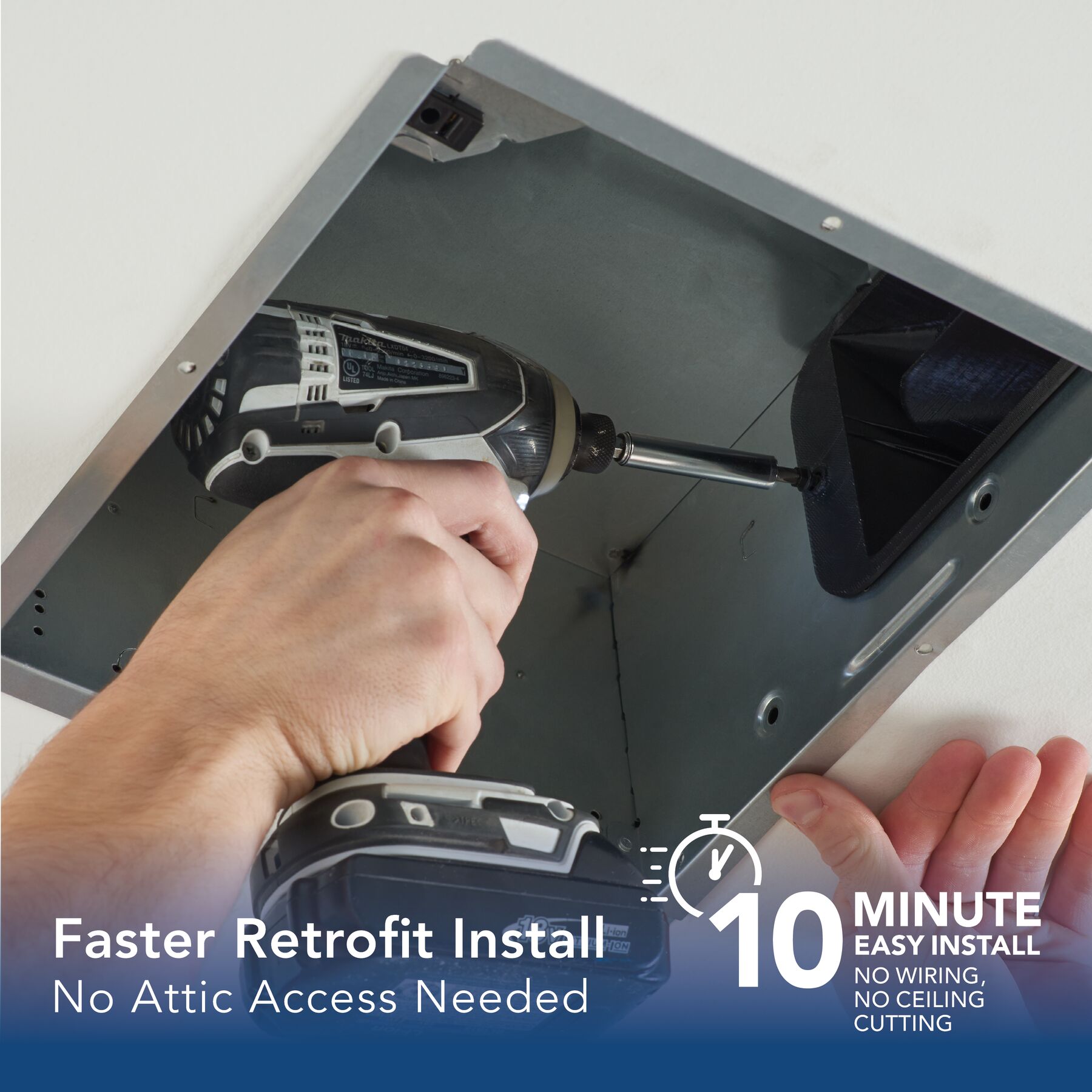

- 10 Min Install: Easy installation without the need for attic access or additional drywall cutting.
- Efficient Ventilation: 50 CFM offering efficient exhaust ventilation to remove odors and pollutants from rooms up to 45 sq. ft.
- ENERGY STAR Certified: Reduces energy consumption by over 50% compared to standard bath fans.
- No Cut Install: Compact housing with foldable mounting brackets for no cut and versatile installation.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover – make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
| CFM | 50 |
|---|---|
| Color Finish |
|
| Duct Size | 3 |
| ENERGY STAR® certified | Yes |
| Grille Length | 9.25 |
| Grille Width | 9.75 |
| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |

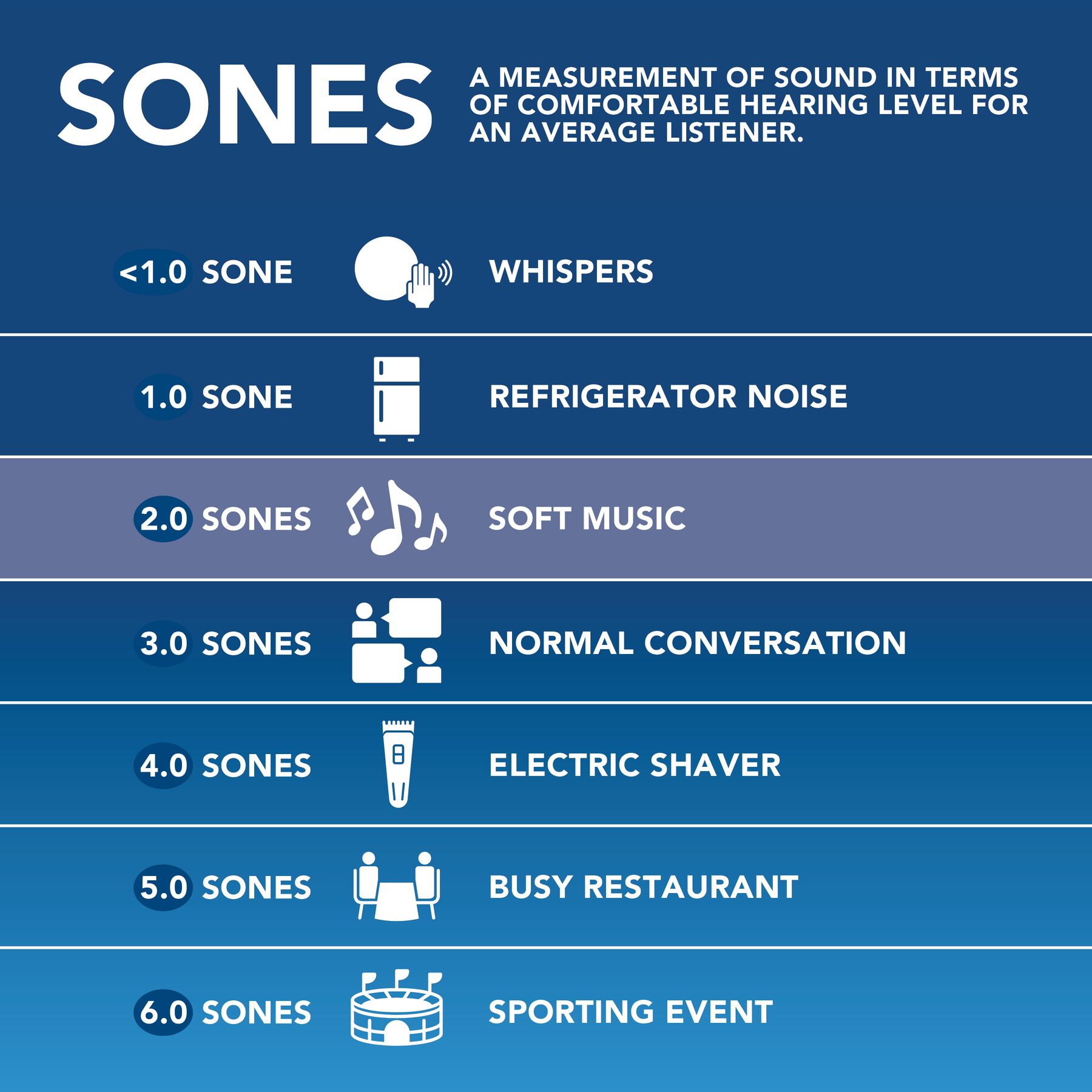

| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
