Broan® Duct-Free Fan

Broan® Duct-free Ventilation Fan with plastic grille, snap-in mounting and charcoal filter

The Broan® Ductless Bathroom Exhaust Fan w/ Snap-in Mounting and Replaceable Charcoal Filter (model# 682) processes air to eliminate odors where ductwork is impossible or impractical. It is an easy to install solution for half baths or where humidity isn’t a concern. Included is a long lasting, easy to replace charcoal filter. The easy snap-in mounting makes for a fast and simple installation.




  • Patented snap-in mounting saves time and money
  • Attractive, self-adjusting grille conceals fan interior
  • Efficiently eliminates odors where ductwork is impossible

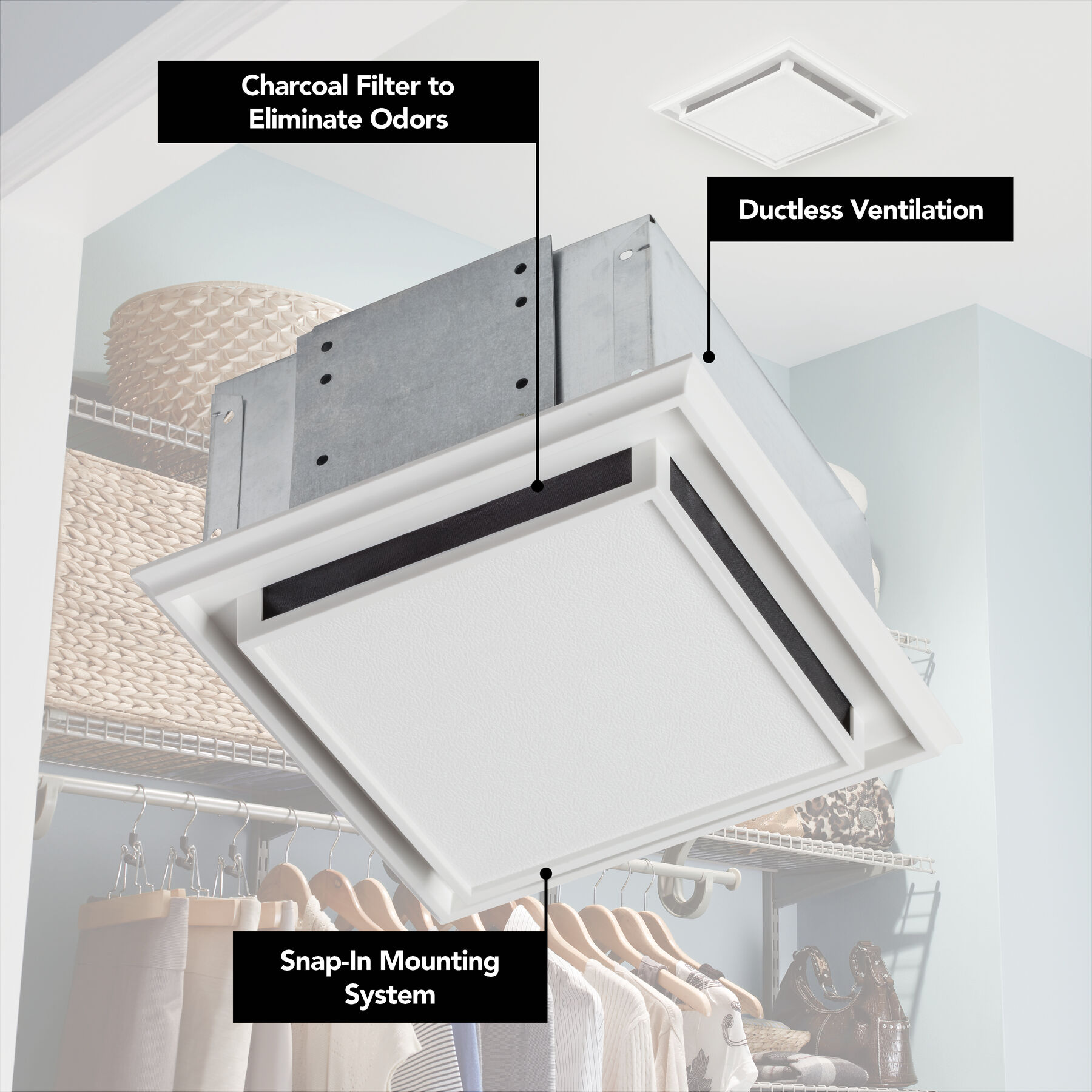

  • Long-lasting activated charcoal filter - easy to replace
  • Torsion spring grille mounting: grille is self-adjusting and requires no tools to install or remove
  • White polymeric grille blends easily with many decor styles
  • Steel housing for durability
  • Mounts easily to framing for fast installation


Color Finish
  • White
ENERGY STAR® certified No
Grille Length 8.5
Grille Width 8.5

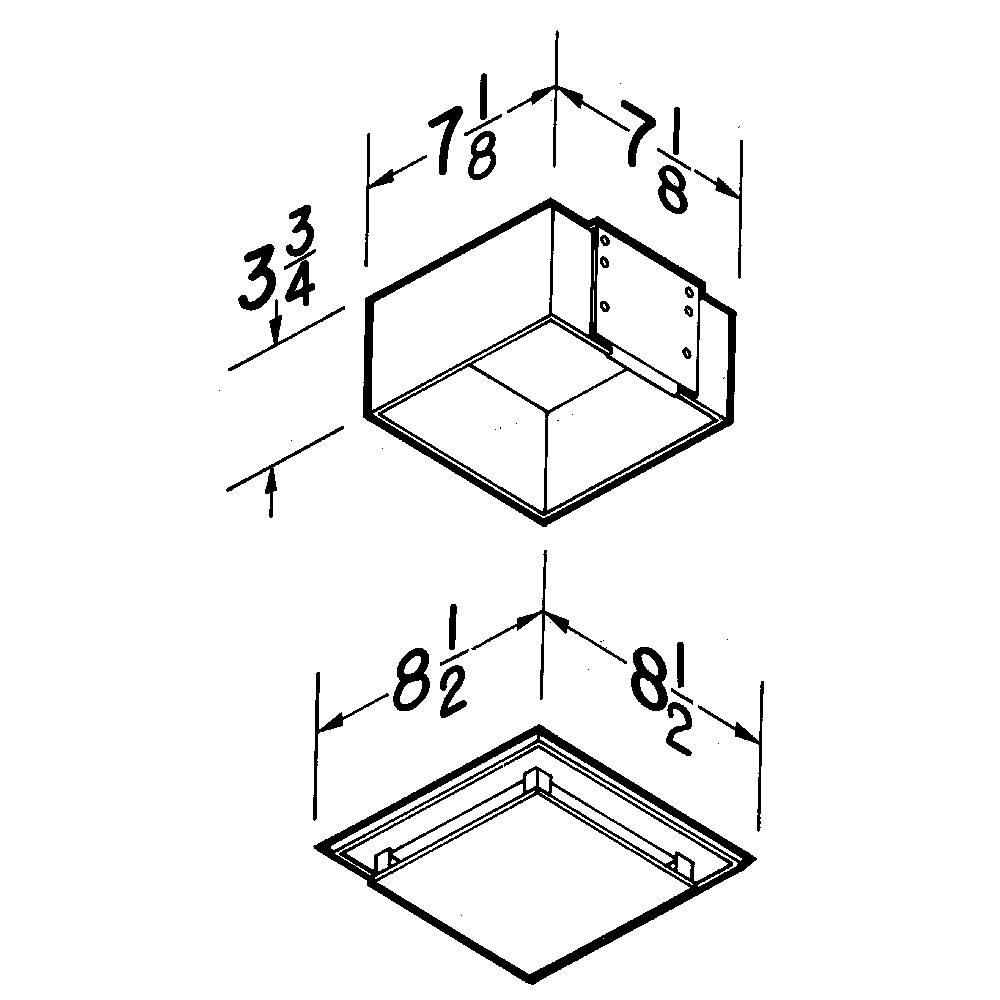

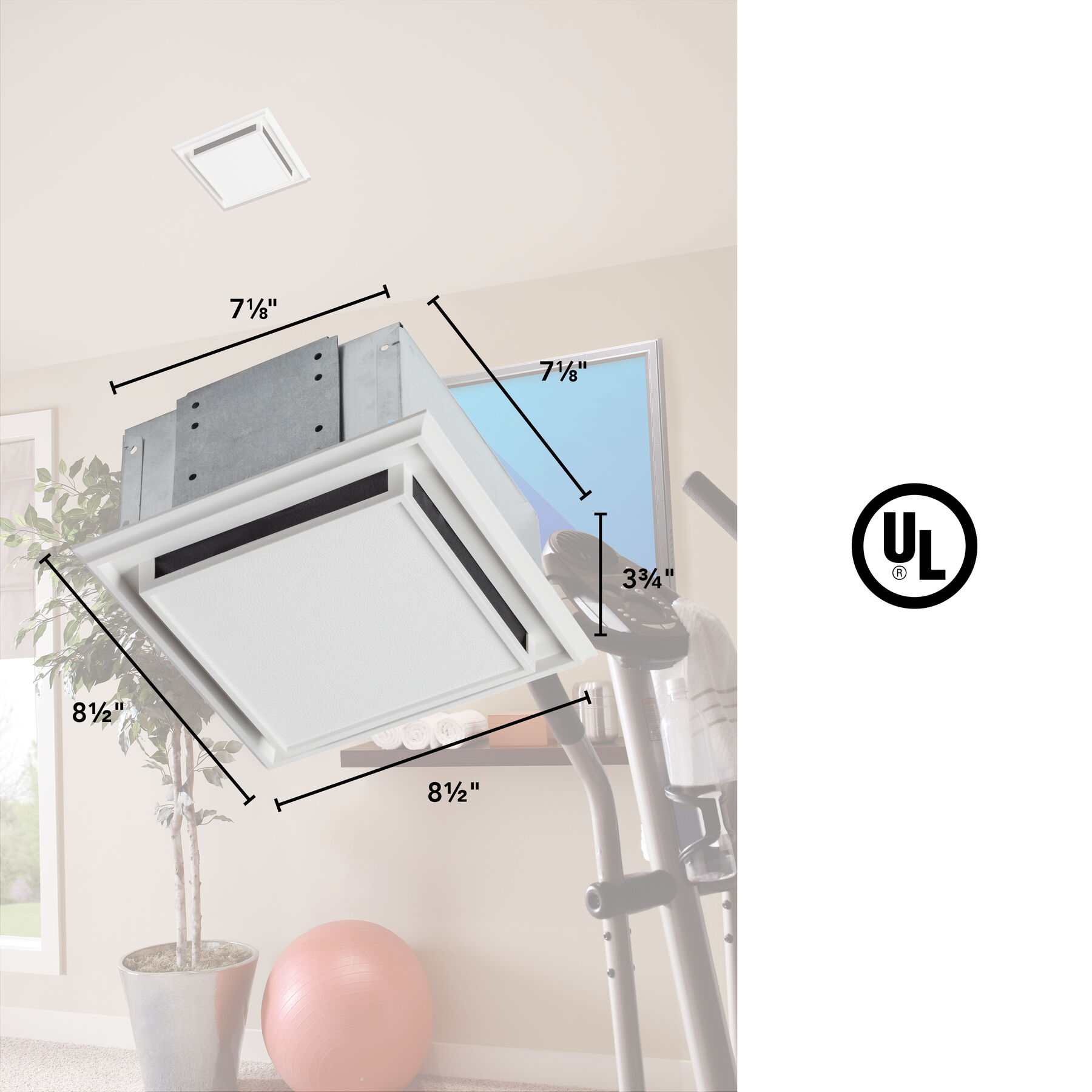

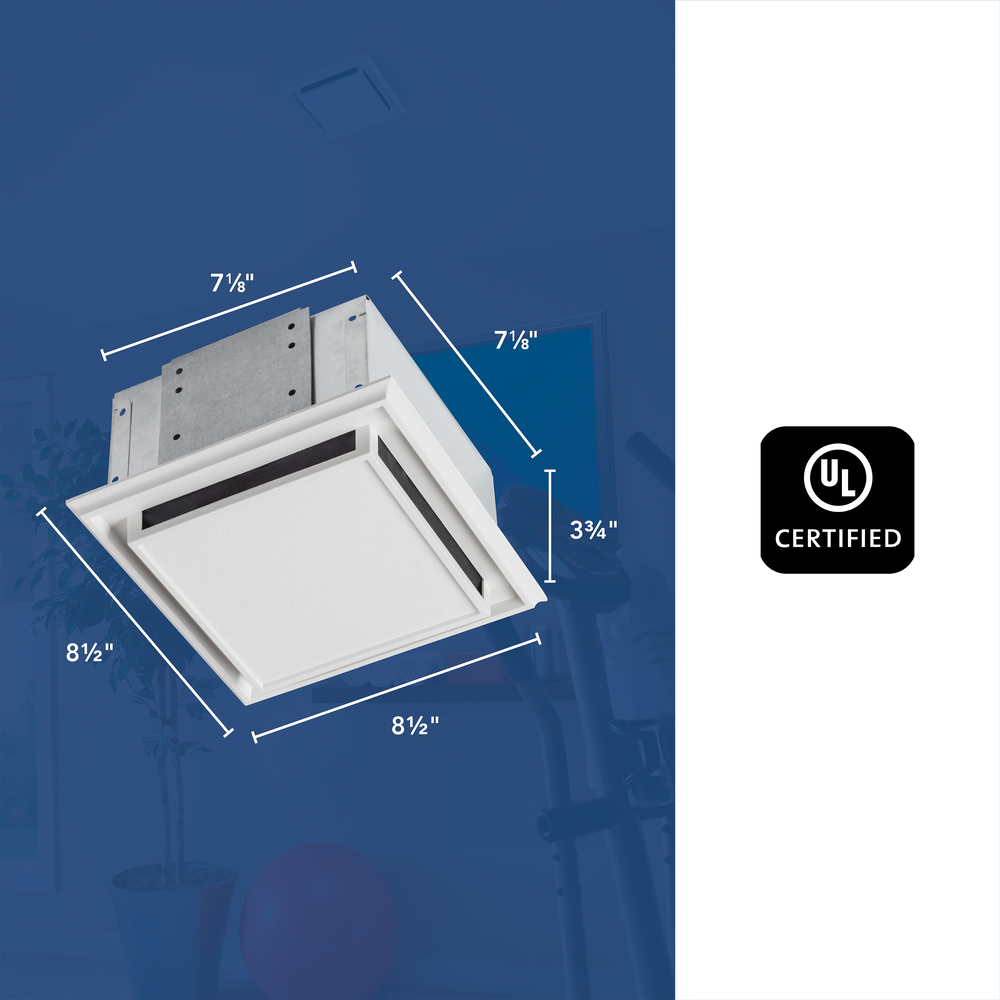

Housing Dimensions 7-1/8" x 7-1/8" x 3-3/4"
Sound Level (Sones) 0
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Rated Amps 1
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
