Utility Fans
Broan® 70 CFM Through-Wall Ventilation Fan
Say goodbye to unbearable heat and humidity in the garage, unwanted smells in the kitchen and odors in the laundry room, rec room or garage. The Broan® 70 CFM Through-Wall Ventilation Fan is the perfect solution for rooms up to 65 sq. ft, including a one car garage, or use for spot ventilation near areas such as a work bench, garbage can, car, or lawn mower. The durable galvanized steel housing provides superior protection against the elements and wear and tear. It features a built-in exterior wall cap/vent with bird screen, which reduces install time, no duct work needed. Customize your fan with one of Broan-NuTone’s wall controls. For automatic operation, choose from a humidity or motion sensing control. To automatically turn off the fan after you leave the room or garage, pair the fan with a delay-off or countdown timer. (Wall controls sold separately)
Model:
512M
$74.00
retailer prices may vary
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- 70 CFM - ventilate up to 65 sq. ft.
- 6.0 Audible Sones
- Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

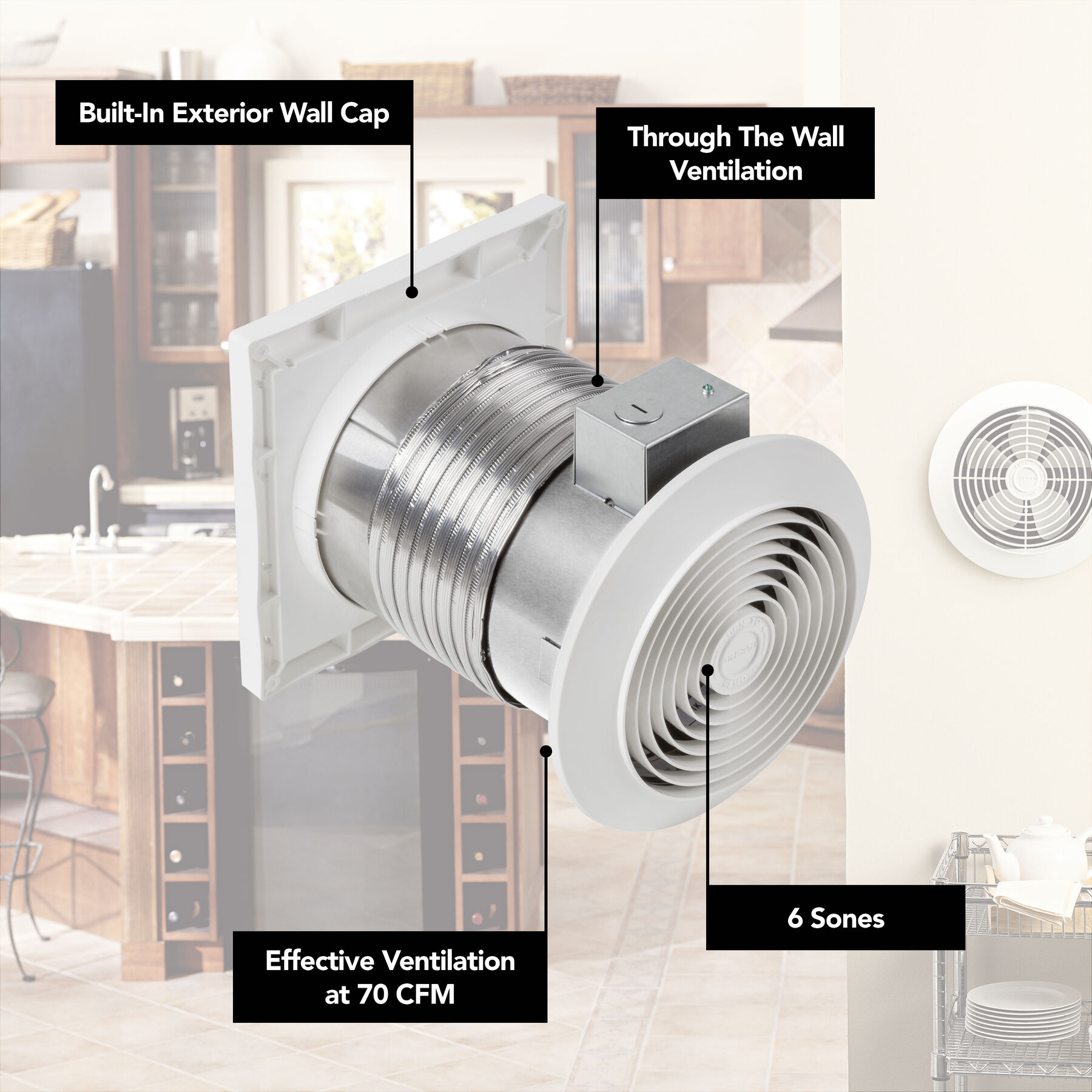

- Built-in exterior wall cap/vent, no ducting needed for installation
- Effectively ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Motor assembly offers a fast and easy twist-lock installation
- Housing adjusts to fit walls from 5 ¼” – 10” thick
- Galvanized steel housing for superior protection against the elements and wear and tear
- Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (sold separately)
- Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)
CFM | 70 |
---|---|
Color Finish |
|
Duct Size | 6 |
ENERGY STAR® certified | No |

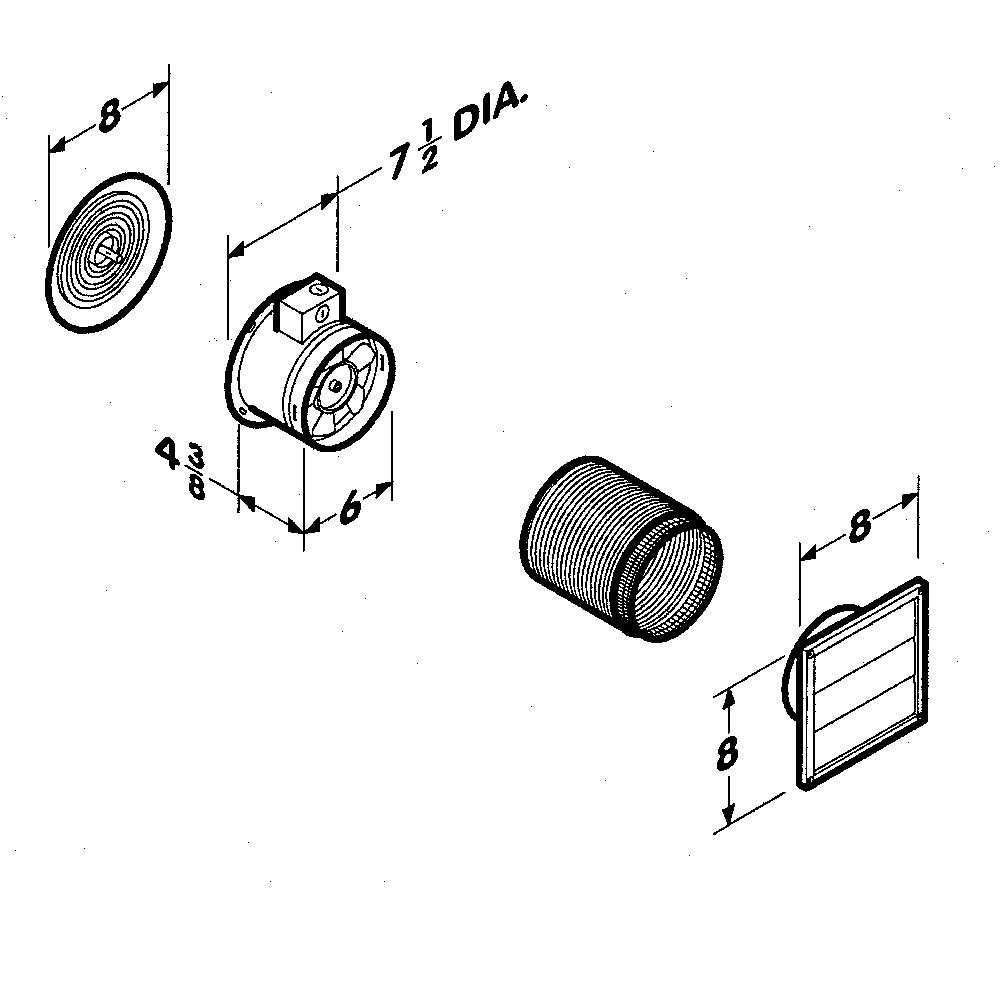

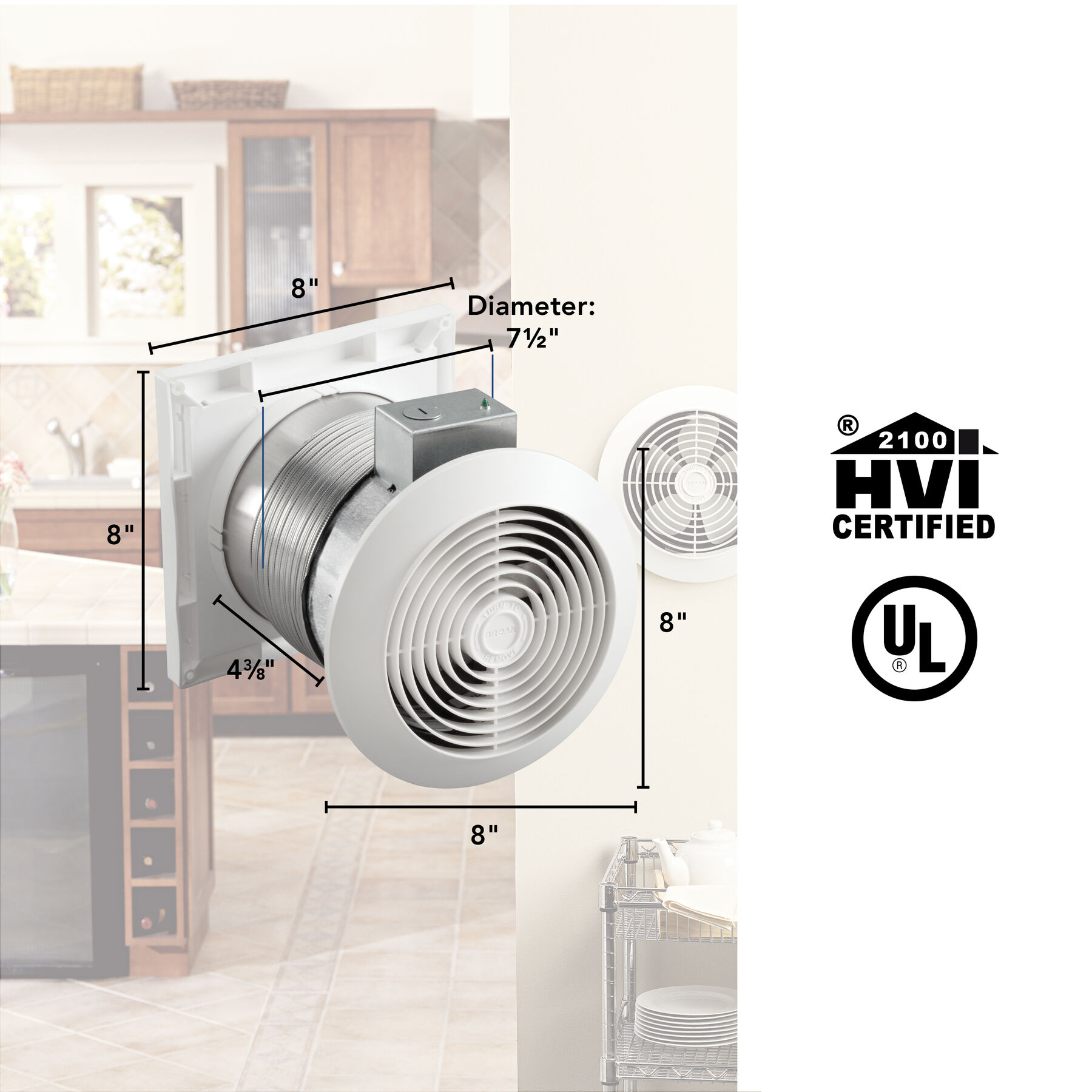

Housing Dimensions | 6" Round x 4-3/8" |
Sound Level (Sones) | 6 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | No |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 65 |
Rated Amps | 0.7 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
