Product Discontinued

Utility Fans

**DISCONTINUED** Broan® 250 CFM Chain-Operated, Through-Wall Ventilation Fan


Model:

507

Suggested Replacement: 509

Features

  • 250 CFM - ventilate up to 245 sq. ft.
  • 7.0 Audible Sones
  • Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
  • Pre-installed pull-chain controls the fan, no wall switch required
  • Built-in exterior wall cap/vent, no ducting needed for installation
  • Effectively ventilate a one car garage, either attached or detached from the home
  • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
  • Tested and approved for extreme hot and cold weather
  • Motor assembly offers a fast and easy twist-lock installation
  • Housing adjusts to fit walls from 4½"–9½" thick
  • Galvanized steel housing for superior protection against the elements and wear and tear
  • Specs
  • Downloads

print

CFM 250
Color Finish
  • White
Duct Size 8
ENERGY STAR® certified No

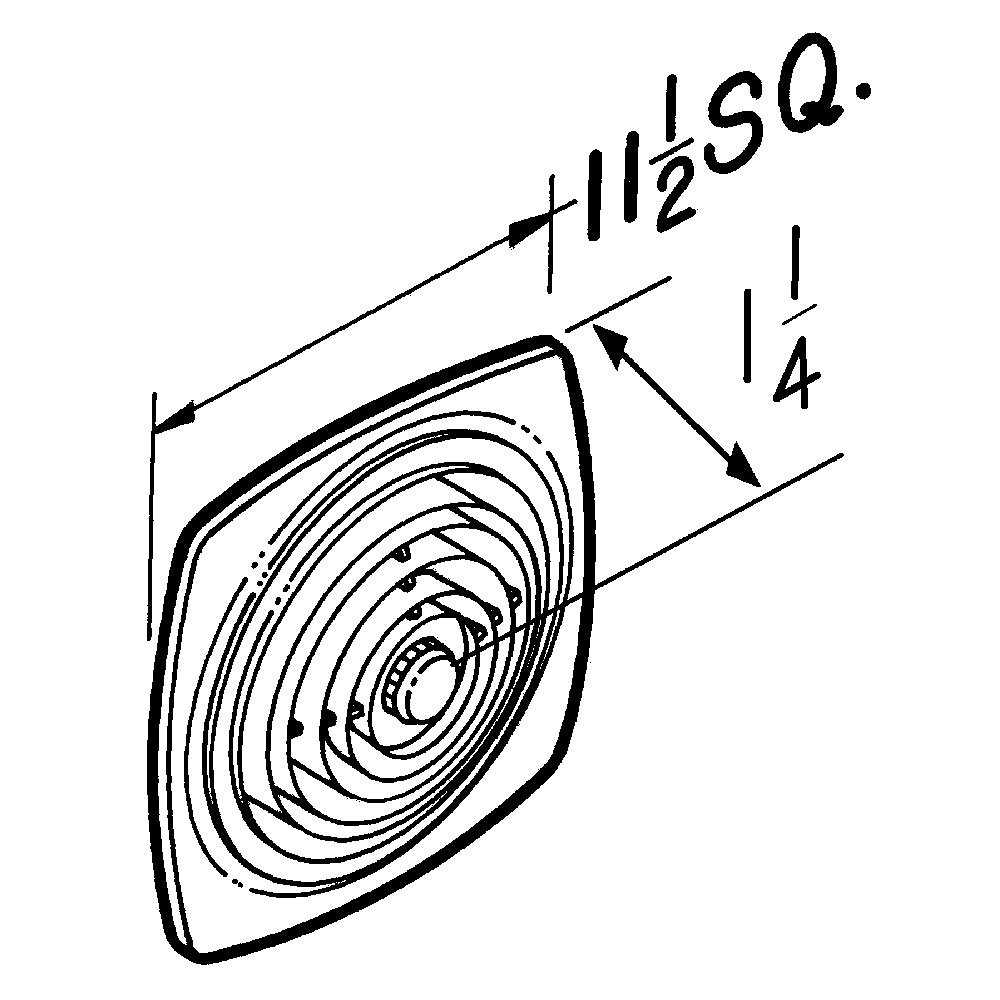

Grille Length 11.5
Grille Width 11.5

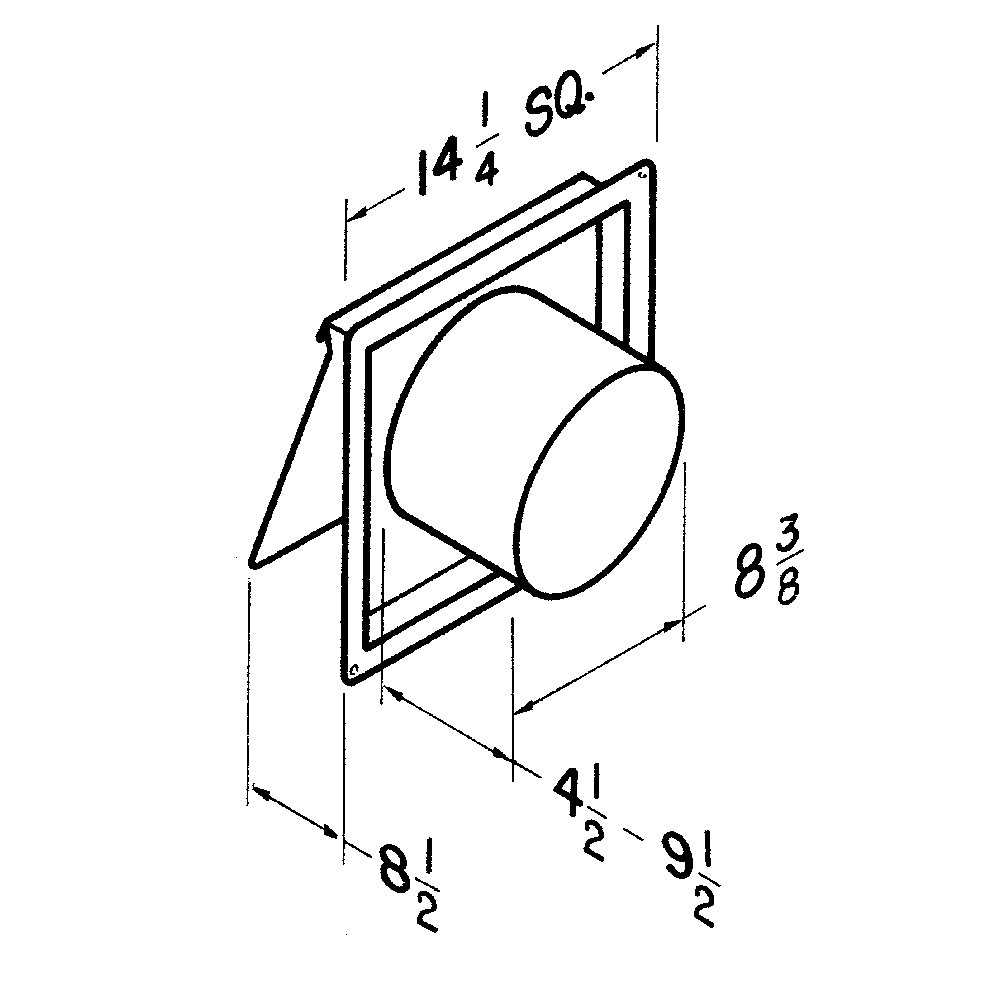

Housing Dimensions 14-1/4" x 14-1/4"
Sound Level (Sones) 7
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Rated Amps 1.5
Voltage 120
Can Be Used To Comply With Title 24 No
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
