Product Discontinued
Utility Fans
**DISCONTINUED** Broan® 430 CFM Chain-Operated, Through-Wall Ventilation Fan
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- 430 CFM - ventilate up to 425 sq. ft.
- 7.5 Audible Sones
- Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
- Pre-installed pull chain controls fan, no wall switch required
- Built-in exterior wall cap/vent, no ducting needed for installation
- Effectively ventilate a one or two car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Motor assembly offers a fast and easy twist-lock installation
- Housing adjusts to fit walls from 4½"–9½" thick
- Galvanized steel housing for superior protection against the elements and wear and tear
- Specs
- Downloads
CFM | 430 |
---|---|
Color Finish |
|
Duct Size | 10 |
ENERGY STAR® certified | No |

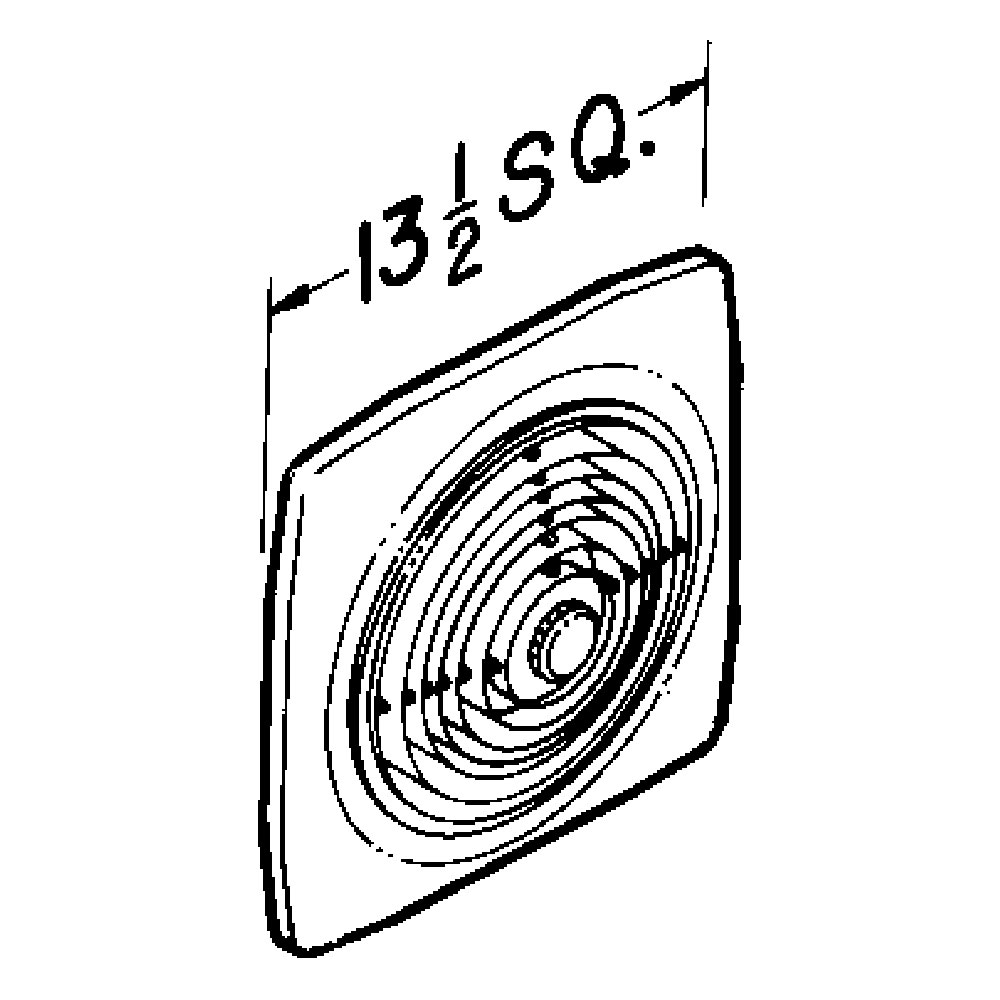

Grille Length | 13.5 |
Grille Width | 13.5 |

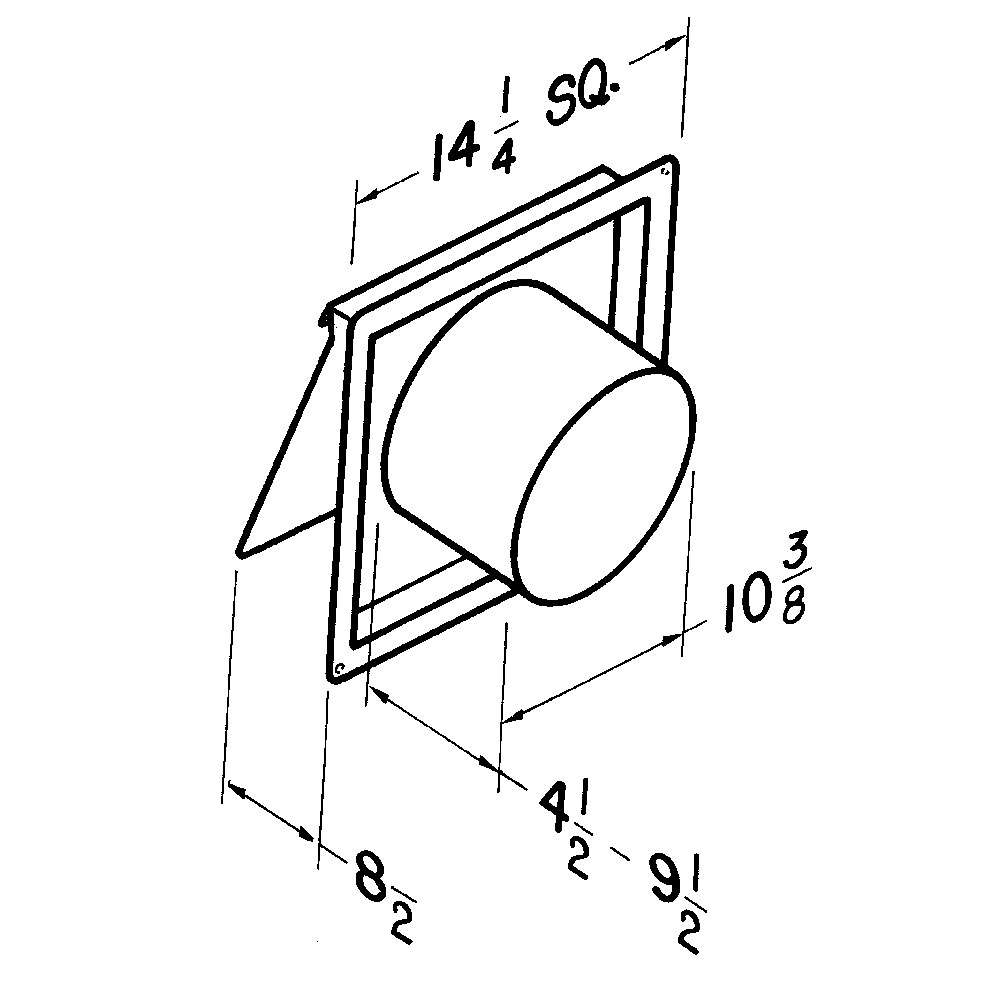

Housing Dimensions | 14-1/4" x 14-1/4" |
Sound Level (Sones) | 7.5 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | No |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
Heater Wattage | 0 |
Rated Amps | 1.7 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
