Utility Fans
Broan® 8-Inch Vertical Discharge Fan, 200 CFM

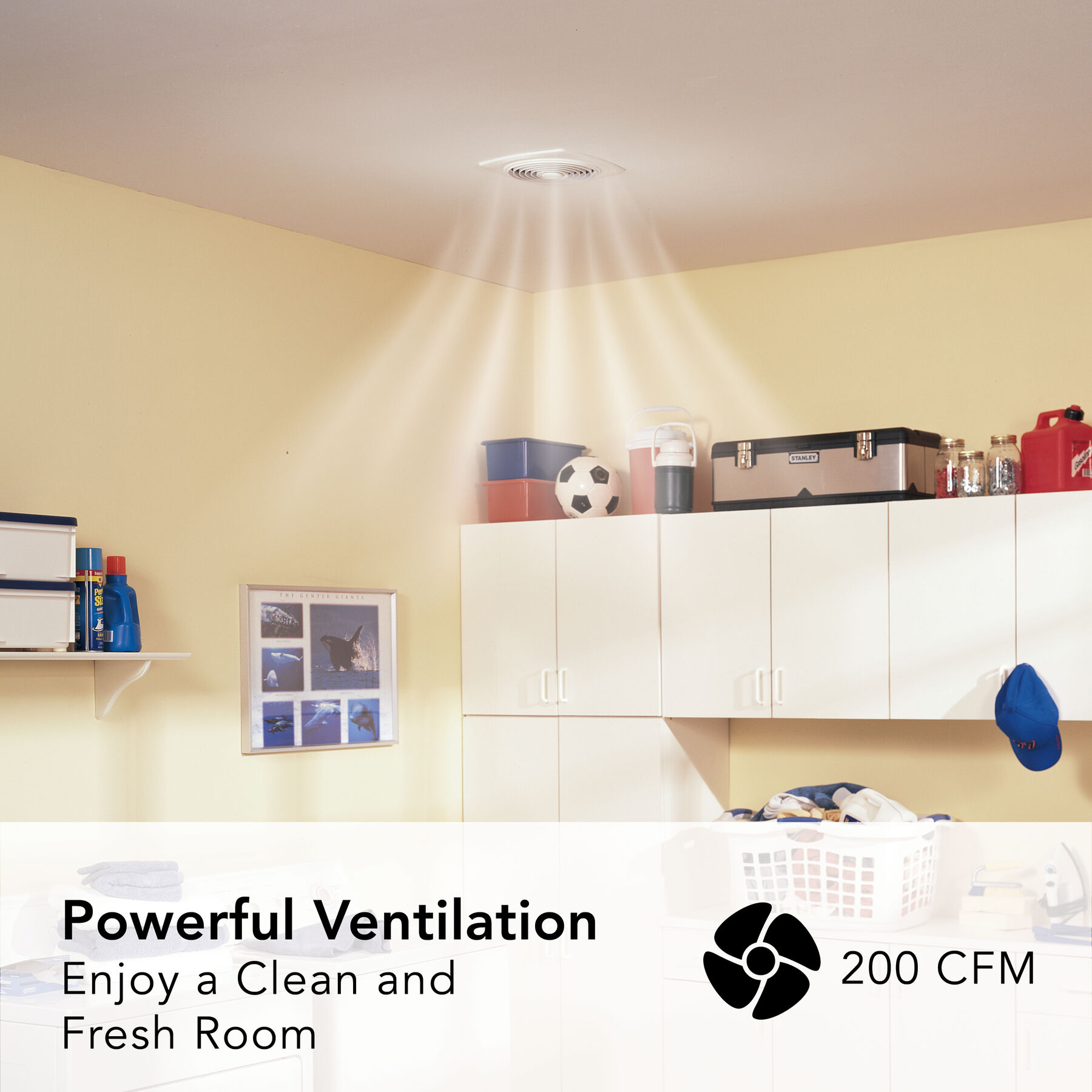

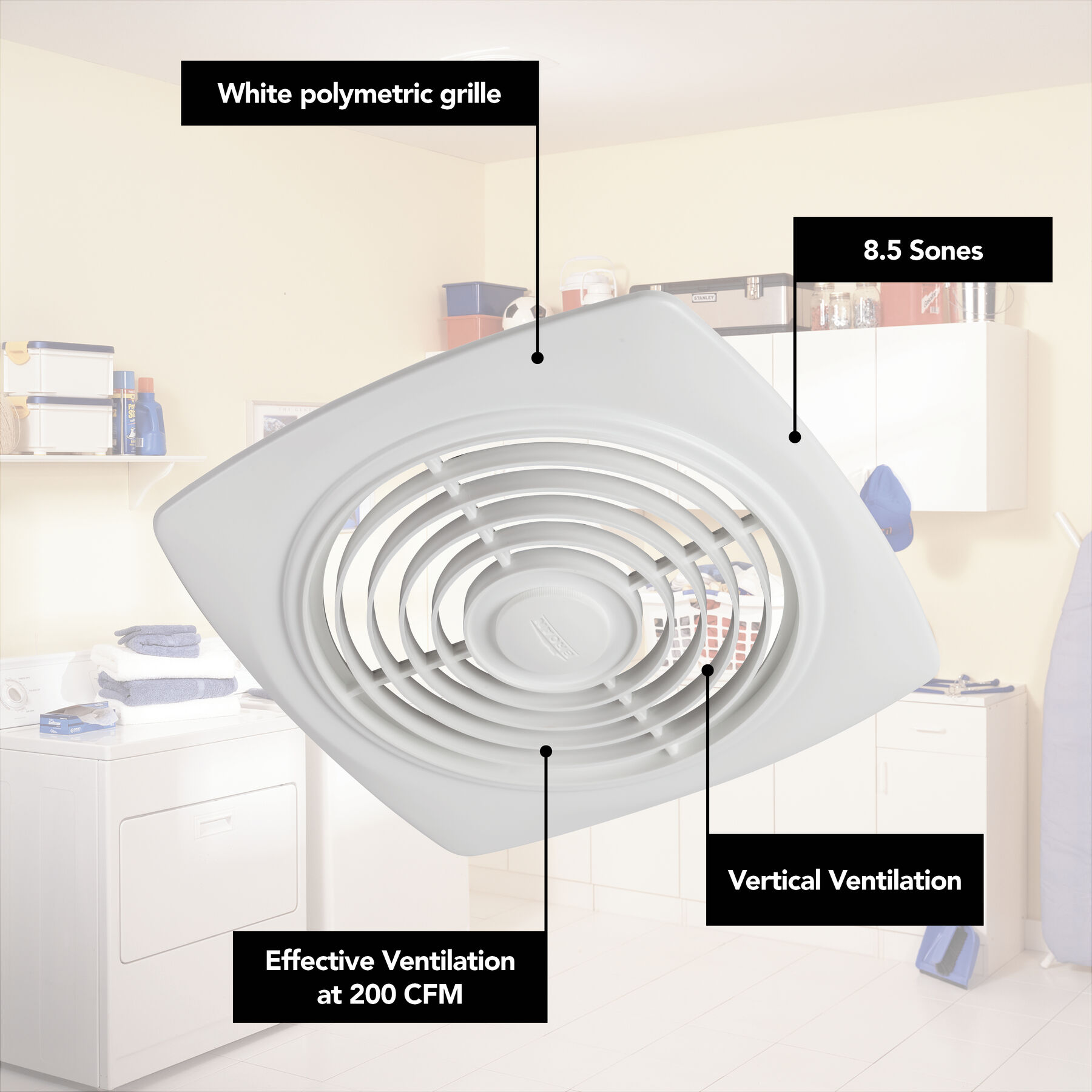

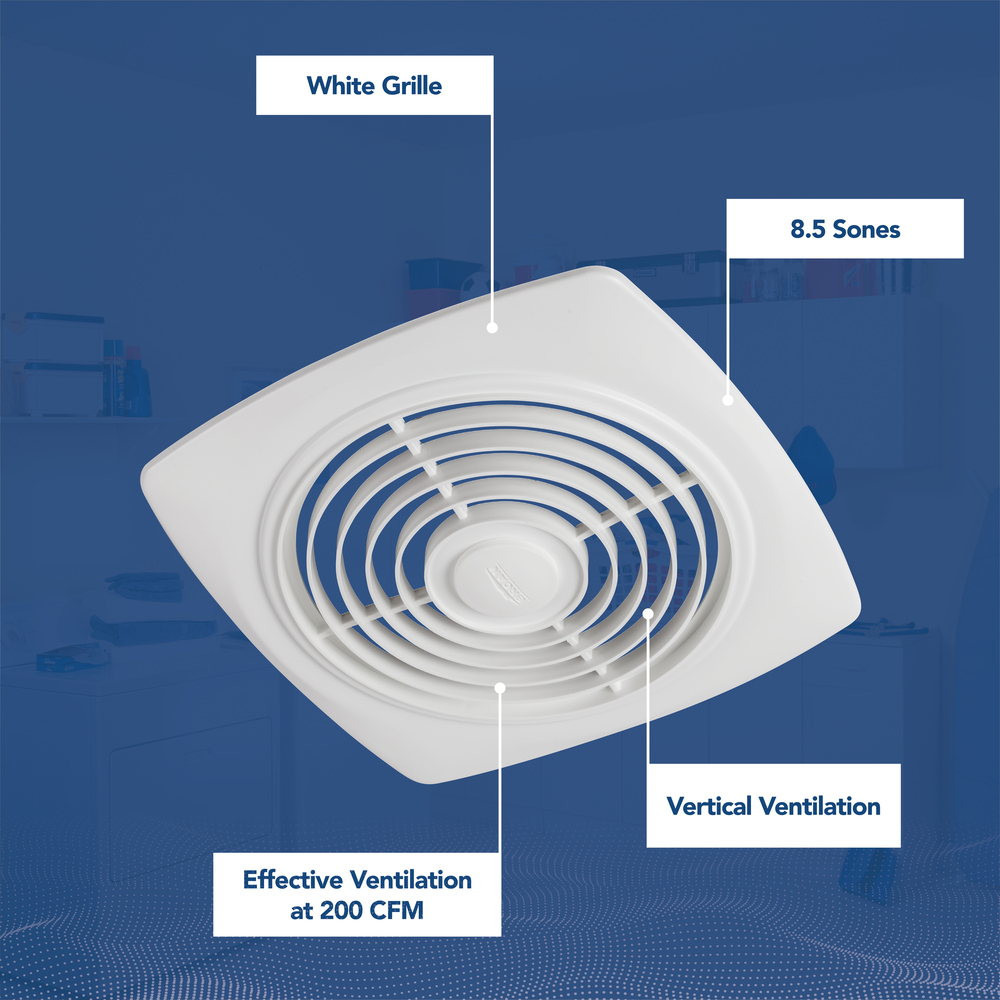

The Broan® 200 CFM Exhaust Fan in problem rooms, such as laundry rooms, kitchens or recreational rooms. The fan's permanently-lubricated motor operates at 8.5 sones for limited distribution. The fan features durable galvanized steel housing and a white polymeric grille that can be painted to match any room's decor. For fast installation, the fan offers steel mounting brackets with keyhole slots.
Model:
505
Features
![Compatible with Overture™ Connected IAQ System](https://www.broan-nutone.com/getmedia/8c24ed23-ff20-4626-8127-ed1dbb296659/OVERTURE_badge_bilingual.jpg?width=532&height=542&ext=.jpg)
Compatible with Overture™ Connected IAQ System
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed

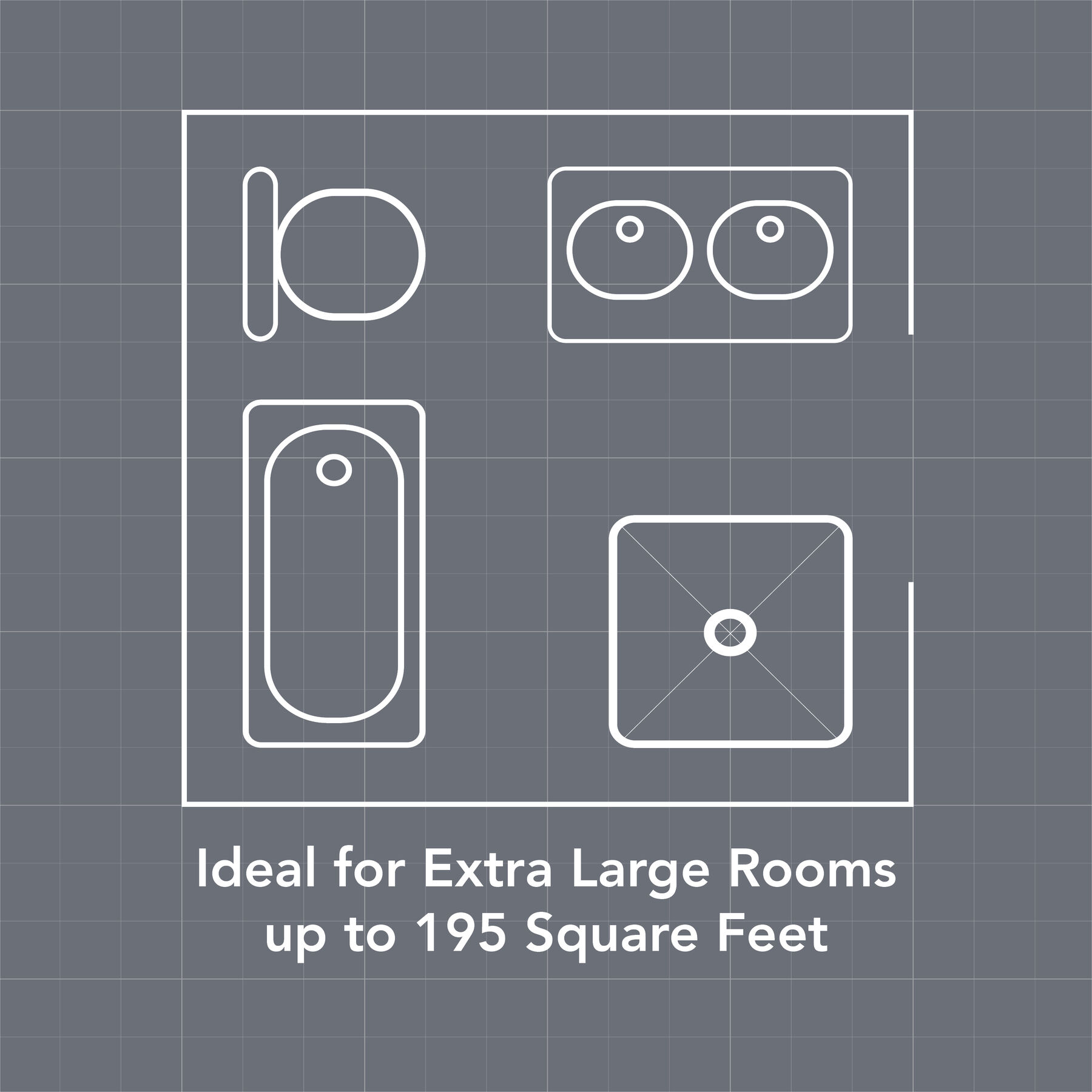

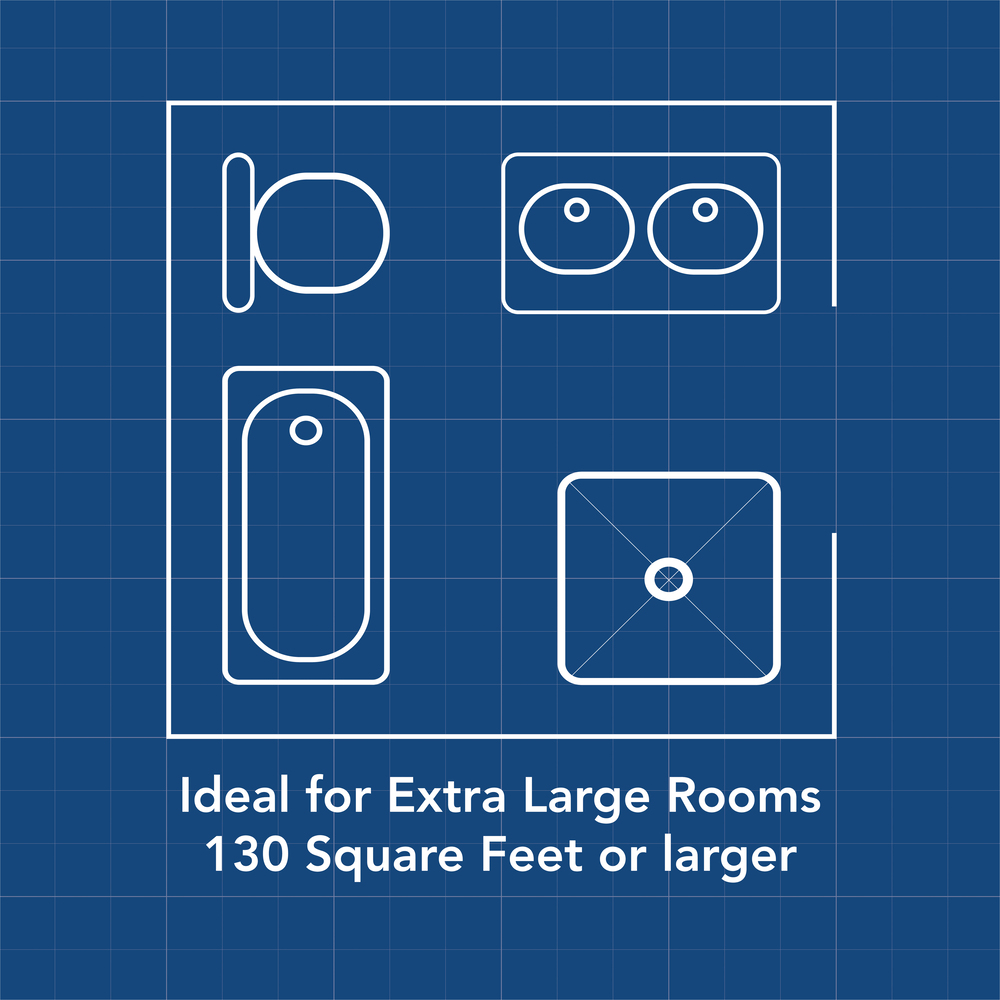

- 200 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms
- 8.5 audible sones provides powerful ventilation
- Permanently lubricated motor

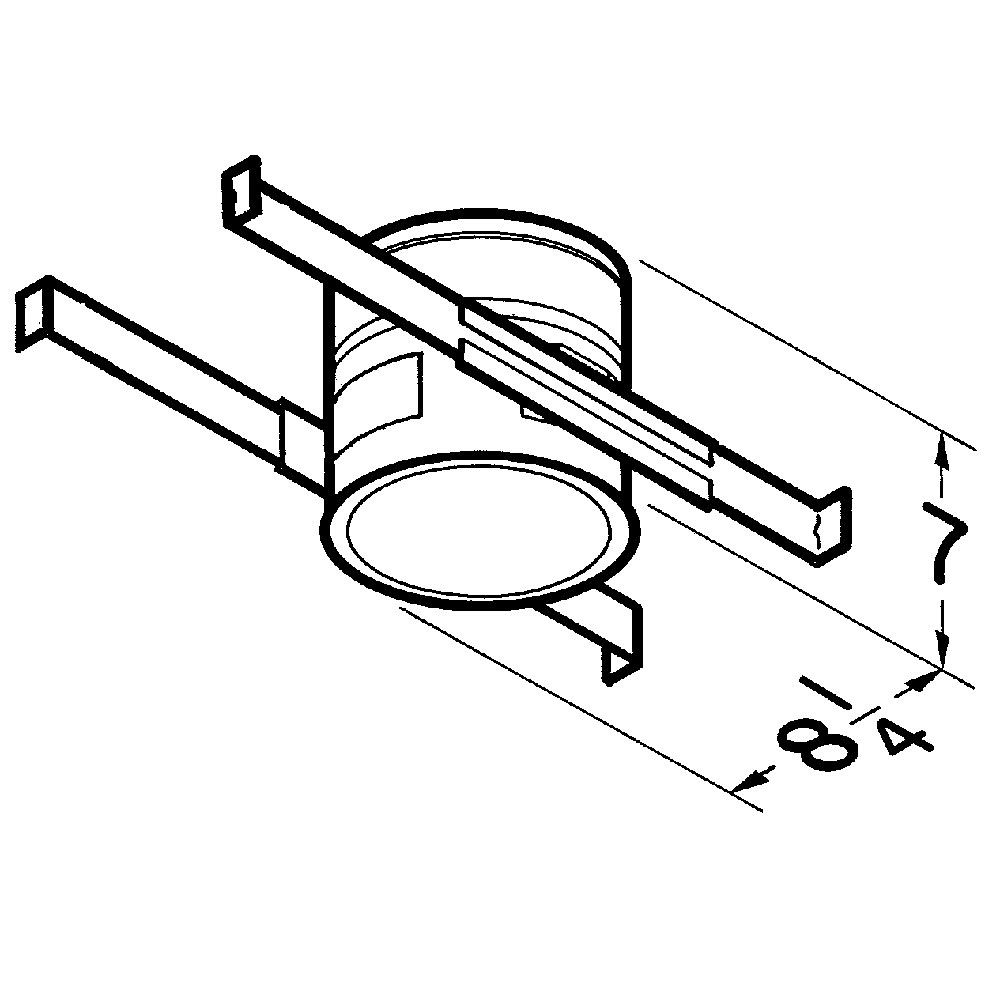

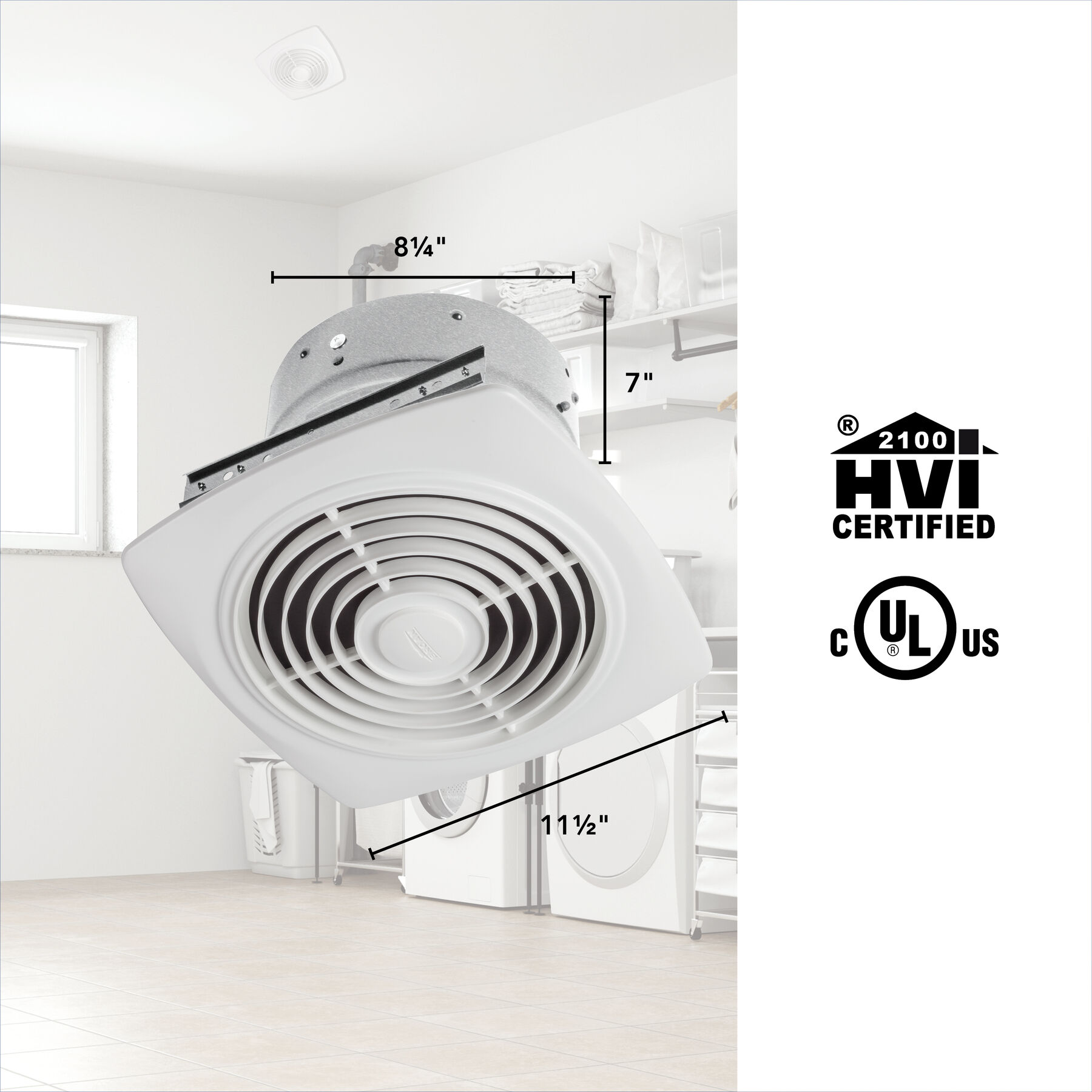

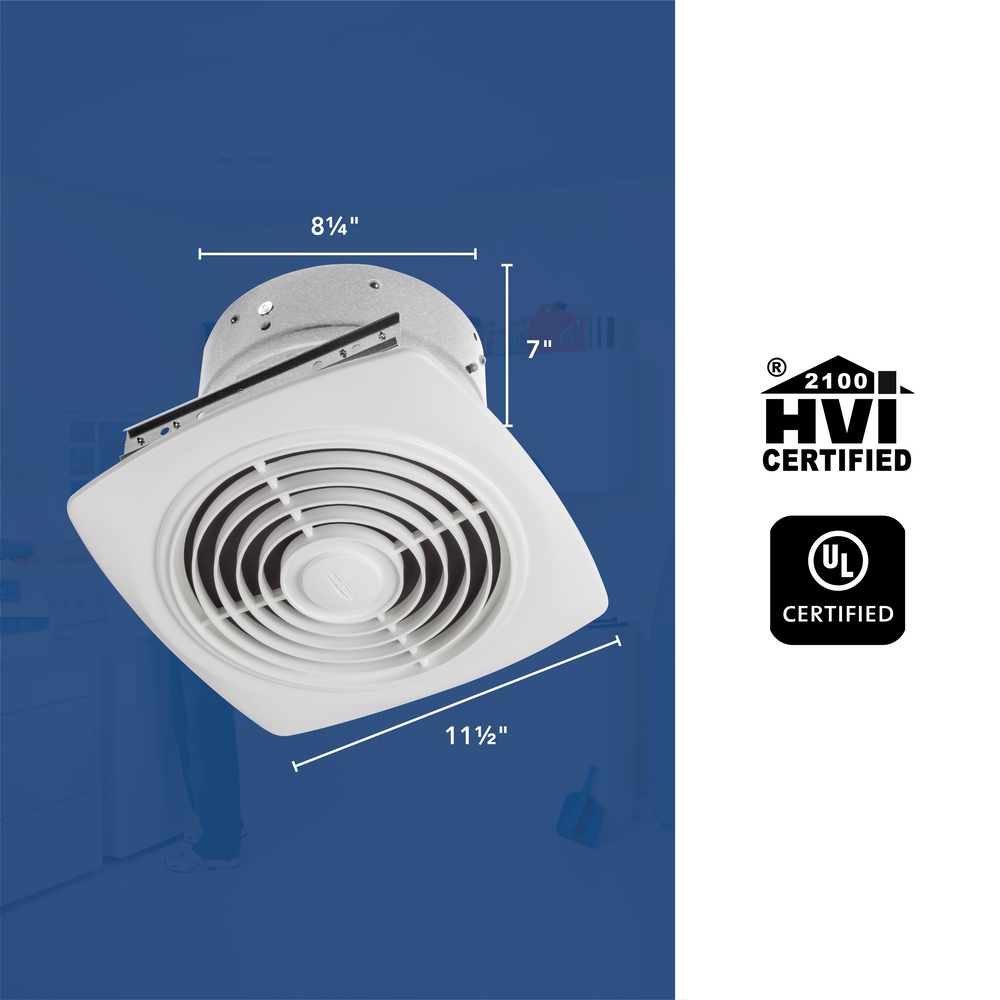

- Housing 8-1/4 in. Dia x 7 in. high
- Duct size 8 in. Dia

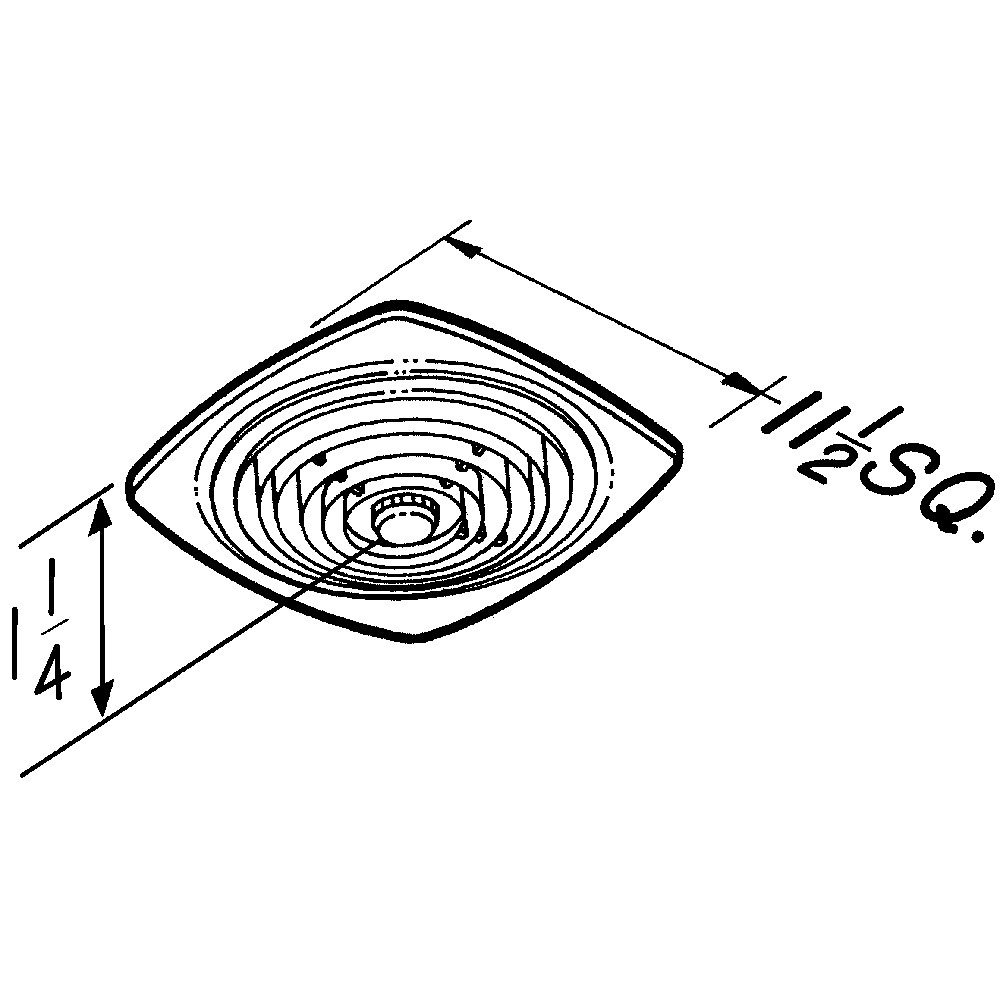

- Grille - 11.5 square
- Steel mounting brackets with keyhole slots for fast installation
- UL listed
- Galvanized steel housing for superior durability
CFM | 200 |
---|---|
Color Finish |
|
Duct Size | 8 |
ENERGY STAR® certified | No |
Grille Length | 11.5 |
Grille Width | 11.5 |
Housing Dimensions | 8-1/4" Round x 7" |
Sound Level (Sones) | 8.5 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | No |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
Heater Wattage | 0 |
Rated Amps | 1.5 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Minimum Construction Space Required | 2" x 8" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
