Product Discontinued
Broan® Elite Tenaya 1 Series Under-Cabinet Range Hood
**DISCONTINUED** Broan® Elite 30-Inch Convertible Under-Cabinet Range Hood, Stainless Steel
Features
HVI Certified
UL Listed
- Model replaced BNSC130SS
- The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sones operation at normal speed
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination. (50W bulbs sold separately.)
- Hidden on/off rocker switches controls two blower speeds and light levels
- Large dishwasher-safe, single open mesh filter provides efficient grease removal
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- Specs
- Downloads
| Filter Type | Open Mesh |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | No |
| Light Levels | 2 |
| Material | Stainless Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish |
|
| Rated Amps | 1.4 |

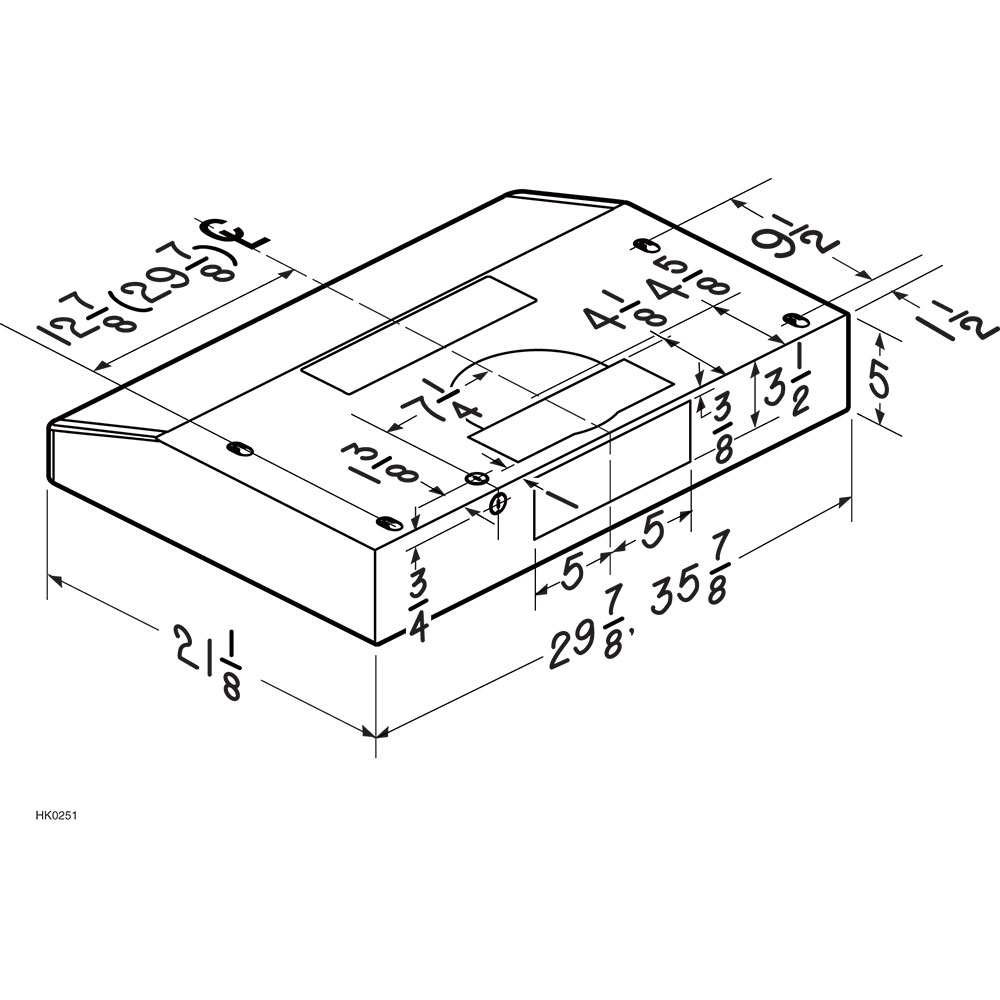

| Product Depth | 21.125 |
| Product Height | 5" |
| Product Width | 30" |
| Built-In Timer | No |
| Capture Efficiency | 97.4 |
| CFM | 250 |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | MR16 or PAR16 |
| Manufacturer Warranty | 1 Year |
| Wattage | 168 |
