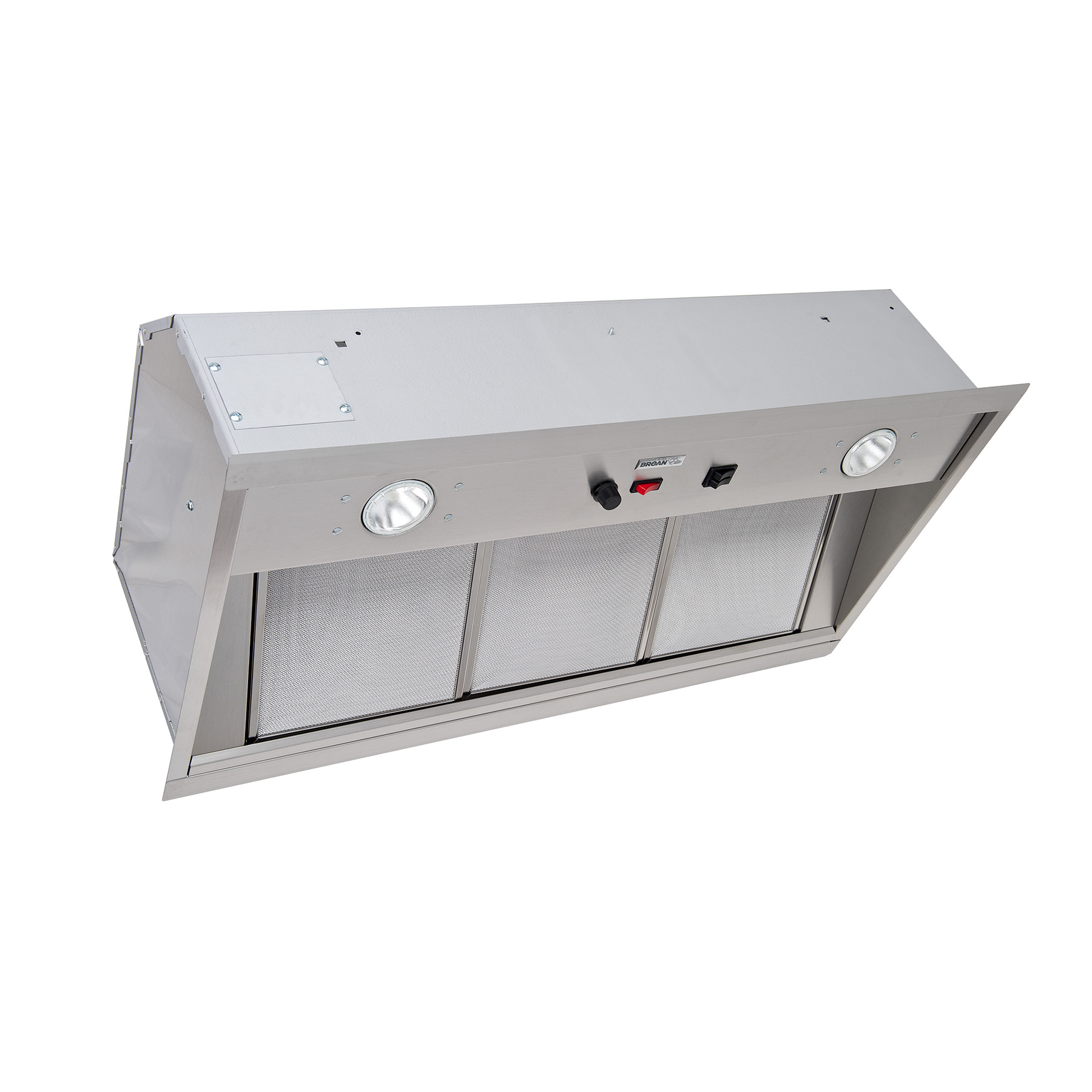

Broan® 33-Inch Pro-Style Built-In Range Hood Insert

The Broan Elite RMIP Pro-Style Insert fits flush with the bottom of the cabinet or custom hoods. Choice of internal or external centrifugal blowers from 500 to 1500 CFM with multi-speed controls provide quiet and effective performance. Halogen lighting complements the beauty of its fully-enclosed, easy to clean bottom.


Color Finish


Product Width


Model:

RMIP33

Features

  • Especially designed to be installed in custom hood for use over residential commercial-style cooking surfaces
  • Infinitely adjustable blower control is designed to provide the precise speed you need for whatever is cooking
  • Optional remote control allows you to operate the hood at your own convenience. (Sold separately.)
  • Two Halogen bulbs provide brilliant lighting over the cooktop and surrounding area (uses two 50-watt, PAR20 Bulbs - Not Included)
  • Three dishwasher-safe mesh filters are included; stainless steel baffle filters are optional and add to your hood's professional performance (RBFIP33, sold separately)
  • Optional stainless steel liners complete the custom look of your hood and protect surrounding cabinetry (RML3336S or RML3342S, sold separately). Liners allow depth adjustment from 23.5" to 26.5"
  • Heat Sentry® adjusts speed of blower to High automatically in case of excess heat, to prolong product life
  • Select the proper blower: Choose from 460 or 850 CFM Internal (P5 or P8), or External blower options: four Exterior, 600, 900, 1200 or 1500 CFM (331H, 332H, 335 or 336), or four In-Line, 280, 600, 800, or 1100 CFM (HLB3, HLB6, HLB9 or HLB11). Blowers sold separately.
  • Compatible with optional Broan Make-up Air Dampers (MD6TU or MD8TU, sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable
  • Specs
  • Downloads

print

Filter Type Stainless Steel & Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type Halogen
Sones 0
UL Listed Yes
ADA Compliance No
Damper Included No
ENERGY STAR® certified No
Light Bulb Wattage 50
Light Bulbs Included No
Light Levels 2
Material
Nightlight Or Nighlight Setting No
Non-Ducted Recirculation Capable No
Non-Ducted Filter Or Kit Included No
Remote Operation Capable No
Speed Levels Variable
Switch Control Type Rocker and Rotary
Rated Voltage 120
Boost Mode No
Country of Origin
Accommodates Ceiling Height
Color Finish
Minimum Height Above Cook Top
Rated Amps

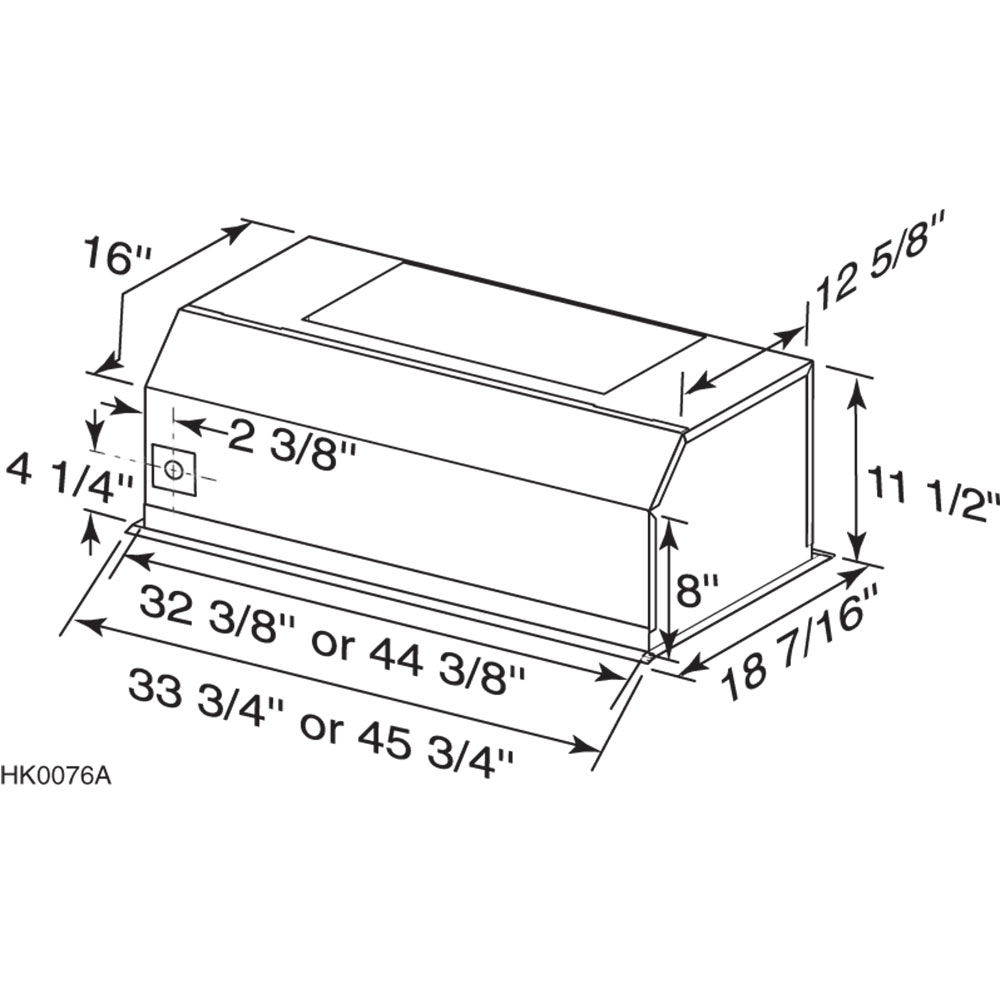

Product Depth 18.4375
Height 11.5
Product Width 33"
Built-In Timer No
Capture Efficiency
CFM
Diameter
Vent Type Ducted Only
Duct Direction Vertical
Bulb (Recommended Type) Par20
Light Color Temp
Manufacturer Warranty 1 Year
Wattage
