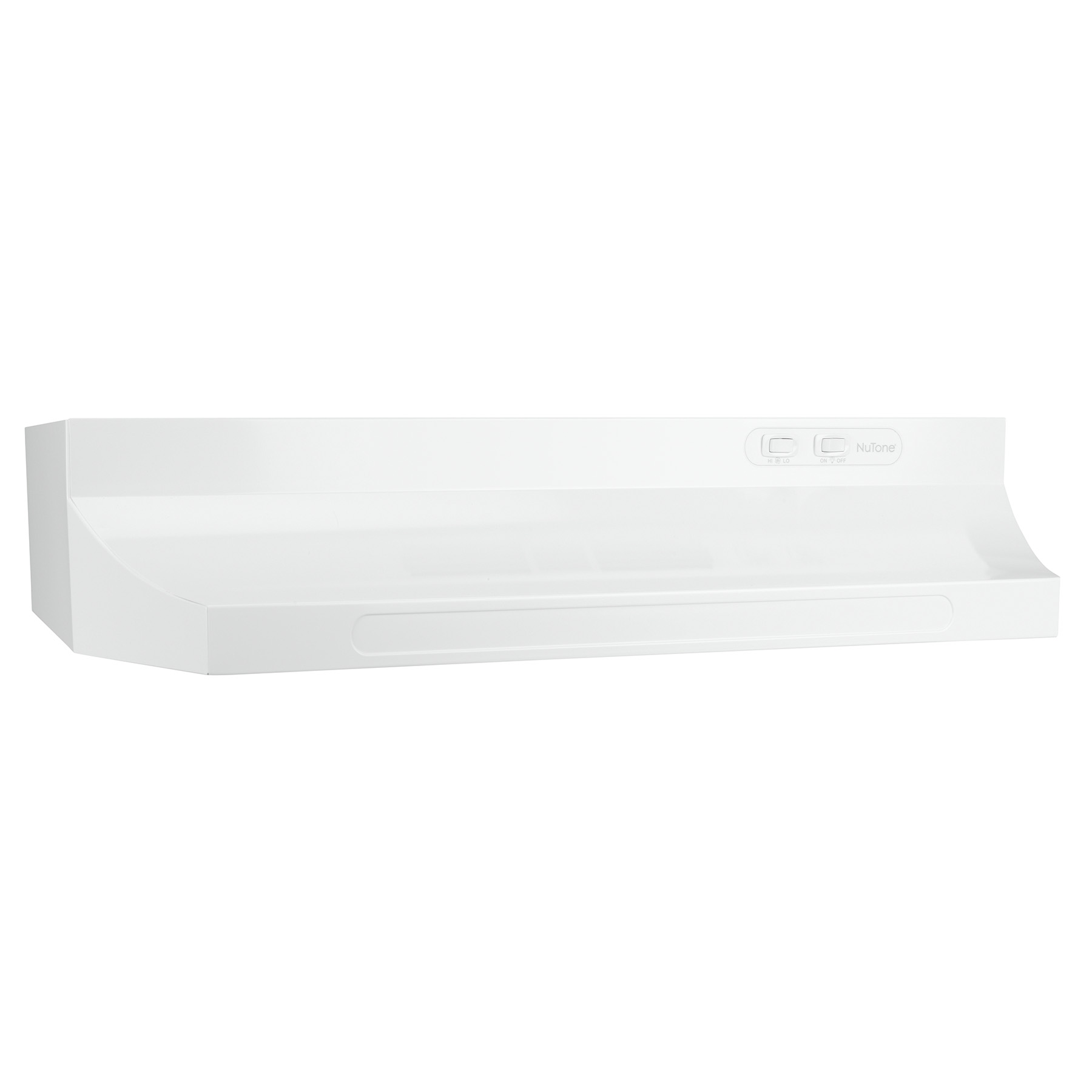

NuTone® RL6300 Series Under-Cabinet Range Hood
NuTone® 30-Inch Under-Cabinet Range Hood, White
Quality construction and ease of installation make the RL6300 the popular choice in vertically-ducted economy hoods. It has mitered sides and bottom hem for safety and good looks. It uses rocker-type switches for the fan and light. A damper can be purchased separately.
Product Width
- 30"
Model:
RL6330WH
$89.00
retailer prices may vary
Features
![HVI Certified](https://www.broan-nutone.com/getmedia/e07fbc5a-3ec8-4b01-ba12-e340f82da63d/HVILogo.PNG?width=237&height=183&ext=.png)
HVI Certified
![UL Listed](https://www.broan-nutone.com/getmedia/6201b0f3-0fd6-4b56-9b0e-6f1367e4f203/ULLogo.PNG?width=944&height=944&ext=.png)
UL Listed
- 7 in. round vertical duct for installation ease

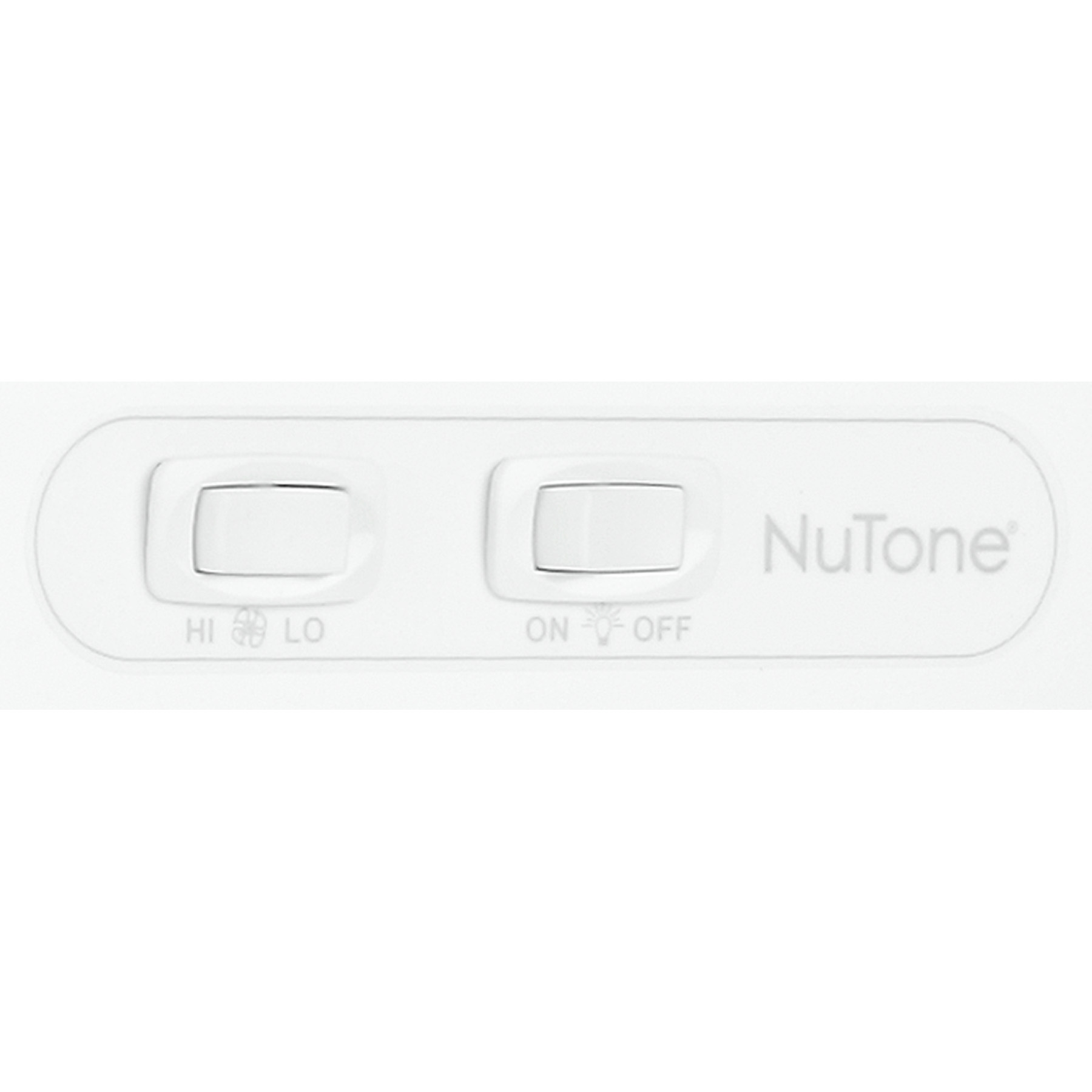

- 2 speed rocker fan control and separate light switch allows you to adjust the fan speed and the light setting
- 190 CFM blower to quickly pull smoke and cooking odors out of the air
- Dishwasher-safe aluminum grease filter for easy clean up
- Installs as 7 in. round vertically (top) ducted only for simple installation
- Separate light switch allows you to adjust the fan speed and the light setting Limited 1 year warranty for your protection
- Limited 1 year warranty for your protection
- Comparable to Broan Model 423001
- One year limited manufacturer's warranty
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Filter Type | Aluminum Mesh |
---|---|
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | Incandescent |
Sound Level (Sones) | 6 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 75 |
Light Bulbs Included | No |
Light Levels | 1 |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | Yes |
Remote Operation Capable | No |
Speed Levels | 2 |
Rated Voltage | 120 |
Boost Mode | No |
Color Finish |
|
Rated Amps | 2 |
Product Depth | 17.5 |
Product Height | 6" |
Product Width | 30" |
Built-In Timer | No |
Bulb (Recommended Type) | A19 |
Manufacturer Warranty | 1 year |
Wattage | 240 |
